Part Number
Manufacturer
Description
Unit Price
In Stock

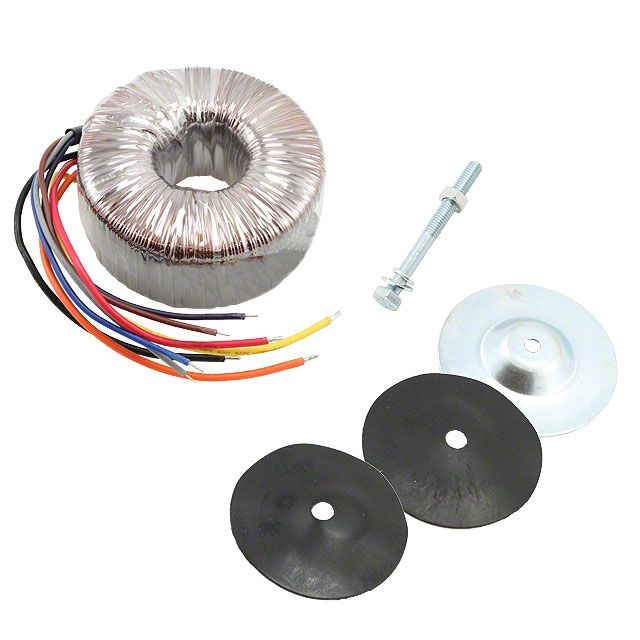

VPT24-6670
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
33 in stock

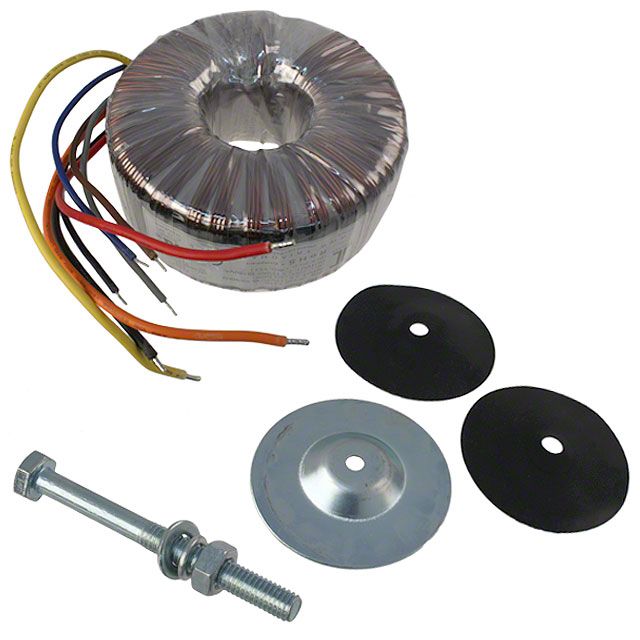

VPT30-1670
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 3.34A, Series 1.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 3.34A, Series 1.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
201 in stock

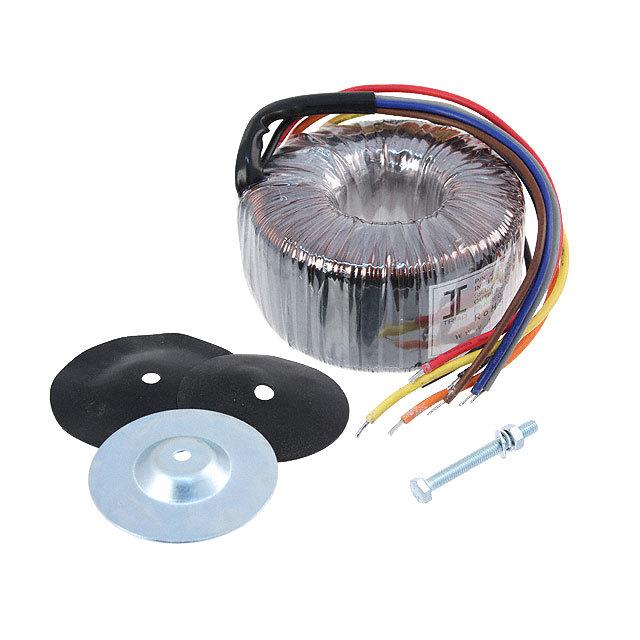

VPT30-3330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
22 in stock
VPT30-5330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
50 in stock

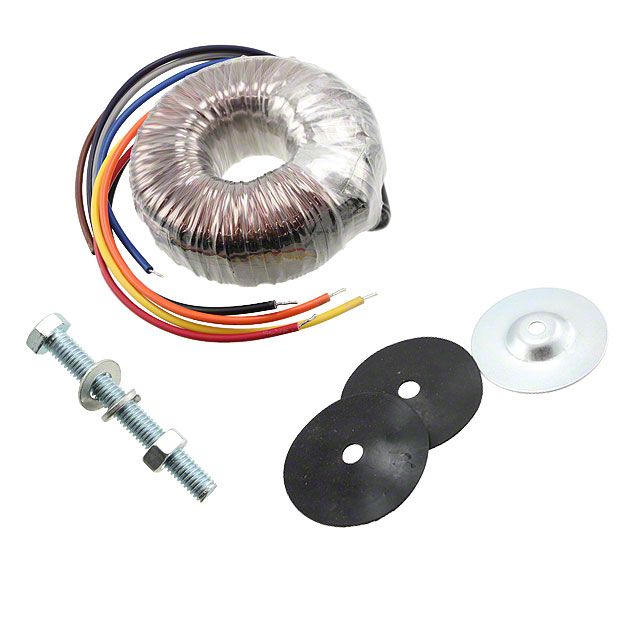

VPT30-830
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
59 in stock
VPT36-1390
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
64 in stock

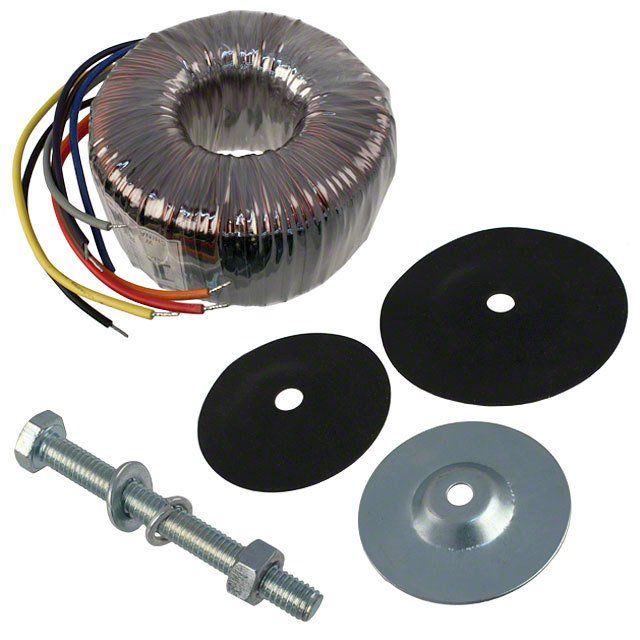

VPT36-2780
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
221 in stock

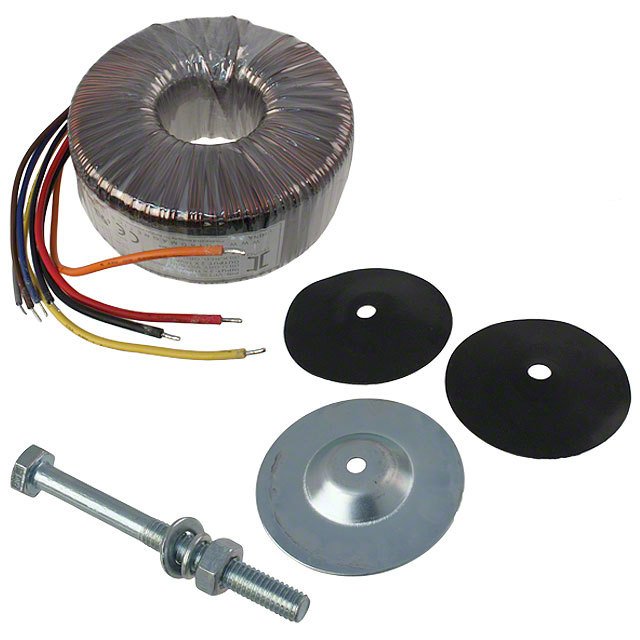

VPT36-4440
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
35 in stock

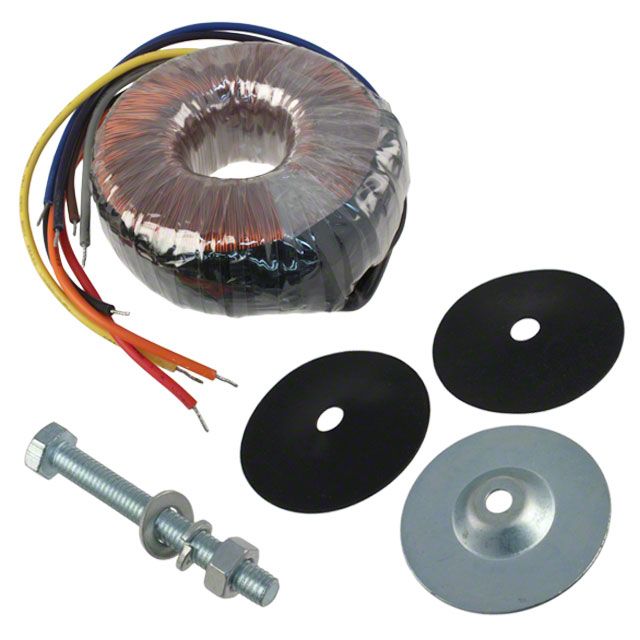

VPT36-690
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.38A, Series 690mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.38A, Series 690mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
50 in stock

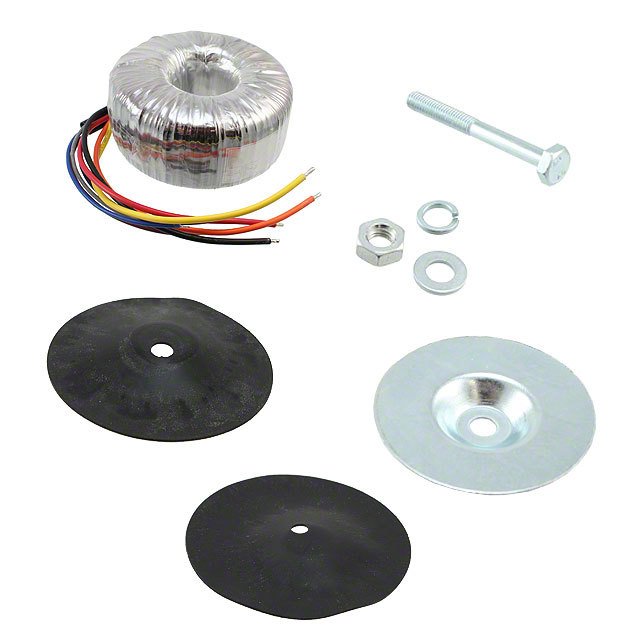

VPT36-6940
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 13.88A, Series 6.94A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 13.88A, Series 6.94A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
100 in stock
VPT48-1040
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
47 in stock

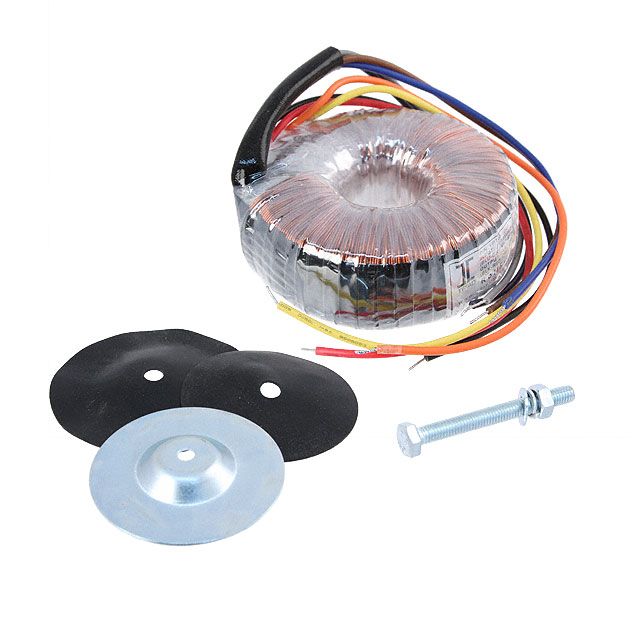

VPT48-10400
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 20.8A, Series 10.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 140.00mm Dia x 60.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 9.3 lbs (4.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 20.8A, Series 10.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 140.00mm Dia x 60.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 9.3 lbs (4.2kg)
0
189 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
