Part Number
Manufacturer
Description
Unit Price
In Stock

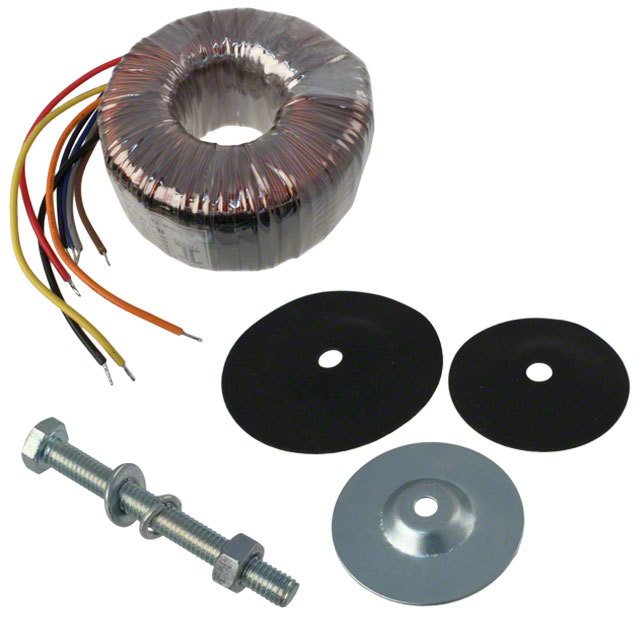

VPT48-2080
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
124 in stock

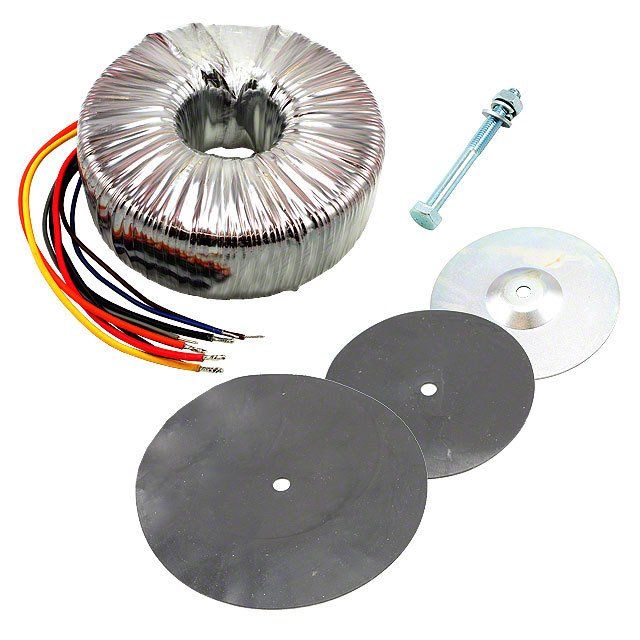

VPT48-20830
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 41.66A, Series 20.83A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 175.00mm Dia x 68.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 18 lbs (8.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 41.66A, Series 20.83A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 175.00mm Dia x 68.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 18 lbs (8.2kg)
0
9 in stock

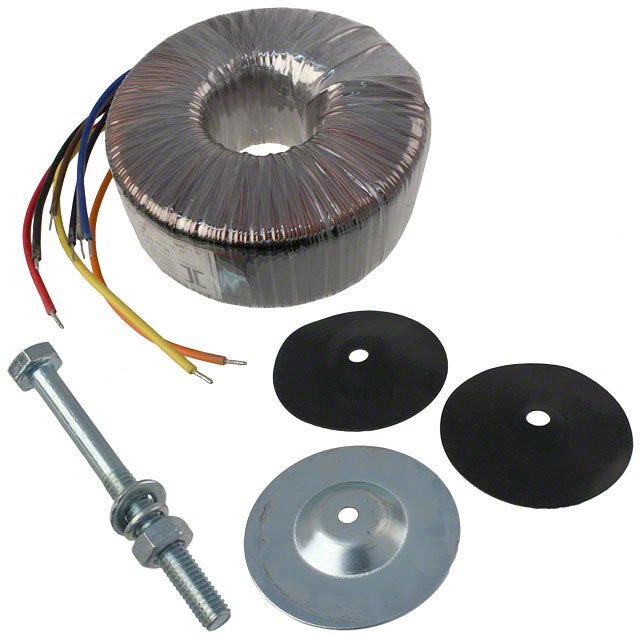

VPT48-3300
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
228 in stock

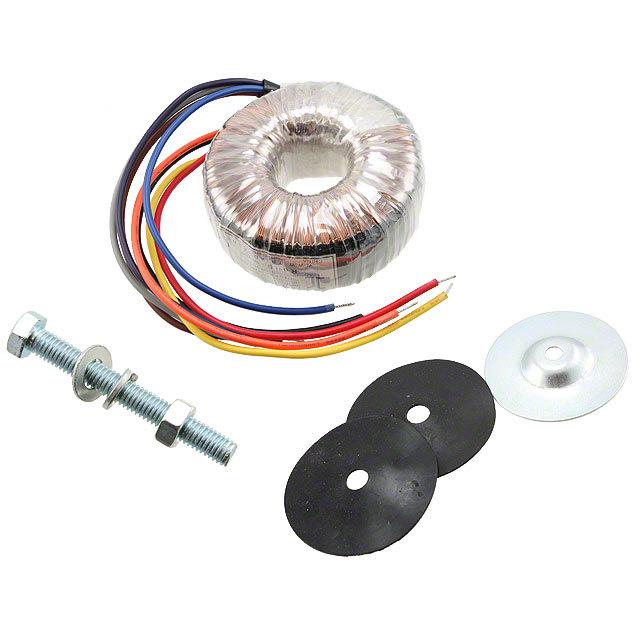

VPT48-520
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.04A, Series 520mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.04A, Series 520mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
127 in stock

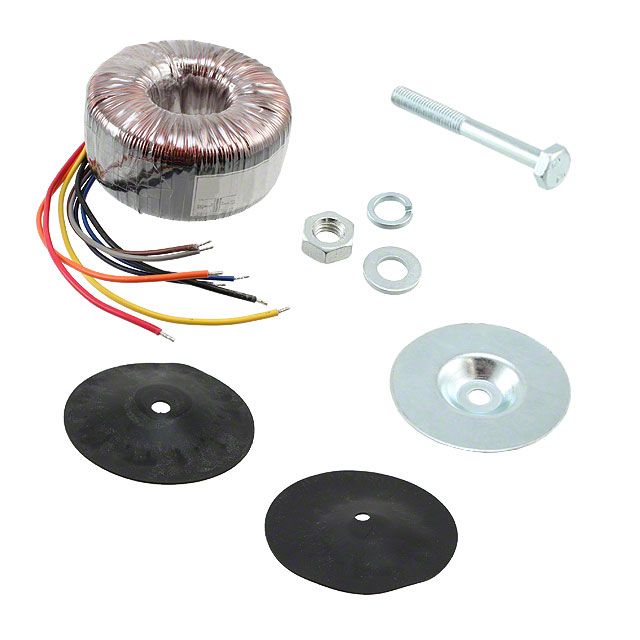

VPT48-5200
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 10.4A, Series 5.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 10.4A, Series 5.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
100 in stock
XF-00100-2012
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 8.32A, Series 4.16A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 8.32A, Series 4.16A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
0
100 in stock
XF-00100-2015
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
0
100 in stock
XF-00100-2018
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 5.54A, Series 2.77A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 5.54A, Series 2.77A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
0
100 in stock
XF-00100-2024
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
0
100 in stock
XF-00100-2030
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 3.32A, Series 1.66A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 3.32A, Series 1.66A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 45.72mm
Voltage - Isolation : 4000Vrms
Weight : 2.4 lbs (1.1kg)
0
100 in stock
XF-00160-2012
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 6.66A, Series 13.32A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 55.88mm
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 6.66A, Series 13.32A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 55.88mm
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
100 in stock
XF-00160-2015
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 55.88mm
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : -
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.52mm Dia
Height - Seated (Max) : 55.88mm
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
