Part Number
Manufacturer
Description
Unit Price
In Stock

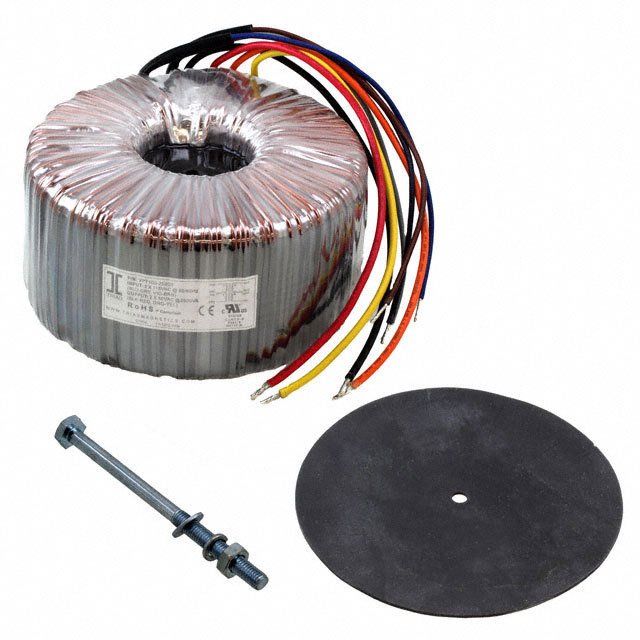

VPT230-10870
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 21.74A, Series 10.87A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 208.00mm Dia x 112.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 43 lbs (19.5kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 21.74A, Series 10.87A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 208.00mm Dia x 112.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 43 lbs (19.5kg)
0
102 in stock
VPT230-1090
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 2.18A, Series 1.09A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 2.18A, Series 1.09A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
122 in stock

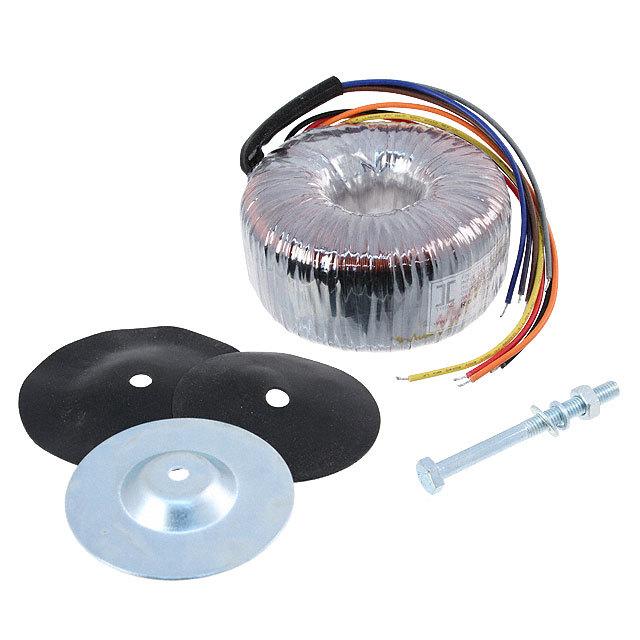

VPT230-1090-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 2.18A, Series 1.09A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 2.18A, Series 1.09A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
100 in stock

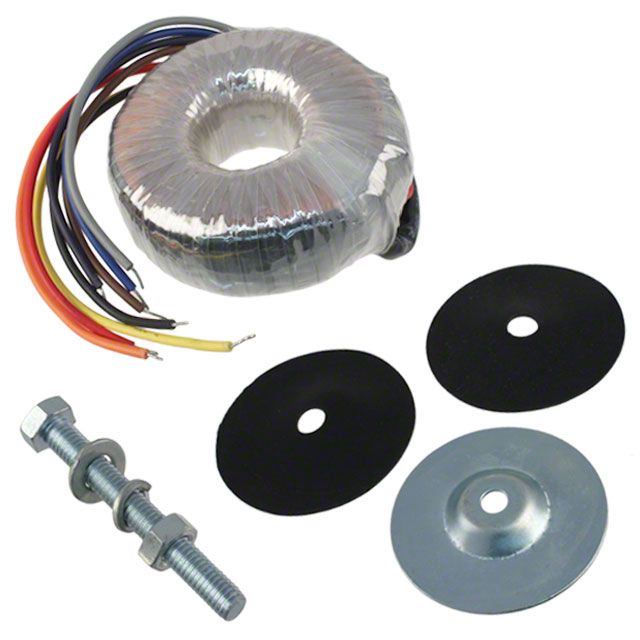

VPT230-110
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
220 in stock

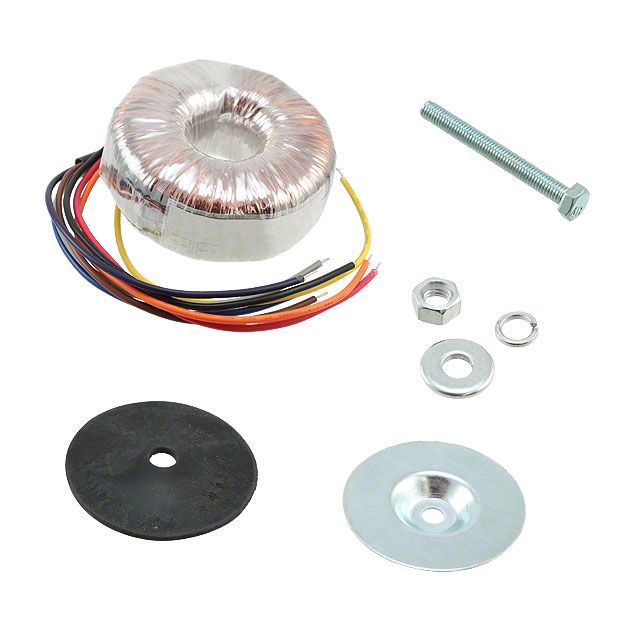

VPT230-220
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
535 in stock

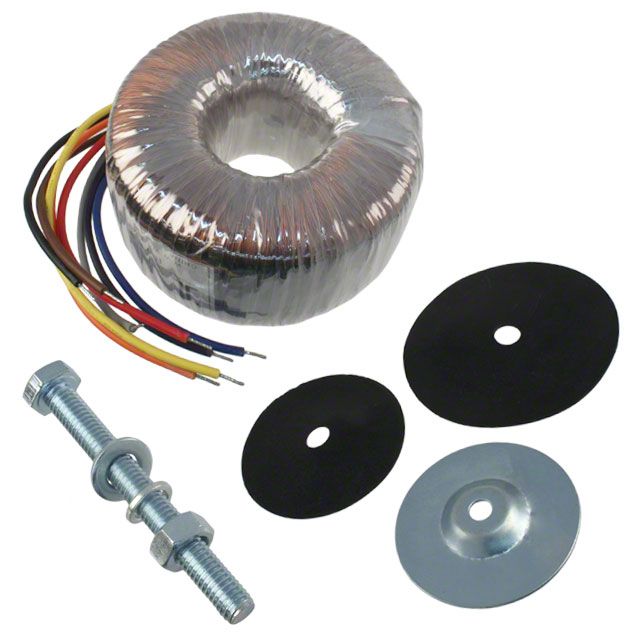

VPT230-430
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 860mA, Series 430mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 860mA, Series 430mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
63 in stock

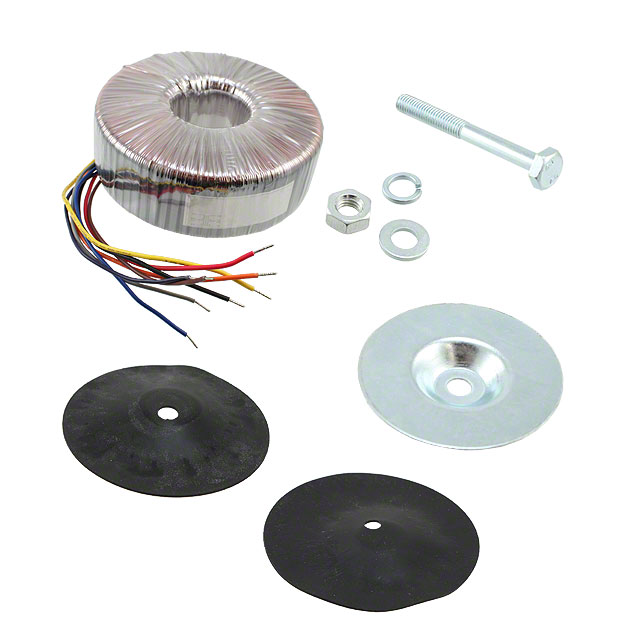

VPT230-4350
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 8.7A, Series 4.35A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 175.00mm Dia x 68.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 18 lbs (8.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 8.7A, Series 4.35A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 175.00mm Dia x 68.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 18 lbs (8.2kg)
0
109 in stock

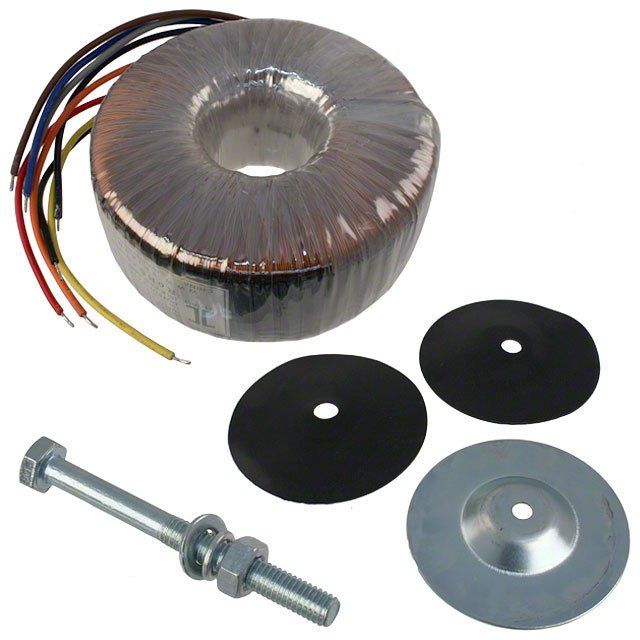

VPT230-700
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 1.4A, Series 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 115V, Series 230V
Current - Output (Max) : Parallel 1.4A, Series 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
24 in stock

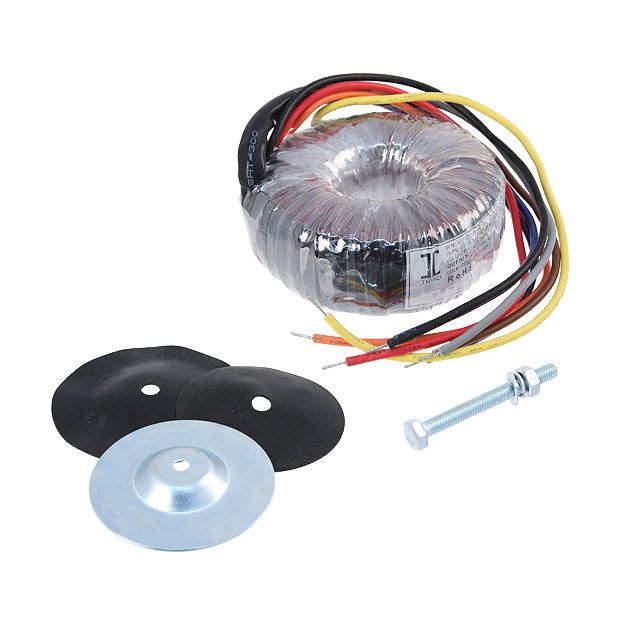

VPT24-1040
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
53 in stock

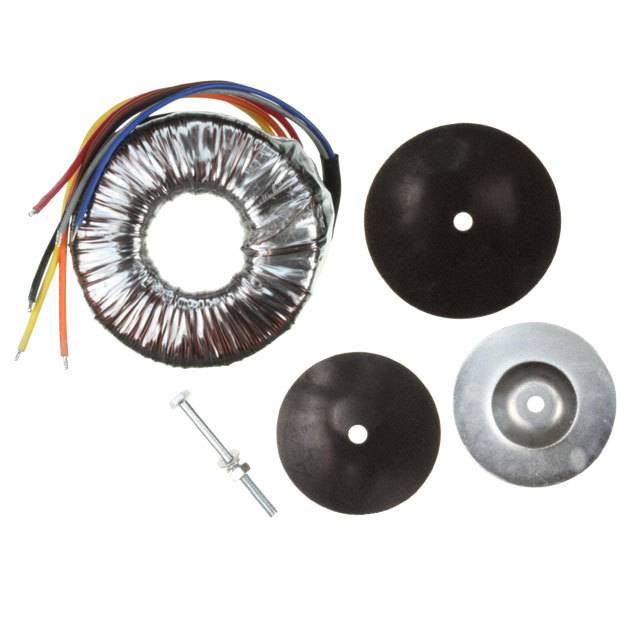

VPT24-10420
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 20.84A, Series 10.42A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 20.84A, Series 10.42A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
192 in stock
VPT24-2080
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
76 in stock
VPT24-4170
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
102 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
