Part Number
Manufacturer
Description
Unit Price
In Stock

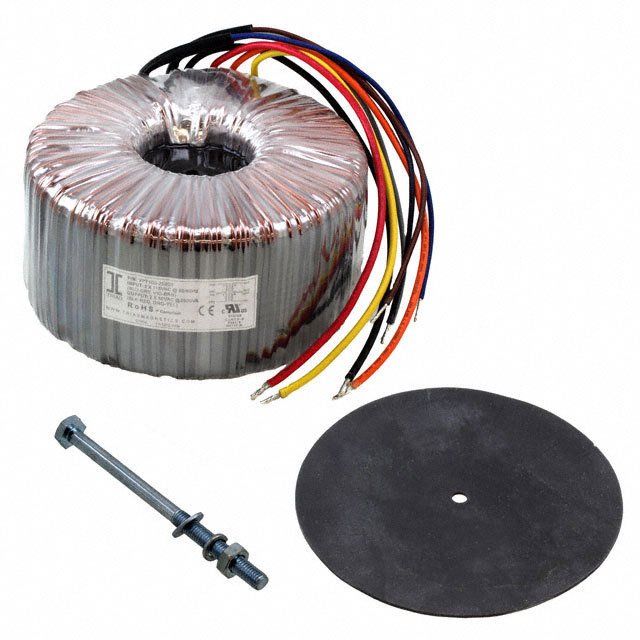

VPT100-25000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 50A, Series 25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 208.00mm Dia x 112.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 43 lbs (19.5kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 50A, Series 25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 208.00mm Dia x 112.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 43 lbs (19.5kg)
0
21 in stock

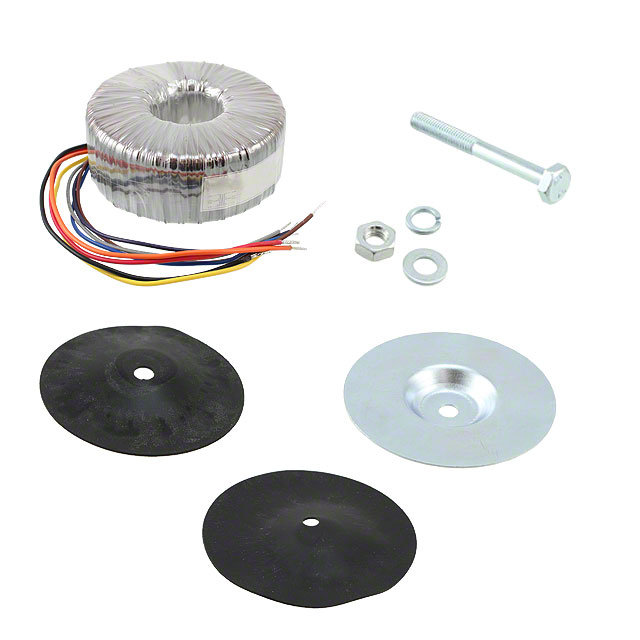

VPT100-5000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 140.00mm Dia x 60.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 9.3 lbs (4.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 140.00mm Dia x 60.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 9.3 lbs (4.2kg)
0
22 in stock

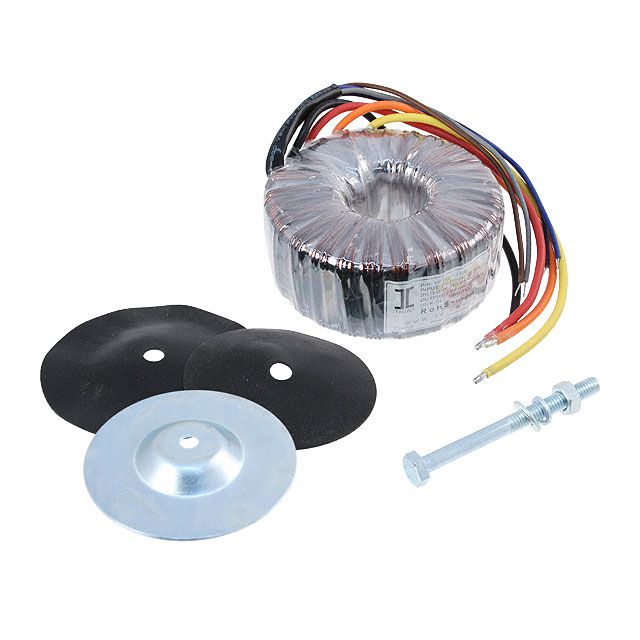

VPT12-13300
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 26.6A, Series 13.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 26.6A, Series 13.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
67 in stock

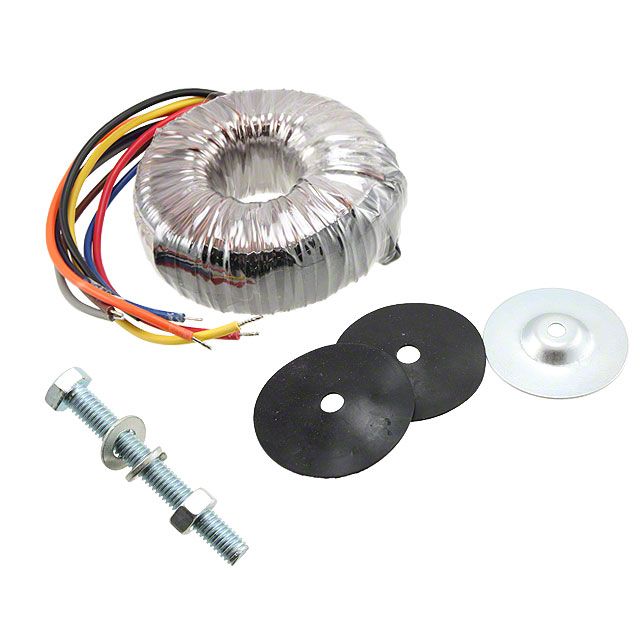

VPT12-2080
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
63 in stock

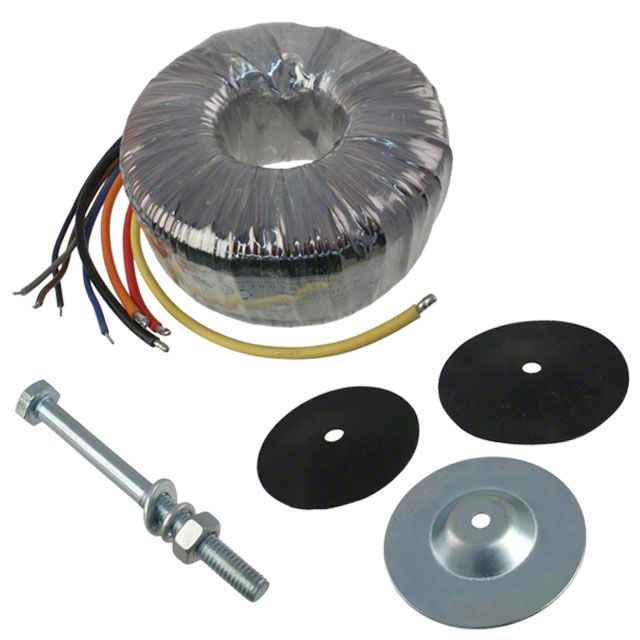

VPT12-20800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
25 in stock

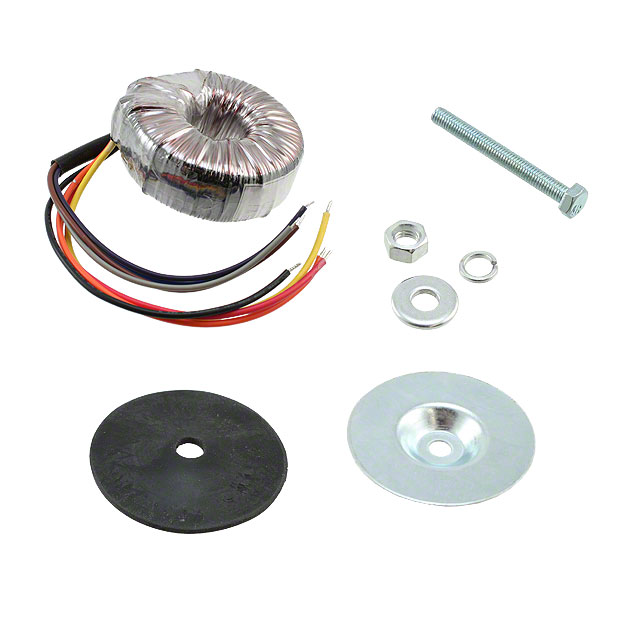

VPT12-4170
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
76 in stock

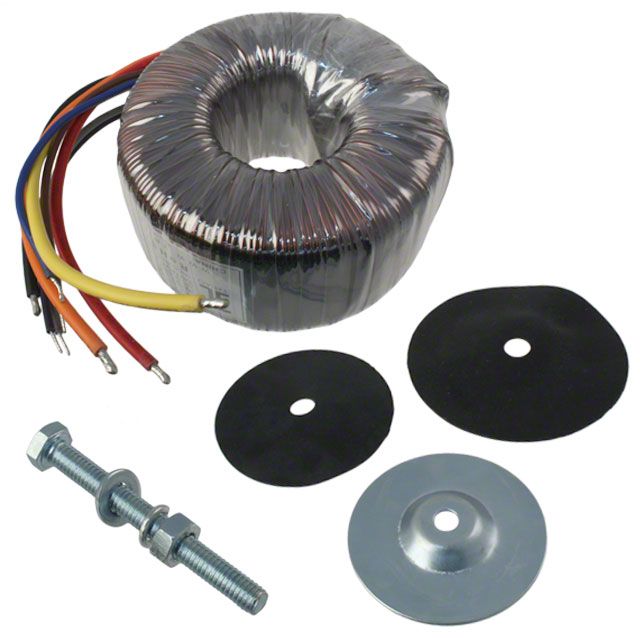

VPT12-8330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 16.66A, Series 8.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 16.66A, Series 8.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
2 in stock

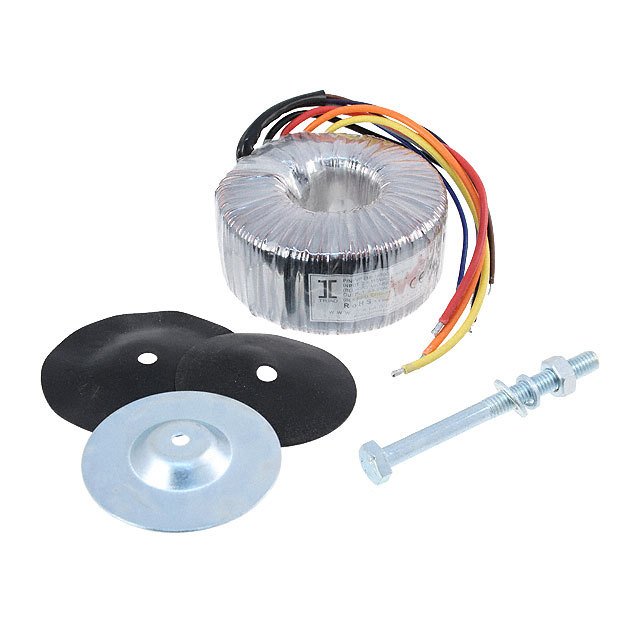

VPT18-13800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 27.6A, Series 13.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 27.6A, Series 13.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 112.00mm Dia x 54.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 4.9 lbs (2.2kg)
0
7 in stock
VPT18-1390
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.00mm Dia x 32.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 0.882 lb (400.07g)
0
74 in stock

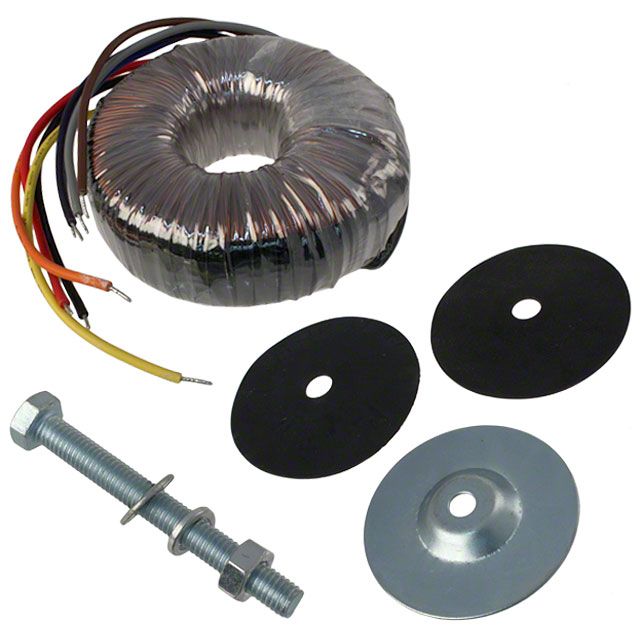

VPT18-2780
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.00mm Dia x 33.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 1.4 lbs (635g)
0
72 in stock
VPT18-5560
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 11.12A, Series 5.56A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 11.12A, Series 5.56A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.00mm Dia x 47.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 2.2 lbs (997.9g)
0
106 in stock
VPT18-8800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 103.00mm Dia x 48.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 3.6 lbs (1.6kg)
0
5 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
