Part Number

Manufacturer

Description

Unit Price

In Stock

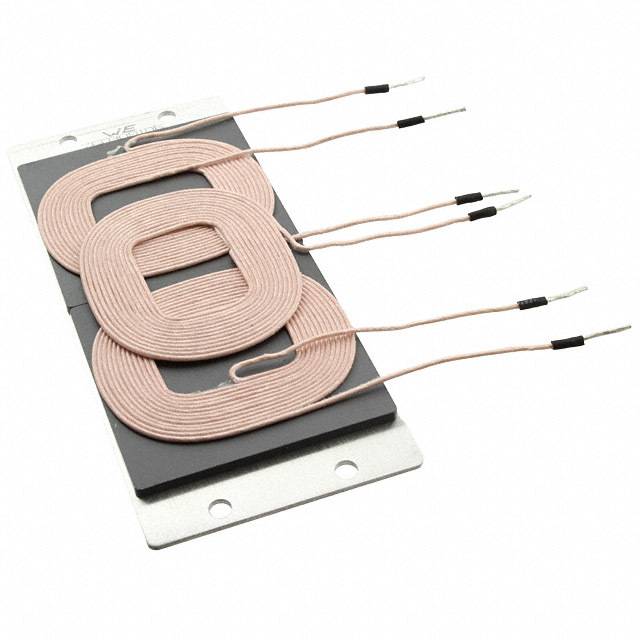

760308106

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 3 Coil, 1 Layer
Inductance : 12.5µH, 11.5µH, 12.5µH
Tolerance : -
DC Resistance (DCR) : 65 mOhm
Q @ Freq : 140 @ 125kHz
Current Rating : 10A
Current - Saturation : 10A
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 5.118" L x 0.276" W x 2.154" H (130.00mm x 7.00mm x 54.70mm)

12 in stock

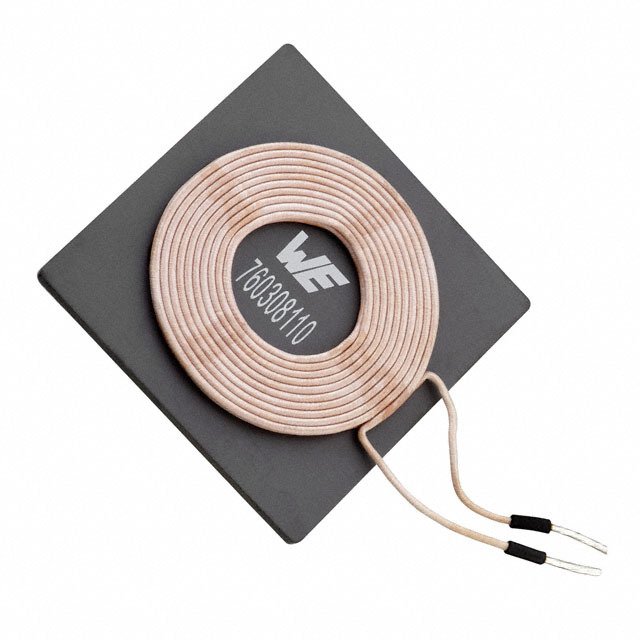

760308110

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 180 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)

320 in stock

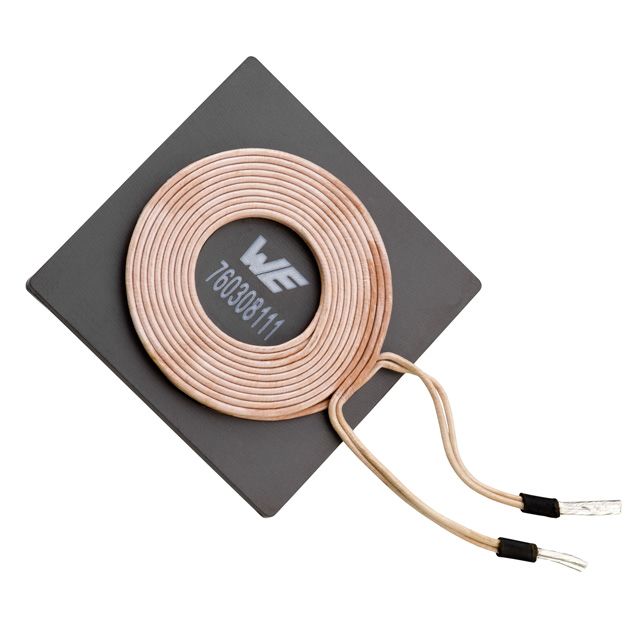

760308111

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : 80 @ 125kHz
Current Rating : 13A
Current - Saturation : 16A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)

100 in stock

760308141

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : 140 @ 125kHz
Current Rating : 9A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)

140 in stock

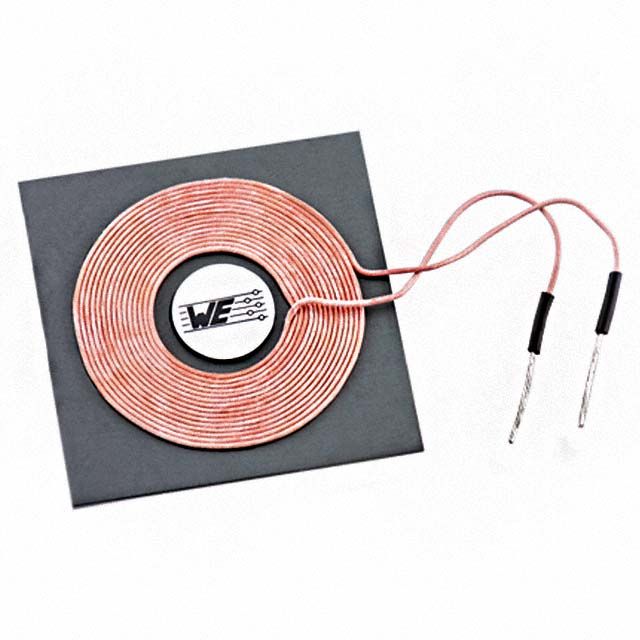

760308201

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±5%
DC Resistance (DCR) : 200 mOhm Max
Q @ Freq : 50 @ 125kHz
Current Rating : 3.5A
Current - Saturation : 8A
Frequency - Self Resonant : 15MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)

529 in stock

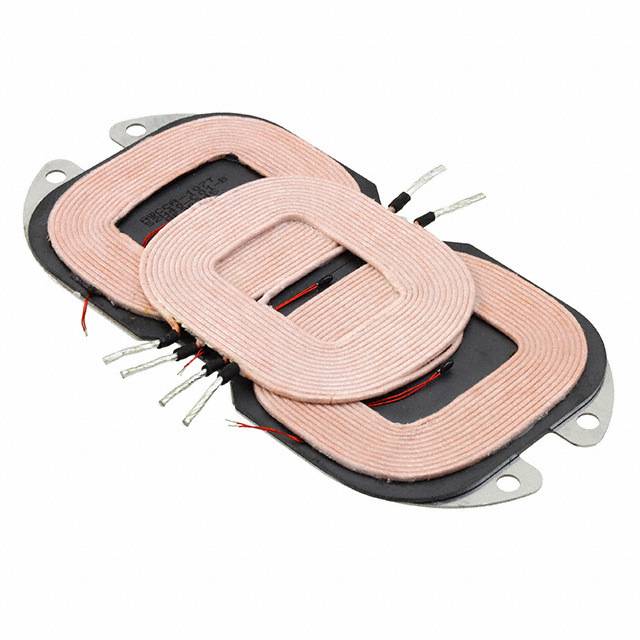

AWCCA-107T52H40-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA-107T52
Part Status : Active
Function : Transmitter
Type : 3 Coil, 1 Layer
Inductance : 11.5µH, 12µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm
Q @ Freq : 80 @ 100kHz
Current Rating : 7.5A
Current - Saturation : 18A
Frequency - Self Resonant : 7MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm)

72 in stock

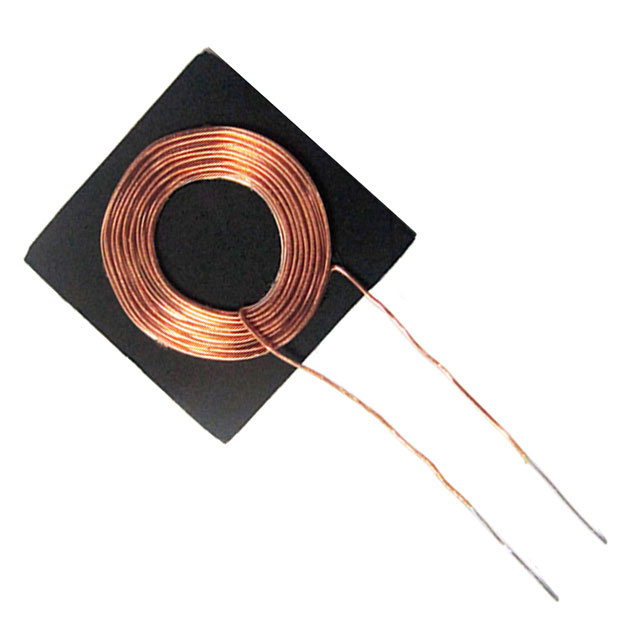

AWCCA-12R12H11-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 8µH
Tolerance : ±10%
DC Resistance (DCR) : 520 mOhm
Q @ Freq : 10 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm)

143 in stock

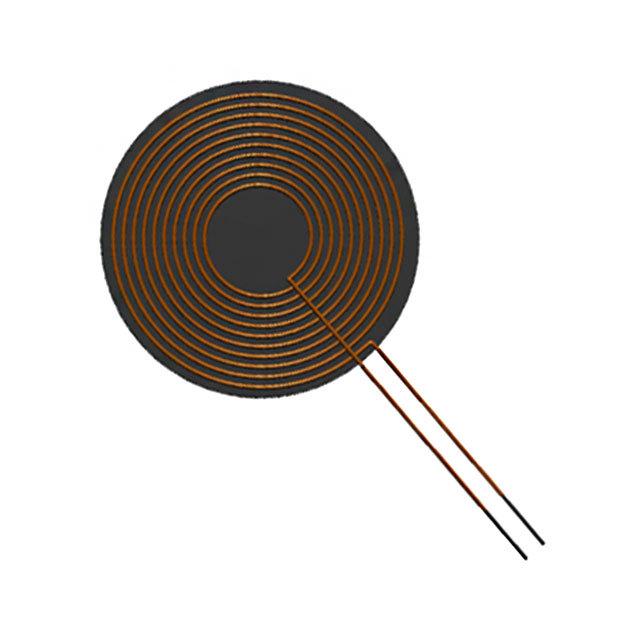

AWCCA-15N15H06-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 14.9µH
Tolerance : ±10%
DC Resistance (DCR) : 1 Ohm
Q @ Freq : 8.5 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 0.59" Dia x 0.02" H (15.0mm x 0.6mm)

100 in stock

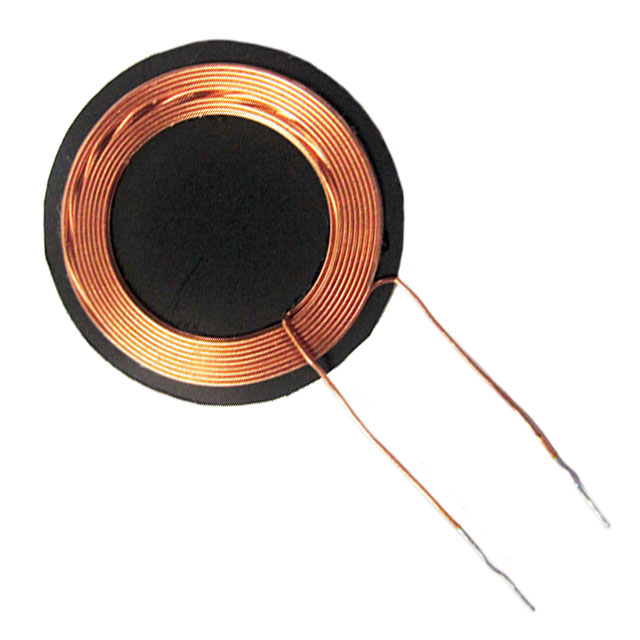

AWCCA-18R18H10-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10.5µH
Tolerance : ±10%
DC Resistance (DCR) : 330 mOhm
Q @ Freq : 17 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 0.72" Dia x 0.04" H (18.3mm x 1.0mm)

61 in stock

AWCCA-20N20H20-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 150 mOhm
Q @ Freq : 34 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 0.79" Dia x 0.08" H (20.0mm x 2.0mm)

669 in stock

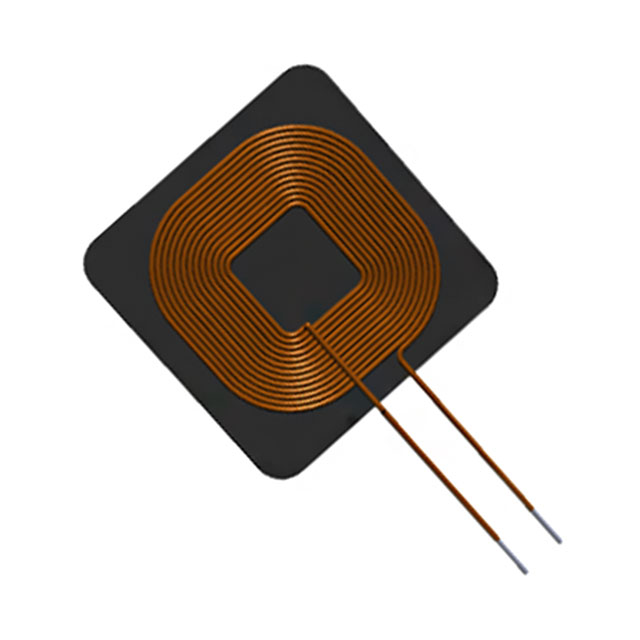

AWCCA-20R20H08-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 290 mOhm
Q @ Freq : 20 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm)

322 in stock

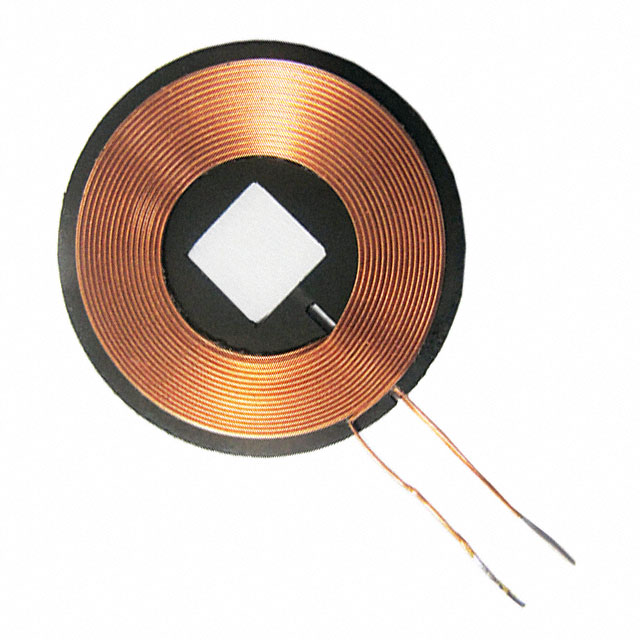

AWCCA-26R26H08-C01-B

Abracon LLC.

Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 320 mOhm
Q @ Freq : 18.5 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.024" Dia x 0.032" W (26.00mm x 0.80mm)

651 in stock
