Part Number
Manufacturer
Description
Unit Price
In Stock

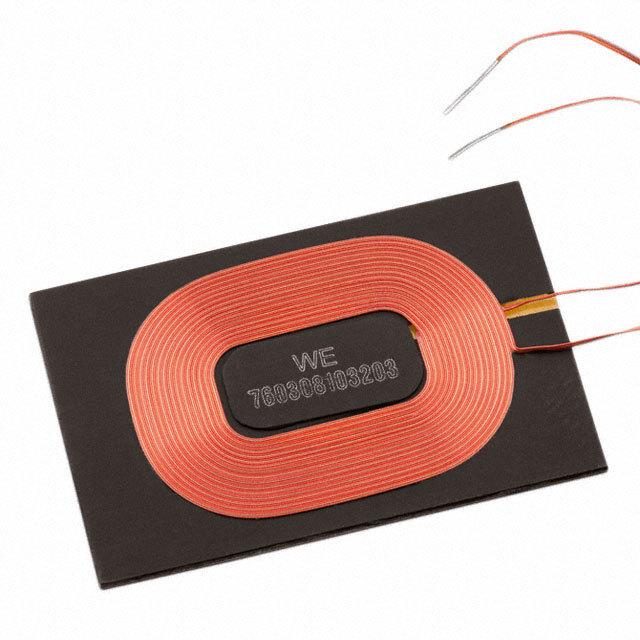

760308103203
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 550 mOhm
Q @ Freq : 21 @ 125kHz
Current Rating : 1.55A
Current - Saturation : 3A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 550 mOhm
Q @ Freq : 21 @ 125kHz
Current Rating : 1.55A
Current - Saturation : 3A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)
0
21 in stock

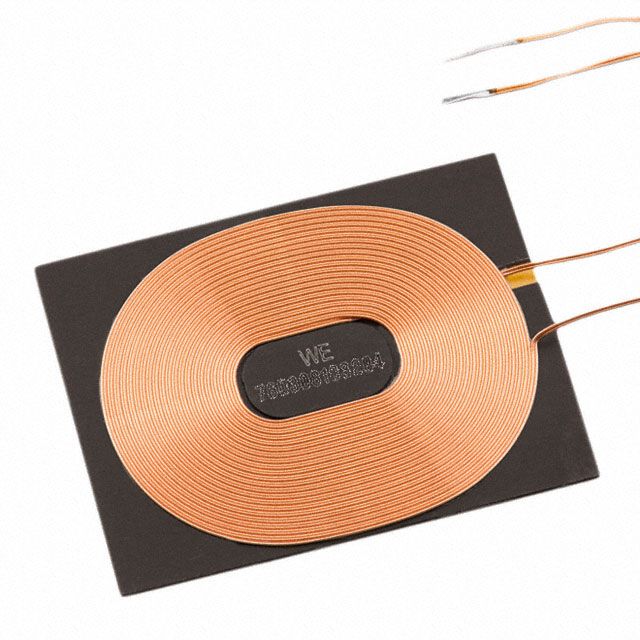

760308103204
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 16.7µH
Tolerance : ±10%
DC Resistance (DCR) : 430 mOhm
Q @ Freq : 32 @ 125kHz
Current Rating : 1A
Current - Saturation : 4A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 16.7µH
Tolerance : ±10%
DC Resistance (DCR) : 430 mOhm
Q @ Freq : 32 @ 125kHz
Current Rating : 1A
Current - Saturation : 4A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm)
0
67 in stock

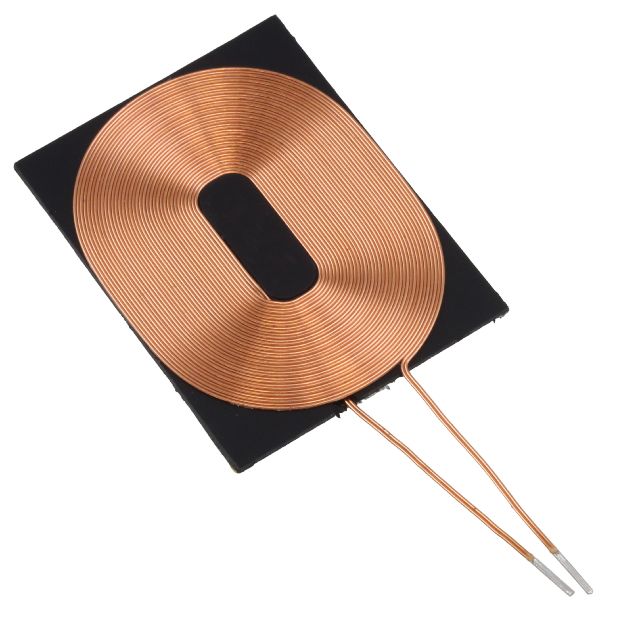

760308103205
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11µH
Tolerance : ±10%
DC Resistance (DCR) : 180 mOhm
Q @ Freq : 30 @ 125kHz
Current Rating : 2.5A
Current - Saturation : 4A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.34" L x 1.04" W x 0.04" H (34.00mm x 26.50mm x 0.89mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11µH
Tolerance : ±10%
DC Resistance (DCR) : 180 mOhm
Q @ Freq : 30 @ 125kHz
Current Rating : 2.5A
Current - Saturation : 4A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.34" L x 1.04" W x 0.04" H (34.00mm x 26.50mm x 0.89mm)
0
850 in stock

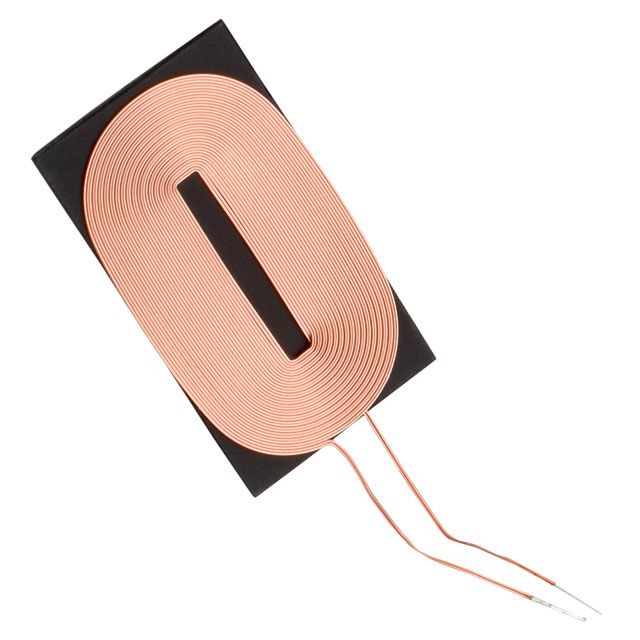

760308103206
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.5µH
Tolerance : ±10%
DC Resistance (DCR) : 340 mOhm
Q @ Freq : 16 @ 125kHz
Current Rating : 1.55A
Current - Saturation : 3A
Frequency - Self Resonant : 23MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.10" L x 0.59" W x 0.03" H (28mm x 15.0mm x 0.7mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.5µH
Tolerance : ±10%
DC Resistance (DCR) : 340 mOhm
Q @ Freq : 16 @ 125kHz
Current Rating : 1.55A
Current - Saturation : 3A
Frequency - Self Resonant : 23MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.10" L x 0.59" W x 0.03" H (28mm x 15.0mm x 0.7mm)
0
541 in stock

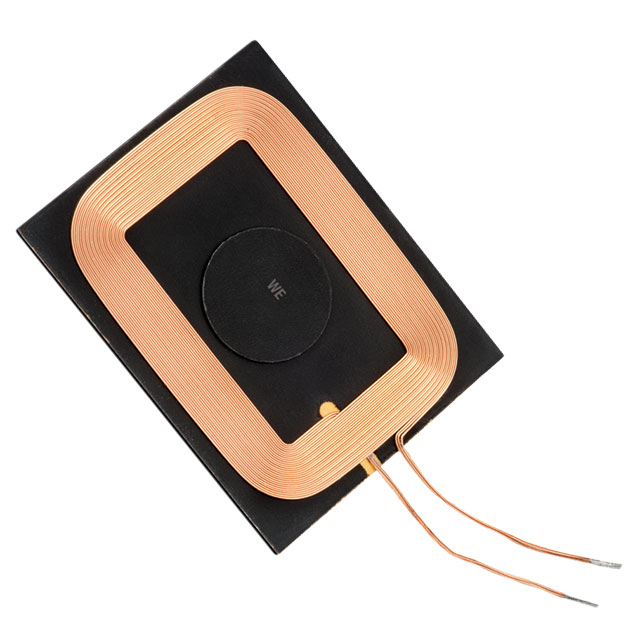

760308103211
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.3µH
Tolerance : ±10%
DC Resistance (DCR) : 200 mOhm Max
Q @ Freq : 28 @ 125kHz
Current Rating : 2.5A
Current - Saturation : 5A
Frequency - Self Resonant : 12.7MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.3µH
Tolerance : ±10%
DC Resistance (DCR) : 200 mOhm Max
Q @ Freq : 28 @ 125kHz
Current Rating : 2.5A
Current - Saturation : 5A
Frequency - Self Resonant : 12.7MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm)
0
111 in stock

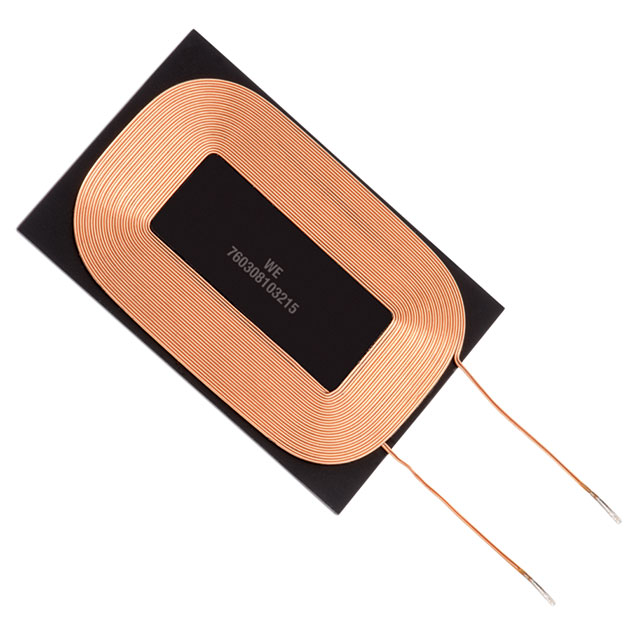

760308103215
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 14.3µH
Tolerance : ±10%
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : 40 @ 125kHz
Current Rating : 3A
Current - Saturation : 8A
Frequency - Self Resonant : 8.8MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 14.3µH
Tolerance : ±10%
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : 40 @ 125kHz
Current Rating : 3A
Current - Saturation : 8A
Frequency - Self Resonant : 8.8MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm)
0
34 in stock

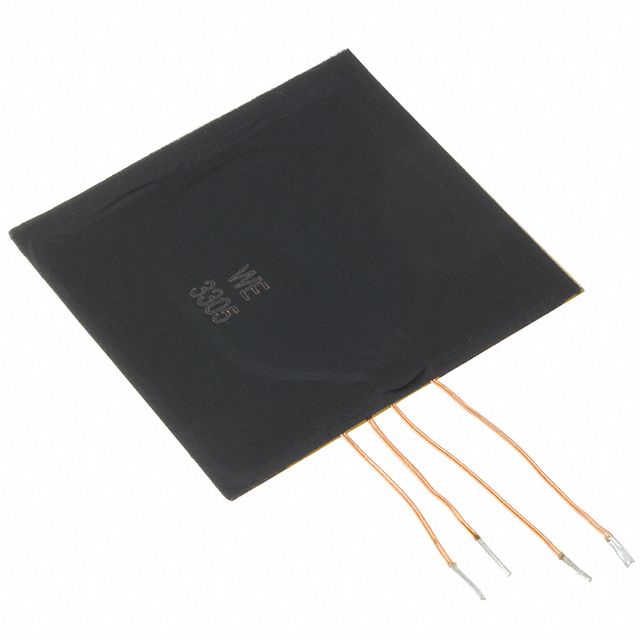

760308103305
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 2 Coil, 1 Layer
Inductance : 8.8µH, 1.4µH
Tolerance : ±10%
DC Resistance (DCR) : 220 mOhm Max, 100 mOhm Max
Q @ Freq : 30 @ 125Khz, 47 @ 125kHz
Current Rating : 2.6A, 5A
Current - Saturation : 5A, 5A
Frequency - Self Resonant : 22MHz, 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 2 Coil, 1 Layer
Inductance : 8.8µH, 1.4µH
Tolerance : ±10%
DC Resistance (DCR) : 220 mOhm Max, 100 mOhm Max
Q @ Freq : 30 @ 125Khz, 47 @ 125kHz
Current Rating : 2.6A, 5A
Current - Saturation : 5A, 5A
Frequency - Self Resonant : 22MHz, 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm)
0
160 in stock

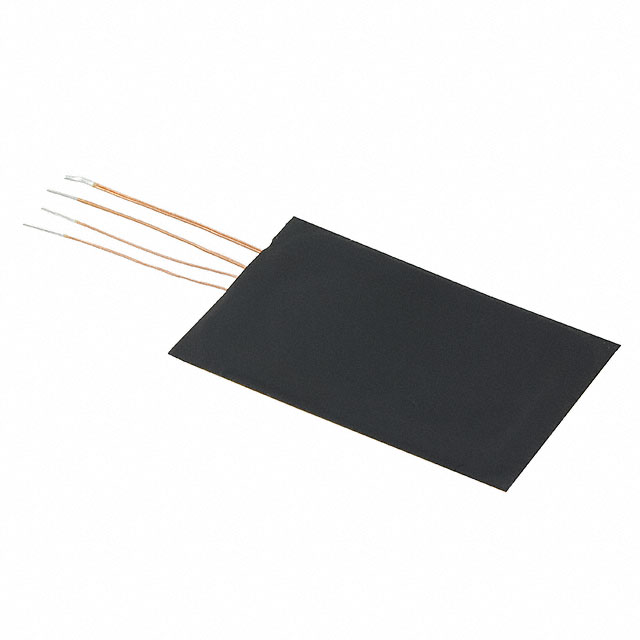

760308103307
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 2 Coil, 1 Layer
Inductance : 7.8µH, 1.6µH
Tolerance : ±10%
DC Resistance (DCR) : 340 mOhm Max, 90 mOhm Max
Q @ Freq : 19 @ 125kHz, 47 @ 125kHz
Current Rating : 1.5A, 4A
Current - Saturation : 3A, 7A
Frequency - Self Resonant : 22MHz, 24MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 2 Coil, 1 Layer
Inductance : 7.8µH, 1.6µH
Tolerance : ±10%
DC Resistance (DCR) : 340 mOhm Max, 90 mOhm Max
Q @ Freq : 19 @ 125kHz, 47 @ 125kHz
Current Rating : 1.5A, 4A
Current - Saturation : 3A, 7A
Frequency - Self Resonant : 22MHz, 24MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm)
0
143 in stock

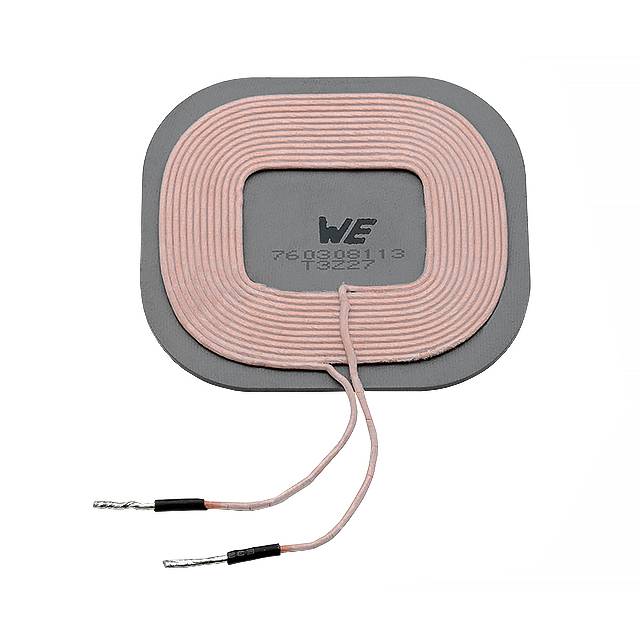

760308104113
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 72 mOhm Max
Q @ Freq : 120 @ 125kHz
Current Rating : 7A
Current - Saturation : 12A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 72 mOhm Max
Q @ Freq : 120 @ 125kHz
Current Rating : 7A
Current - Saturation : 12A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm)
0
84 in stock

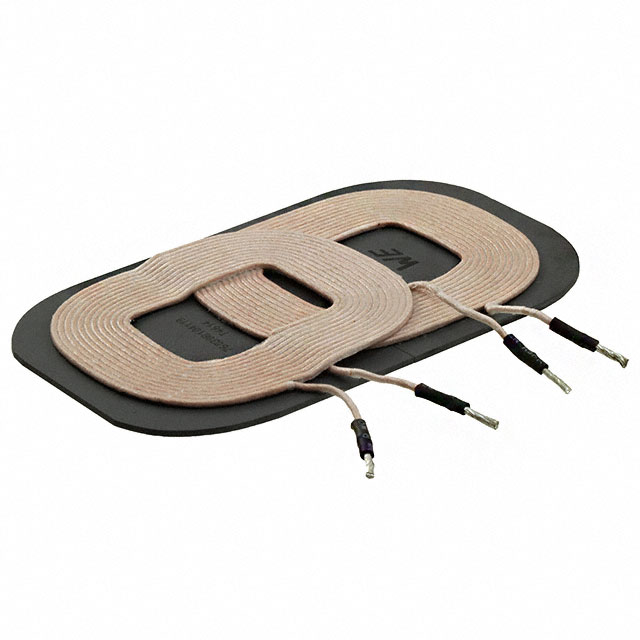

760308104119
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 2 Coil, 1 Layer
Inductance : 12µH, 11.5µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm
Q @ Freq : 130 @ 125kHz
Current Rating : 8A
Current - Saturation : 12A
Frequency - Self Resonant : 12MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 2 Coil, 1 Layer
Inductance : 12µH, 11.5µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm
Q @ Freq : 130 @ 125kHz
Current Rating : 8A
Current - Saturation : 12A
Frequency - Self Resonant : 12MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm)
0
20 in stock

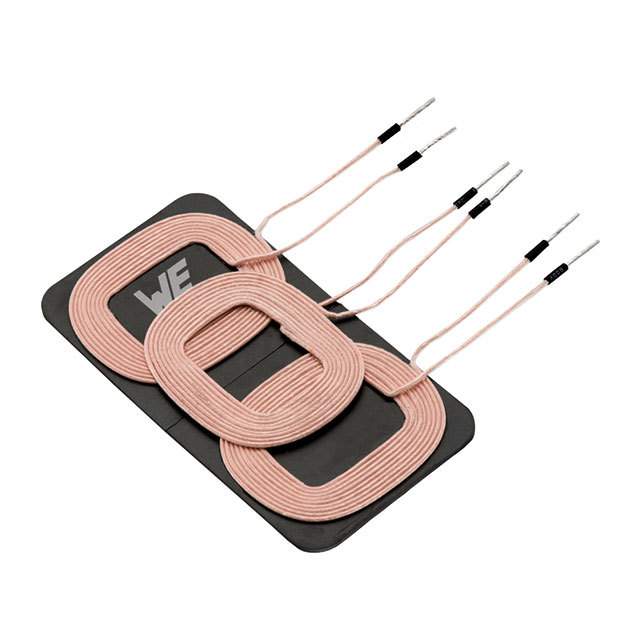

760308104120
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 3 Coil, 1 Layer
Inductance : 6.9µH, 6.4µH, 6.9µH
Tolerance : ±10%
DC Resistance (DCR) : 45 mOhm
Q @ Freq : 100 @ 125kHz
Current Rating : 9A
Current - Saturation : 12A
Frequency - Self Resonant : 15MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : -
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 3 Coil, 1 Layer
Inductance : 6.9µH, 6.4µH, 6.9µH
Tolerance : ±10%
DC Resistance (DCR) : 45 mOhm
Q @ Freq : 100 @ 125kHz
Current Rating : 9A
Current - Saturation : 12A
Frequency - Self Resonant : 15MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : -
0
66 in stock

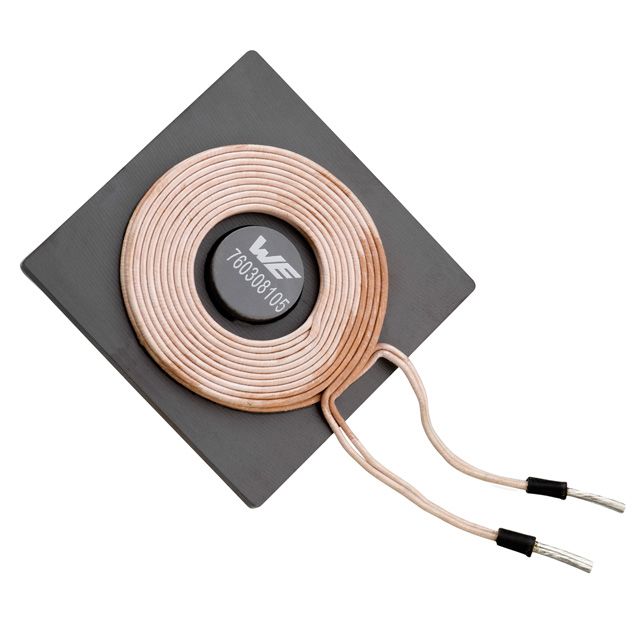

760308105
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : 55 @ 125kHz
Current Rating : 13A
Current - Saturation : 16A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : 55 @ 125kHz
Current Rating : 13A
Current - Saturation : 16A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
0
317 in stock
