Welcome to Weijie Semiconductor
- Inductors, Coils, Chokes
- Wireless Charging Coils
Part Number
Manufacturer
Description
Unit Price
In Stock
760308102207
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 8µH
Tolerance : ±10%
DC Resistance (DCR) : 60 mOhm
Q @ Freq : 30 @ 125kHz
Current Rating : 5A
Current - Saturation : 10A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 8µH
Tolerance : ±10%
DC Resistance (DCR) : 60 mOhm
Q @ Freq : 30 @ 125kHz
Current Rating : 5A
Current - Saturation : 10A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm)
0
340 in stock

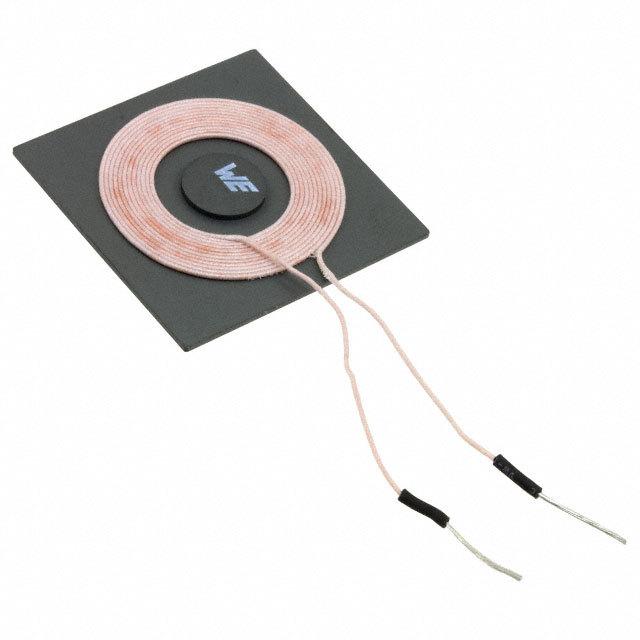

760308102210
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.5µH
Tolerance : ±10%
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 45 @ 125kHz
Current Rating : 3A
Current - Saturation : 6A
Frequency - Self Resonant : 22MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.5µH
Tolerance : ±10%
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 45 @ 125kHz
Current Rating : 3A
Current - Saturation : 6A
Frequency - Self Resonant : 22MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)
0
100 in stock

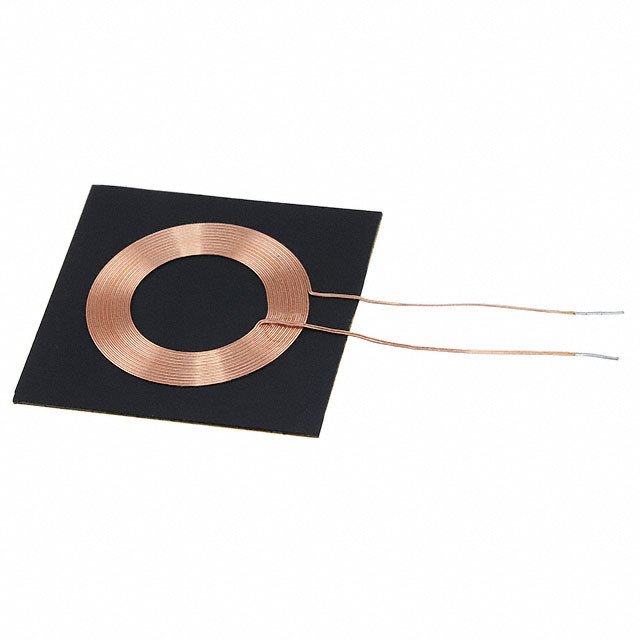

760308102212
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 5.4µH
Tolerance : ±10%
DC Resistance (DCR) : 240 mOhm Max
Q @ Freq : 18 @ 125kHz
Current Rating : 2A
Current - Saturation : 4A
Frequency - Self Resonant : 25MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 5.4µH
Tolerance : ±10%
DC Resistance (DCR) : 240 mOhm Max
Q @ Freq : 18 @ 125kHz
Current Rating : 2A
Current - Saturation : 4A
Frequency - Self Resonant : 25MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
0
57 in stock

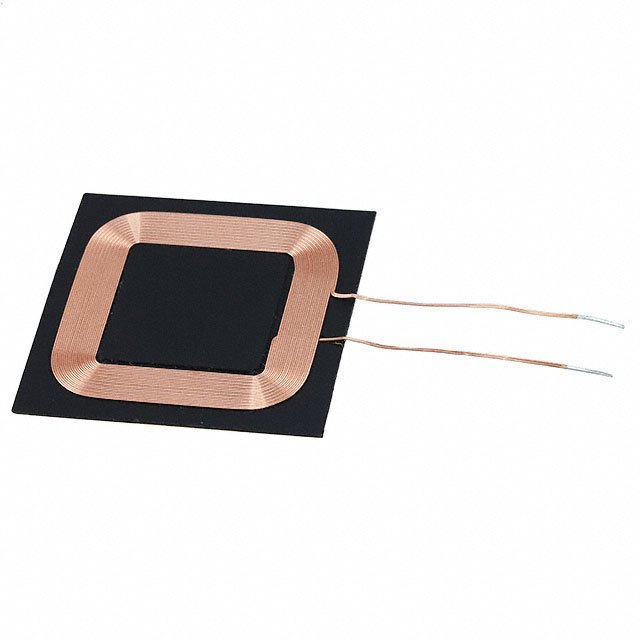

760308102213
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.9µH
Tolerance : ±10%
DC Resistance (DCR) : 330 mOhm Max
Q @ Freq : 18 @ 125kHz
Current Rating : 1.7A
Current - Saturation : 4A
Frequency - Self Resonant : 21MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.9µH
Tolerance : ±10%
DC Resistance (DCR) : 330 mOhm Max
Q @ Freq : 18 @ 125kHz
Current Rating : 1.7A
Current - Saturation : 4A
Frequency - Self Resonant : 21MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
0
51 in stock

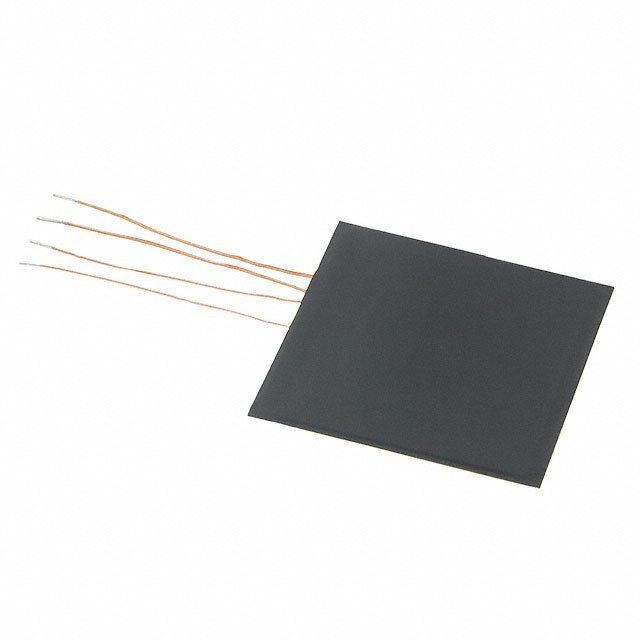

760308102306
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 2 Coil, 1 Layer
Inductance : 8µH, 1.4µH
Tolerance : ±10%
DC Resistance (DCR) : 400 mOhm Max, 100 mOhm Max
Q @ Freq : 19 @ 125kHz, 47 @ 125kHz
Current Rating : 2A, 5A
Current - Saturation : 5A, 5A
Frequency - Self Resonant : 17.5MHz, 19MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 2 Coil, 1 Layer
Inductance : 8µH, 1.4µH
Tolerance : ±10%
DC Resistance (DCR) : 400 mOhm Max, 100 mOhm Max
Q @ Freq : 19 @ 125kHz, 47 @ 125kHz
Current Rating : 2A, 5A
Current - Saturation : 5A, 5A
Frequency - Self Resonant : 17.5MHz, 19MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm)
0
185 in stock

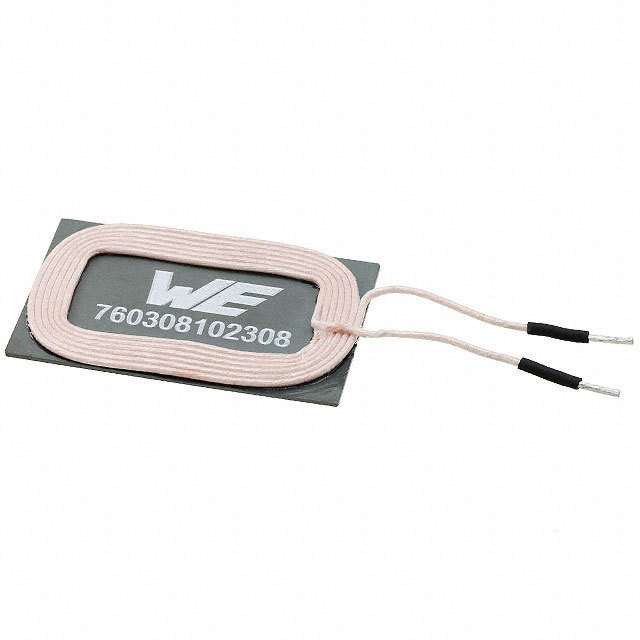

760308102308
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 3µH
Tolerance : ±10%
DC Resistance (DCR) : 35 mOhm Max
Q @ Freq : 60 @ 125kHz
Current Rating : 8.5A
Current - Saturation : 15A
Frequency - Self Resonant : 27MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" L x 1.18" W x 0.14" H (50.00mm x 30.00mm x 3.50mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 3µH
Tolerance : ±10%
DC Resistance (DCR) : 35 mOhm Max
Q @ Freq : 60 @ 125kHz
Current Rating : 8.5A
Current - Saturation : 15A
Frequency - Self Resonant : 27MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" L x 1.18" W x 0.14" H (50.00mm x 30.00mm x 3.50mm)
0
80 in stock

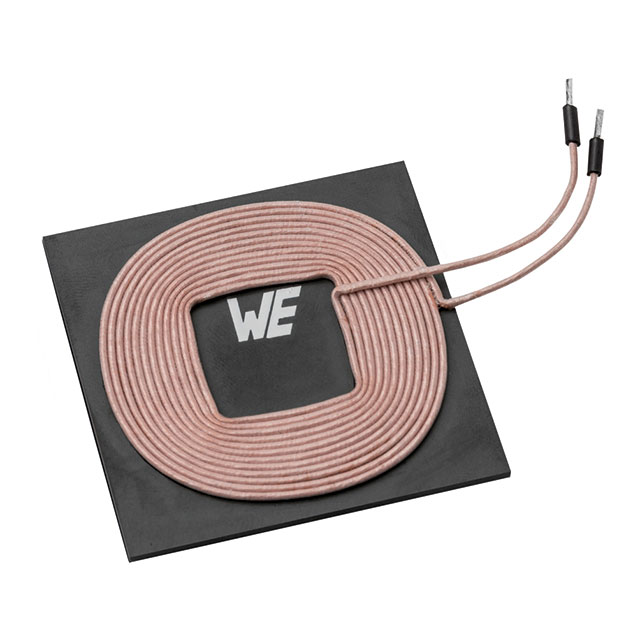

760308103102
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 55 mOhm Max
Q @ Freq : 130 @ 125kHz
Current Rating : 7A
Current - Saturation : 10A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.791" L x 2.087" W x 0.177" H (45.50mm x 53.00mm x 4.50mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 55 mOhm Max
Q @ Freq : 130 @ 125kHz
Current Rating : 7A
Current - Saturation : 10A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.791" L x 2.087" W x 0.177" H (45.50mm x 53.00mm x 4.50mm)
0
240 in stock

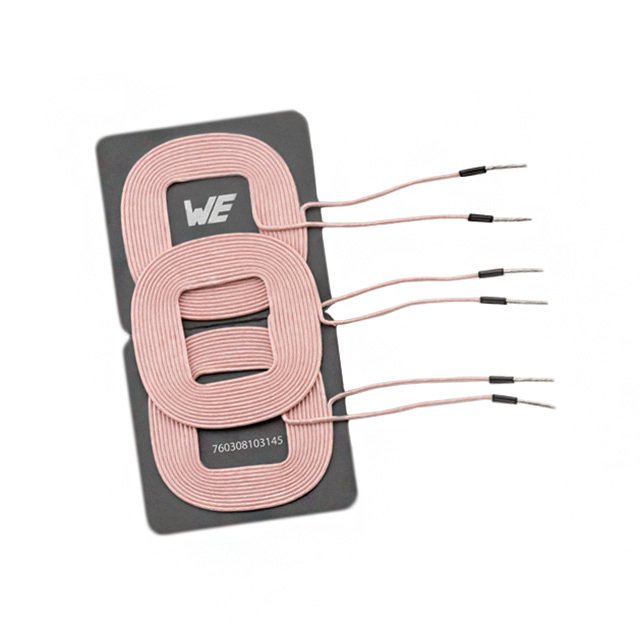

760308103145
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver, Transmitter
Type : 3 Coil, 1 Layer
Inductance : 11.3µH
Tolerance : ±10%
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 150 @ 125kHz, 145 @ 125kHz
Current Rating : 8.5A
Current - Saturation : 24A
Frequency - Self Resonant : 10MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver, Transmitter
Type : 3 Coil, 1 Layer
Inductance : 11.3µH
Tolerance : ±10%
DC Resistance (DCR) : 83 mOhm Max
Q @ Freq : 150 @ 125kHz, 145 @ 125kHz
Current Rating : 8.5A
Current - Saturation : 24A
Frequency - Self Resonant : 10MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm)
0
87 in stock
760308103146
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 8.5µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm Max
Q @ Freq : 140 @ 125kHz
Current Rating : 8A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 60°C
Size / Dimension : 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 8.5µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm Max
Q @ Freq : 140 @ 125kHz
Current Rating : 8A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 60°C
Size / Dimension : 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)
0
23 in stock

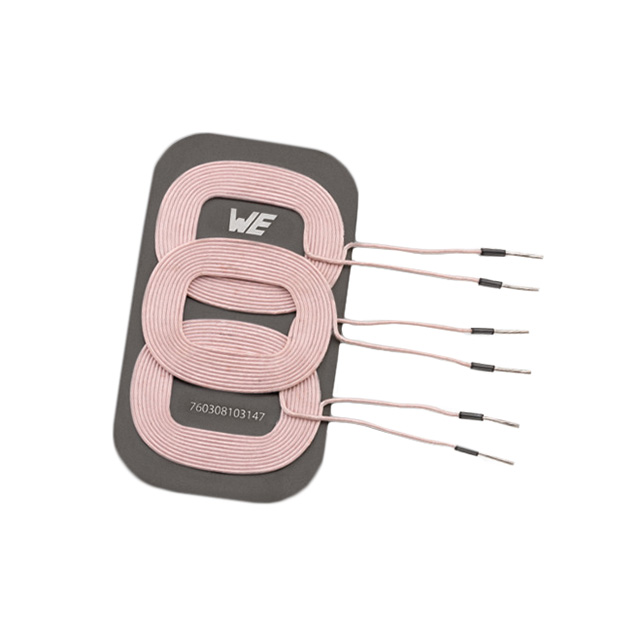

760308103147
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver, Transmitter
Type : 3 Coil, 1 Layer
Inductance : 8.5µH, 7.5µH, 8.5µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm Max
Q @ Freq : 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz
Current Rating : 9A, 10A, 9A
Current - Saturation : 18A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver, Transmitter
Type : 3 Coil, 1 Layer
Inductance : 8.5µH, 7.5µH, 8.5µH
Tolerance : ±10%
DC Resistance (DCR) : 56 mOhm Max
Q @ Freq : 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz
Current Rating : 9A, 10A, 9A
Current - Saturation : 18A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm)
0
7 in stock

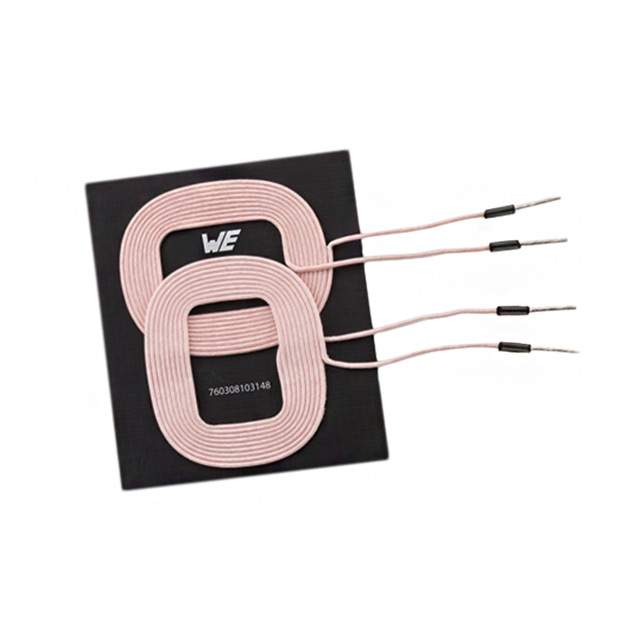

760308103148
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver, Transmitter
Type : 2 Coil, 1 Layer
Inductance : 6.9µH, 6.4µH
Tolerance : ±10%
DC Resistance (DCR) : 52 mOhm Max
Q @ Freq : 120 @ 125kHz, 115 @ 125kHz
Current Rating : 8.5A
Current - Saturation : 20A
Frequency - Self Resonant : 15MHz, 19MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver, Transmitter
Type : 2 Coil, 1 Layer
Inductance : 6.9µH, 6.4µH
Tolerance : ±10%
DC Resistance (DCR) : 52 mOhm Max
Q @ Freq : 120 @ 125kHz, 115 @ 125kHz
Current Rating : 8.5A
Current - Saturation : 20A
Frequency - Self Resonant : 15MHz, 19MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm)
0
10 in stock

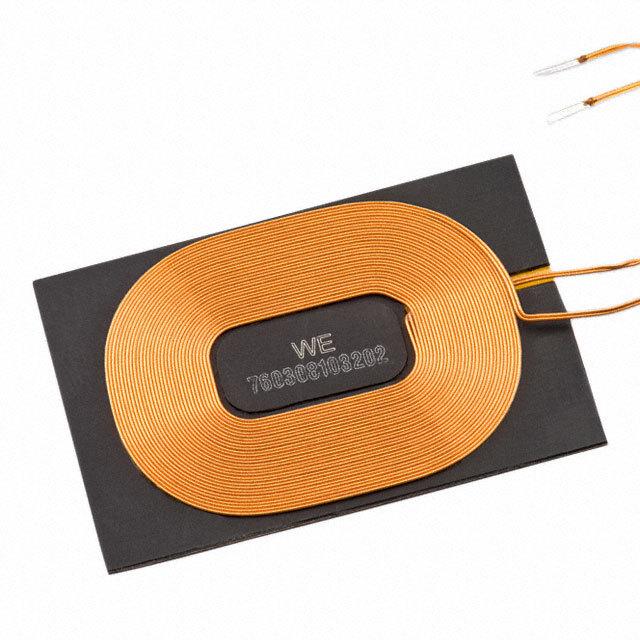

760308103202
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 160 mOhm
Q @ Freq : 33 @ 125kHz
Current Rating : 2.9A
Current - Saturation : 6A
Frequency - Self Resonant : 25MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 160 mOhm
Q @ Freq : 33 @ 125kHz
Current Rating : 2.9A
Current - Saturation : 6A
Frequency - Self Resonant : 25MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm)
0
1354 in stock
