Welcome to Weijie Semiconductor
- Inductors, Coils, Chokes
- Wireless Charging Coils
Part Number
Manufacturer
Description
Unit Price
In Stock

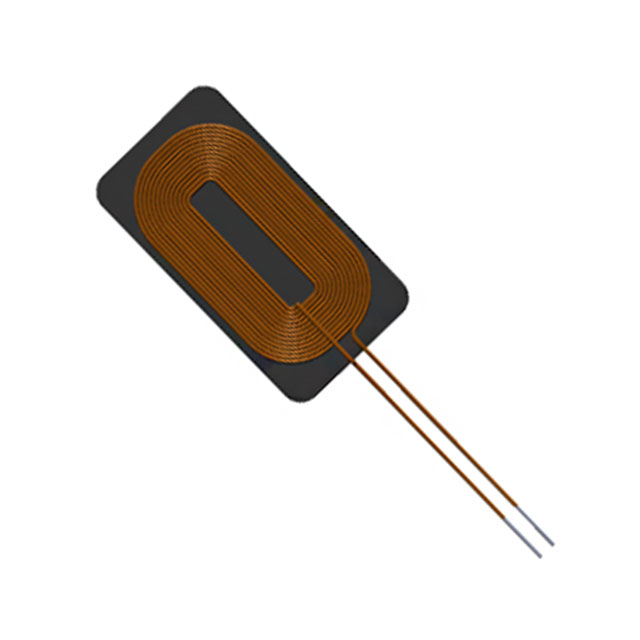

AWCCA-28R15H08-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.5µH
Tolerance : ±10%
DC Resistance (DCR) : 500 mOhm
Q @ Freq : 15 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.8mm)
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.5µH
Tolerance : ±10%
DC Resistance (DCR) : 500 mOhm
Q @ Freq : 15 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.8mm)
0
47 in stock

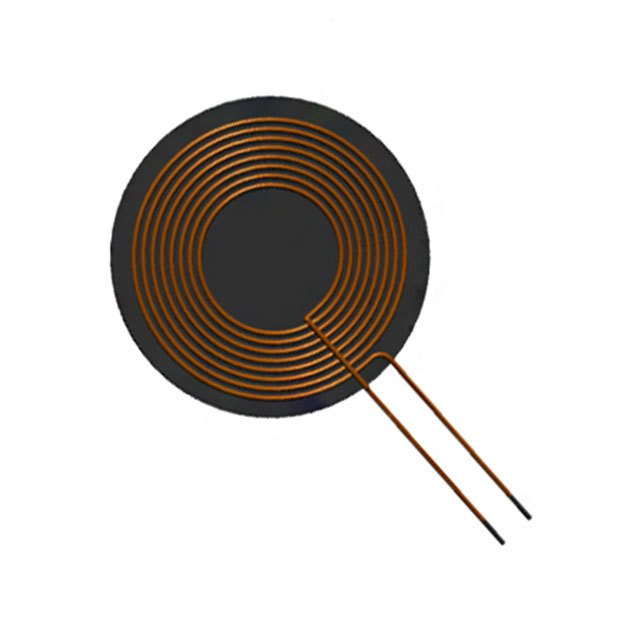

AWCCA-30N30H20-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 140 mOhm
Q @ Freq : 26 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.18" Dia x 0.02" H (30.0mm x 0.5mm)
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 140 mOhm
Q @ Freq : 26 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.18" Dia x 0.02" H (30.0mm x 0.5mm)
0
155 in stock

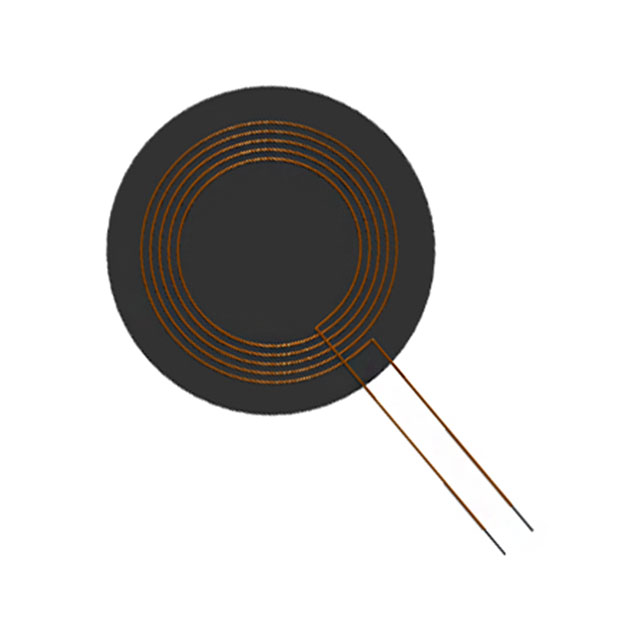

AWCCA-30R30H05-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 29.5µH
Tolerance : ±10%
DC Resistance (DCR) : 1.8 mOhm
Q @ Freq : 10.4 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.18" Dia x 0.02" H (30.0mm x 0.5mm)
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 29.5µH
Tolerance : ±10%
DC Resistance (DCR) : 1.8 mOhm
Q @ Freq : 10.4 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.18" Dia x 0.02" H (30.0mm x 0.5mm)
0
19 in stock

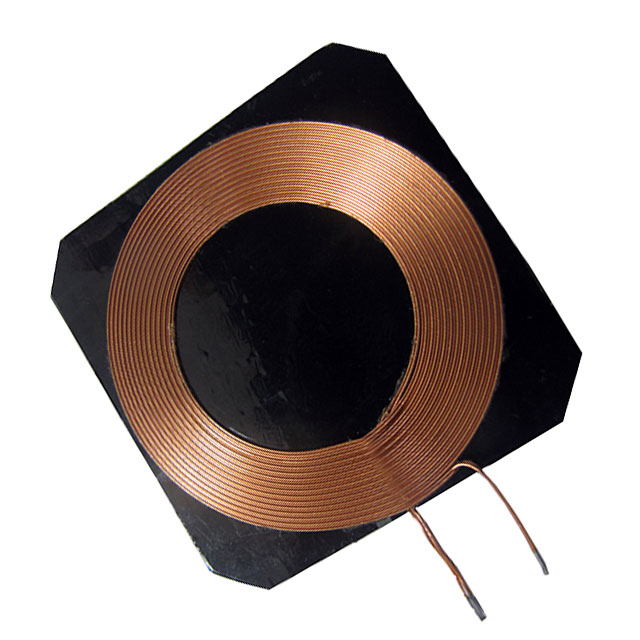

AWCCA-36R36H08-C51-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 350 mOhm
Q @ Freq : 27 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm)
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±10%
DC Resistance (DCR) : 350 mOhm
Q @ Freq : 27 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm)
0
42 in stock

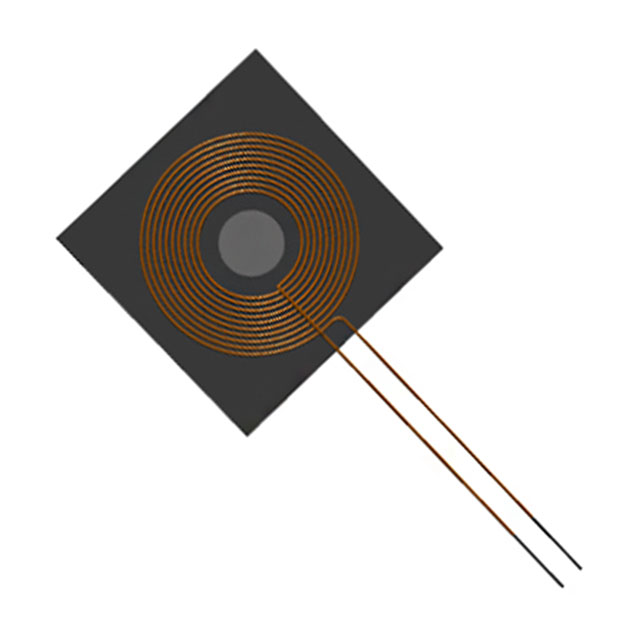

AWCCA-37R37H18-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 160 mOhm
Q @ Freq : 38 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.46" Dia x 0.07" H (37.0mm x 1.8mm)
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 160 mOhm
Q @ Freq : 38 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.46" Dia x 0.07" H (37.0mm x 1.8mm)
0
79 in stock

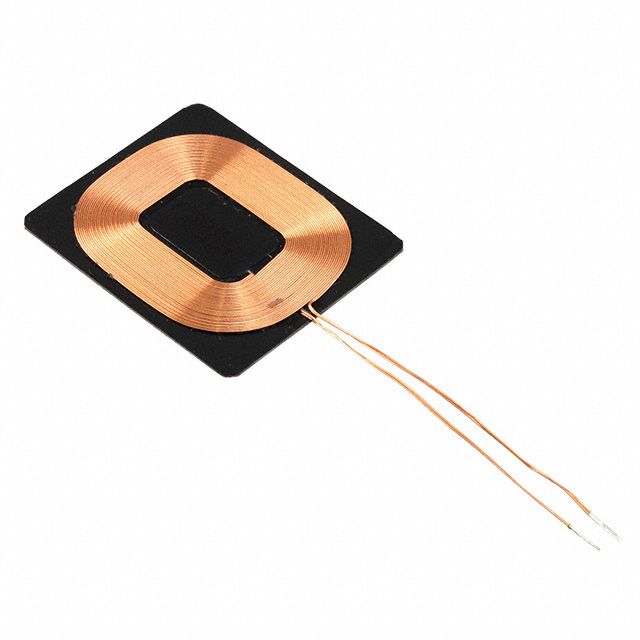

AWCCA-38R32H09-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA-38R32
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11.1µH
Tolerance : ±10%
DC Resistance (DCR) : 260 mOhm
Q @ Freq : 22 @ 100kHz
Current Rating : 2.1A
Current - Saturation : 12A
Frequency - Self Resonant : 11MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.51" L x 1.28" W x 0.03" H (38.5mm x 32.5mm x 1.0mm)
Series : AWCCA-38R32
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11.1µH
Tolerance : ±10%
DC Resistance (DCR) : 260 mOhm
Q @ Freq : 22 @ 100kHz
Current Rating : 2.1A
Current - Saturation : 12A
Frequency - Self Resonant : 11MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.51" L x 1.28" W x 0.03" H (38.5mm x 32.5mm x 1.0mm)
0
714 in stock

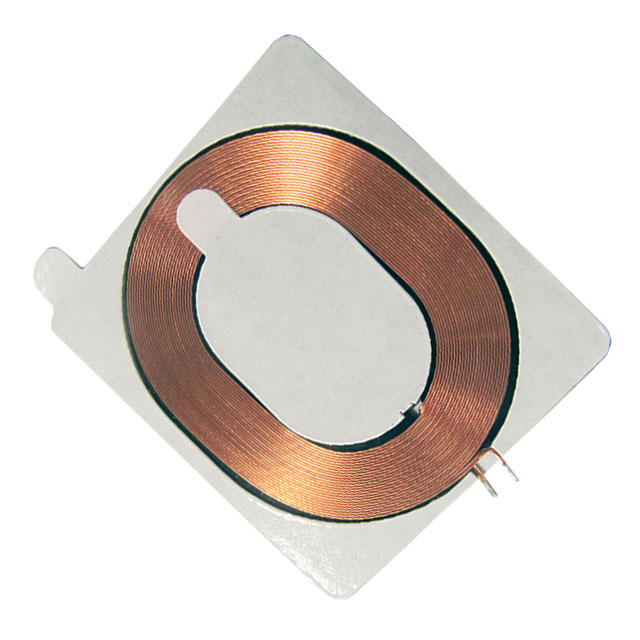

AWCCA-42R38H08-C03-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±5%
DC Resistance (DCR) : 350 mOhm
Q @ Freq : 28 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm)
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12µH
Tolerance : ±5%
DC Resistance (DCR) : 350 mOhm
Q @ Freq : 28 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm)
0
67 in stock

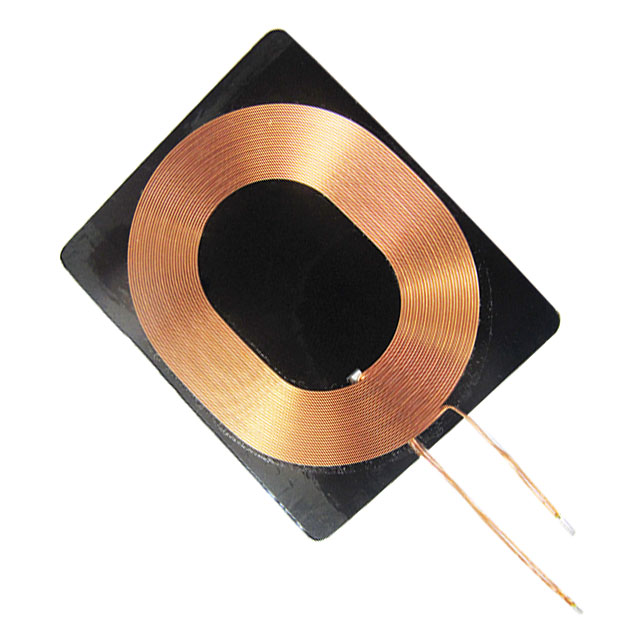

AWCCA-47R38H08-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11.5µH
Tolerance : ±5%
DC Resistance (DCR) : 160 mOhm
Q @ Freq : 34 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.85" L x 1.85" W x 1.02" H (47.0mm x 47.0mm x 26.0mm)
Series : AWCCA
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11.5µH
Tolerance : ±5%
DC Resistance (DCR) : 160 mOhm
Q @ Freq : 34 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.85" L x 1.85" W x 1.02" H (47.0mm x 47.0mm x 26.0mm)
0
76 in stock

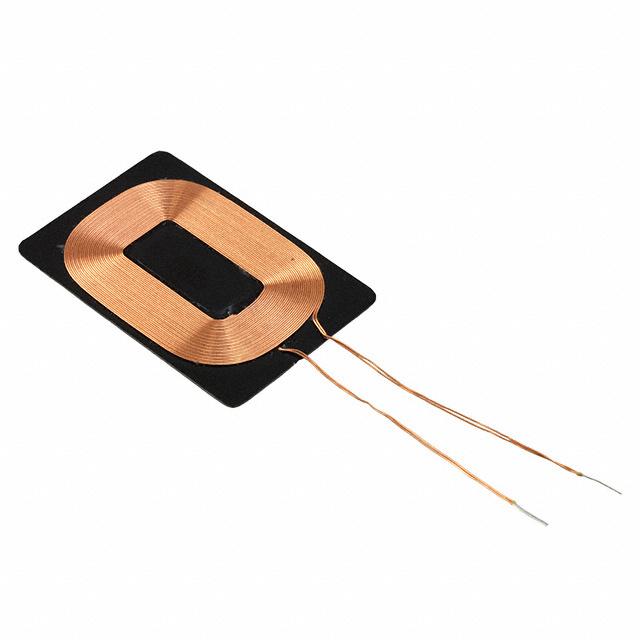

AWCCA-48R32H11-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA-48R32
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10.5µH
Tolerance : ±10%
DC Resistance (DCR) : 190 mOhm
Q @ Freq : 28 @ 100kHz
Current Rating : 2.6A
Current - Saturation : 15A
Frequency - Self Resonant : 11MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm)
Series : AWCCA-48R32
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 10.5µH
Tolerance : ±10%
DC Resistance (DCR) : 190 mOhm
Q @ Freq : 28 @ 100kHz
Current Rating : 2.6A
Current - Saturation : 15A
Frequency - Self Resonant : 11MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm)
0
100 in stock

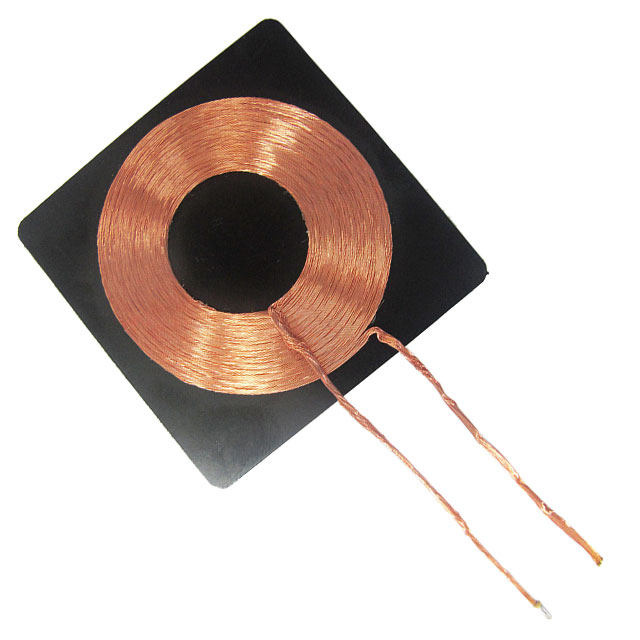

AWCCA-50N50H16-C51-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 12.5µH
Tolerance : ±10%
DC Resistance (DCR) : 80 mOhm
Q @ Freq : 80 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm)
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 12.5µH
Tolerance : ±10%
DC Resistance (DCR) : 80 mOhm
Q @ Freq : 80 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm)
0
100 in stock

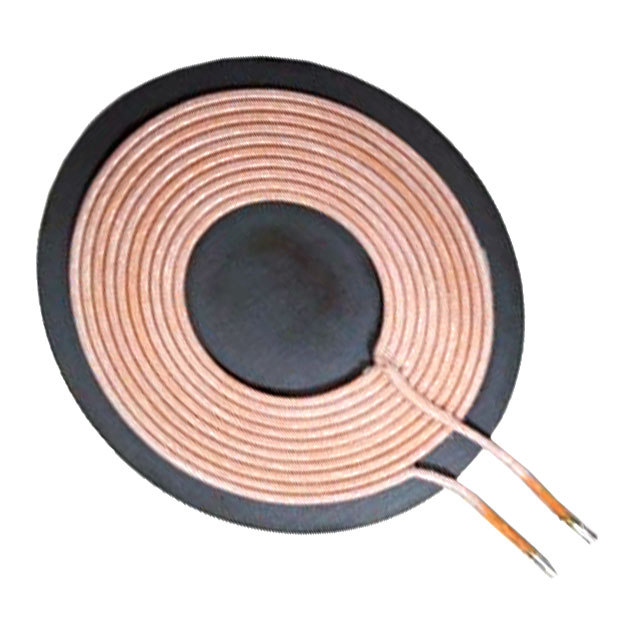

AWCCA-50N50H30-C21-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 38 mOhm
Q @ Freq : 90 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.97" Dia x 0.12" H (50.0mm x 3.0mm)
Series : AWCCA
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 38 mOhm
Q @ Freq : 90 @ 100kHz
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.97" Dia x 0.12" H (50.0mm x 3.0mm)
0
98 in stock

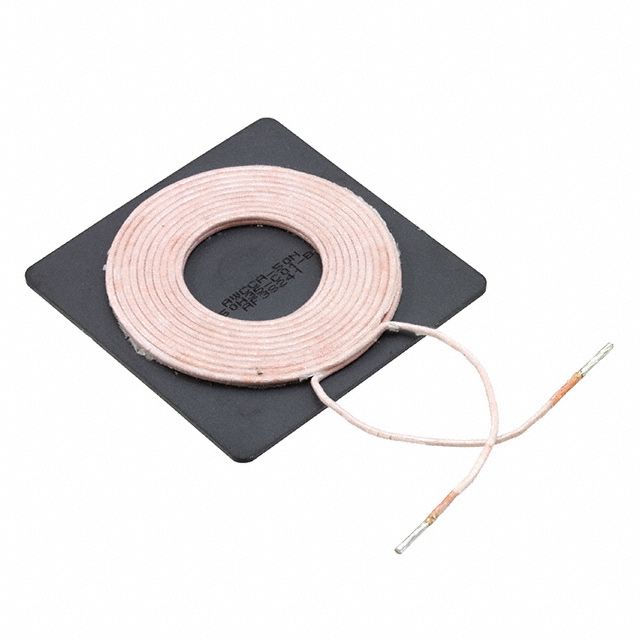

AWCCA-50N50H35-C01-B
Abracon LLC.
Manufacturer : Abracon LLC
Series : AWCCA-50N50
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 72 mOhm
Q @ Freq : 160 @ 100kHz
Current Rating : 5.4A
Current - Saturation : 21A
Frequency - Self Resonant : 3MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm)
Series : AWCCA-50N50
Part Status : Active
Function : Receiver, Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 72 mOhm
Q @ Freq : 160 @ 100kHz
Current Rating : 5.4A
Current - Saturation : 21A
Frequency - Self Resonant : 3MHz
Operating Temperature : -25°C ~ 85°C
Size / Dimension : 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm)
0
141 in stock
