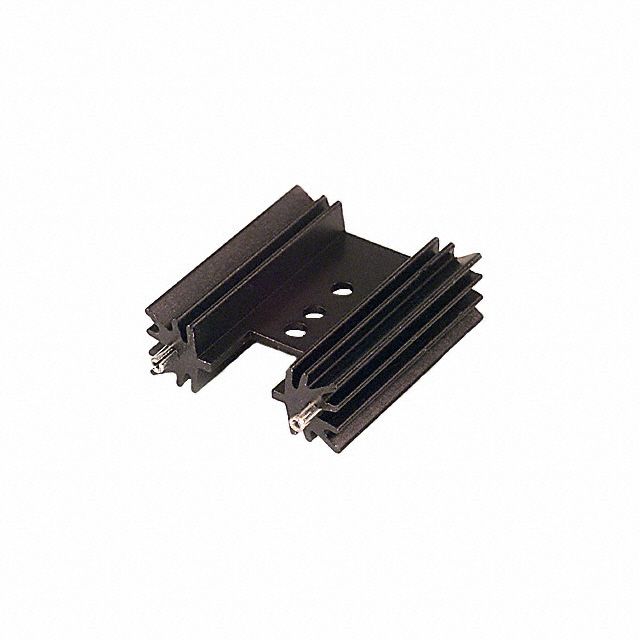

7-338-1PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.380" (35.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 12.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.380" (35.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 12.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1708 in stock

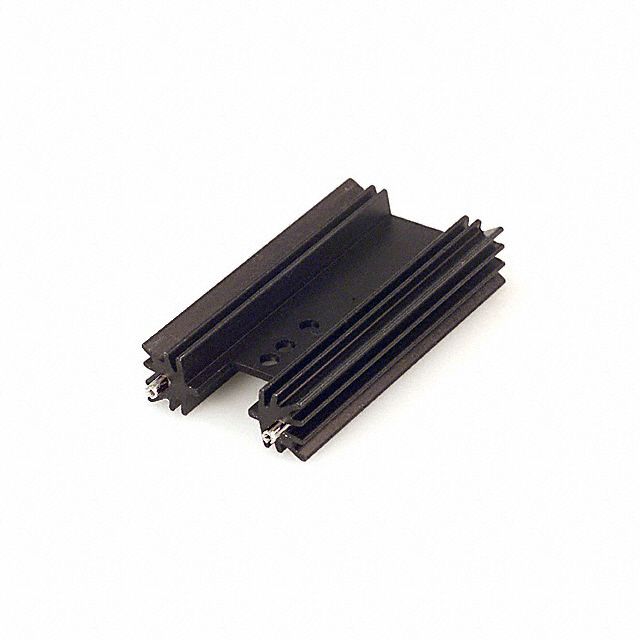

7-338-4PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.380" (35.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 9.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.380" (35.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 9.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1183 in stock

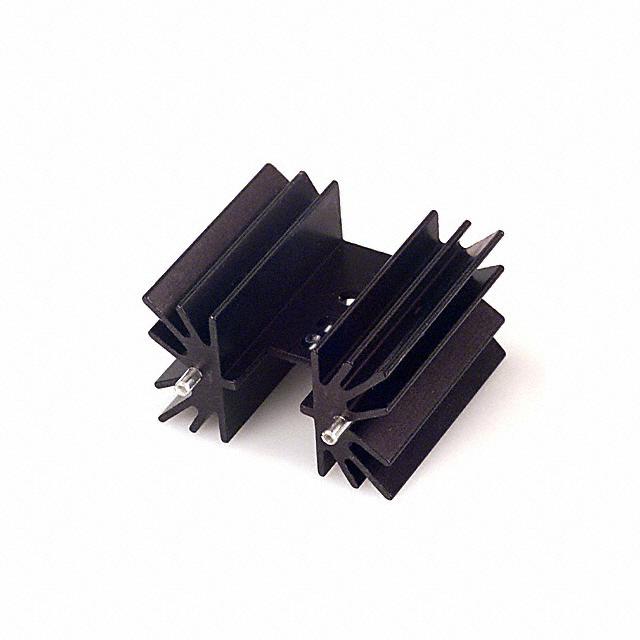

7-339-1PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 6.0W @ 60°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 6.0W @ 60°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
524 in stock
7-339-3PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 6.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 7.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 6.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 7.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5026 in stock

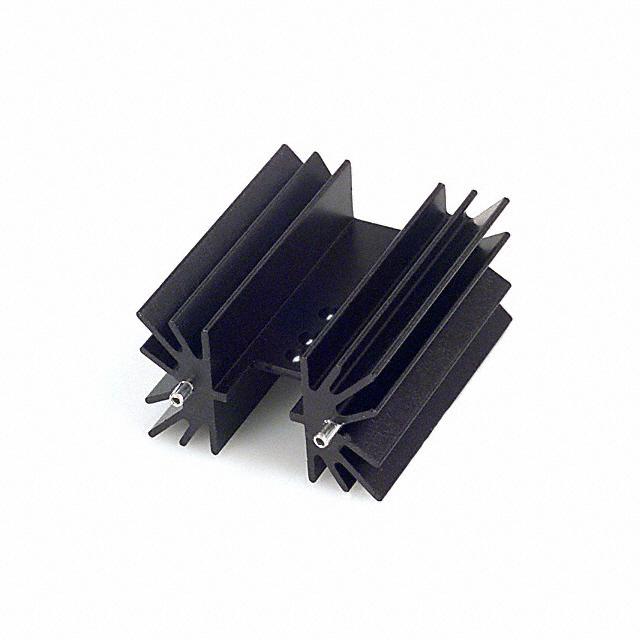

7-339-4PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 9.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 9.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
26 in stock

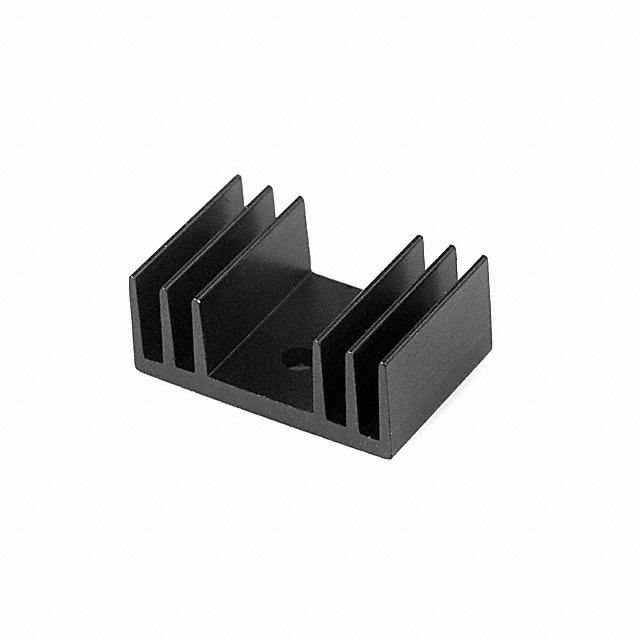

7-340-1PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 1.150" (29.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 1.150" (29.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2249 in stock

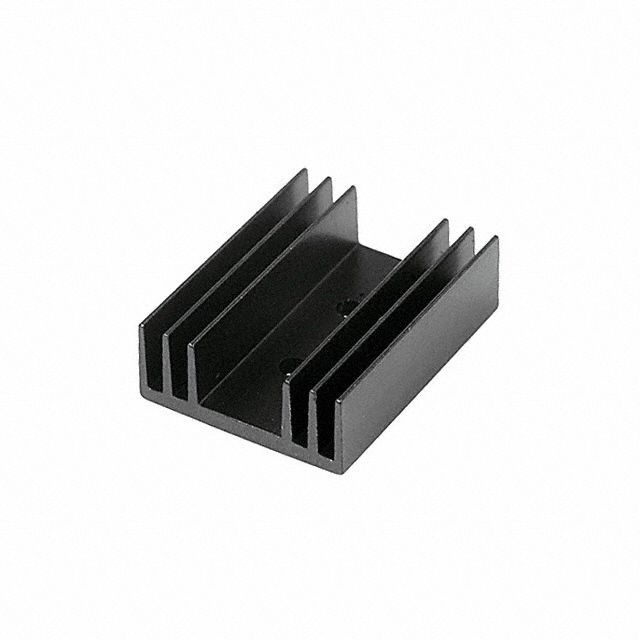

7-340-2PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.150" (29.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 9.0W @ 60°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 3.10°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.150" (29.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 9.0W @ 60°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 3.10°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2934 in stock

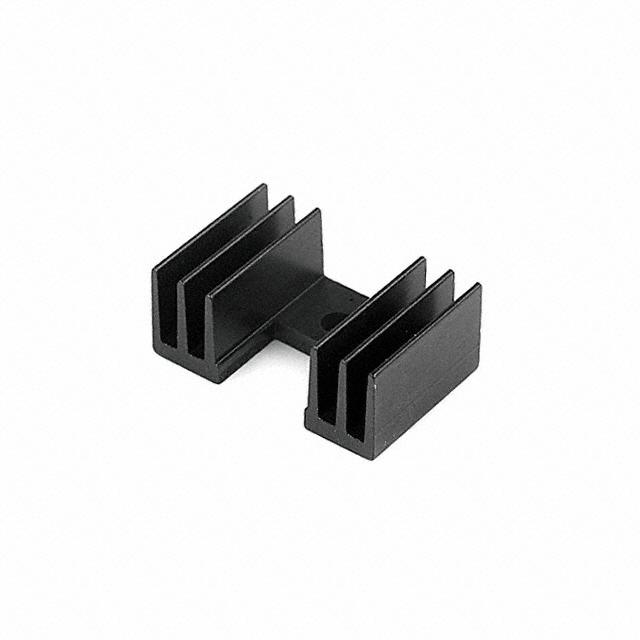

7-340-3PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 1.150" (29.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 1.150" (29.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
115 in stock

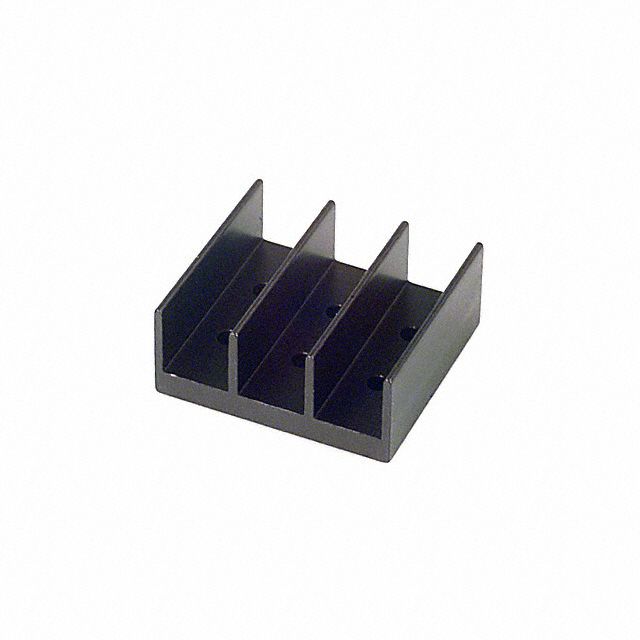

7-342-2PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.642" (41.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.690" (17.53mm)
Power Dissipation @ Temperature Rise : 9.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.642" (41.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.690" (17.53mm)
Power Dissipation @ Temperature Rise : 9.0W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1678 in stock

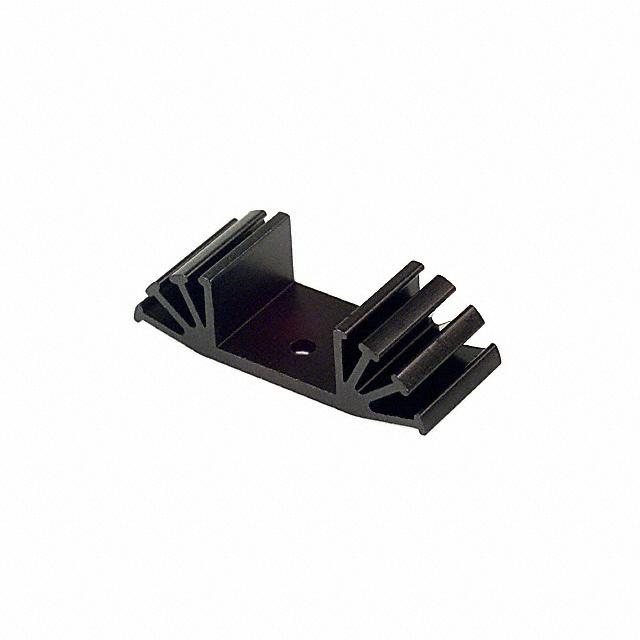

7-345-1PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.553" (14.05mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 9.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.553" (14.05mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 9.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1135 in stock

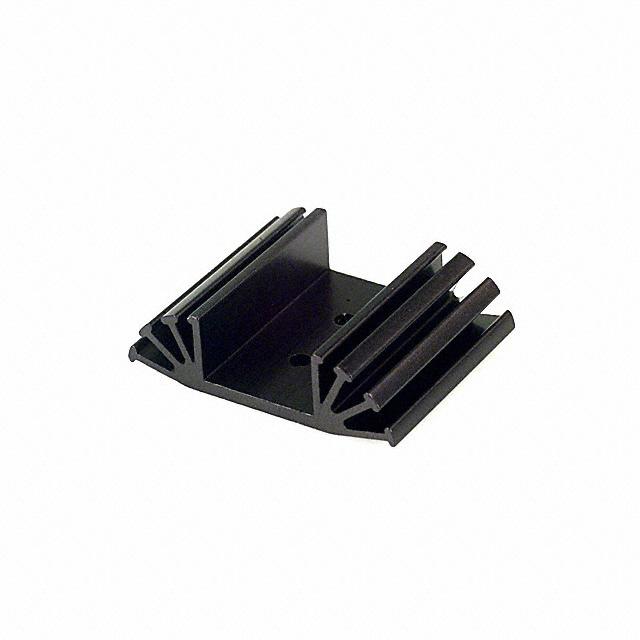

7-345-2PP-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.553" (14.05mm)
Power Dissipation @ Temperature Rise : 6.0W @ 25°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 4.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.553" (14.05mm)
Power Dissipation @ Temperature Rise : 6.0W @ 25°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 4.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2976 in stock

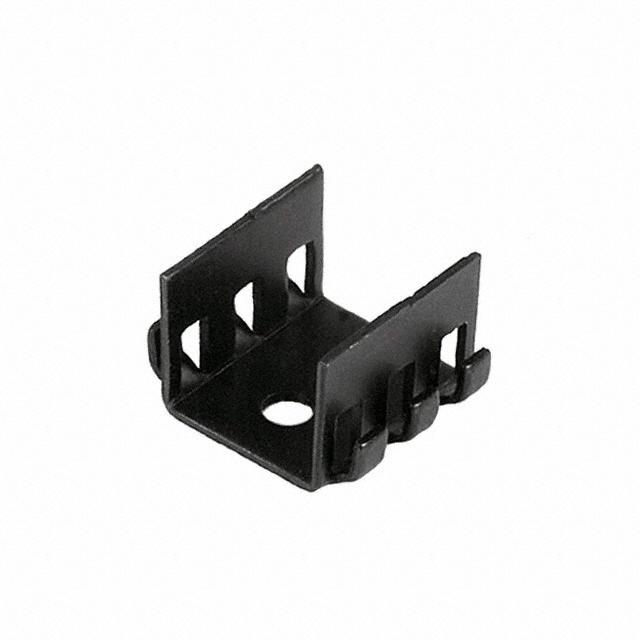

7-361-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.710" (18.03mm)
Width : 0.800" (20.32mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 30.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.710" (18.03mm)
Width : 0.800" (20.32mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 30.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1299 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
