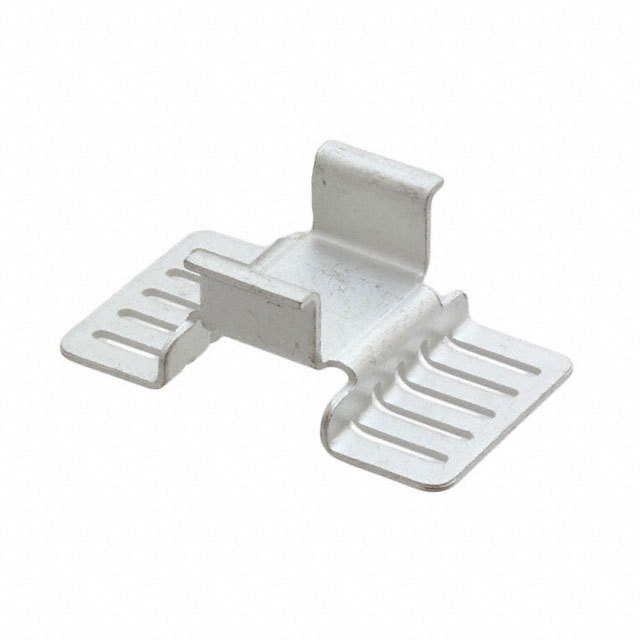

7106DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.590" (15.00mm)
Width : 1.020" (25.91mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 400 LFM
Thermal Resistance @ Natural : -
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.590" (15.00mm)
Width : 1.020" (25.91mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 400 LFM
Thermal Resistance @ Natural : -
Material : Copper
Material Finish : Tin
0
12537 in stock

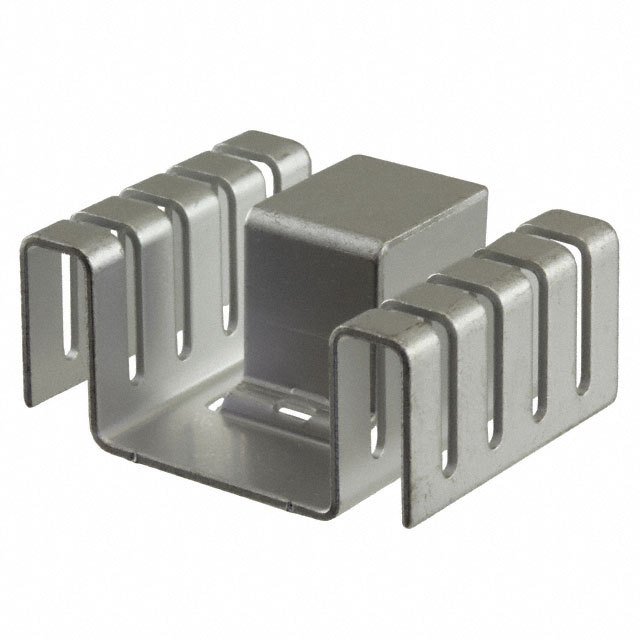

7109D/TRG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.763" (19.38mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 11.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.763" (19.38mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 11.00°C/W
Material : Copper
Material Finish : Tin
0
15778 in stock

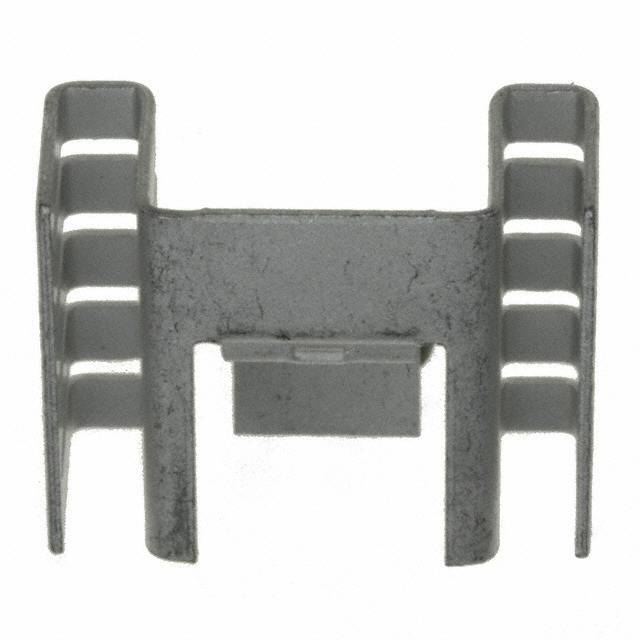

7109DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.763" (19.38mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 11.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.763" (19.38mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 11.00°C/W
Material : Copper
Material Finish : Tin
0
1115 in stock

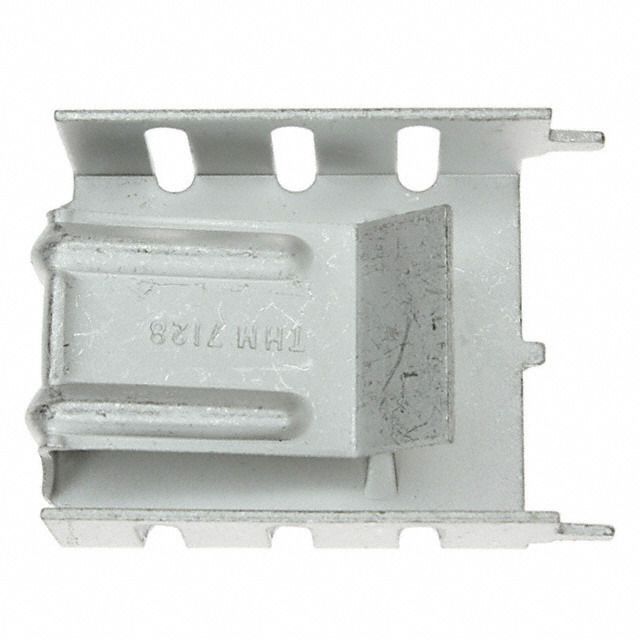

7128DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.100" (27.94mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 19.20°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.100" (27.94mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 19.20°C/W
Material : Copper
Material Finish : Tin
0
2661 in stock

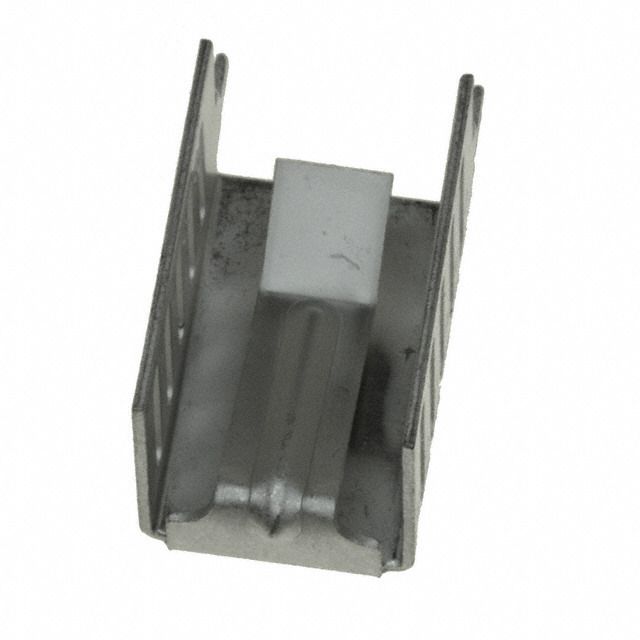

7136DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.848" (21.55mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 19.70°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.848" (21.55mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 19.70°C/W
Material : Copper
Material Finish : Tin
0
5277 in stock
7138DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.025" (26.04mm)
Width : 1.005" (25.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.610" (15.49mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 20.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.025" (26.04mm)
Width : 1.005" (25.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.610" (15.49mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 20.00°C/W
Material : Copper
Material Finish : Tin
0
4368 in stock
7139DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.780" (19.81mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 28.30°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.780" (19.81mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 28.30°C/W
Material : Copper
Material Finish : Tin
0
5797 in stock

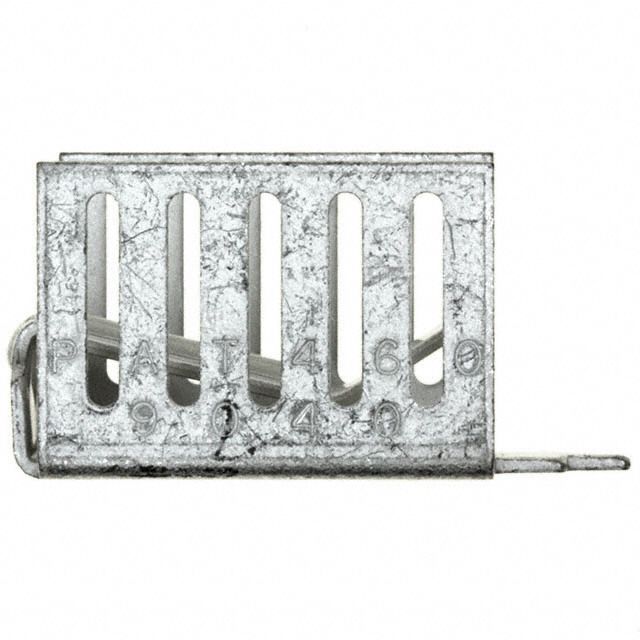

7141DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.780" (19.81mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.780" (19.81mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Copper
Material Finish : Tin
0
5815 in stock

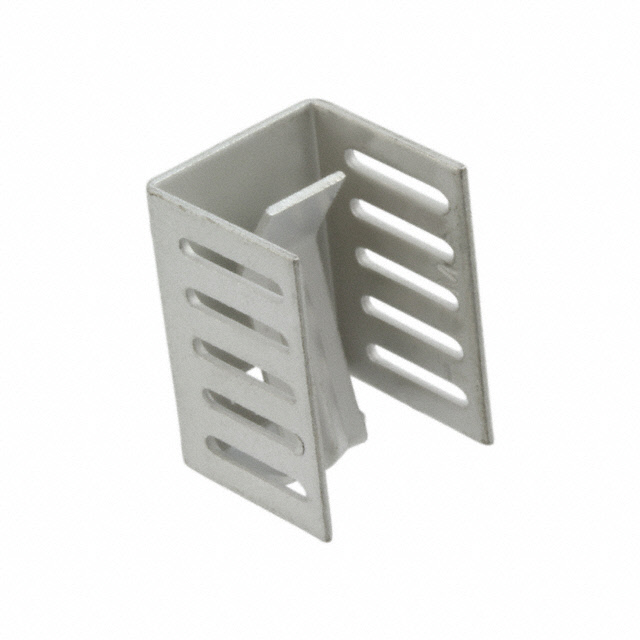

7142DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip and Board Locks
Shape : Rectangular, Fins
Length : 0.780" (19.81mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip and Board Locks
Shape : Rectangular, Fins
Length : 0.780" (19.81mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.515" (13.08mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Copper
Material Finish : Tin
0
360 in stock

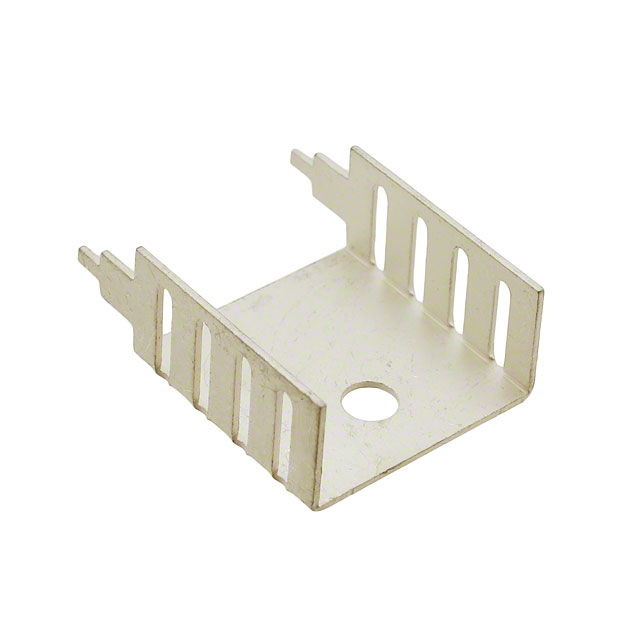

7173DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.80°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.80°C/W
Material : Copper
Material Finish : Tin
0
20961 in stock

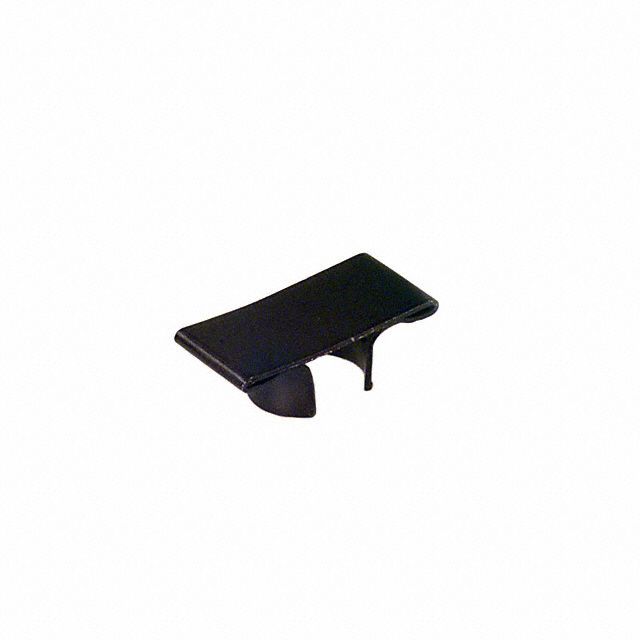

7-175-BA
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : 7
Part Status : Active
Type : Top Mount
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Rectangular
Length : 0.700" (17.78mm)
Width : 0.325" (8.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 60°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 58.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 7
Part Status : Active
Type : Top Mount
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Rectangular
Length : 0.700" (17.78mm)
Width : 0.325" (8.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 60°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 58.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1816 in stock

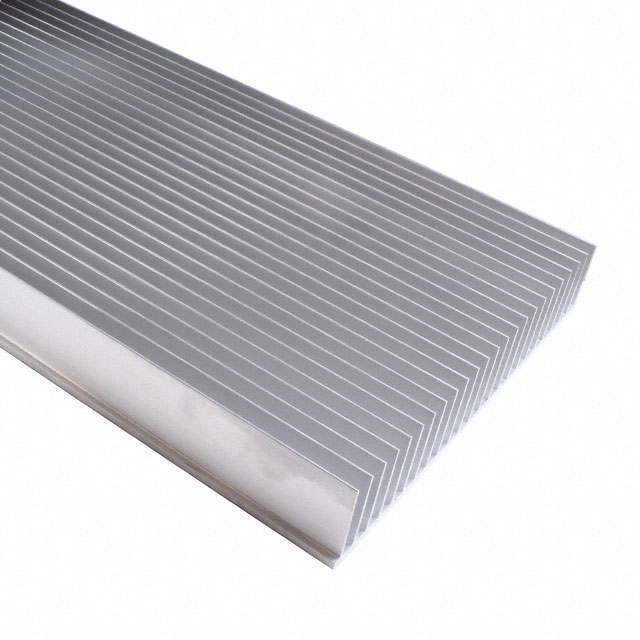

725452F00000
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 48.000" (1219.20mm)
Width : 14.750" (374.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.750" (69.85mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 48.000" (1219.20mm)
Width : 14.750" (374.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.750" (69.85mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
3 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
