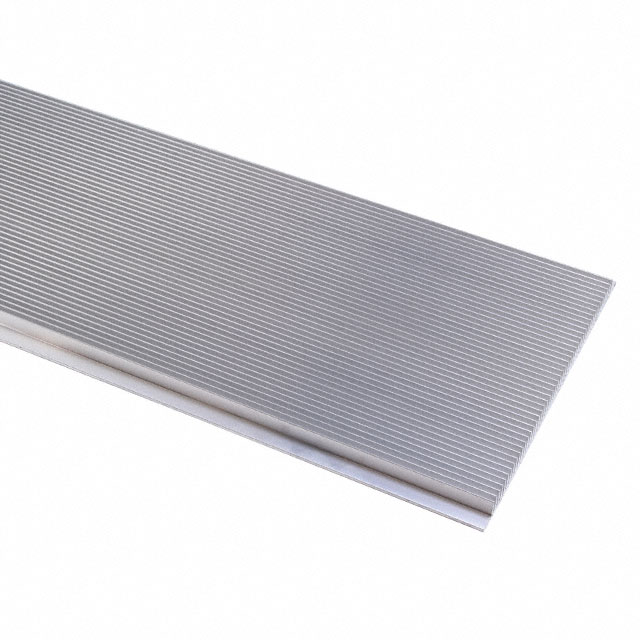

688552F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular
Length : 48.000" (1219.20mm)
Width : 7.200" (182.88mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular
Length : 48.000" (1219.20mm)
Width : 7.200" (182.88mm)
Diameter : -
Height Off Base (Height of Fin) : 0.460" (11.68mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
11 in stock

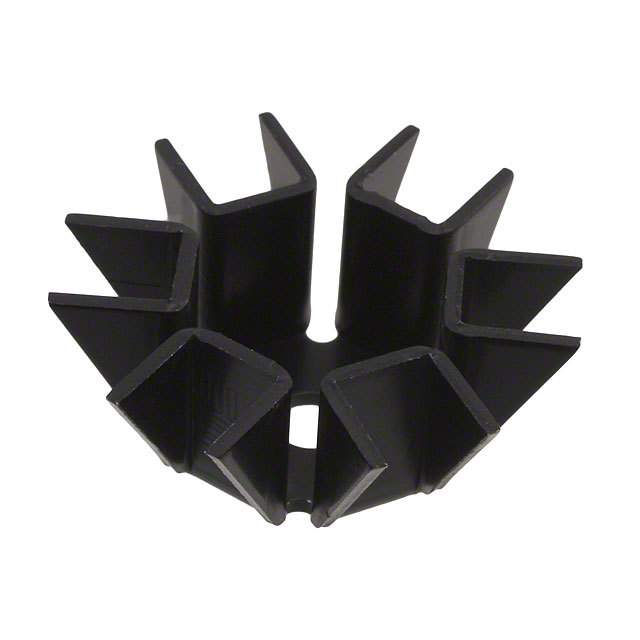

695-1B
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 695
Part Status : Active
Type : Board Level
Package Cooled : Stud Mounted Diode
Attachment Method : Bolt On
Shape : -
Length : -
Width : -
Diameter : 0.625" (15.88mm) ID, 1.330" (33.78mm) OD
Height Off Base (Height of Fin) : 0.530" (13.46mm)
Power Dissipation @ Temperature Rise : 4.0W @ 72°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 400 LFM
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 695
Part Status : Active
Type : Board Level
Package Cooled : Stud Mounted Diode
Attachment Method : Bolt On
Shape : -
Length : -
Width : -
Diameter : 0.625" (15.88mm) ID, 1.330" (33.78mm) OD
Height Off Base (Height of Fin) : 0.530" (13.46mm)
Power Dissipation @ Temperature Rise : 4.0W @ 72°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 400 LFM
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
810 in stock
701652F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 48.000" (1219.20mm)
Width : 12.000" (304.80mm)
Diameter : -
Height Off Base (Height of Fin) : 1.780" (45.21mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.20°C/W @ 700 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 48.000" (1219.20mm)
Width : 12.000" (304.80mm)
Diameter : -
Height Off Base (Height of Fin) : 1.780" (45.21mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.20°C/W @ 700 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
6 in stock

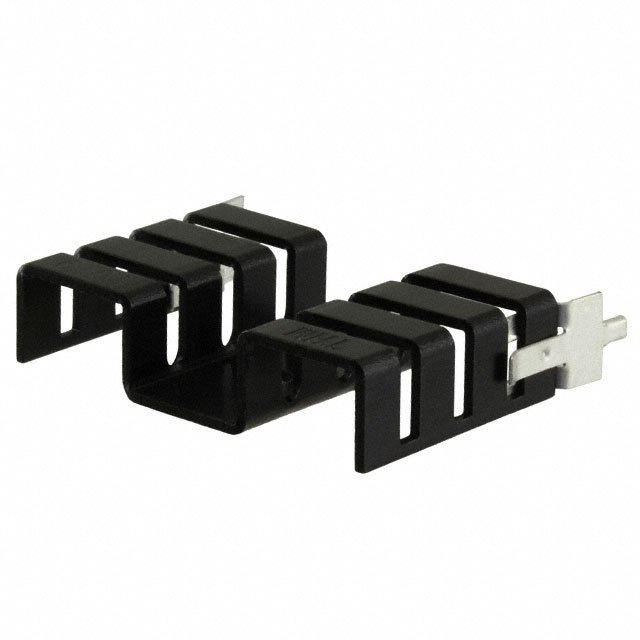

7019B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.550" (39.37mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 100 LFM
Thermal Resistance @ Natural : 11.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.550" (39.37mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 100 LFM
Thermal Resistance @ Natural : 11.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
8236 in stock

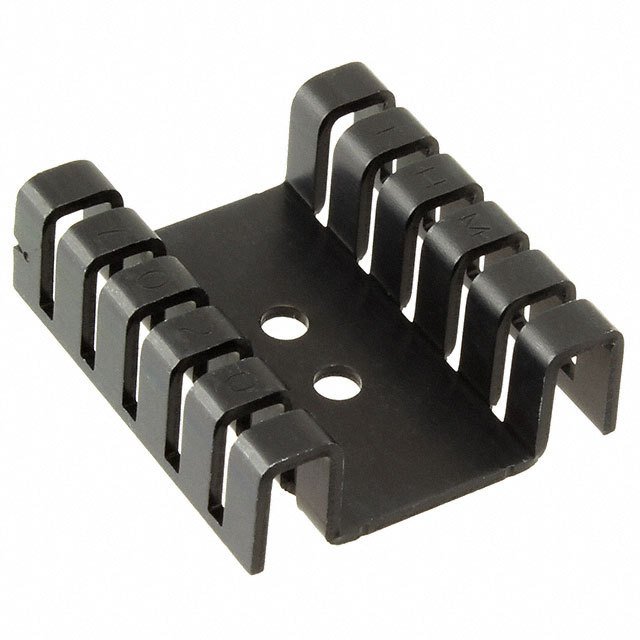

7020BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.300" (33.02mm)
Diameter : -
Height Off Base (Height of Fin) : 0.470" (11.94mm)
Power Dissipation @ Temperature Rise : 8.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 8.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.300" (33.02mm)
Diameter : -
Height Off Base (Height of Fin) : 0.470" (11.94mm)
Power Dissipation @ Temperature Rise : 8.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 8.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6192 in stock
7020B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.300" (33.02mm)
Diameter : -
Height Off Base (Height of Fin) : 0.470" (11.94mm)
Power Dissipation @ Temperature Rise : 8.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 800 LFM
Thermal Resistance @ Natural : 8.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.300" (33.02mm)
Diameter : -
Height Off Base (Height of Fin) : 0.470" (11.94mm)
Power Dissipation @ Temperature Rise : 8.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 800 LFM
Thermal Resistance @ Natural : 8.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1428 in stock
7021B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.750" (44.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.380" (9.65mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 6.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.750" (44.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.380" (9.65mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 6.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11312 in stock

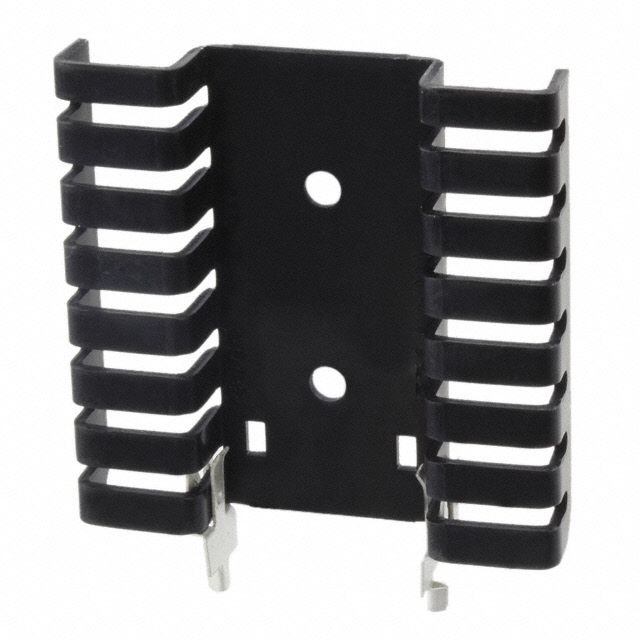

7022B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.968" (49.99mm)
Width : 1.986" (50.44mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 10.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 1.75°C/W @ 800 LFM
Thermal Resistance @ Natural : 6.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.968" (49.99mm)
Width : 1.986" (50.44mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 10.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 1.75°C/W @ 800 LFM
Thermal Resistance @ Natural : 6.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1710 in stock
7023BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.950" (49.53mm)
Width : 1.900" (48.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.950" (24.13mm)
Power Dissipation @ Temperature Rise : 5.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 4.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.950" (49.53mm)
Width : 1.900" (48.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.950" (24.13mm)
Power Dissipation @ Temperature Rise : 5.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 4.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

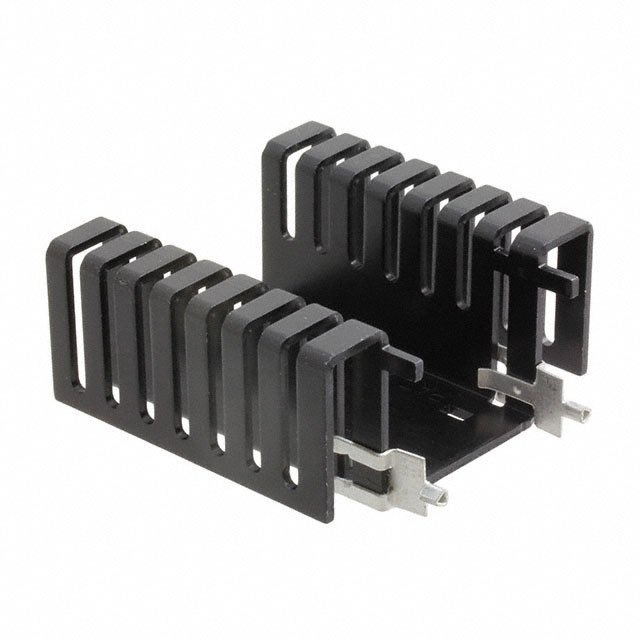

7023B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.950" (49.53mm)
Width : 1.900" (48.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.950" (24.13mm)
Power Dissipation @ Temperature Rise : 3.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 4.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.950" (49.53mm)
Width : 1.900" (48.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.950" (24.13mm)
Power Dissipation @ Temperature Rise : 3.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 4.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6313 in stock
7024B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.620" (41.15mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : 9.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.620" (41.15mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : 9.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1117 in stock
7025B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.130" (28.70mm)
Width : 1.900" (48.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.950" (24.13mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 6.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.130" (28.70mm)
Width : 1.900" (48.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.950" (24.13mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 6.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6814 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
