- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

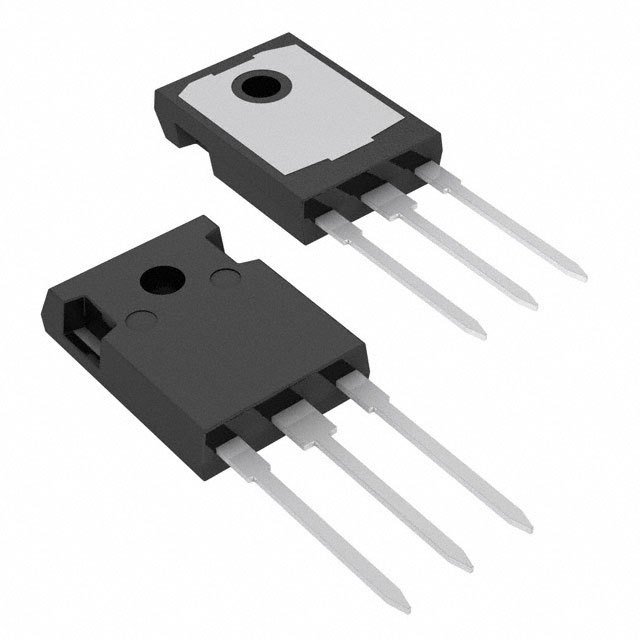

STGW45NC60WD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 285W
Switching Energy : 302µJ (on), 349µJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 33ns/168ns
Test Condition : 390V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 285W
Switching Energy : 302µJ (on), 349µJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 33ns/168ns
Test Condition : 390V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
100 in stock
STGW50H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 360W
Switching Energy : 890µJ (on), 860µJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 62ns/178ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 360W
Switching Energy : 890µJ (on), 860µJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 62ns/178ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
STGW50HF60S
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 110A
Current - Collector Pulsed (Icm) : 130A
Vce(on) (Max) @ Vge, Ic : 1.45V @ 15V, 30A
Power - Max : 284W
Switching Energy : 250µJ (on), 4.2mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/220ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 110A
Current - Collector Pulsed (Icm) : 130A
Vce(on) (Max) @ Vge, Ic : 1.45V @ 15V, 30A
Power - Max : 284W
Switching Energy : 250µJ (on), 4.2mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/220ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
413 in stock
STGW50HF60SD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 110A
Current - Collector Pulsed (Icm) : 130A
Vce(on) (Max) @ Vge, Ic : 1.45V @ 15V, 30A
Power - Max : 284W
Switching Energy : 250µJ (on), 4.2mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/220ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 67ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 110A
Current - Collector Pulsed (Icm) : 130A
Vce(on) (Max) @ Vge, Ic : 1.45V @ 15V, 30A
Power - Max : 284W
Switching Energy : 250µJ (on), 4.2mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/220ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 67ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
600 in stock
STGW50NC60W
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 285W
Switching Energy : 365µJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : 52ns/240ns
Test Condition : 390V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 285W
Switching Energy : 365µJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : 52ns/240ns
Test Condition : 390V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
387 in stock
STGW60H65DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 60A
Power - Max : 360W
Switching Energy : 1.5mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 206nC
Td (on/off) @ 25°C : 67ns/165ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 60A
Power - Max : 360W
Switching Energy : 1.5mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 206nC
Td (on/off) @ 25°C : 67ns/165ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
345 in stock
STGW60H65DFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 60A
Power - Max : 375W
Switching Energy : 1.09mJ (on), 626µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 51ns/160ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 60A
Power - Max : 375W
Switching Energy : 1.09mJ (on), 626µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 51ns/160ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
460 in stock
STGW60H65DRF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 60A
Power - Max : 420W
Switching Energy : 940µJ (on), 1.06mJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 85ns/178ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 19ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 60A
Power - Max : 420W
Switching Energy : 940µJ (on), 1.06mJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 85ns/178ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 19ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
324 in stock
STGW60H65F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 60A
Power - Max : 360W
Switching Energy : 750µJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 65ns/180ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 60A
Power - Max : 360W
Switching Energy : 750µJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 65ns/180ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
366 in stock
STGW60V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 375W
Switching Energy : 750µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 334nC
Td (on/off) @ 25°C : 60ns/208ns
Test Condition : 400V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 74ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 375W
Switching Energy : 750µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 334nC
Td (on/off) @ 25°C : 60ns/208ns
Test Condition : 400V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 74ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
STGW60V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 375W
Switching Energy : 750µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 334nC
Td (on/off) @ 25°C : 60ns/208ns
Test Condition : 400V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 375W
Switching Energy : 750µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 334nC
Td (on/off) @ 25°C : 60ns/208ns
Test Condition : 400V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
291 in stock
STGW75M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 468W
Switching Energy : 690µJ (on), 2.54mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 47ns/125ns
Test Condition : 400V, 75A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 165ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 468W
Switching Energy : 690µJ (on), 2.54mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 47ns/125ns
Test Condition : 400V, 75A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 165ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
