- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGWA40S120DF3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 468W
Switching Energy : 1.43mJ (on), 3.83mJ (off)
Input Type : Standard
Gate Charge : 129nC
Td (on/off) @ 25°C : 35ns/148ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 355ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 468W
Switching Energy : 1.43mJ (on), 3.83mJ (off)
Input Type : Standard
Gate Charge : 129nC
Td (on/off) @ 25°C : 35ns/148ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 355ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
3 in stock
STGWA45HF60WDI
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 310W
Switching Energy : 330µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : -/145ns
Test Condition : 400V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 310W
Switching Energy : 330µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : -/145ns
Test Condition : 400V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
555 in stock

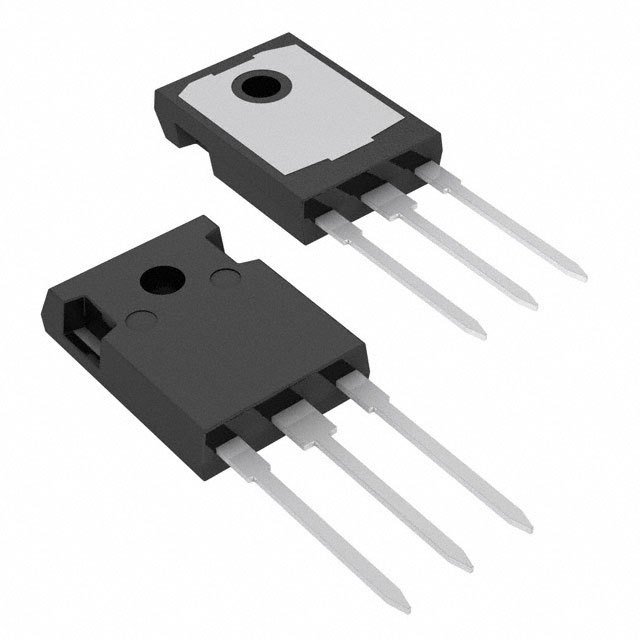

STGWA50M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 375W
Switching Energy : 880µJ (on), 1.57mJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : 42ns/130ns
Test Condition : 400V, 50A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : 162ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 375W
Switching Energy : 880µJ (on), 1.57mJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : 42ns/130ns
Test Condition : 400V, 50A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : 162ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
730 in stock
STGWA60H65DFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 60A
Power - Max : 375W
Switching Energy : 1.59mJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 66ns/210ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 60A
Power - Max : 375W
Switching Energy : 1.59mJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 66ns/210ns
Test Condition : 400V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
244 in stock

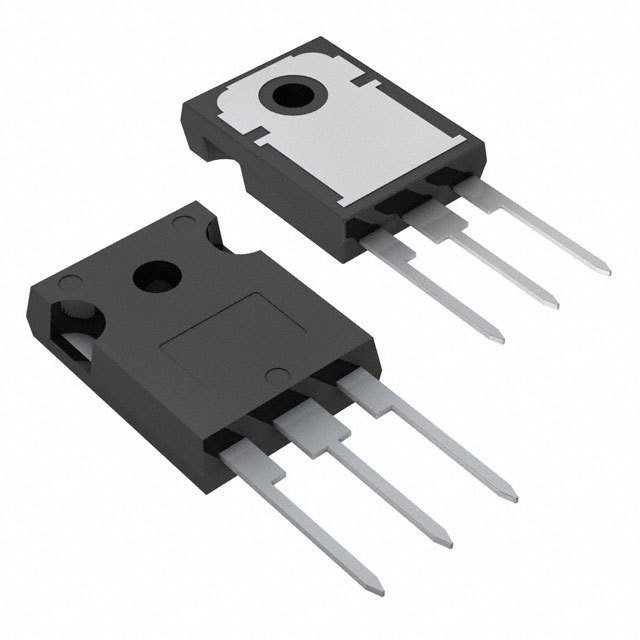

STGWA60NC60WDR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 340W
Switching Energy : 743µJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : 40ns/240ns
Test Condition : 390V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 340W
Switching Energy : 743µJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : 40ns/240ns
Test Condition : 390V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
450 in stock
STGWA75M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 468W
Switching Energy : 690µJ (on), 2.54mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 47ns/125ns
Test Condition : 400V, 75A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 165ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 468W
Switching Energy : 690µJ (on), 2.54mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 47ns/125ns
Test Condition : 400V, 75A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 165ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
100 in stock
STGWA80H65DFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 469W
Switching Energy : 2.1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 414nC
Td (on/off) @ 25°C : 84ns/280ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 469W
Switching Energy : 2.1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 414nC
Td (on/off) @ 25°C : 84ns/280ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
311 in stock
STGWA80H65FB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 469W
Switching Energy : 2.1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 414nC
Td (on/off) @ 25°C : 84ns/280ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 469W
Switching Energy : 2.1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 414nC
Td (on/off) @ 25°C : 84ns/280ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
575 in stock
STGWS38IH130D
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 125A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 180W
Switching Energy : 3.4mJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : -/284ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 125A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 180W
Switching Energy : 3.4mJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : -/284ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
STGWT15H60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : -
Series : H
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 15A
Power - Max : 115W
Switching Energy : 136µJ (on), 207µJ (off)
Input Type : Standard
Gate Charge : 81nC
Td (on/off) @ 25°C : 24.5ns/118ns
Test Condition : 400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : -
Series : H
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 15A
Power - Max : 115W
Switching Energy : 136µJ (on), 207µJ (off)
Input Type : Standard
Gate Charge : 81nC
Td (on/off) @ 25°C : 24.5ns/118ns
Test Condition : 400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
STGWT20H65FB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 168W
Switching Energy : 77µJ (on), 170µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 30ns/139ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 168W
Switching Energy : 77µJ (on), 170µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 30ns/139ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
289 in stock
STGWT20IH125DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 15A
Power - Max : 259W
Switching Energy : 410µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : -/106ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 15A
Power - Max : 259W
Switching Energy : 410µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : -/106ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
549 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
