Part Number
Manufacturer
Description
Unit Price
In Stock
STGW80H65DFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 469W
Switching Energy : 2.1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 414nC
Td (on/off) @ 25°C : 84ns/280ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 469W
Switching Energy : 2.1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 414nC
Td (on/off) @ 25°C : 84ns/280ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
982 in stock

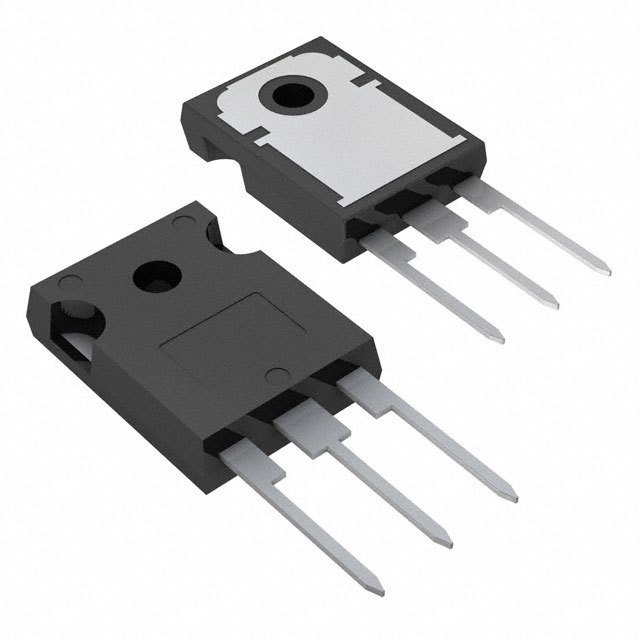

STGW80V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 80A
Power - Max : 469W
Switching Energy : 1.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 448nC
Td (on/off) @ 25°C : 60ns/220ns
Test Condition : 400V, 80A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Exposed Pad
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 80A
Power - Max : 469W
Switching Energy : 1.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 448nC
Td (on/off) @ 25°C : 60ns/220ns
Test Condition : 400V, 80A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Exposed Pad
Supplier Device Package : TO-247
0
2 in stock
STGW80V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 80A
Power - Max : 469W
Switching Energy : 1.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 448nC
Td (on/off) @ 25°C : 60ns/220ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 80A
Power - Max : 469W
Switching Energy : 1.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 448nC
Td (on/off) @ 25°C : 60ns/220ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
486 in stock

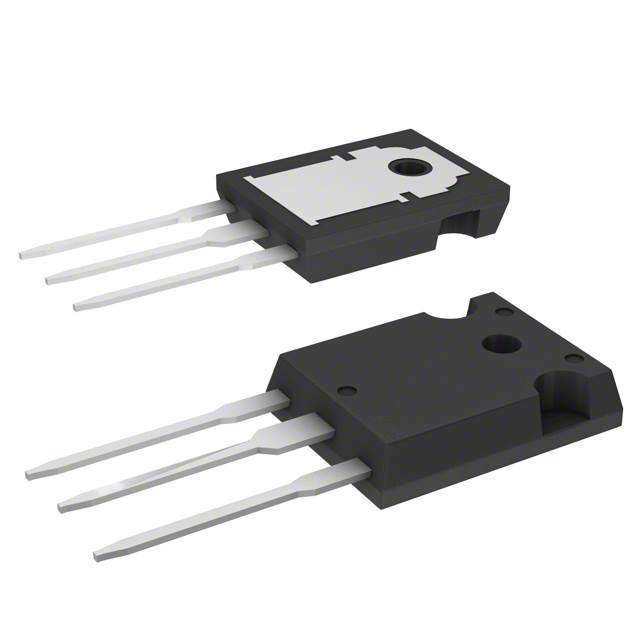

STGW8M120DF3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : -
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 8A
Power - Max : 167W
Switching Energy : 390µJ (on), 370µJ (Off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 20ns/126ns
Test Condition : 600V, 8A, 33 Ohm, 15V
Reverse Recovery Time (trr) : 103ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : -
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 8A
Power - Max : 167W
Switching Energy : 390µJ (on), 370µJ (Off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 20ns/126ns
Test Condition : 600V, 8A, 33 Ohm, 15V
Reverse Recovery Time (trr) : 103ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
STGWA15H120DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 15A
Power - Max : 259W
Switching Energy : 380µJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 23ns/111ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 231ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 15A
Power - Max : 259W
Switching Energy : 380µJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 23ns/111ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 231ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
526 in stock

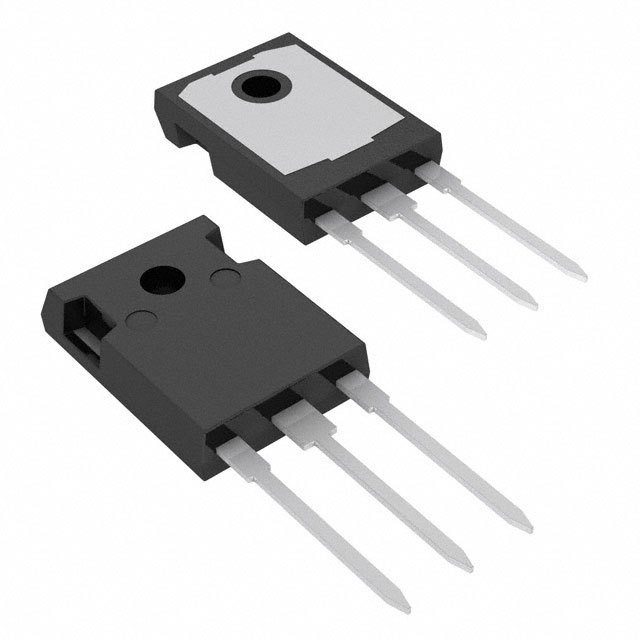

STGWA15S120DF3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 15A
Power - Max : 259W
Switching Energy : 540µJ (on), 1.38mJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 23ns/140ns
Test Condition : 600V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 270ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 15A
Power - Max : 259W
Switching Energy : 540µJ (on), 1.38mJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 23ns/140ns
Test Condition : 600V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 270ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
70 in stock
STGWA19NC60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 52A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 208W
Switching Energy : 85µJ (on), 189µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/97ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 52A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 208W
Switching Energy : 85µJ (on), 189µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/97ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
8 in stock
STGWA25H120DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 25A
Power - Max : 375W
Switching Energy : 600µJ (on), 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 29ns/130ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 303ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 25A
Power - Max : 375W
Switching Energy : 600µJ (on), 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 29ns/130ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 303ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
40 in stock
STGWA25S120DF3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 25A
Power - Max : 375W
Switching Energy : 830µJ (on), 2.37mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 31ns/147ns
Test Condition : 600V, 25A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 265ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 25A
Power - Max : 375W
Switching Energy : 830µJ (on), 2.37mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 31ns/147ns
Test Condition : 600V, 25A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 265ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
94 in stock
STGWA35HF60WDI
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 260W
Switching Energy : 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 260W
Switching Energy : 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
928 in stock
STGWA40M120DF3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 468W
Switching Energy : 1.03mJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 35ns/140ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 355ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 468W
Switching Energy : 1.03mJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 35ns/140ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 355ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
190 in stock
STGWA40N120KD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 3.85V @ 15V, 30A
Power - Max : 240W
Switching Energy : 3.7mJ (on), 5.7mJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 48ns/338ns
Test Condition : 960V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 84ns
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 3.85V @ 15V, 30A
Power - Max : 240W
Switching Energy : 3.7mJ (on), 5.7mJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 48ns/338ns
Test Condition : 960V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 84ns
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
557 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
