- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGW33IH120D
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 220W
Switching Energy : 1.5mJ (on), 3.4mJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : 46ns/284ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 220W
Switching Energy : 1.5mJ (on), 3.4mJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : 46ns/284ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
100 in stock

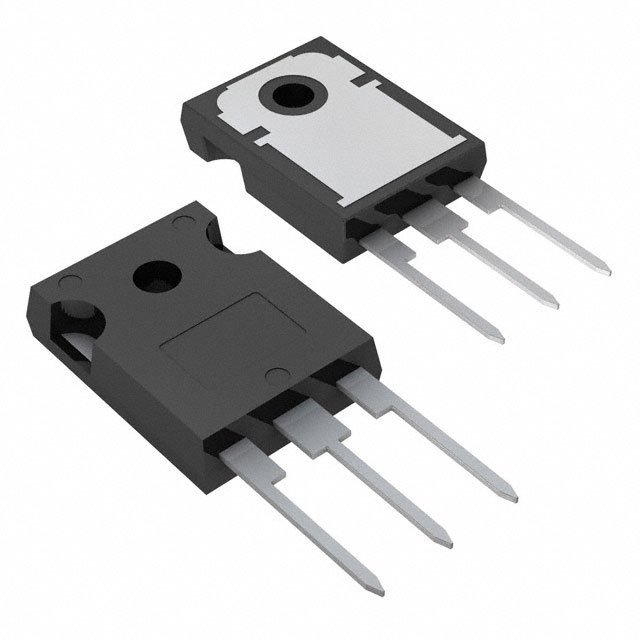

STGW35HF60W
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 290µJ (on), 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 290µJ (on), 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
600 in stock
STGW35HF60WD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 290µJ (on), 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 290µJ (on), 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
22 in stock
STGW35HF60WDI
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
STGW35NB60S
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 200W
Switching Energy : 840µJ (on), 7.4mJ (off)
Input Type : Standard
Gate Charge : 83nC
Td (on/off) @ 25°C : 92ns/1.1µs
Test Condition : 480V, 20A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 200W
Switching Energy : 840µJ (on), 7.4mJ (off)
Input Type : Standard
Gate Charge : 83nC
Td (on/off) @ 25°C : 92ns/1.1µs
Test Condition : 480V, 20A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
STGW35NB60SD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 200W
Switching Energy : 840µJ (on), 7.4mJ (off)
Input Type : Standard
Gate Charge : 83nC
Td (on/off) @ 25°C : 92ns/1.1µs
Test Condition : 480V, 20A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 44ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 200W
Switching Energy : 840µJ (on), 7.4mJ (off)
Input Type : Standard
Gate Charge : 83nC
Td (on/off) @ 25°C : 92ns/1.1µs
Test Condition : 480V, 20A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 44ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
STGW35NC120HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 135A
Vce(on) (Max) @ Vge, Ic : 2.75V @ 15V, 20A
Power - Max : 235W
Switching Energy : 1.66mJ (on), 4.44mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 29ns/275ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 152ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 135A
Vce(on) (Max) @ Vge, Ic : 2.75V @ 15V, 20A
Power - Max : 235W
Switching Energy : 1.66mJ (on), 4.44mJ (off)
Input Type : Standard
Gate Charge : 110nC
Td (on/off) @ 25°C : 29ns/275ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 152ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
2 in stock
STGW35NC60WD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 260W
Switching Energy : 305µJ (on), 181µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 29.5ns/118ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 260W
Switching Energy : 305µJ (on), 181µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 29.5ns/118ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
STGW38IH130D
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 63A
Current - Collector Pulsed (Icm) : 125A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 250W
Switching Energy : 3.4mJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : -/284ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 63A
Current - Collector Pulsed (Icm) : 125A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 250W
Switching Energy : 3.4mJ (off)
Input Type : Standard
Gate Charge : 127nC
Td (on/off) @ 25°C : -/284ns
Test Condition : 960V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
100 in stock
STGW39NC60VD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 250W
Switching Energy : 333µJ (on), 537µJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 33ns/178ns
Test Condition : 390V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 250W
Switching Energy : 333µJ (on), 537µJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 33ns/178ns
Test Condition : 390V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
1193 in stock
STGW40H120DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 468W
Switching Energy : 1mJ (on), 1.32mJ (off)
Input Type : Standard
Gate Charge : 187nC
Td (on/off) @ 25°C : 18ns/152ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 488ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 468W
Switching Energy : 1mJ (on), 1.32mJ (off)
Input Type : Standard
Gate Charge : 187nC
Td (on/off) @ 25°C : 18ns/152ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 488ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
STGW40H65DFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 283W
Switching Energy : 498µJ (on), 363µJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 40ns/142ns
Test Condition : 400V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 283W
Switching Energy : 498µJ (on), 363µJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 40ns/142ns
Test Condition : 400V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
