- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGB40H65FB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HB
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 283W
Switching Energy : 498µJ (on), 363µJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 40ns/142ns
Test Condition : 400V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HB
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 283W
Switching Energy : 498µJ (on), 363µJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 40ns/142ns
Test Condition : 400V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB40V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 283W
Switching Energy : 456µJ (on), 411µJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 52ns/208ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 283W
Switching Energy : 456µJ (on), 411µJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 52ns/208ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

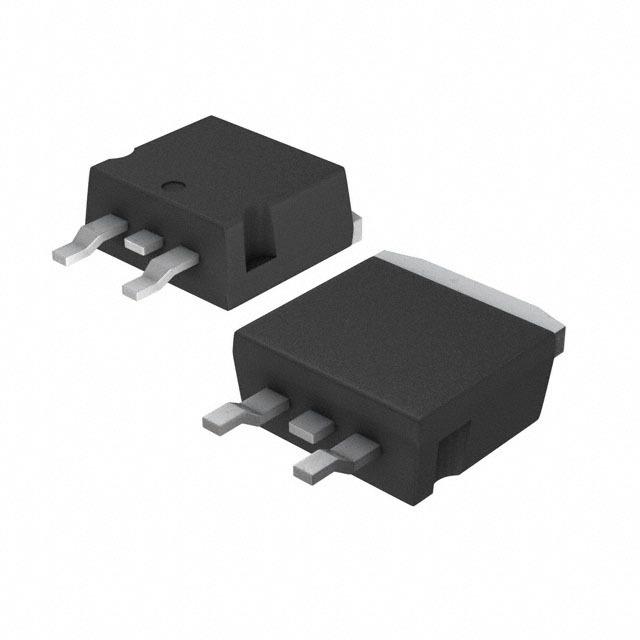

STGB4M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 16A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 68W
Switching Energy : 40µJ (on), 136µJ (off)
Input Type : Standard
Gate Charge : 15.2nC
Td (on/off) @ 25°C : 12ns/86ns
Test Condition : 400V, 4A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 133ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 16A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 68W
Switching Energy : 40µJ (on), 136µJ (off)
Input Type : Standard
Gate Charge : 15.2nC
Td (on/off) @ 25°C : 12ns/86ns
Test Condition : 400V, 4A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 133ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB5H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 5A
Power - Max : 88W
Switching Energy : 56µJ (on), 78.5µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 30ns/140ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 134.5ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 5A
Power - Max : 88W
Switching Energy : 56µJ (on), 78.5µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 30ns/140ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 134.5ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1975 in stock

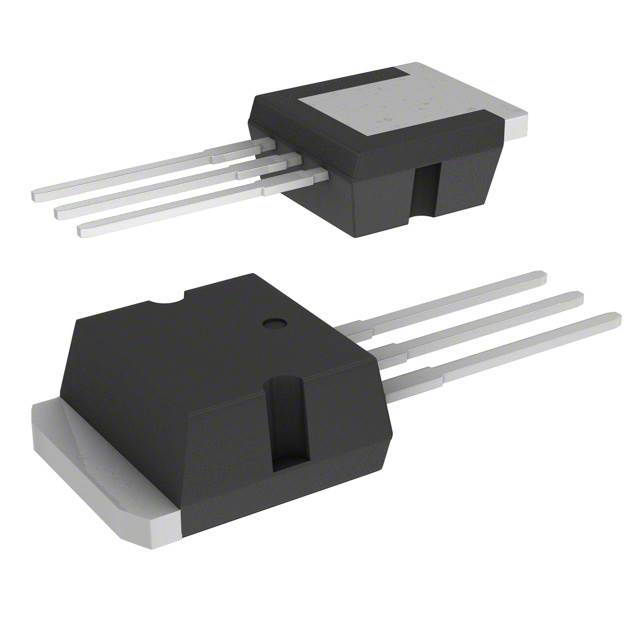

STGB6NC60HD-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK
0
100 in stock
STGB6NC60HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
4000 in stock
STGB6NC60HT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1000 in stock

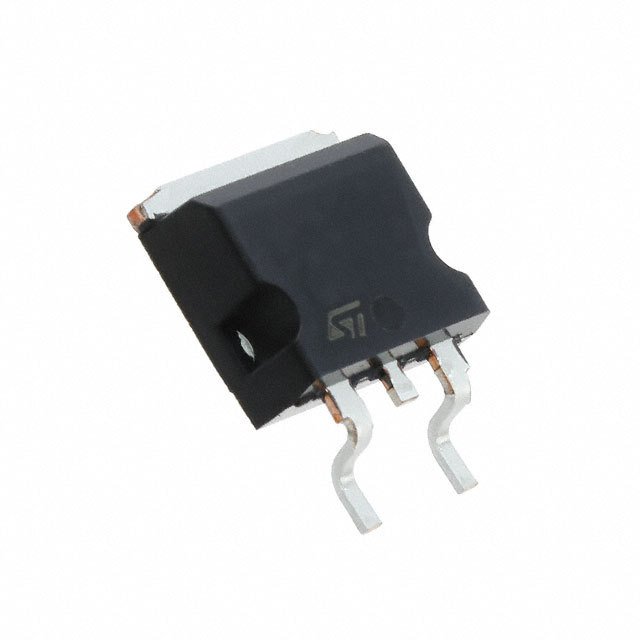

STGB7H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 28A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 7A
Power - Max : 88W
Switching Energy : 99µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 30ns/160ns
Test Condition : 400V, 7A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 136ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 28A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 7A
Power - Max : 88W
Switching Energy : 99µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 30ns/160ns
Test Condition : 400V, 7A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 136ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
100 in stock
STGB7NB40LZT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 430V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.9V @ 5V, 14A
Power - Max : 100W
Switching Energy : -
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 900ns/4.4µs
Test Condition : 300V, 46 Ohm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 430V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.9V @ 5V, 14A
Power - Max : 100W
Switching Energy : -
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 900ns/4.4µs
Test Condition : 300V, 46 Ohm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB7NB60HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 80W
Switching Energy : 85µJ (off)
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 15ns/75ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 80W
Switching Energy : 85µJ (off)
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 15ns/75ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB7NB60KDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 80W
Switching Energy : 140µJ (off)
Input Type : Standard
Gate Charge : 32.7nC
Td (on/off) @ 25°C : 15ns/50ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 80W
Switching Energy : 140µJ (off)
Input Type : Standard
Gate Charge : 32.7nC
Td (on/off) @ 25°C : 15ns/50ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB7NC60HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
5131 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
