- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGB30H60DLFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 260W
Switching Energy : 393µJ (off)
Input Type : Standard
Gate Charge : 149nC
Td (on/off) @ 25°C : -/146ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 260W
Switching Energy : 393µJ (off)
Input Type : Standard
Gate Charge : 149nC
Td (on/off) @ 25°C : -/146ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
777 in stock
STGB30M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 258W
Switching Energy : 300µJ (on), 960µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 31.6ns/115ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 258W
Switching Energy : 300µJ (on), 960µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 31.6ns/115ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB30NC60KT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 125A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 185W
Switching Energy : 350µJ (on), 435µJ (off)
Input Type : Standard
Gate Charge : 96nC
Td (on/off) @ 25°C : 29ns/120ns
Test Condition : 480V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 125A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 185W
Switching Energy : 350µJ (on), 435µJ (off)
Input Type : Standard
Gate Charge : 96nC
Td (on/off) @ 25°C : 29ns/120ns
Test Condition : 480V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1000 in stock
STGB30NC60WT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 305µJ (on), 181µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 29.5ns/118ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 305µJ (on), 181µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 29.5ns/118ns
Test Condition : 390V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1000 in stock
STGB30V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 258W
Switching Energy : 383µJ (on), 233µJ (off)
Input Type : Standard
Gate Charge : 163nC
Td (on/off) @ 25°C : 45ns/189ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 258W
Switching Energy : 383µJ (on), 233µJ (off)
Input Type : Standard
Gate Charge : 163nC
Td (on/off) @ 25°C : 45ns/189ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

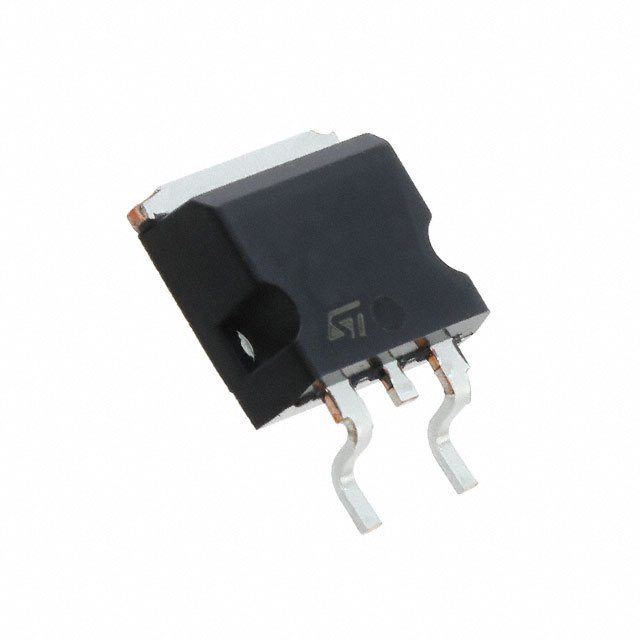

STGB30V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 260W
Switching Energy : 383µJ (on), 233µJ (off)
Input Type : Standard
Gate Charge : 163nC
Td (on/off) @ 25°C : 45ns/189ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 260W
Switching Energy : 383µJ (on), 233µJ (off)
Input Type : Standard
Gate Charge : 163nC
Td (on/off) @ 25°C : 45ns/189ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

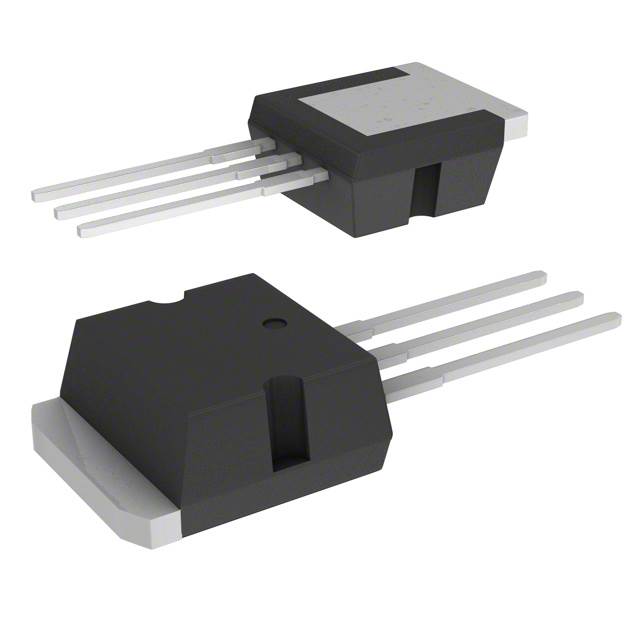

STGB35N35LZ-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 345V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 15A
Power - Max : 176W
Switching Energy : -
Input Type : Logic
Gate Charge : 49nC
Td (on/off) @ 25°C : 1.1µs/26.5µs
Test Condition : 300V, 15A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 345V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 15A
Power - Max : 176W
Switching Energy : -
Input Type : Logic
Gate Charge : 49nC
Td (on/off) @ 25°C : 1.1µs/26.5µs
Test Condition : 300V, 15A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK
0
993 in stock
STGB35N35LZT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 345V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 15A
Power - Max : 176W
Switching Energy : -
Input Type : Logic
Gate Charge : 49nC
Td (on/off) @ 25°C : 1.1µs/26.5µs
Test Condition : 300V, 15A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 345V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 15A
Power - Max : 176W
Switching Energy : -
Input Type : Logic
Gate Charge : 49nC
Td (on/off) @ 25°C : 1.1µs/26.5µs
Test Condition : 300V, 15A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB3NB60FDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 3A
Power - Max : 68W
Switching Energy : 125µJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 12.5ns/105ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 3A
Power - Max : 68W
Switching Energy : 125µJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 12.5ns/105ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB3NB60KDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 50W
Switching Energy : 30µJ (on), 58µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 14ns/33ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 50W
Switching Energy : 30µJ (on), 58µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 14ns/33ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB3NB60SDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 3A
Power - Max : 70W
Switching Energy : 1.15mJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 125ns/3.4µs
Test Condition : 480V, 3A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 3A
Power - Max : 70W
Switching Energy : 1.15mJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 125ns/3.4µs
Test Condition : 480V, 3A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB3NC120HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 75W
Switching Energy : 236µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 15ns/118ns
Test Condition : 800V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 51ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 75W
Switching Energy : 236µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 15ns/118ns
Test Condition : 800V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 51ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
1000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
