- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGB20N45LZAG
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
199 in stock
STGB20NB32LZ
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 375V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 150W
Switching Energy : 11.8mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 2.3µs/11.5µs
Test Condition : 250V, 20A, 1 kOhm, 4.5V
Reverse Recovery Time (trr) : -
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 375V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 150W
Switching Energy : 11.8mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 2.3µs/11.5µs
Test Condition : 250V, 20A, 1 kOhm, 4.5V
Reverse Recovery Time (trr) : -
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB20NB37LZ
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 425V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 200W
Switching Energy : 11.8mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 2.3µs/2µs
Test Condition : 250V, 20A, 1 kOhm, 4.5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 425V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 200W
Switching Energy : 11.8mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 2.3µs/2µs
Test Condition : 250V, 20A, 1 kOhm, 4.5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

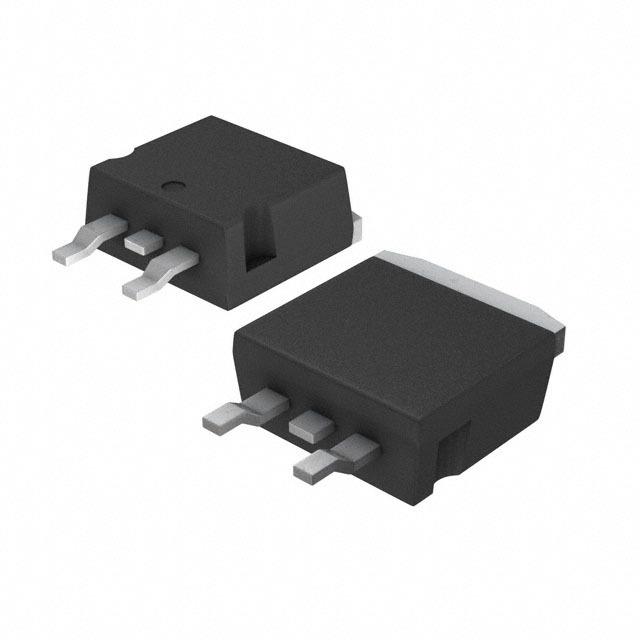

STGB20NB37LZT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 425V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 200W
Switching Energy : 11.8mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 2.3µs/2µs
Test Condition : 250V, 20A, 1 kOhm, 4.5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 425V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 200W
Switching Energy : 11.8mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 2.3µs/2µs
Test Condition : 250V, 20A, 1 kOhm, 4.5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB20NB41LZT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 442V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 200W
Switching Energy : 5mJ (on), 12.9mJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 1µs/12.1µs
Test Condition : 320V, 20A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 442V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 4.5V, 20A
Power - Max : 200W
Switching Energy : 5mJ (on), 12.9mJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 1µs/12.1µs
Test Condition : 320V, 20A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
2346 in stock
STGB20NC60V
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 220µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 31ns/100ns
Test Condition : 390V, 20A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 220µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 31ns/100ns
Test Condition : 390V, 20A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
54 in stock

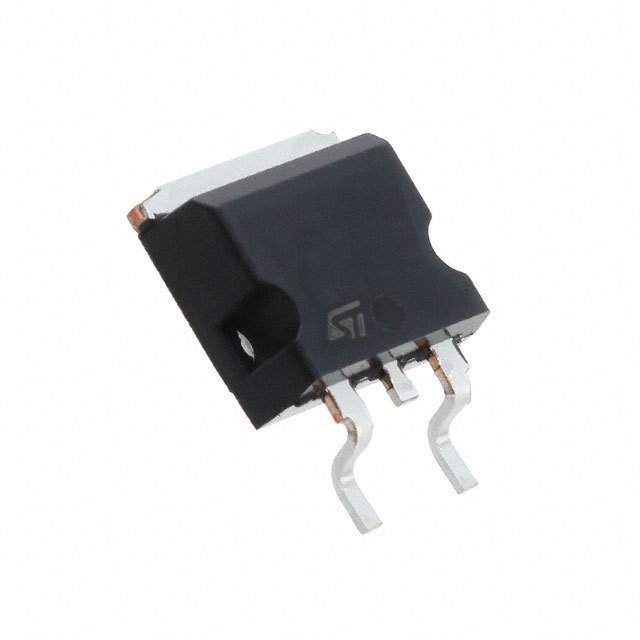

STGB20NC60VT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 220µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 31ns/100ns
Test Condition : 390V, 20A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 200W
Switching Energy : 220µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 31ns/100ns
Test Condition : 390V, 20A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB20V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 167W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 167W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB20V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 167W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 167W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
711 in stock
STGB25N40LZAG
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 435V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 435V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
190 in stock
STGB30H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 260W
Switching Energy : 350µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 105nC
Td (on/off) @ 25°C : 50ns/160ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 260W
Switching Energy : 350µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 105nC
Td (on/off) @ 25°C : 50ns/160ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
STGB30H60DFB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 260W
Switching Energy : 383µJ (on), 293µJ (off)
Input Type : Standard
Gate Charge : 149nC
Td (on/off) @ 25°C : 37ns/146ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 260W
Switching Energy : 383µJ (on), 293µJ (off)
Input Type : Standard
Gate Charge : 149nC
Td (on/off) @ 25°C : 37ns/146ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
757 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
