- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGD14NC60KT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 82µJ (on), 155µJ (off)
Input Type : Standard
Gate Charge : 34.4nC
Td (on/off) @ 25°C : 22.5ns/116ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 82µJ (on), 155µJ (off)
Input Type : Standard
Gate Charge : 34.4nC
Td (on/off) @ 25°C : 22.5ns/116ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
32 in stock

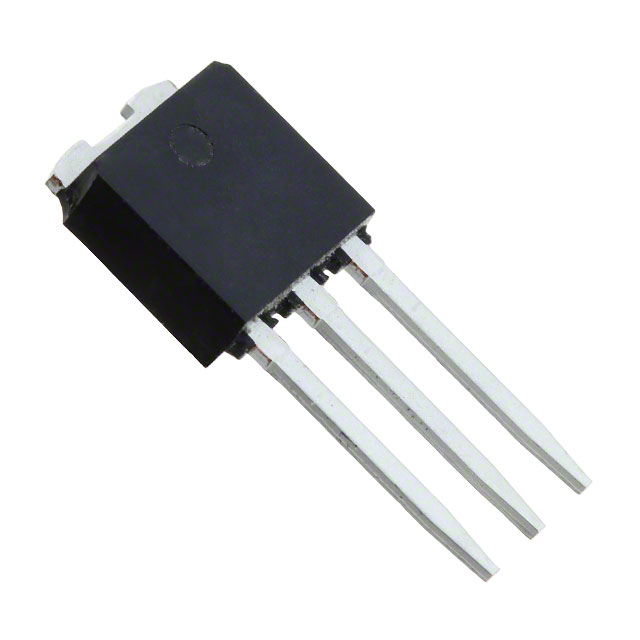

STGD18N40LZ-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 420V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 29nC
Td (on/off) @ 25°C : 650ns/13.5µs
Test Condition : 300V, 10A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 420V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 29nC
Td (on/off) @ 25°C : 650ns/13.5µs
Test Condition : 300V, 10A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
0
2823 in stock

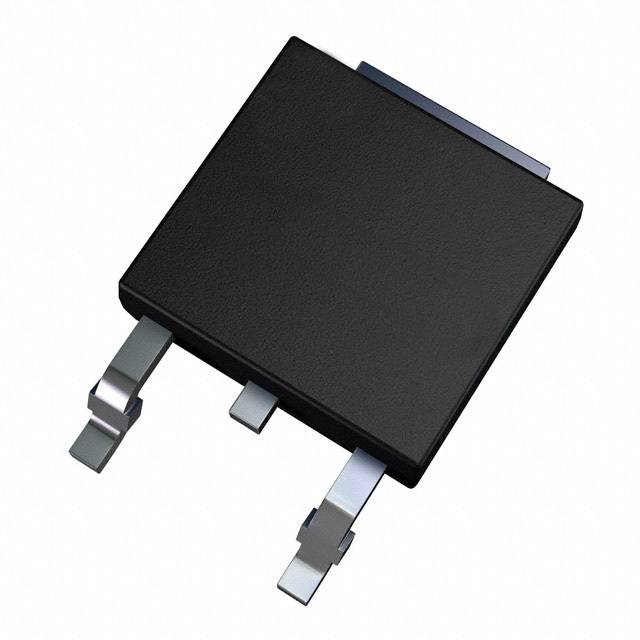

STGD18N40LZT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 420V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 29nC
Td (on/off) @ 25°C : 650ns/13.5µs
Test Condition : 300V, 10A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 420V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 29nC
Td (on/off) @ 25°C : 650ns/13.5µs
Test Condition : 300V, 10A, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
7141 in stock
STGD19N40LZ
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 390V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 17nC
Td (on/off) @ 25°C : 650ns/13.5µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 390V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 17nC
Td (on/off) @ 25°C : 650ns/13.5µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2000 in stock
STGD20N40LZ
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 390V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 4V, 6A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 24nC
Td (on/off) @ 25°C : 700ns/4.3µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 390V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 4V, 6A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 24nC
Td (on/off) @ 25°C : 700ns/4.3µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
4740 in stock
STGD20N45LZAG
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD25N40LZAG
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 435V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 435V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 125W
Switching Energy : -
Input Type : Logic
Gate Charge : 26nC
Td (on/off) @ 25°C : 1.1µs/4.6µs
Test Condition : 300V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD3HF60HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 7.5A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.95V @ 15V, 1.5A
Power - Max : 38W
Switching Energy : 19µJ (on), 12µJ (off)
Input Type : Standard
Gate Charge : 12nC
Td (on/off) @ 25°C : 11ns/60ns
Test Condition : 400V, 1.5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 7.5A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.95V @ 15V, 1.5A
Power - Max : 38W
Switching Energy : 19µJ (on), 12µJ (off)
Input Type : Standard
Gate Charge : 12nC
Td (on/off) @ 25°C : 11ns/60ns
Test Condition : 400V, 1.5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2490 in stock
STGD3NB60FT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 3A
Power - Max : 60W
Switching Energy : 125µJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 12.5ns/105ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 3A
Power - Max : 60W
Switching Energy : 125µJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 12.5ns/105ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD3NB60HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 50W
Switching Energy : 33µJ (off)
Input Type : Standard
Gate Charge : 21nC
Td (on/off) @ 25°C : 5ns/53ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 50W
Switching Energy : 33µJ (off)
Input Type : Standard
Gate Charge : 21nC
Td (on/off) @ 25°C : 5ns/53ns
Test Condition : 480V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD3NB60SD-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 3A
Power - Max : 48W
Switching Energy : 1.1mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 125µs/3.4µs
Test Condition : 480V, 3A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 3A
Power - Max : 48W
Switching Energy : 1.1mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 125µs/3.4µs
Test Condition : 480V, 3A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD3NB60SDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 3A
Power - Max : 48W
Switching Energy : 1.15mJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 125µs/-
Test Condition : 480V, 3A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 3A
Power - Max : 48W
Switching Energy : 1.15mJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 125µs/-
Test Condition : 480V, 3A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 1.7µs
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
1477 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
