- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGD4M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 16A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 68W
Switching Energy : 40µJ (on), 136µJ (off)
Input Type : Standard
Gate Charge : 15.2nC
Td (on/off) @ 25°C : 12ns/86ns
Test Condition : 400V, 4A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 133ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 16A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 68W
Switching Energy : 40µJ (on), 136µJ (off)
Input Type : Standard
Gate Charge : 15.2nC
Td (on/off) @ 25°C : 12ns/86ns
Test Condition : 400V, 4A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 133ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD5H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 5A
Power - Max : 83W
Switching Energy : 56µJ (on), 78.5µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 30ns/140ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 134.5ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 5A
Power - Max : 83W
Switching Energy : 56µJ (on), 78.5µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 30ns/140ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 134.5ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD5NB120SZ-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 10A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 5A
Power - Max : 75W
Switching Energy : 2.59mJ (on), 9mJ (off)
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 690ns/12.1µs
Test Condition : 960V, 5A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 10A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 5A
Power - Max : 75W
Switching Energy : 2.59mJ (on), 9mJ (off)
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 690ns/12.1µs
Test Condition : 960V, 5A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
0
1917 in stock
STGD5NB120SZT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 10A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 5A
Power - Max : 75W
Switching Energy : 2.59mJ (on), 9mJ (off)
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 690ns/12.1µs
Test Condition : 960V, 5A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 10A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 5A
Power - Max : 75W
Switching Energy : 2.59mJ (on), 9mJ (off)
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 690ns/12.1µs
Test Condition : 960V, 5A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD6M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 6A
Power - Max : 88W
Switching Energy : 36µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 21.2nC
Td (on/off) @ 25°C : 15ns/90ns
Test Condition : 400V, 6A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 6A
Power - Max : 88W
Switching Energy : 36µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 21.2nC
Td (on/off) @ 25°C : 15ns/90ns
Test Condition : 400V, 6A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
762 in stock
STGD6NC60H-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : IPAK (TO-251)
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : IPAK (TO-251)
0
2693 in stock
STGD6NC60HDT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2496 in stock

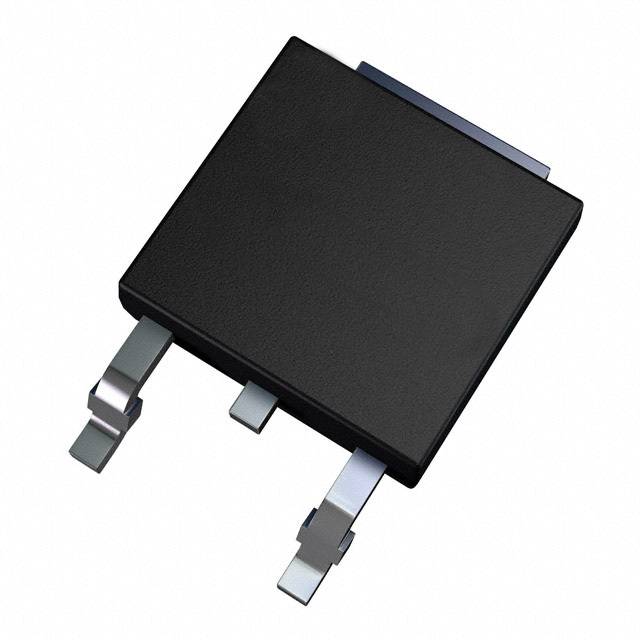

STGD6NC60HT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 56W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD7NB120S-1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 7A
Power - Max : 55W
Switching Energy : 15mJ (off)
Input Type : Standard
Gate Charge : 29nC
Td (on/off) @ 25°C : 570ns/-
Test Condition : 960V, 7A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 7A
Power - Max : 55W
Switching Energy : 15mJ (off)
Input Type : Standard
Gate Charge : 29nC
Td (on/off) @ 25°C : 570ns/-
Test Condition : 960V, 7A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
0
100 in stock
STGD7NB120ST4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 7A
Power - Max : 55W
Switching Energy : 3.2µJ (on), 15mJ (off)
Input Type : Standard
Gate Charge : 29nC
Td (on/off) @ 25°C : 570ns/-
Test Condition : 960V, 7A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Tape & Reel (TR)
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 7A
Power - Max : 55W
Switching Energy : 3.2µJ (on), 15mJ (off)
Input Type : Standard
Gate Charge : 29nC
Td (on/off) @ 25°C : 570ns/-
Test Condition : 960V, 7A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD7NB60KT4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 70W
Switching Energy : 95µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 32.7nC
Td (on/off) @ 25°C : 15ns/50ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 70W
Switching Energy : 95µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 32.7nC
Td (on/off) @ 25°C : 15ns/50ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
STGD7NB60ST4
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 7A
Power - Max : 55W
Switching Energy : 3.5mJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 700ns/-
Test Condition : 480V, 7A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 7A
Power - Max : 55W
Switching Energy : 3.5mJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 700ns/-
Test Condition : 480V, 7A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
387 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
