- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
NGTB40N120S3WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 40A
Power - Max : 454W
Switching Energy : 2.2mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 212nC
Td (on/off) @ 25°C : 12ns/145ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 163ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 40A
Power - Max : 454W
Switching Energy : 2.2mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 212nC
Td (on/off) @ 25°C : 12ns/145ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 163ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
NGTB40N120SWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 535W
Switching Energy : 3.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 116ns/286ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 535W
Switching Energy : 3.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 116ns/286ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
NGTB40N135IHRWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 394W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 234nC
Td (on/off) @ 25°C : -/250ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 40A
Power - Max : 394W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 234nC
Td (on/off) @ 25°C : -/250ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
84 in stock
NGTB40N60FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 366W
Switching Energy : 970µJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 84ns/177ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 366W
Switching Energy : 970µJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 84ns/177ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
NGTB40N60FLWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 257W
Switching Energy : 890µJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 171nC
Td (on/off) @ 25°C : 85ns/174ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 77ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 257W
Switching Energy : 890µJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 171nC
Td (on/off) @ 25°C : 85ns/174ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 77ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
90 in stock

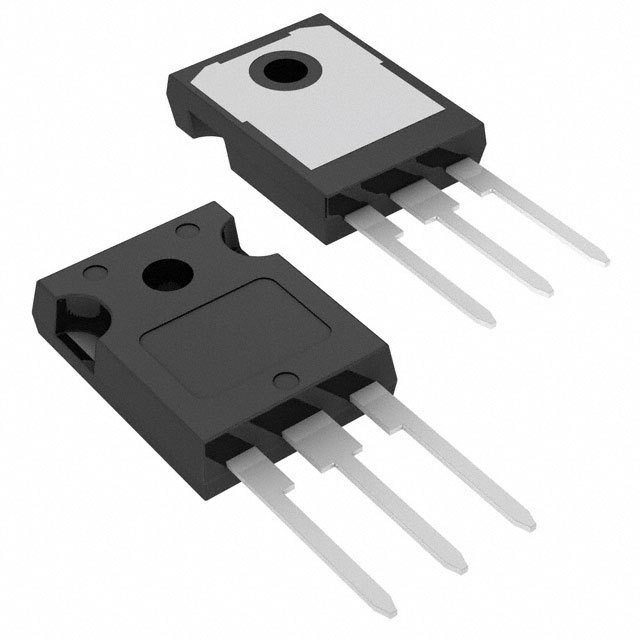

NGTB40N60IHLWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 250W
Switching Energy : 400µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 70ns/140ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 400ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 250W
Switching Energy : 400µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 70ns/140ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 400ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
NGTB40N60L2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.61V @ 15V, 40A
Power - Max : 417W
Switching Energy : 1.17mJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 228nC
Td (on/off) @ 25°C : 98ns/213ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.61V @ 15V, 40A
Power - Max : 417W
Switching Energy : 1.17mJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 228nC
Td (on/off) @ 25°C : 98ns/213ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
90 in stock
NGTB40N65FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 366W
Switching Energy : 970µJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 84ns/177ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 366W
Switching Energy : 970µJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 84ns/177ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
90 in stock
NGTB40N65IHL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 300W
Switching Energy : 360µJ (off)
Input Type : Standard
Gate Charge : 135nC
Td (on/off) @ 25°C : -/140ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 465ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 300W
Switching Energy : 360µJ (off)
Input Type : Standard
Gate Charge : 135nC
Td (on/off) @ 25°C : -/140ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 465ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
104 in stock
NGTB40N65IHRTG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 405W
Switching Energy : 420µJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : -
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 405W
Switching Energy : 420µJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : -
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
180 in stock
NGTB40N65IHRWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 405W
Switching Energy : 420µJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : -
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 405W
Switching Energy : 420µJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : -
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
169 in stock
NGTB45N60S1WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 45A
Power - Max : 300W
Switching Energy : 1.25mJ (on), 530µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 45A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 45A
Power - Max : 300W
Switching Energy : 1.25mJ (on), 530µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 45A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
150 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
