- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
NGTB30N60L2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 30A
Power - Max : 225W
Switching Energy : 310µJ (on), 1.14mJ (off)
Input Type : Standard
Gate Charge : 166nC
Td (on/off) @ 25°C : 100ns/390ns
Test Condition : 300V, 30A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 30A
Power - Max : 225W
Switching Energy : 310µJ (on), 1.14mJ (off)
Input Type : Standard
Gate Charge : 166nC
Td (on/off) @ 25°C : 100ns/390ns
Test Condition : 300V, 30A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
80 in stock
NGTB30N60SWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 30A
Power - Max : 189W
Switching Energy : 750µJ (on), 540µJ (off)
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : 57ns/109ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 30A
Power - Max : 189W
Switching Energy : 750µJ (on), 540µJ (off)
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : 57ns/109ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
NGTB35N60FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 35A
Power - Max : 300W
Switching Energy : 840µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 35A
Power - Max : 300W
Switching Energy : 840µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
NGTB35N65FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 35A
Power - Max : 300W
Switching Energy : 840µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 35A
Power - Max : 300W
Switching Energy : 840µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock

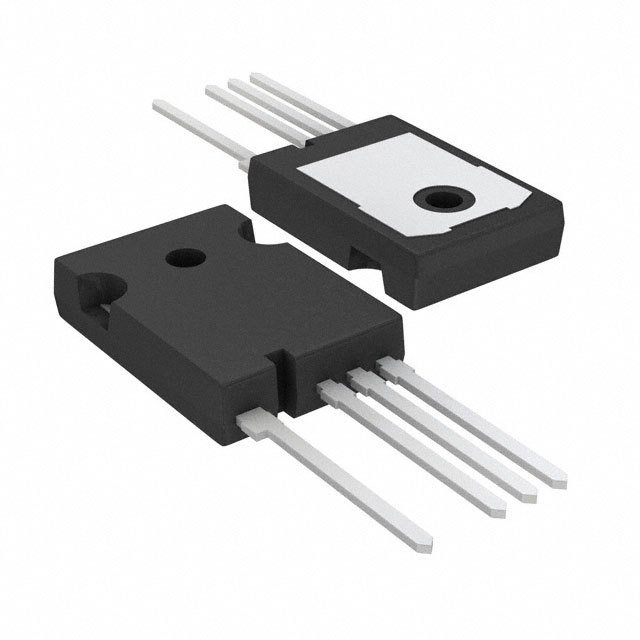

NGTB40N120FL2WAG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 536W
Switching Energy : 1.7mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 30ns/145ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247-4L
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 536W
Switching Energy : 1.7mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 30ns/145ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247-4L
0
178 in stock
NGTB40N120FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 535W
Switching Energy : 3.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 116ns/286ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 535W
Switching Energy : 3.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 116ns/286ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
150 in stock
NGTB40N120FL3WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 454W
Switching Energy : 1.6mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 212nC
Td (on/off) @ 25°C : 18ns/145ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 136ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 454W
Switching Energy : 1.6mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 212nC
Td (on/off) @ 25°C : 18ns/145ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 136ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock

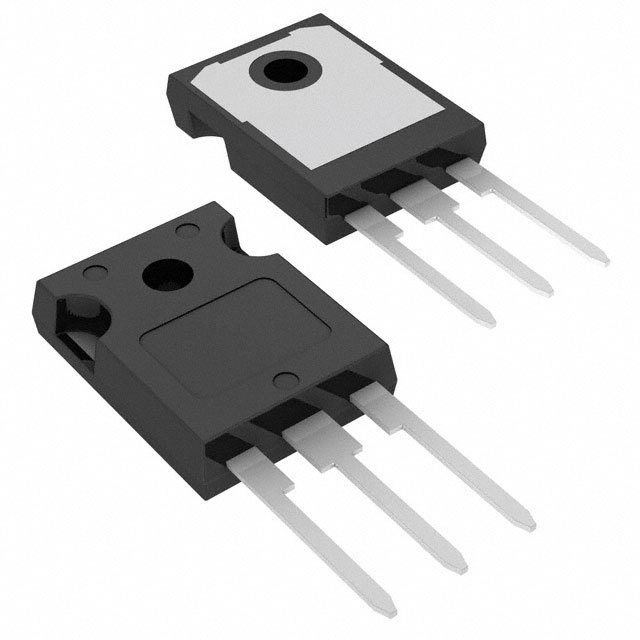

NGTB40N120FLWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 260W
Switching Energy : 2.6mJ (on), 1.6mJ (off)
Input Type : Standard
Gate Charge : 415nC
Td (on/off) @ 25°C : 130ns/385ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 260W
Switching Energy : 2.6mJ (on), 1.6mJ (off)
Input Type : Standard
Gate Charge : 415nC
Td (on/off) @ 25°C : 130ns/385ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
NGTB40N120IHLWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 320A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 40A
Power - Max : 260W
Switching Energy : 1.4mJ (off)
Input Type : Standard
Gate Charge : 420nC
Td (on/off) @ 25°C : -/360ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 320A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 40A
Power - Max : 260W
Switching Energy : 1.4mJ (off)
Input Type : Standard
Gate Charge : 420nC
Td (on/off) @ 25°C : -/360ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
NGTB40N120IHRWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 40A
Power - Max : 384W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : -/230ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 40A
Power - Max : 384W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : -/230ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
207 in stock
NGTB40N120L3WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 454W
Switching Energy : 1.5mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 18ns/150ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 86ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 454W
Switching Energy : 1.5mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 18ns/150ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 86ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
NGTB40N120LWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 320A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 40A
Power - Max : 260W
Switching Energy : 5.5mJ (on), 1.4mJ (off)
Input Type : Standard
Gate Charge : 420nC
Td (on/off) @ 25°C : 140ns/360ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 320A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 40A
Power - Max : 260W
Switching Energy : 5.5mJ (on), 1.4mJ (off)
Input Type : Standard
Gate Charge : 420nC
Td (on/off) @ 25°C : 140ns/360ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
