- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
NGTG12N60TF1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 88A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 12A
Power - Max : 54W
Switching Energy : -
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 55ns/200ns
Test Condition : 300V, 15A, 30 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 88A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 12A
Power - Max : 54W
Switching Energy : -
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 55ns/200ns
Test Condition : 300V, 15A, 30 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : -
0
225 in stock

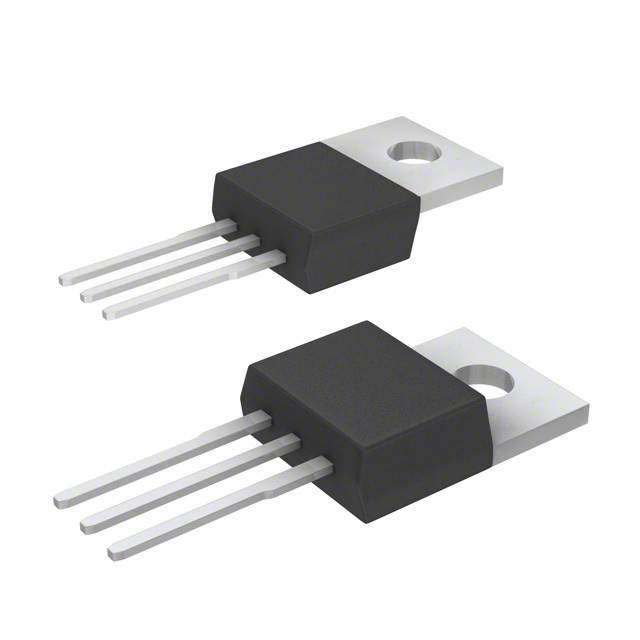

NGTG15N60S1EG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 15A
Power - Max : 117W
Switching Energy : 550µJ (on), 350µJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 65ns/170ns
Test Condition : 400V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 15A
Power - Max : 117W
Switching Energy : 550µJ (on), 350µJ (off)
Input Type : Standard
Gate Charge : 88nC
Td (on/off) @ 25°C : 65ns/170ns
Test Condition : 400V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
1031 in stock

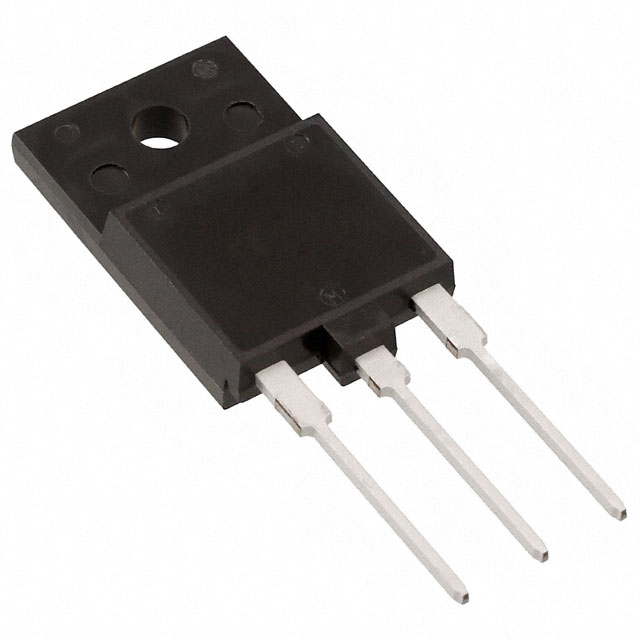

NGTG20N60L2TF1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 20A
Power - Max : 64W
Switching Energy : -
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 60ns/193ns
Test Condition : 300V, 20A, 30 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 20A
Power - Max : 64W
Switching Energy : -
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 60ns/193ns
Test Condition : 300V, 20A, 30 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : -
0
180 in stock

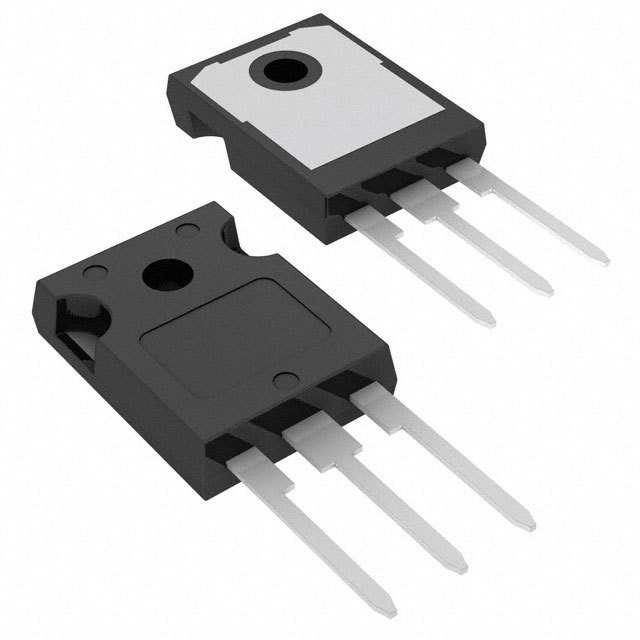

NGTG25N120FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 25A
Power - Max : 385W
Switching Energy : 1.95mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 178nC
Td (on/off) @ 25°C : 87ns/179ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 25A
Power - Max : 385W
Switching Energy : 1.95mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 178nC
Td (on/off) @ 25°C : 87ns/179ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
90 in stock
NGTG30N60FLWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 250W
Switching Energy : 700µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 83ns/170ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 250W
Switching Energy : 700µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 83ns/170ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
20 in stock
NGTG30N60FWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 167W
Switching Energy : 650µJ (on), 650µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 81ns/190ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 167W
Switching Energy : 650µJ (on), 650µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 81ns/190ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
469 in stock
NGTG35N65FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 35A
Power - Max : 300W
Switching Energy : 840µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 35A
Power - Max : 300W
Switching Energy : 840µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : 72ns/132ns
Test Condition : 400V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
120 in stock
NGTG40N120FL2WG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 535W
Switching Energy : 3.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 116ns/286ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 535W
Switching Energy : 3.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 313nC
Td (on/off) @ 25°C : 116ns/286ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
60 in stock
NGTG50N60FLWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 50A
Power - Max : 223W
Switching Energy : 1.1mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 116ns/292ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 50A
Power - Max : 223W
Switching Energy : 1.1mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 116ns/292ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
330 in stock
NGTG50N60FWG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 223W
Switching Energy : 1.1mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 117ns/285ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 223W
Switching Energy : 1.1mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 117ns/285ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
15 in stock
RGPR10BM40FHTL
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 460V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.0V @ 5V, 10A
Power - Max : 107W
Switching Energy : -
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 500ns/4µs
Test Condition : 300V, 8A, 100 Ohm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 75°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 460V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.0V @ 5V, 10A
Power - Max : 107W
Switching Energy : -
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 500ns/4µs
Test Condition : 300V, 8A, 100 Ohm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 75°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
0
4990 in stock
RGPR20NS43HRTL
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 460V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.0V @ 5V, 10A
Power - Max : 107W
Switching Energy : -
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 500ns/4µs
Test Condition : 300V, 8A, 100 Ohm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : LPDS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 460V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.0V @ 5V, 10A
Power - Max : 107W
Switching Energy : -
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 500ns/4µs
Test Condition : 300V, 8A, 100 Ohm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : LPDS
0
984 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
