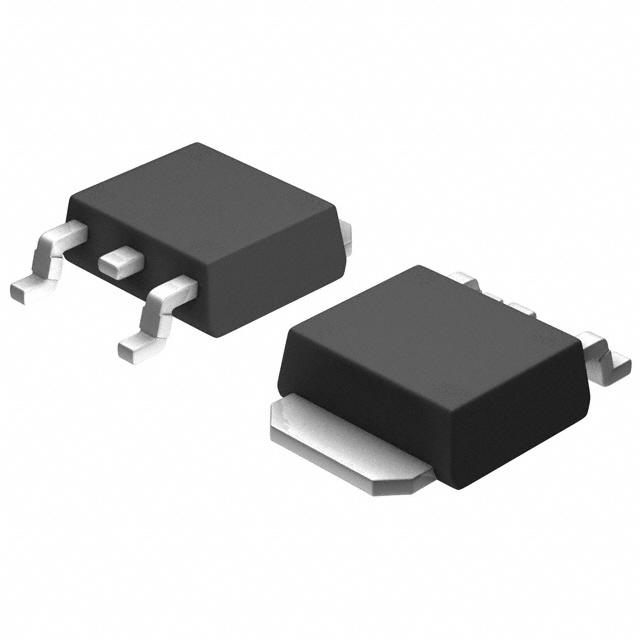

RGT8BM65DTL
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 62W
Switching Energy : -
Input Type : Standard
Gate Charge : 13.5nC
Td (on/off) @ 25°C : 17ns/69ns
Test Condition : 400V, 4A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 62W
Switching Energy : -
Input Type : Standard
Gate Charge : 13.5nC
Td (on/off) @ 25°C : 17ns/69ns
Test Condition : 400V, 4A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
0
100 in stock
RGT8NS65DGTL
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 65W
Switching Energy : -
Input Type : Standard
Gate Charge : 13.5nC
Td (on/off) @ 25°C : 17ns/69ns
Test Condition : 400V, 4A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : LPDS (TO-263S)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 65W
Switching Energy : -
Input Type : Standard
Gate Charge : 13.5nC
Td (on/off) @ 25°C : 17ns/69ns
Test Condition : 400V, 4A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : LPDS (TO-263S)
0
925 in stock
RGTH00TS65DGC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 277W
Switching Energy : -
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : 39ns/143ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 54ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 277W
Switching Energy : -
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : 39ns/143ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 54ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
9 in stock
RGTH00TS65GC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 277W
Switching Energy : -
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : 39ns/143ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 277W
Switching Energy : -
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : 39ns/143ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
276 in stock
RGTH40TS65DGC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Power - Max : 144W
Switching Energy : -
Input Type : Standard
Gate Charge : 40nC
Td (on/off) @ 25°C : 22ns/73ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Power - Max : 144W
Switching Energy : -
Input Type : Standard
Gate Charge : 40nC
Td (on/off) @ 25°C : 22ns/73ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
100 in stock
RGTH40TS65GC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Power - Max : 144W
Switching Energy : -
Input Type : Standard
Gate Charge : 40nC
Td (on/off) @ 25°C : 22ns/73ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Power - Max : 144W
Switching Energy : -
Input Type : Standard
Gate Charge : 40nC
Td (on/off) @ 25°C : 22ns/73ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
450 in stock
RGTH50TS65DGC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 25A
Power - Max : 174W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 27ns/94ns
Test Condition : 400V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 25A
Power - Max : 174W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 27ns/94ns
Test Condition : 400V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
430 in stock
RGTH50TS65GC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 25A
Power - Max : 174W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 27ns/94ns
Test Condition : 400V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 25A
Power - Max : 174W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 27ns/94ns
Test Condition : 400V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
264 in stock
RGTH60TS65DGC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 58A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 194W
Switching Energy : -
Input Type : Standard
Gate Charge : 58nC
Td (on/off) @ 25°C : 27ns/105ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 58A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 194W
Switching Energy : -
Input Type : Standard
Gate Charge : 58nC
Td (on/off) @ 25°C : 27ns/105ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
74 in stock
RGTH60TS65GC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 58A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 197W
Switching Energy : -
Input Type : Standard
Gate Charge : 58nC
Td (on/off) @ 25°C : 27ns/105ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 58A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 197W
Switching Energy : -
Input Type : Standard
Gate Charge : 58nC
Td (on/off) @ 25°C : 27ns/105ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
130 in stock
RGTH80TS65DGC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 234W
Switching Energy : -
Input Type : Standard
Gate Charge : 79nC
Td (on/off) @ 25°C : 34ns/120ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 234W
Switching Energy : -
Input Type : Standard
Gate Charge : 79nC
Td (on/off) @ 25°C : 34ns/120ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
100 in stock
RGTH80TS65GC11
Kionix
Manufacturer : Rohm Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 234W
Switching Energy : -
Input Type : Standard
Gate Charge : 79nC
Td (on/off) @ 25°C : 34ns/120ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 234W
Switching Energy : -
Input Type : Standard
Gate Charge : 79nC
Td (on/off) @ 25°C : 34ns/120ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247N
0
450 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
