- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IXXK110N65B4H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 630A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.2mJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 183nC
Td (on/off) @ 25°C : 38ns/156ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 630A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.2mJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 183nC
Td (on/off) @ 25°C : 38ns/156ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
0
100 in stock
IXXK160N65B4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 310A
Current - Collector Pulsed (Icm) : 860A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 160A
Power - Max : 940W
Switching Energy : 3.3mJ (on), 1.88mJ (off)
Input Type : Standard
Gate Charge : 425nC
Td (on/off) @ 25°C : 52ns/220ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 310A
Current - Collector Pulsed (Icm) : 860A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 160A
Power - Max : 940W
Switching Energy : 3.3mJ (on), 1.88mJ (off)
Input Type : Standard
Gate Charge : 425nC
Td (on/off) @ 25°C : 52ns/220ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
0
29 in stock
IXXK160N65C4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Discontinued at
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 290A
Current - Collector Pulsed (Icm) : 800A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 160A
Power - Max : 940W
Switching Energy : 3.5mJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 422nC
Td (on/off) @ 25°C : 52ns/197ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Discontinued at
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 290A
Current - Collector Pulsed (Icm) : 800A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 160A
Power - Max : 940W
Switching Energy : 3.5mJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 422nC
Td (on/off) @ 25°C : 52ns/197ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
0
100 in stock

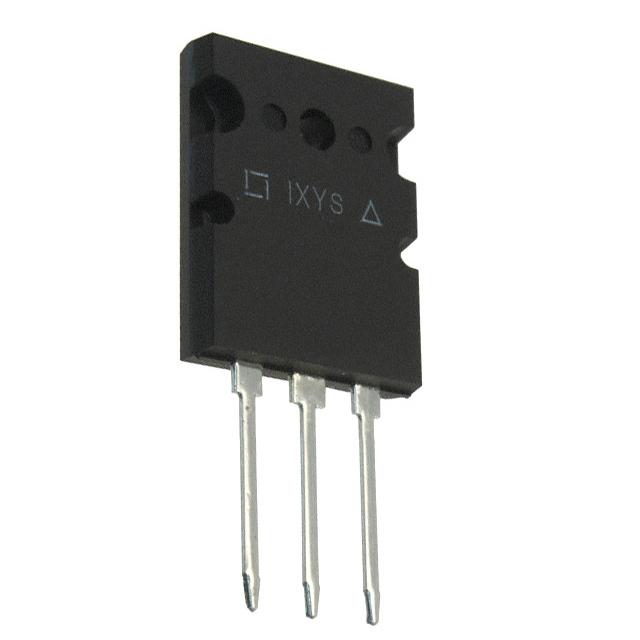

IXXK200N65B4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 370A
Current - Collector Pulsed (Icm) : 1000A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 160A
Power - Max : 1150W
Switching Energy : 4.4mJ (on), 2.2mJ (off)
Input Type : Standard
Gate Charge : 553nC
Td (on/off) @ 25°C : 62ns/245ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 370A
Current - Collector Pulsed (Icm) : 1000A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 160A
Power - Max : 1150W
Switching Energy : 4.4mJ (on), 2.2mJ (off)
Input Type : Standard
Gate Charge : 553nC
Td (on/off) @ 25°C : 62ns/245ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
0
290 in stock
IXXN200N65A4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™ GenX4™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 440A
Current - Collector Pulsed (Icm) : 1200A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 200A
Power - Max : 1250W
Switching Energy : 8.8mJ (on), 6.7mJ (off)
Input Type : Standard
Gate Charge : 736nC
Td (on/off) @ 25°C : 140ns/1.04µs
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : XPT™ GenX4™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 440A
Current - Collector Pulsed (Icm) : 1200A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 200A
Power - Max : 1250W
Switching Energy : 8.8mJ (on), 6.7mJ (off)
Input Type : Standard
Gate Charge : 736nC
Td (on/off) @ 25°C : 140ns/1.04µs
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
IXXX110N65B4H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 630A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.2mJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 183nC
Td (on/off) @ 25°C : 38ns/156ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 630A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.2mJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 183nC
Td (on/off) @ 25°C : 38ns/156ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXXX160N65B4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 310A
Current - Collector Pulsed (Icm) : 860A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 160A
Power - Max : 940W
Switching Energy : 3.3mJ (on), 1.88mJ (off)
Input Type : Standard
Gate Charge : 425nC
Td (on/off) @ 25°C : 52ns/220ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 310A
Current - Collector Pulsed (Icm) : 860A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 160A
Power - Max : 940W
Switching Energy : 3.3mJ (on), 1.88mJ (off)
Input Type : Standard
Gate Charge : 425nC
Td (on/off) @ 25°C : 52ns/220ns
Test Condition : 400V, 80A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
112 in stock

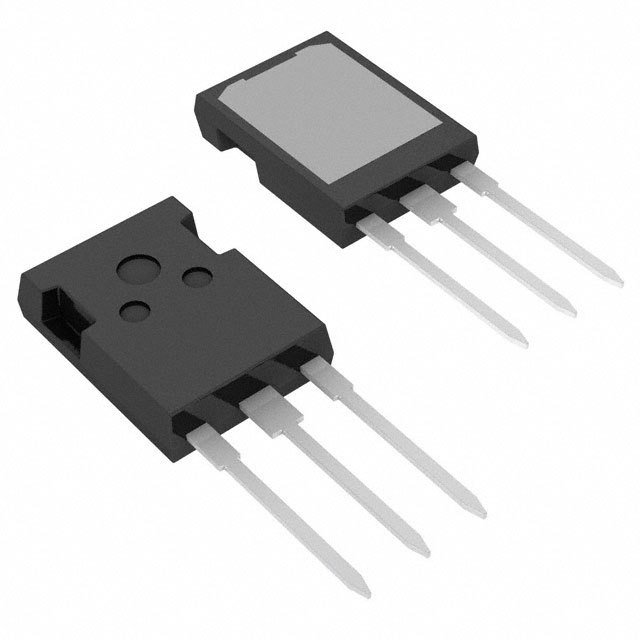

IXXX200N60C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™ GenX3™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 340A
Current - Collector Pulsed (Icm) : 900A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 100A
Power - Max : -
Switching Energy : 3mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 47ns/125ns
Test Condition : 360V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : XPT™ GenX3™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 340A
Current - Collector Pulsed (Icm) : 900A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 100A
Power - Max : -
Switching Energy : 3mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 47ns/125ns
Test Condition : 360V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
139 in stock
IXXX200N65B4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 370A
Current - Collector Pulsed (Icm) : 1000A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 160A
Power - Max : 1150W
Switching Energy : 4.4mJ (on), 2.2mJ (off)
Input Type : Standard
Gate Charge : 553nC
Td (on/off) @ 25°C : 62ns/245ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 370A
Current - Collector Pulsed (Icm) : 1000A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 160A
Power - Max : 1150W
Switching Energy : 4.4mJ (on), 2.2mJ (off)
Input Type : Standard
Gate Charge : 553nC
Td (on/off) @ 25°C : 62ns/245ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
300 in stock
IXXX300N60B3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 550A
Current - Collector Pulsed (Icm) : 1140A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 100A
Power - Max : 2300W
Switching Energy : 3.45mJ (on), 2.86mJ (off)
Input Type : Standard
Gate Charge : 460nC
Td (on/off) @ 25°C : 50ns/190ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 550A
Current - Collector Pulsed (Icm) : 1140A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 100A
Power - Max : 2300W
Switching Energy : 3.45mJ (on), 2.86mJ (off)
Input Type : Standard
Gate Charge : 460nC
Td (on/off) @ 25°C : 50ns/190ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
568 in stock

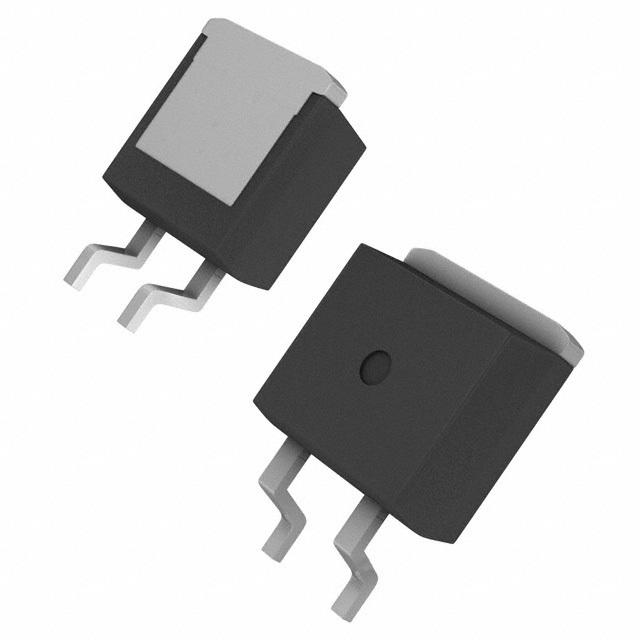

IXYA50N65C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 36A
Power - Max : 600W
Switching Energy : 1.3mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 22ns/80ns
Test Condition : 400V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 36A
Power - Max : 600W
Switching Energy : 1.3mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 22ns/80ns
Test Condition : 400V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263
0
63 in stock
IXYH100N65C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 420A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 70A
Power - Max : 830W
Switching Energy : 2.15mJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 164nC
Td (on/off) @ 25°C : 28ns/106ns
Test Condition : 400V, 50A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 420A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 70A
Power - Max : 830W
Switching Energy : 2.15mJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 164nC
Td (on/off) @ 25°C : 28ns/106ns
Test Condition : 400V, 50A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
231 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
