Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IXYH40N120C3D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 40A
Power - Max : 480W
Switching Energy : 3.9mJ (on), 660µJ (off)
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 24ns/125ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 40A
Power - Max : 480W
Switching Energy : 3.9mJ (on), 660µJ (off)
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 24ns/125ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
56 in stock
IXYH50N120C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 3.5V @ 15V, 50A
Power - Max : 750W
Switching Energy : 3mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 28ns/133ns
Test Condition : 600V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 3.5V @ 15V, 50A
Power - Max : 750W
Switching Energy : 3mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 28ns/133ns
Test Condition : 600V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
100 in stock
IXYH50N120C3D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 210A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 50A
Power - Max : 625W
Switching Energy : 3mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 28ns/133ns
Test Condition : 600V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 210A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 50A
Power - Max : 625W
Switching Energy : 3mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 28ns/133ns
Test Condition : 600V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
13844 in stock
IXYH50N65C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 36A
Power - Max : 600W
Switching Energy : 1.3mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 22ns/80ns
Test Condition : 400V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 36A
Power - Max : 600W
Switching Energy : 1.3mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 22ns/80ns
Test Condition : 400V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
23 in stock
IXYH60N90C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 140A
Current - Collector Pulsed (Icm) : 310A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 60A
Power - Max : 750W
Switching Energy : 2.7mJ (on), 1.55mJ (off)
Input Type : Standard
Gate Charge : 107nC
Td (on/off) @ 25°C : 30ns/87ns
Test Condition : 450V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 140A
Current - Collector Pulsed (Icm) : 310A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 60A
Power - Max : 750W
Switching Energy : 2.7mJ (on), 1.55mJ (off)
Input Type : Standard
Gate Charge : 107nC
Td (on/off) @ 25°C : 30ns/87ns
Test Condition : 450V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
0
775 in stock
IXYH75N65C3H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 170A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 750W
Switching Energy : 2.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 123nC
Td (on/off) @ 25°C : 27ns/93ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 170A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 750W
Switching Energy : 2.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 123nC
Td (on/off) @ 25°C : 27ns/93ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
30 in stock
IXYH82N120C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 380A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 82A
Power - Max : 1250W
Switching Energy : 4.95mJ (on), 2.78mJ (off)
Input Type : Standard
Gate Charge : 215nC
Td (on/off) @ 25°C : 29ns/192ns
Test Condition : 600V, 80A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Current - Collector Pulsed (Icm) : 380A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 82A
Power - Max : 1250W
Switching Energy : 4.95mJ (on), 2.78mJ (off)
Input Type : Standard
Gate Charge : 215nC
Td (on/off) @ 25°C : 29ns/192ns
Test Condition : 600V, 80A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXYH)
0
172 in stock

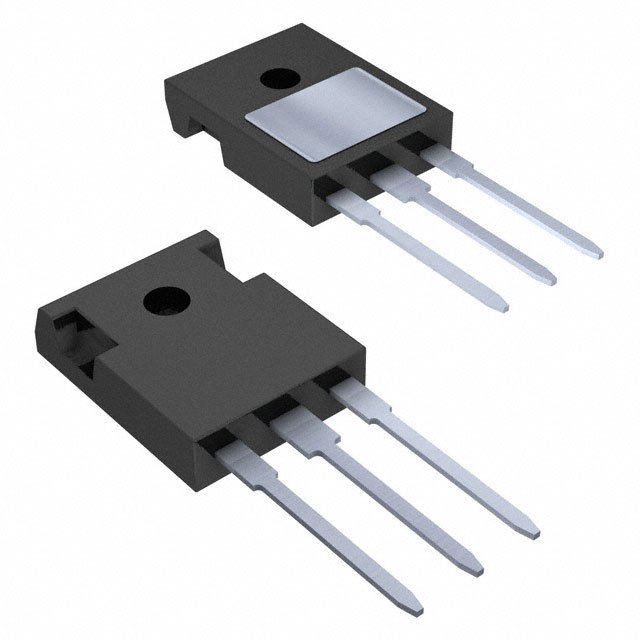

IXYJ20N120C3D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 20A
Power - Max : 105W
Switching Energy : 1.3mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 20ns/90ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : ISO247™
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 20A
Power - Max : 105W
Switching Energy : 1.3mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 20ns/90ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : ISO247™
0
63 in stock
IXYK100N120C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 188A
Current - Collector Pulsed (Icm) : 490A
Vce(on) (Max) @ Vge, Ic : 3.5V @ 15V, 100A
Power - Max : 1150W
Switching Energy : 6.5mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 32ns/123ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXYK)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 188A
Current - Collector Pulsed (Icm) : 490A
Vce(on) (Max) @ Vge, Ic : 3.5V @ 15V, 100A
Power - Max : 1150W
Switching Energy : 6.5mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 32ns/123ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXYK)
0
50 in stock

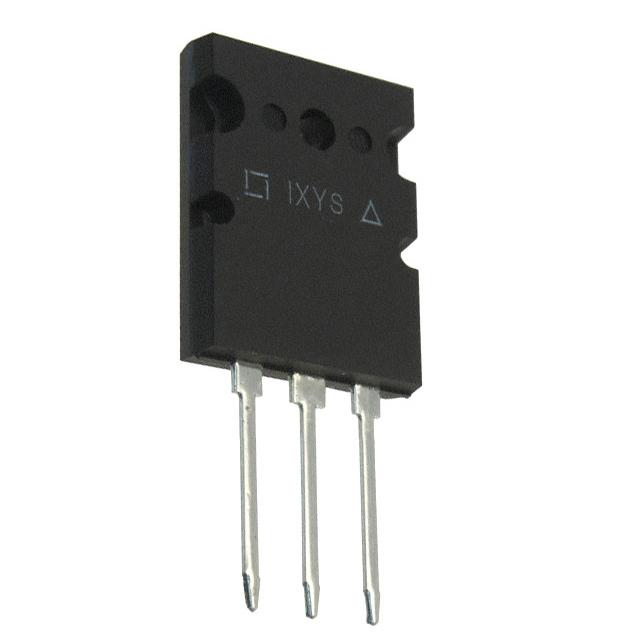

IXYK120N120C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 700A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 120A
Power - Max : 1500W
Switching Energy : 6.75mJ (on), 5.1mJ (off)
Input Type : Standard
Gate Charge : 412nC
Td (on/off) @ 25°C : 35ns/176ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXYK)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 700A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 120A
Power - Max : 1500W
Switching Energy : 6.75mJ (on), 5.1mJ (off)
Input Type : Standard
Gate Charge : 412nC
Td (on/off) @ 25°C : 35ns/176ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXYK)
0
573 in stock

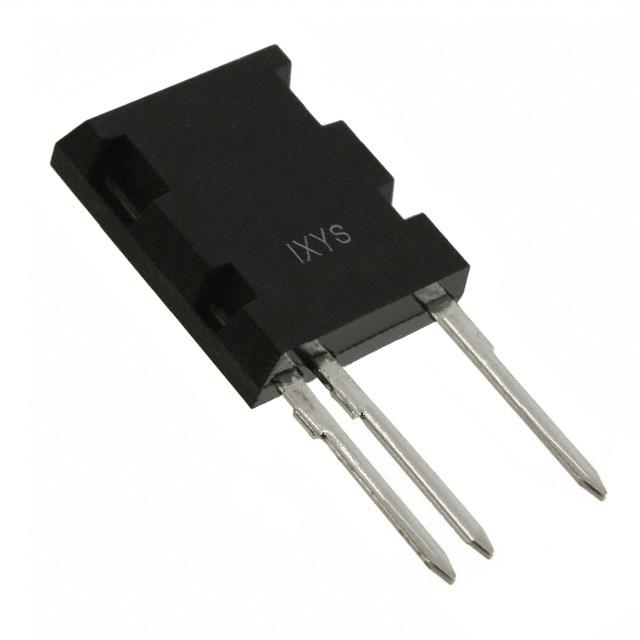

IXYL40N250CV1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 400A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 40A
Power - Max : 577W
Switching Energy : 11.7mJ (on), 6.9mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 1250V, 40A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 210ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUSi5-Pak™
Supplier Device Package : ISOPLUSi5-Pak™
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 400A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 40A
Power - Max : 577W
Switching Energy : 11.7mJ (on), 6.9mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 1250V, 40A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 210ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUSi5-Pak™
Supplier Device Package : ISOPLUSi5-Pak™
0
13 in stock
IXYL60N450
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 4500V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 680A
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 60A
Power - Max : 417W
Switching Energy : -
Input Type : Standard
Gate Charge : 366nC
Td (on/off) @ 25°C : 55ns/450ns
Test Condition : 960V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUSi5-Pak™
Supplier Device Package : ISOPLUSi5-Pak™
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 4500V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 680A
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 60A
Power - Max : 417W
Switching Energy : -
Input Type : Standard
Gate Charge : 366nC
Td (on/off) @ 25°C : 55ns/450ns
Test Condition : 960V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : ISOPLUSi5-Pak™
Supplier Device Package : ISOPLUSi5-Pak™
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
