Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IXYN150N60B3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™ GenX3™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 250A
Current - Collector Pulsed (Icm) : 750A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 150A
Power - Max : 830W
Switching Energy : 4.2mJ (on), 2.6mJ (off)
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : 27ns/167ns
Test Condition : 400V, 75A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 88ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : XPT™ GenX3™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 250A
Current - Collector Pulsed (Icm) : 750A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 150A
Power - Max : 830W
Switching Energy : 4.2mJ (on), 2.6mJ (off)
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : 27ns/167ns
Test Condition : 400V, 75A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 88ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock

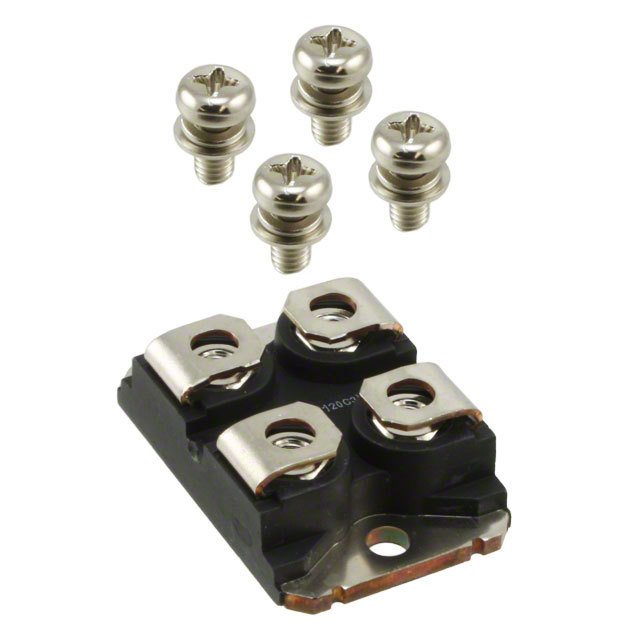

IXYN30N170CV1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 88A
Current - Collector Pulsed (Icm) : 275A
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 30A
Power - Max : 680W
Switching Energy : 5.9mJ (on), 3.3mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 850V, 30A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 88A
Current - Collector Pulsed (Icm) : 275A
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 30A
Power - Max : 680W
Switching Energy : 5.9mJ (on), 3.3mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 850V, 30A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
176 in stock
IXYN50N170CV1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 485A
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Power - Max : 880W
Switching Energy : 8.7mJ (on), 5.6mJ (off)
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : 22ns/236ns
Test Condition : 850V, 50A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 255ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 485A
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Power - Max : 880W
Switching Energy : 8.7mJ (on), 5.6mJ (off)
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : 22ns/236ns
Test Condition : 850V, 50A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 255ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
IXYN75N65C3D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™ GenX3™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 600W
Switching Energy : 2mJ (on), 950µJ (off)
Input Type : Standard
Gate Charge : 122nC
Td (on/off) @ 25°C : 26ns/93ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : XPT™ GenX3™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 600W
Switching Energy : 2mJ (on), 950µJ (off)
Input Type : Standard
Gate Charge : 122nC
Td (on/off) @ 25°C : 26ns/93ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
IXYP50N65C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 36A
Power - Max : 600W
Switching Energy : 1.3mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 22ns/80ns
Test Condition : 400V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 130A
Current - Collector Pulsed (Icm) : 250A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 36A
Power - Max : 600W
Switching Energy : 1.3mJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 22ns/80ns
Test Condition : 400V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
25 in stock
IXYT25N250CHV
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 95A
Current - Collector Pulsed (Icm) : 235A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 25A
Power - Max : 937W
Switching Energy : 8.3mJ (on), 7.3mJ (off)
Input Type : Standard
Gate Charge : 147nC
Td (on/off) @ 25°C : 15ns/230ns
Test Condition : 1250V, 25A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268HV (IXYT)
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 95A
Current - Collector Pulsed (Icm) : 235A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 25A
Power - Max : 937W
Switching Energy : 8.3mJ (on), 7.3mJ (off)
Input Type : Standard
Gate Charge : 147nC
Td (on/off) @ 25°C : 15ns/230ns
Test Condition : 1250V, 25A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268HV (IXYT)
0
99 in stock
IXYX120N120C3
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 700A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 120A
Power - Max : 1500W
Switching Energy : 6.75mJ (on), 5.1mJ (off)
Input Type : Standard
Gate Charge : 412nC
Td (on/off) @ 25°C : 35ns/176ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 700A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 120A
Power - Max : 1500W
Switching Energy : 6.75mJ (on), 5.1mJ (off)
Input Type : Standard
Gate Charge : 412nC
Td (on/off) @ 25°C : 35ns/176ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
313 in stock

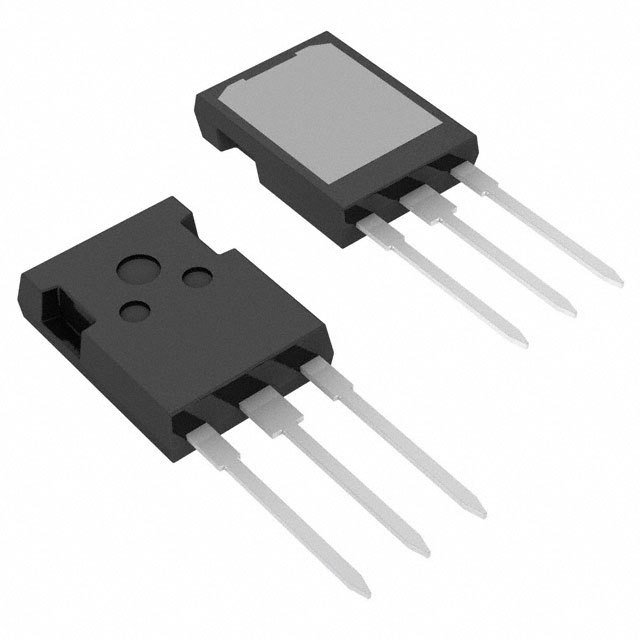

IXYX25N250CV1HV
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 95A
Current - Collector Pulsed (Icm) : 235A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 25A
Power - Max : 937W
Switching Energy : 8.3mJ (on), 7.3mJ (off)
Input Type : Standard
Gate Charge : 147nC
Td (on/off) @ 25°C : 15ns/230ns
Test Condition : 1250V, 25A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 220ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 95A
Current - Collector Pulsed (Icm) : 235A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 25A
Power - Max : 937W
Switching Energy : 8.3mJ (on), 7.3mJ (off)
Input Type : Standard
Gate Charge : 147nC
Td (on/off) @ 25°C : 15ns/230ns
Test Condition : 1250V, 25A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 220ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
26 in stock
IXYX30N170CV1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 108A
Current - Collector Pulsed (Icm) : 255A
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 30A
Power - Max : 937W
Switching Energy : 5.9mJ (on), 3.3mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 850V, 30A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 108A
Current - Collector Pulsed (Icm) : 255A
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 30A
Power - Max : 937W
Switching Energy : 5.9mJ (on), 3.3mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 850V, 30A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
54 in stock

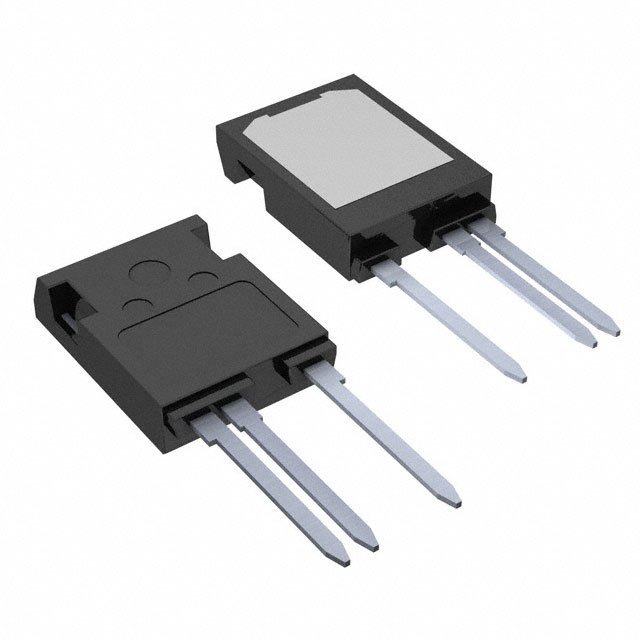

IXYX40N250CHV
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 380A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 40A
Power - Max : 1500W
Switching Energy : 11.7mJ (on), 6.9mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 1250V, 40A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : TO-247PLUS-HV
Packaging : Tube
Series : XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 2500V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 380A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 40A
Power - Max : 1500W
Switching Energy : 11.7mJ (on), 6.9mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 1250V, 40A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : TO-247PLUS-HV
0
540 in stock

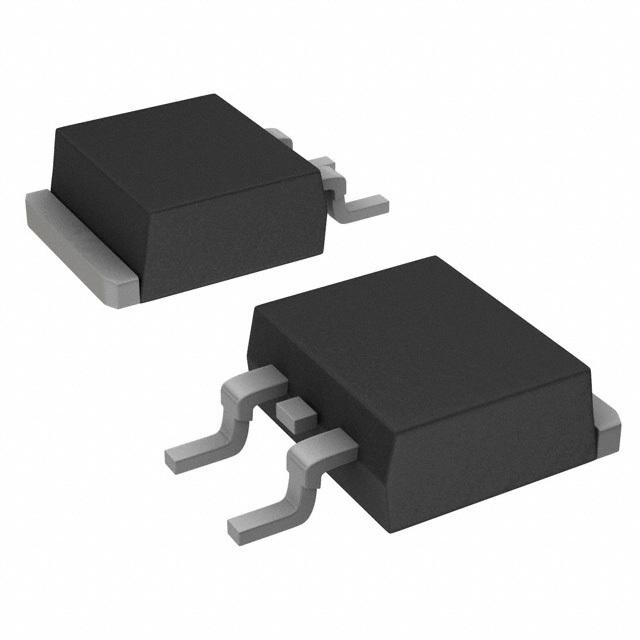

MGB15N40CLT4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 440V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 4V, 25A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : -
Td (on/off) @ 25°C : -/4µs
Test Condition : 300V, 6.5A, 1 kOhm
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 440V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 4V, 25A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : -
Td (on/off) @ 25°C : -/4µs
Test Condition : 300V, 6.5A, 1 kOhm
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
MGP15N40CL
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 440V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 4V, 25A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : -
Td (on/off) @ 25°C : -/4µs
Test Condition : 300V, 6.5A, 1 kOhm
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 440V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 4V, 25A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : -
Td (on/off) @ 25°C : -/4µs
Test Condition : 300V, 6.5A, 1 kOhm
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
