Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IXSX40N60CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/70ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/70ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock

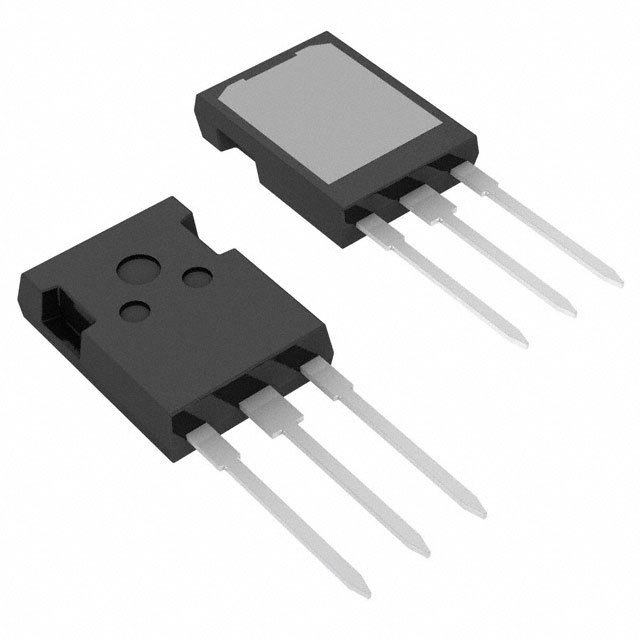

IXSX50N60AU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 6mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 70ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 6mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 70ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXSX50N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXSX50N60BU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXSX80N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 80A
Power - Max : 500W
Switching Energy : 4.2mJ (off)
Input Type : Standard
Gate Charge : 240nC
Td (on/off) @ 25°C : 60ns/140ns
Test Condition : 480V, 80A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 80A
Power - Max : 500W
Switching Energy : 4.2mJ (off)
Input Type : Standard
Gate Charge : 240nC
Td (on/off) @ 25°C : 60ns/140ns
Test Condition : 480V, 80A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXXH110N65C4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 234A
Current - Collector Pulsed (Icm) : 600A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.3mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 35ns/143ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 234A
Current - Collector Pulsed (Icm) : 600A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.3mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 35ns/143ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
0
206 in stock
IXXH30N65B4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 65A
Current - Collector Pulsed (Icm) : 146A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 230W
Switching Energy : 1.55mJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 52nC
Td (on/off) @ 25°C : 32ns/170ns
Test Condition : 400V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 65A
Current - Collector Pulsed (Icm) : 146A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 230W
Switching Energy : 1.55mJ (on), 480µJ (off)
Input Type : Standard
Gate Charge : 52nC
Td (on/off) @ 25°C : 32ns/170ns
Test Condition : 400V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
0
27 in stock
IXXH50N60C3D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 600W
Switching Energy : 720µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 24ns/62ns
Test Condition : 360V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 36A
Power - Max : 600W
Switching Energy : 720µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 24ns/62ns
Test Condition : 360V, 36A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
0
42 in stock
IXXH60N65B4H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 116A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 60A
Power - Max : 380W
Switching Energy : 3.13mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 37ns/145ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 116A
Current - Collector Pulsed (Icm) : 230A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 60A
Power - Max : 380W
Switching Energy : 3.13mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 37ns/145ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
0
27 in stock
IXXH80N65B4
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 430A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 625W
Switching Energy : 3.77mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 38ns/120ns
Test Condition : 400V, 80A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 430A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 625W
Switching Energy : 3.77mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 38ns/120ns
Test Condition : 400V, 80A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
0
889 in stock
IXXH80N65B4H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 430A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 625W
Switching Energy : 3.77mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 38ns/120ns
Test Condition : 400V, 80A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 430A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 80A
Power - Max : 625W
Switching Energy : 3.77mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 38ns/120ns
Test Condition : 400V, 80A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 (IXXH)
0
3540 in stock
IXXK100N60C3H1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 170A
Current - Collector Pulsed (Icm) : 340A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 70A
Power - Max : 695W
Switching Energy : 2mJ (on), 950µJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 360V, 70A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA Variation
Supplier Device Package : TO-264 (IXXK)
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 170A
Current - Collector Pulsed (Icm) : 340A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 70A
Power - Max : 695W
Switching Energy : 2mJ (on), 950µJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 360V, 70A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA Variation
Supplier Device Package : TO-264 (IXXK)
0
233 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
