IXST24N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 24A
Power - Max : 150W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 41nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 480V, 24A, 33 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 24A
Power - Max : 150W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 41nC
Td (on/off) @ 25°C : 50ns/150ns
Test Condition : 480V, 24A, 33 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST30N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 200W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/150ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 200W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/150ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST30N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 24A
Power - Max : 250W
Switching Energy : 550µJ (off)
Input Type : Standard
Gate Charge : 50nC
Td (on/off) @ 25°C : 30ns/130ns
Test Condition : 400V, 24A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 24A
Power - Max : 250W
Switching Energy : 550µJ (off)
Input Type : Standard
Gate Charge : 50nC
Td (on/off) @ 25°C : 30ns/130ns
Test Condition : 400V, 24A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST30N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 55A
Power - Max : 200W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/150ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 55A
Power - Max : 200W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/150ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST30N60C
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 200W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 200W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST30N60CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 200W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 200W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST35N120B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 35A
Power - Max : 300W
Switching Energy : 5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/160ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 35A
Power - Max : 300W
Switching Energy : 5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/160ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST40N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/110ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/110ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock

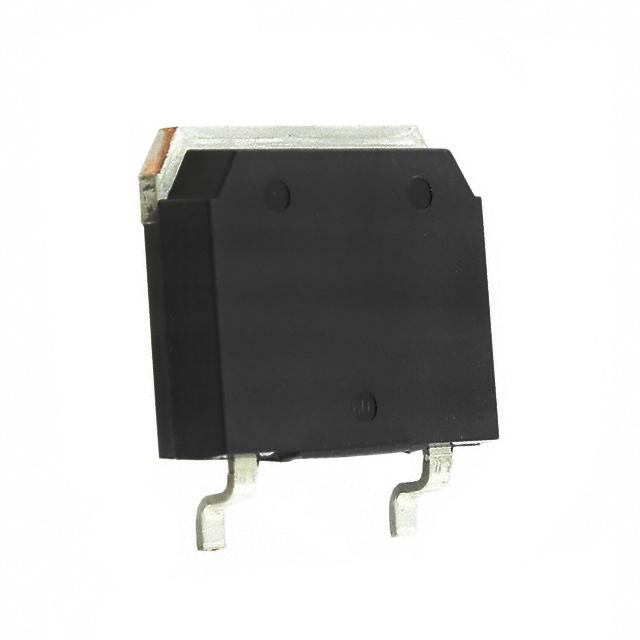

IXST40N60B2D1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXST45N120B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 45A
Power - Max : 300W
Switching Energy : 13mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/360ns
Test Condition : 960V, 45A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 45A
Power - Max : 300W
Switching Energy : 13mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/360ns
Test Condition : 960V, 45A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-268-3, D鲁Pak (2 Leads + Tab), TO-268AA
Supplier Device Package : TO-268
0
100 in stock
IXSX35N120BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 35A
Power - Max : 300W
Switching Energy : 5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/160ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 35A
Power - Max : 300W
Switching Energy : 5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/160ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
IXSX40N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/110ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/110ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
