Part Number
Manufacturer
Description
Unit Price
In Stock
IXSH45N120B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 45A
Power - Max : 300W
Switching Energy : 13mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/360ns
Test Condition : 960V, 45A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 45A
Power - Max : 300W
Switching Energy : 13mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/360ns
Test Condition : 960V, 45A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
0
100 in stock
IXSH50N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 250W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 250W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD (IXSH)
0
100 in stock
IXSK30N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 55A
Power - Max : 200W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/150ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 55A
Power - Max : 200W
Switching Energy : 1.5mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/150ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK30N60CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 200W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 200W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 30ns/90ns
Test Condition : 480V, 30A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK35N120AU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 35A
Power - Max : 300W
Switching Energy : 10mJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : 80ns/400ns
Test Condition : 960V, 35A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 4V @ 15V, 35A
Power - Max : 300W
Switching Energy : 10mJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : 80ns/400ns
Test Condition : 960V, 35A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK35N120BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 35A
Power - Max : 300W
Switching Energy : 5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/160ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 140A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 35A
Power - Max : 300W
Switching Energy : 5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 36ns/160ns
Test Condition : 960V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK40N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/110ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/110ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK40N60CD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/70ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 280W
Switching Energy : 1mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 50ns/70ns
Test Condition : 480V, 40A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock

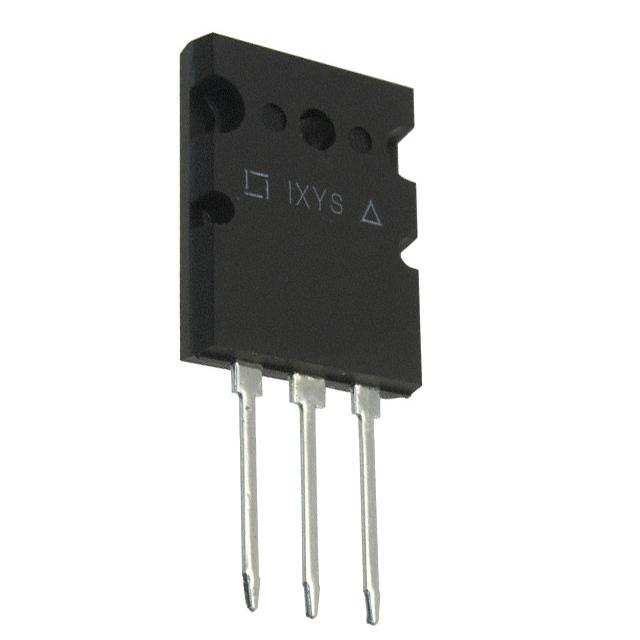

IXSK50N60AU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 6mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 70ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 50A
Power - Max : 300W
Switching Energy : 6mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 70ns/200ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK50N60BD1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK50N60BU1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 300W
Switching Energy : 3.3mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 70ns/150ns
Test Condition : 480V, 50A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
IXSK80N60B
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 80A
Power - Max : 500W
Switching Energy : 4.2mJ (off)
Input Type : Standard
Gate Charge : 240nC
Td (on/off) @ 25°C : 60ns/140ns
Test Condition : 480V, 80A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 80A
Power - Max : 500W
Switching Energy : 4.2mJ (off)
Input Type : Standard
Gate Charge : 240nC
Td (on/off) @ 25°C : 60ns/140ns
Test Condition : 480V, 80A, 2.7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264AA(IXSK)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
