Part Number

Manufacturer

Description

Unit Price

In Stock

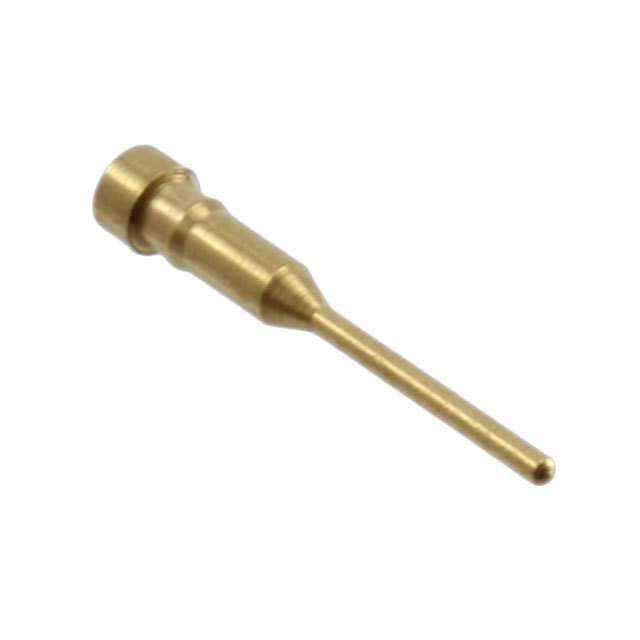

0466-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 466
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.370" (9.40mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

820 in stock

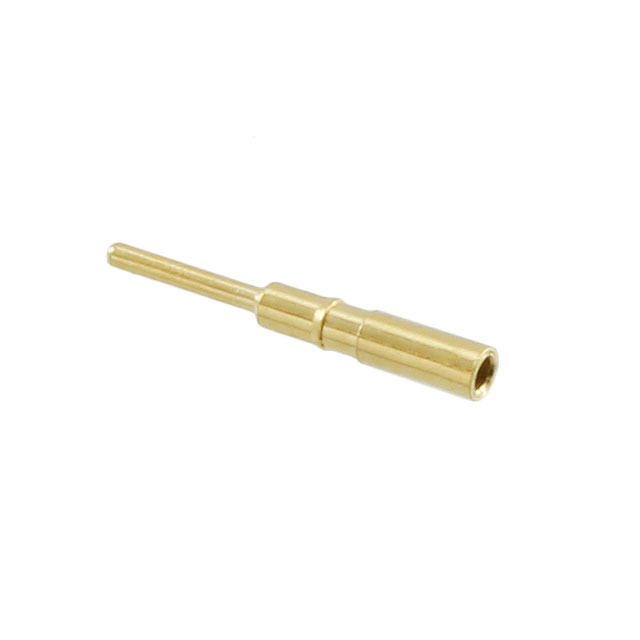

0467-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 467
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.300" (7.62mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.037" (0.94mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

7682 in stock

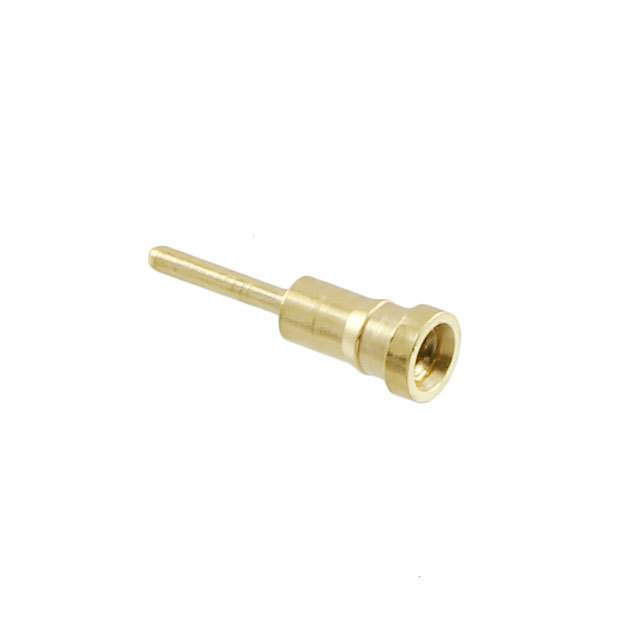

0468-0-15-15-12-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 468
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.257" (6.53mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.110" (2.79mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2762 in stock

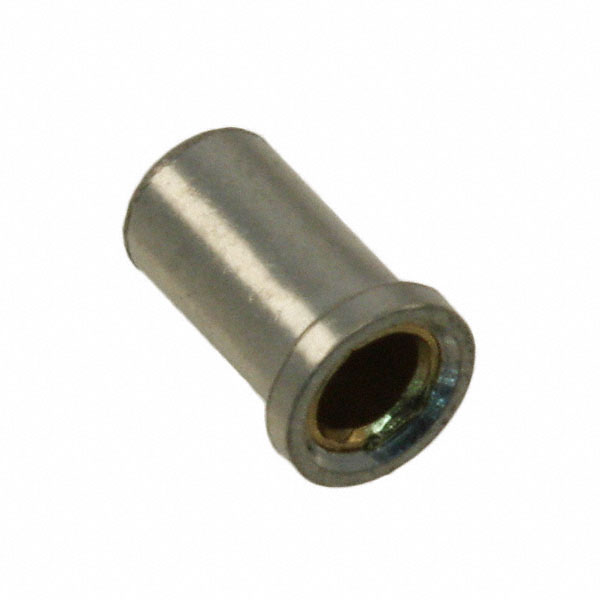

0479-0-43-80-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 479
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.077" (1.96mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

22050 in stock

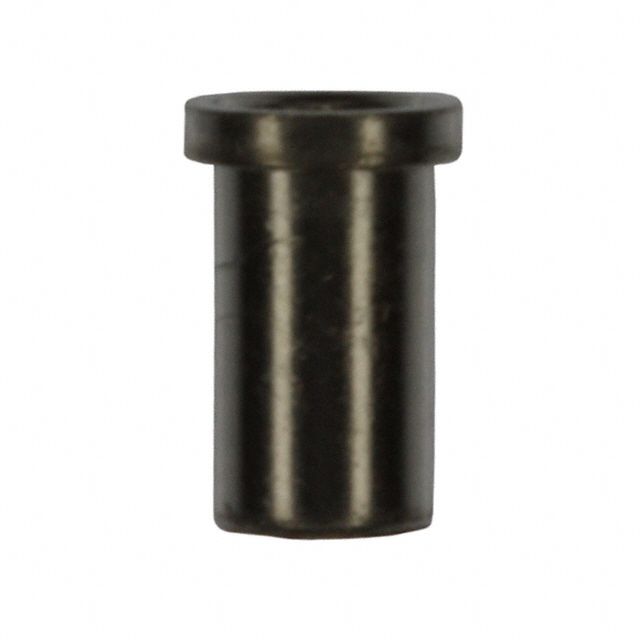

0479-0-67-80-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 479
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.077" (1.96mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

29329 in stock

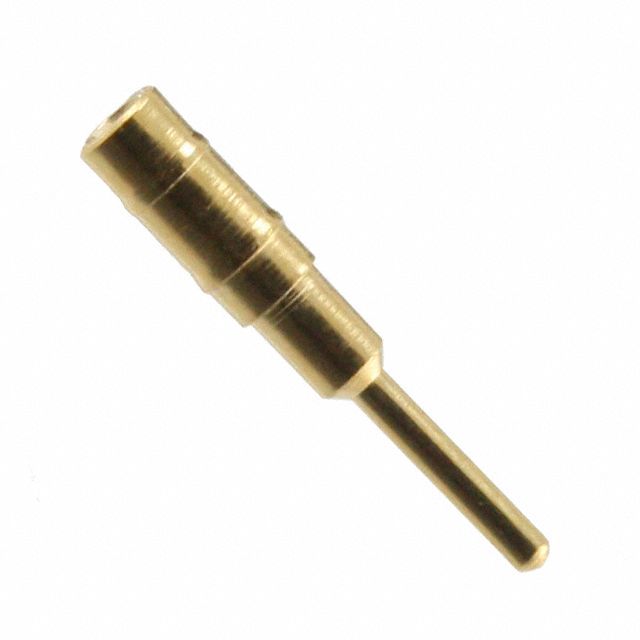

0489-0-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0489
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : -
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

11981 in stock

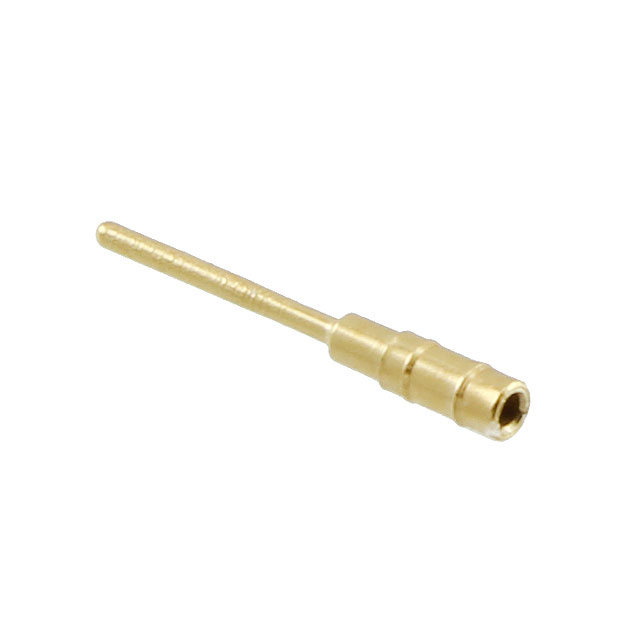

0489-1-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0489
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.333" (8.46mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : -
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3919 in stock

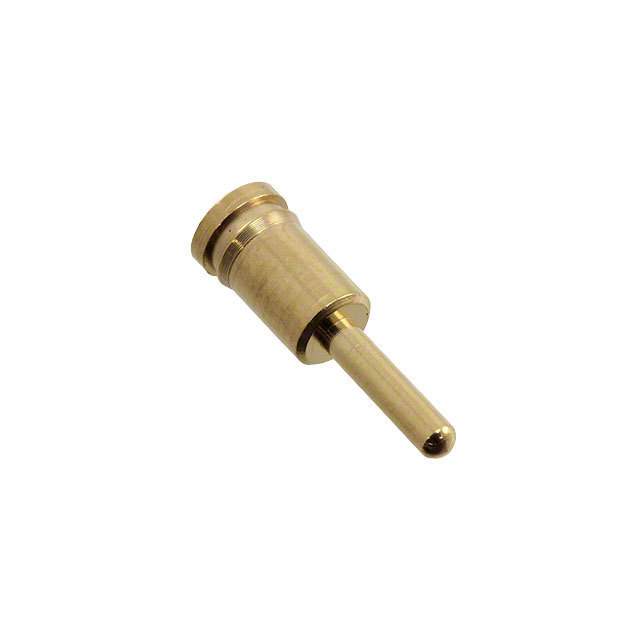

0490-0-15-15-07-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0490
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.505" (12.83mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.156" (3.96mm)
Tail Diameter : 0.060" (1.52mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2647 in stock

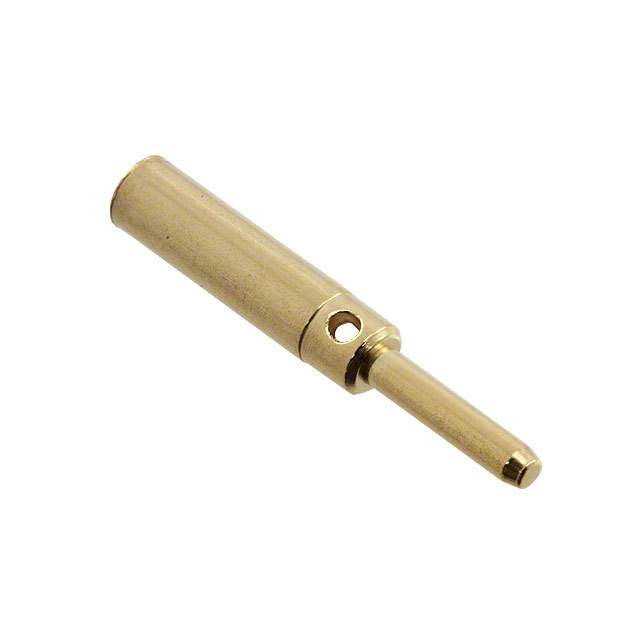

0491-0-19-15-07-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 491
Part Status : Active
Tail Type : Standard Tail
Termination : Stackable
Length - Overall : 1.000" (25.40mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : -
Flange Diameter : 0.157" (3.99mm)
Tail Diameter : 0.080" (2.03mm)
Socket Depth : 0.480" (12.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

758 in stock

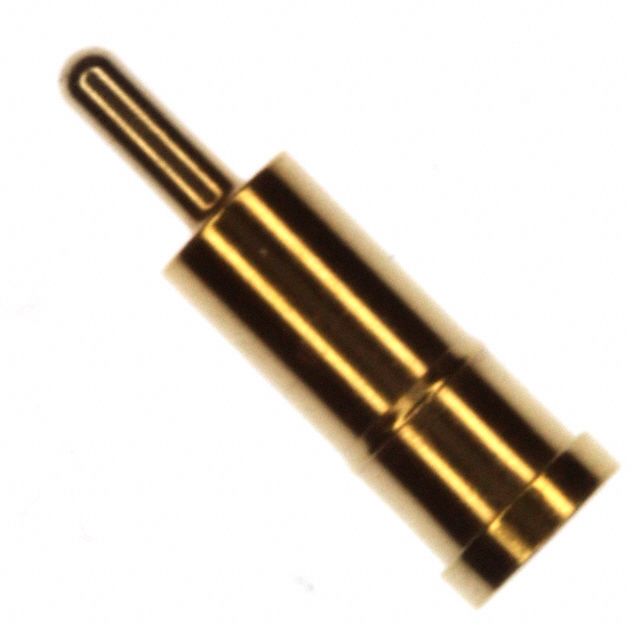

0492-0-15-15-13-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 492
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.395" (10.03mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.119" (3.02mm)
Tail Diameter : 0.041" (1.04mm)
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2931 in stock

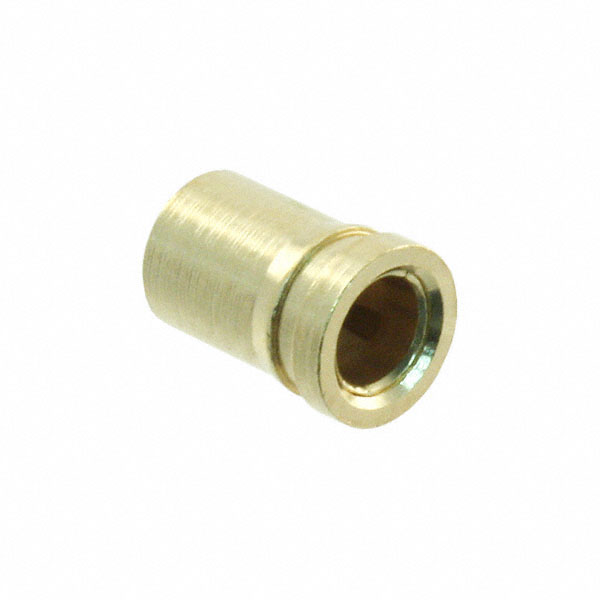

0493-0-15-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 493
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.223" (5.66mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.157" (3.99mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

6459 in stock

0501-0-15-15-30-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 501
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.230" (5.84mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.070" (1.77mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.151" (3.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

900 in stock
