Part Number

Manufacturer

Description

Unit Price

In Stock

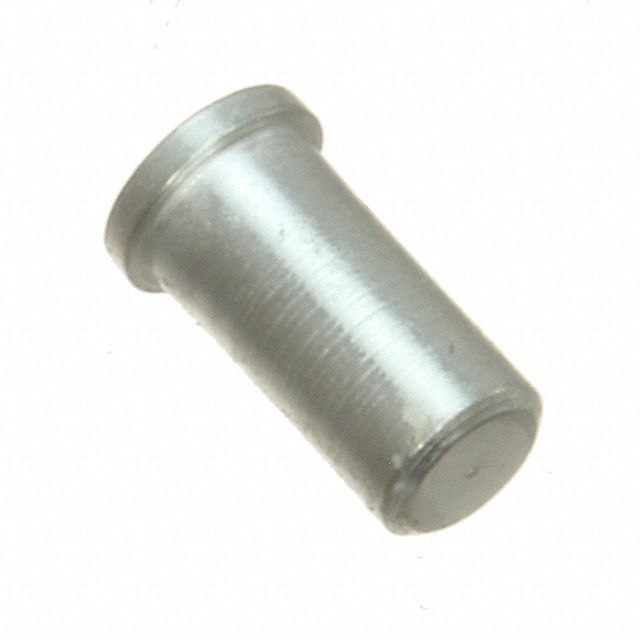

0415-0-15-80-16-80-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0415
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

1300 in stock

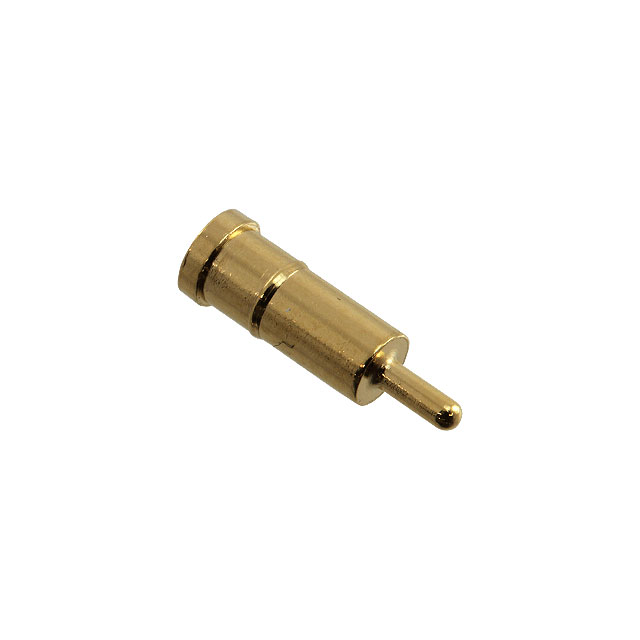

0433-0-15-15-03-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 433
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.390" (9.91mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.205" (5.21mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

22623 in stock

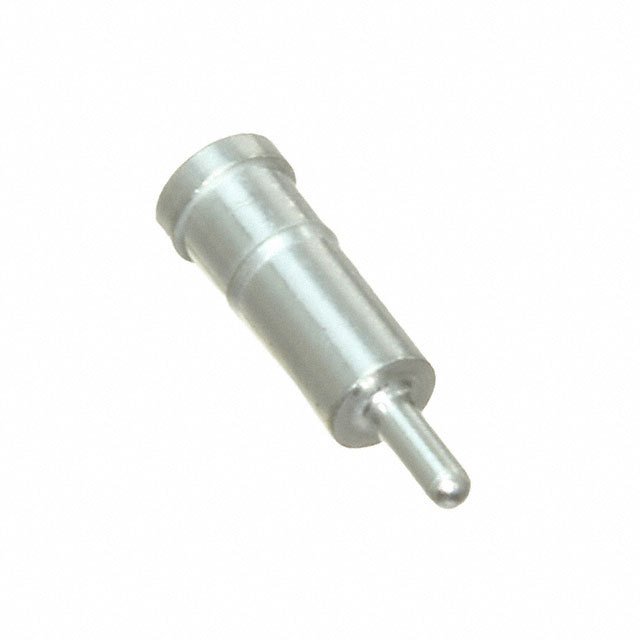

0433-0-15-80-03-80-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0433
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.390" (9.91mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.205" (5.21mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

1000 in stock

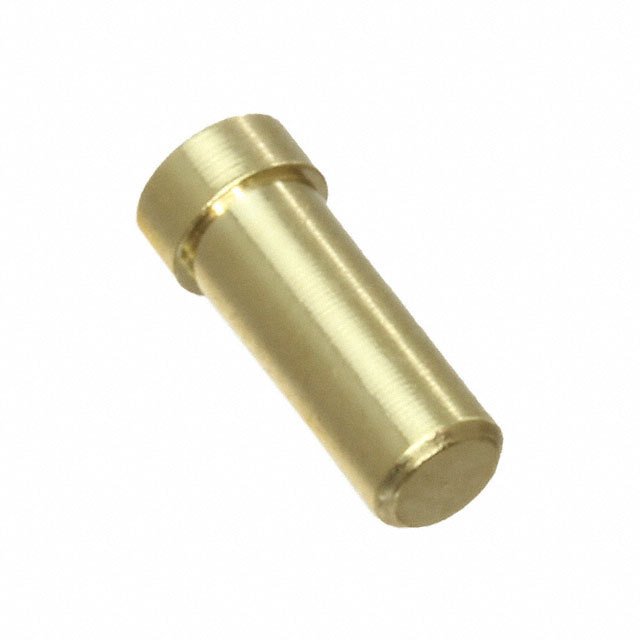

0435-0-15-15-03-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 435
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.255" (6.48mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

500 in stock

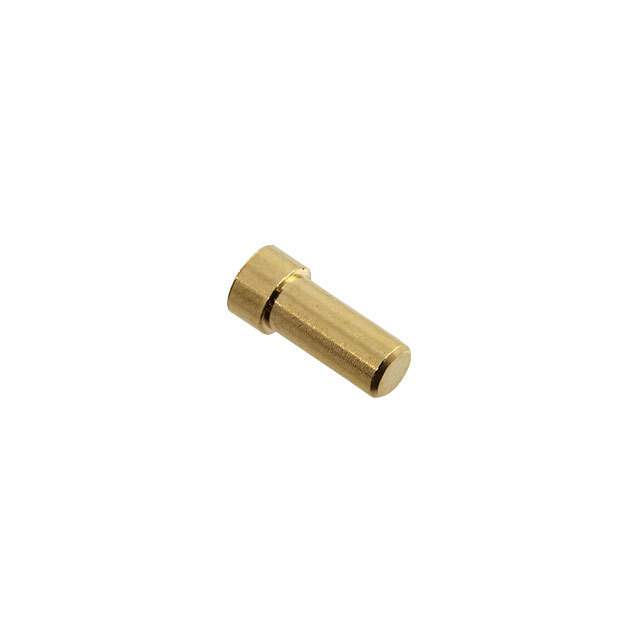

0436-0-15-15-03-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 436
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.255" (6.48mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2112 in stock

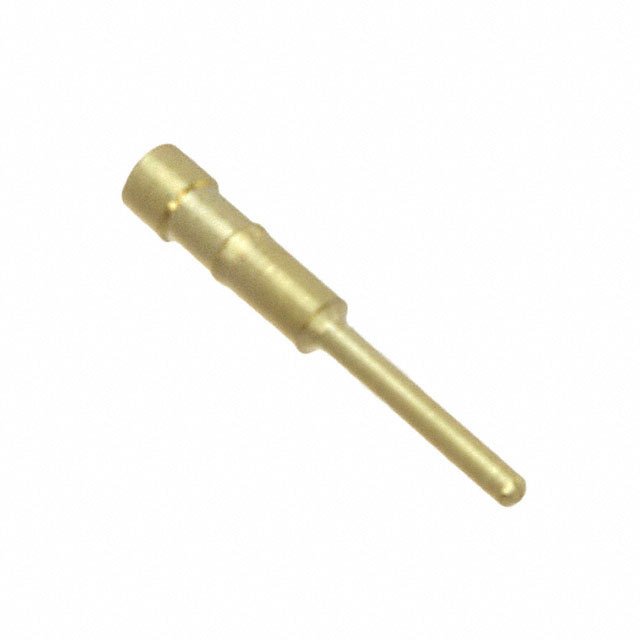

0439-0-15-15-04-27-04-4

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0439
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 1.000" (25.40mm)
Accepts Pin Diameter : 0.008" ~ 0.013" (0.20mm ~ 0.33mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.025" (0.64mm)
Flange Diameter : 0.029" (0.74mm)
Tail Diameter : 0.140" (3.56mm)
Socket Depth : 0.055" (1.40mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1280 in stock

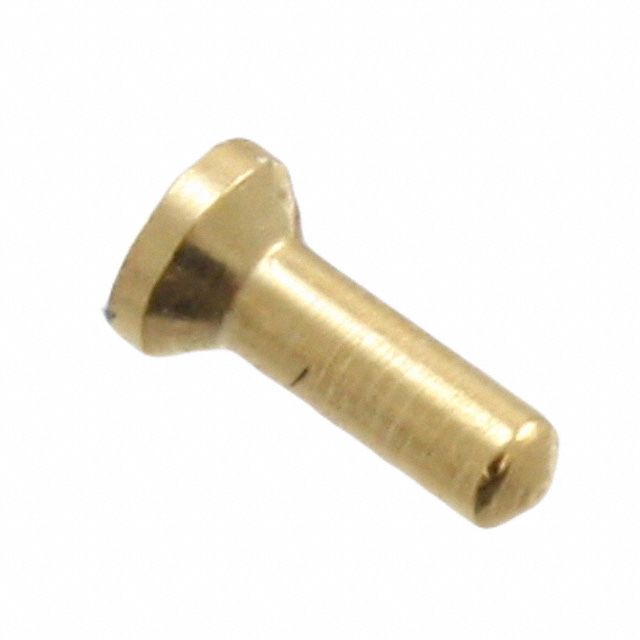

0442-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 442
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.136" (3.45mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.070" (1.77mm)
Tail Diameter : -
Socket Depth : 0.122" (3.10mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

774 in stock

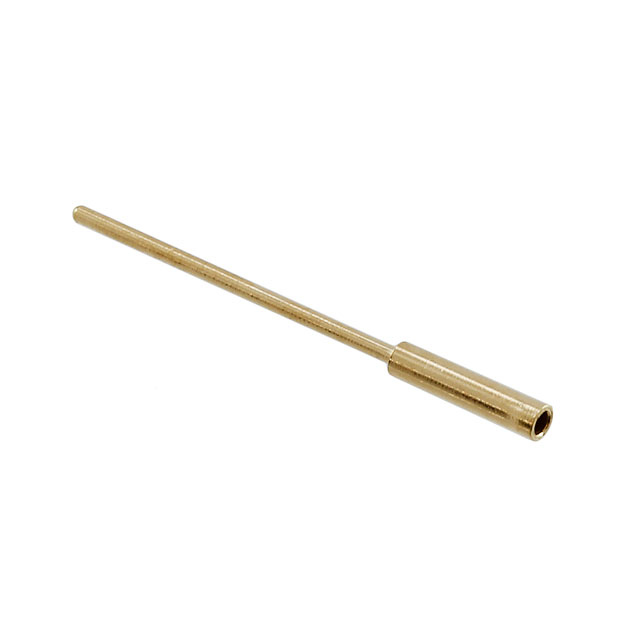

0461-0-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.575" (14.61mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1546 in stock

0461-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.575" (14.61mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

50339 in stock

0461-0-15-80-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.575" (14.61mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

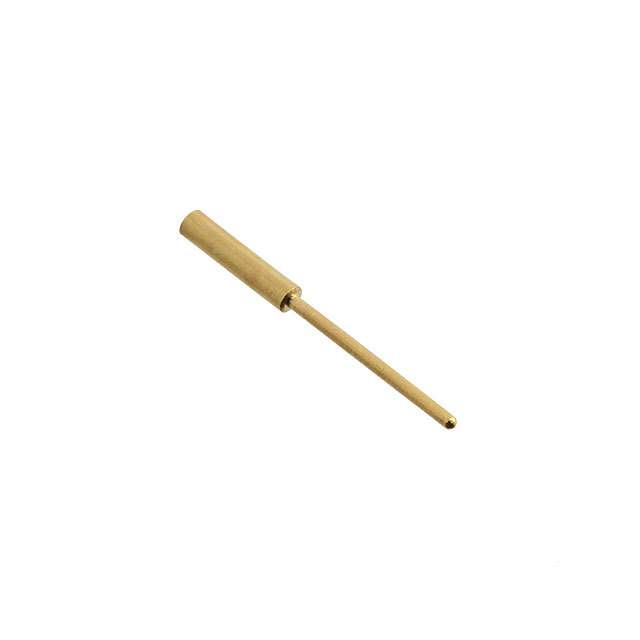

0461-1-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.450" (11.43mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

4238 in stock

0461-1-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.450" (11.43mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1958 in stock
