Part Number

Manufacturer

Description

Unit Price

In Stock

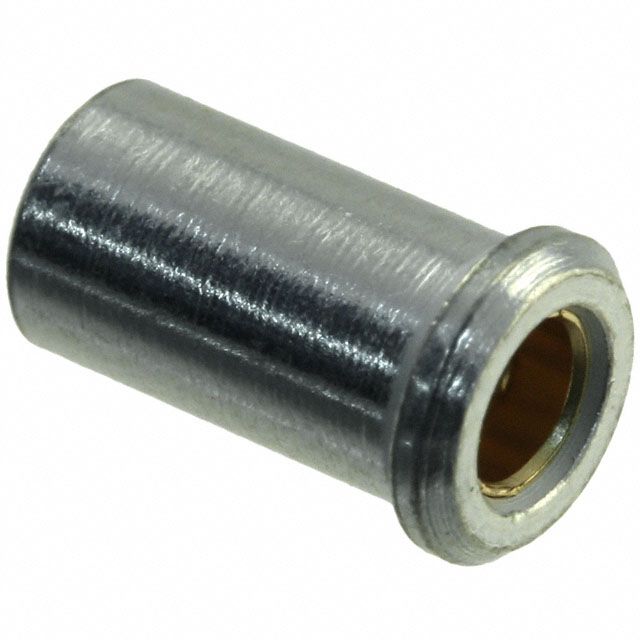

0391-0-15-80-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 391
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.309" (7.85mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.189" (4.80mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

8190 in stock

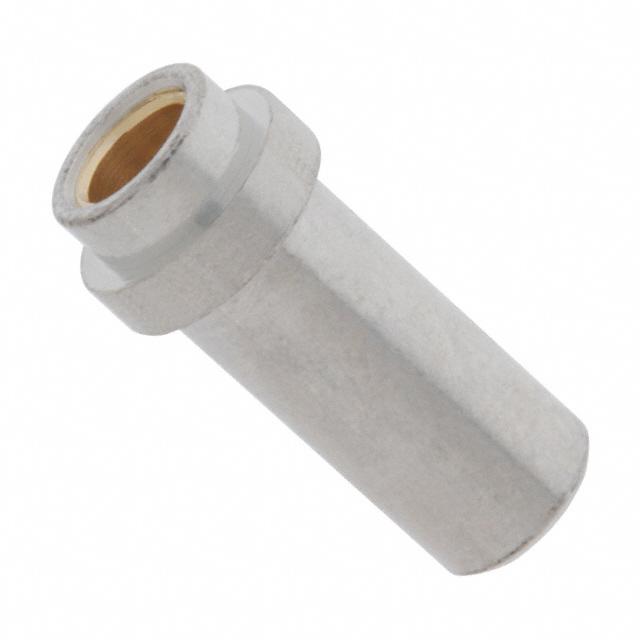

0393-0-15-01-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 393
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.412" (10.46mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.340" (8.64mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

8423 in stock

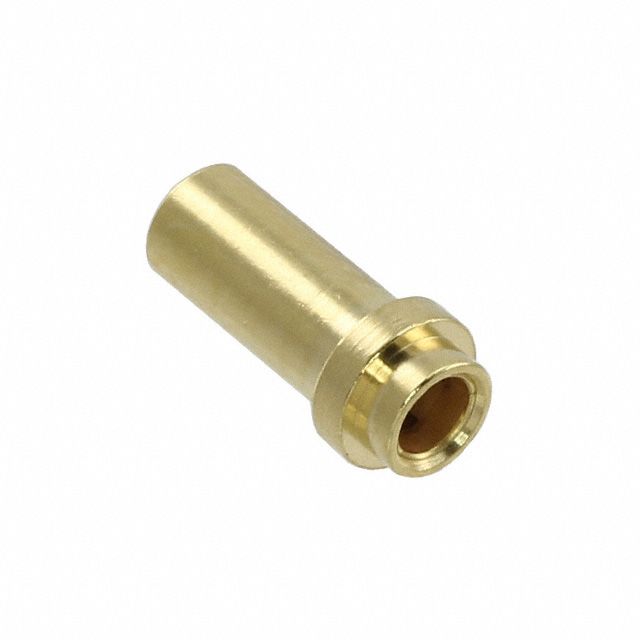

0393-0-15-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 393
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.412" (10.46mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.340" (8.64mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

11370 in stock

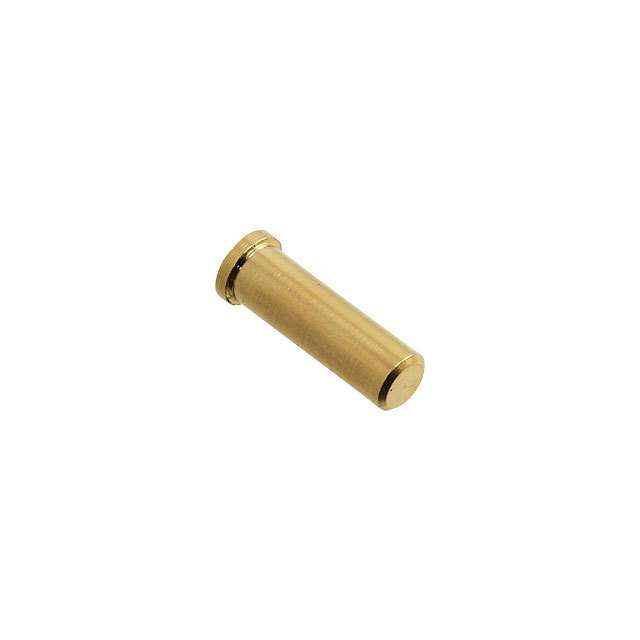

0394-0-15-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 394
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.400" (10.16mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.120" (3.05mm)
Flange Diameter : 0.143" (3.63mm)
Tail Diameter : -
Socket Depth : 0.357" (9.07mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

3280 in stock

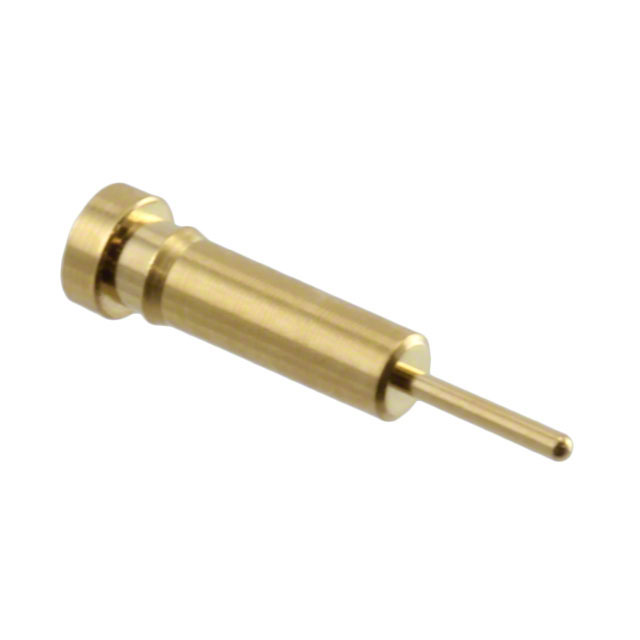

0398-0-15-15-06-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 398
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.378" (9.60mm)
Accepts Pin Diameter : 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.066" (1.68mm)
Flange Diameter : 0.086" (2.18mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

3352 in stock

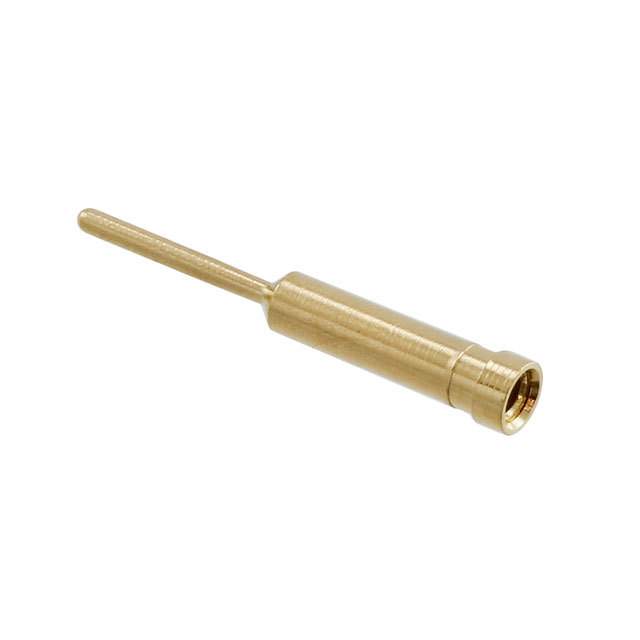

0399-0-15-15-47-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 399
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.460" (11.68mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1323 in stock

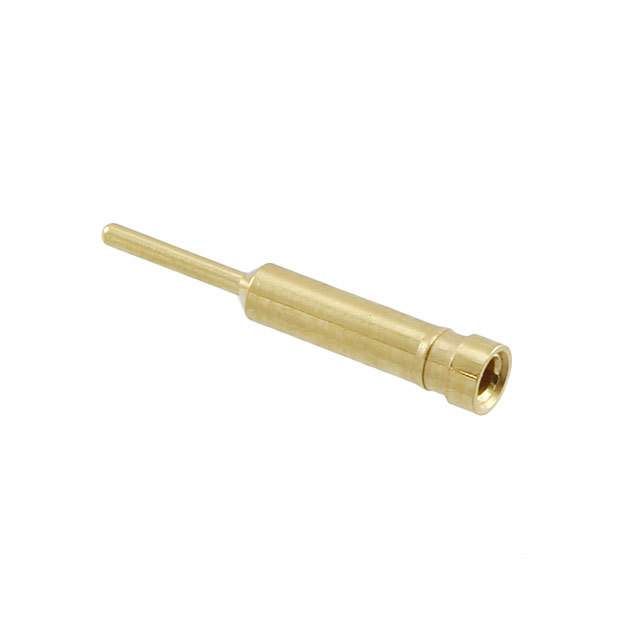

0399-1-15-15-47-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 399
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.440" (11.18mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

2173 in stock

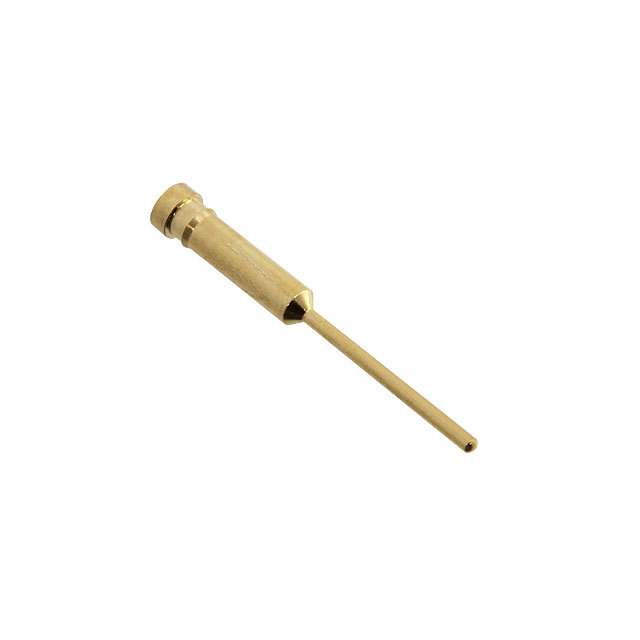

0401-0-15-15-47-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 401
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.600" (15.24mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Flange Diameter : 0.076" (1.93mm)
Tail Diameter : 0.025" (0.64mm)
Socket Depth : 0.230" (5.84mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

2858 in stock

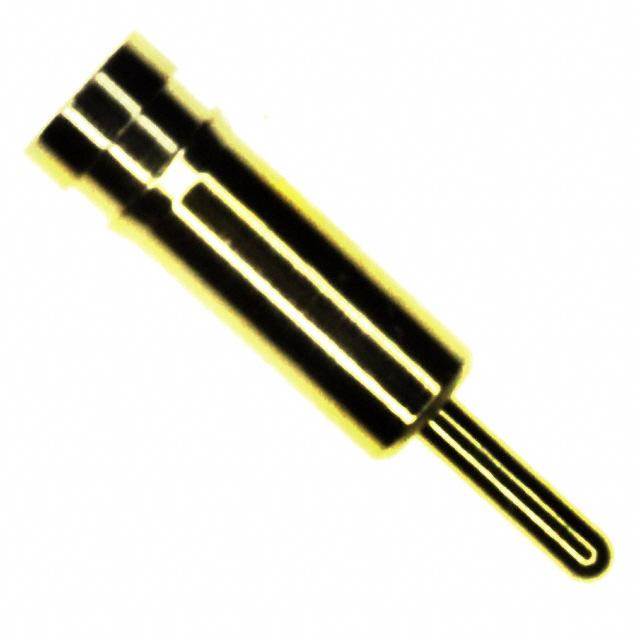

0405-0-15-15-34-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 405
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.375" (9.53mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.084" (2.13mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

28139 in stock

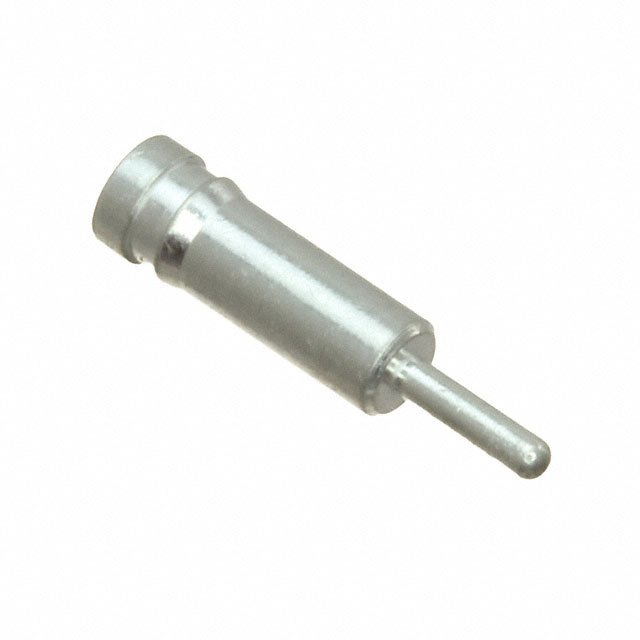

0405-0-15-80-34-80-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0405
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.375" (9.53mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.084" (2.13mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

1000 in stock

0415-0-15-15-16-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 415
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

7 in stock

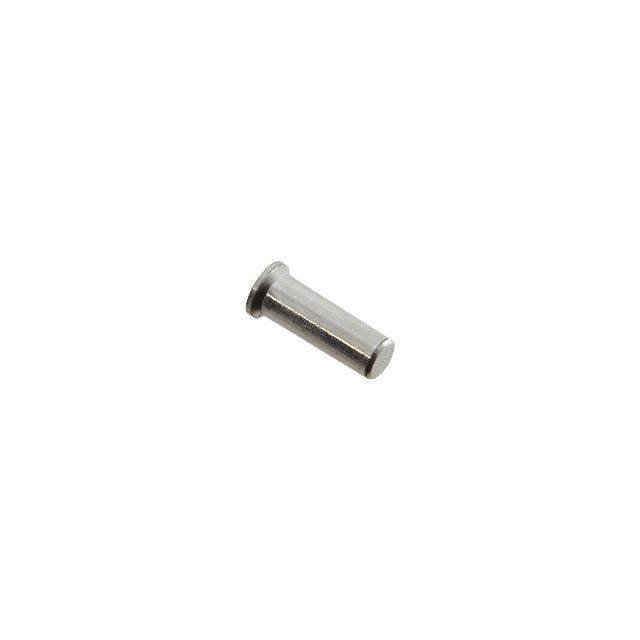

0415-0-15-80-16-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 415
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

10517 in stock
