Part Number

Manufacturer

Description

Unit Price

In Stock

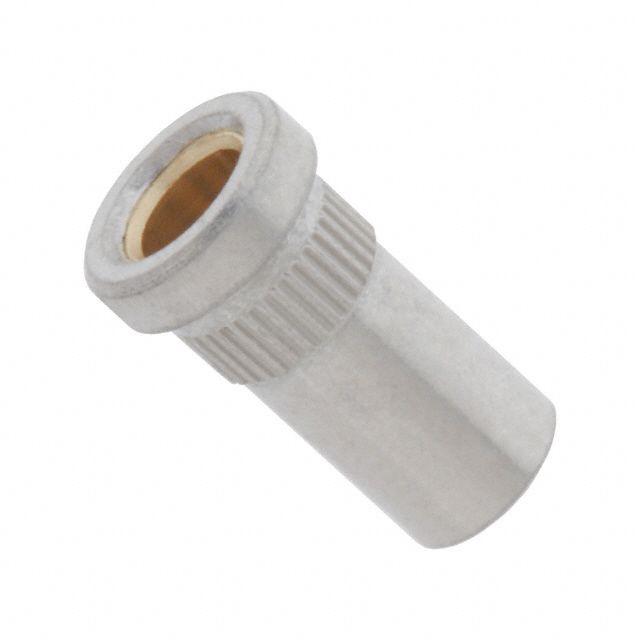

0366-0-15-15-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 366
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.109" (2.77mm)
Flange Diameter : 0.137" (3.48mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

10037 in stock

0366-0-15-21-13-35-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : *
Part Status : Active
Tail Type : -
Termination : -
Length - Overall : -
Accepts Pin Diameter : -
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : -
Contact Finish : -
Contact Finish Thickness : -

0

1500 in stock

0367-0-15-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 367
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.285" (7.24mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : 0.032" (0.81mm) Square
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1000 in stock

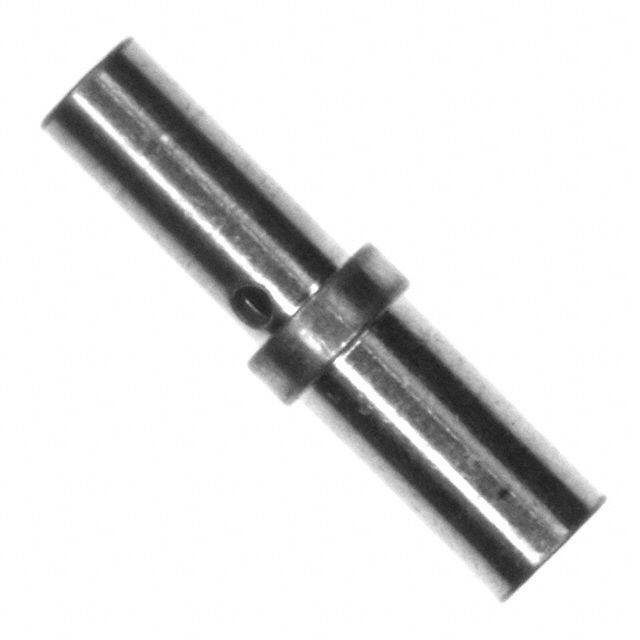

0368-0-33-01-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 368
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.531" (13.50mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : -
Flange Diameter : 0.141" (3.58mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

3444 in stock

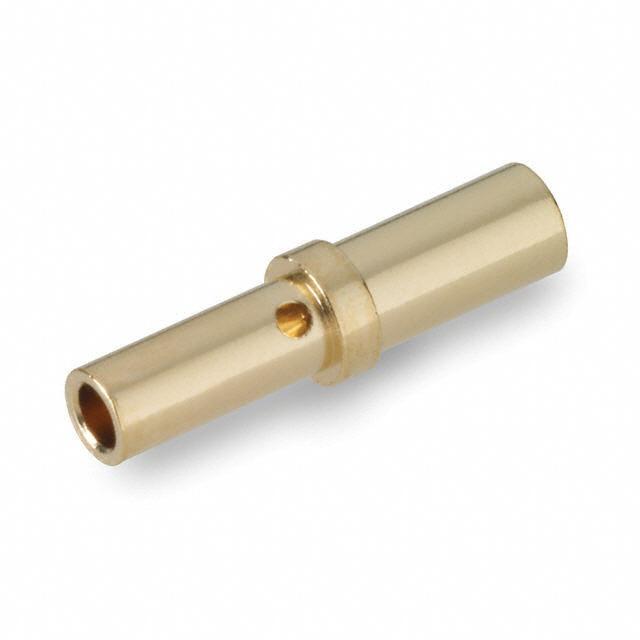

0368-0-33-15-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 368
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.531" (13.50mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : -
Flange Diameter : 0.141" (3.58mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

4503 in stock

0370-0-19-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 370
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.690" (17.53mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : -
Flange Diameter : 0.144" (3.66mm)
Tail Diameter : -
Socket Depth : 0.375" (9.53mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

4157 in stock

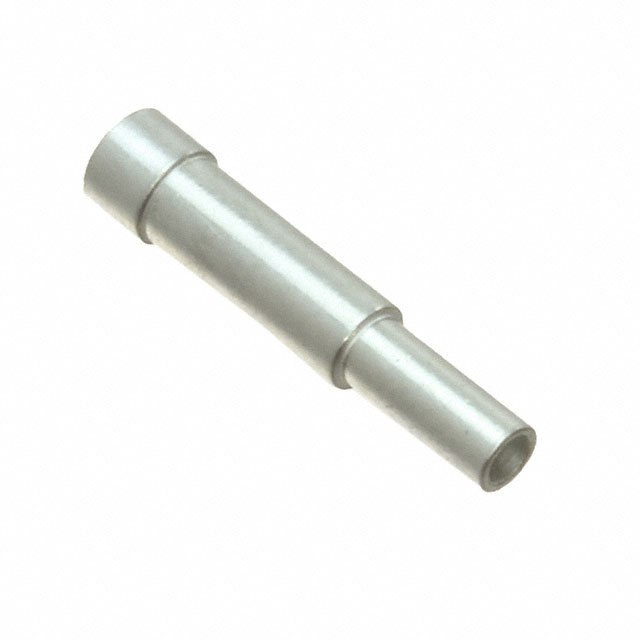

0370-0-19-80-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0370
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.690" (17.53mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : -
Flange Diameter : 0.144" (3.66mm)
Tail Diameter : -
Socket Depth : 0.375" (9.53mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

992 in stock

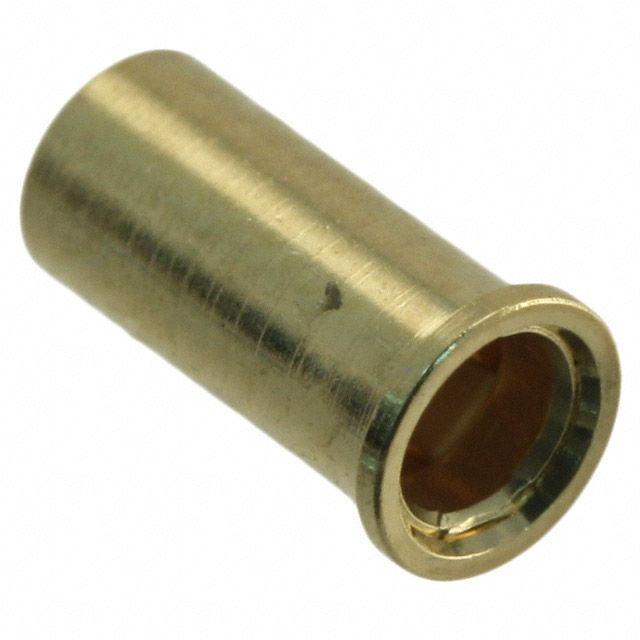

0372-0-15-15-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 372
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.225" (5.72mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.225" (5.72mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1549 in stock

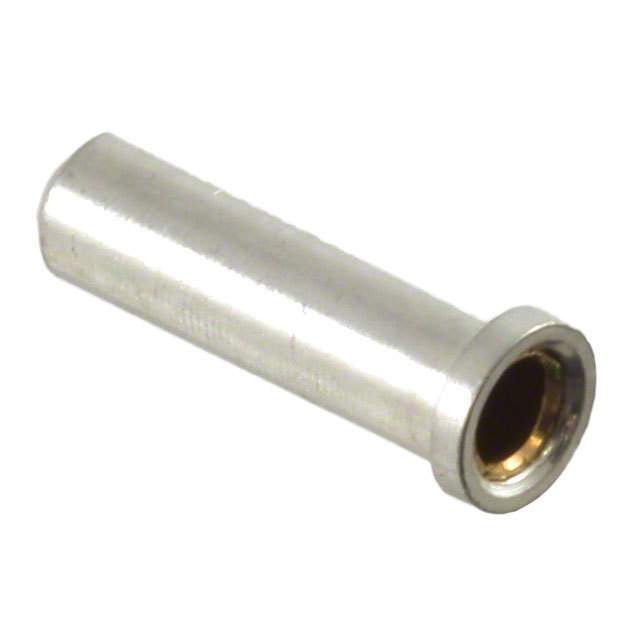

0373-0-15-01-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 373
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.270" (6.86mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.241" (6.12mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

16074 in stock

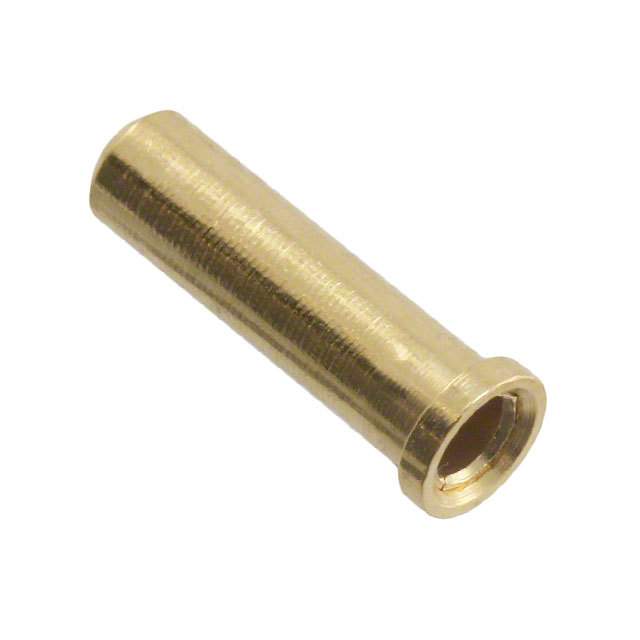

0373-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 373
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.270" (6.86mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.241" (6.12mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

20339 in stock

0373-0-15-80-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0373
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.270" (6.86mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.241" (6.12mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1000 in stock

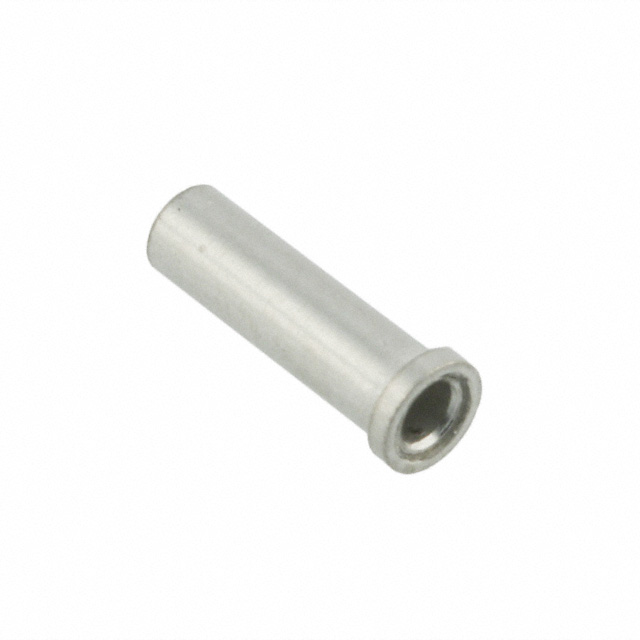

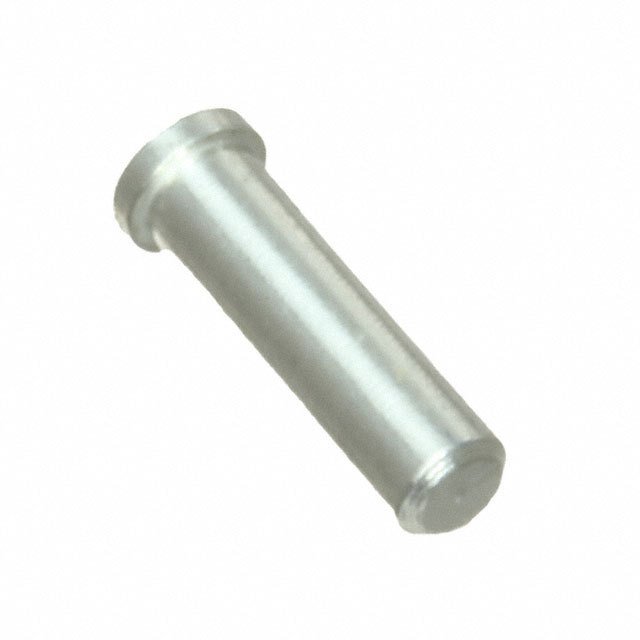

0373-0-15-80-34-80-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 373
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.270" (6.86mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.241" (6.12mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

7165 in stock
