Part Number

Manufacturer

Description

Unit Price

In Stock

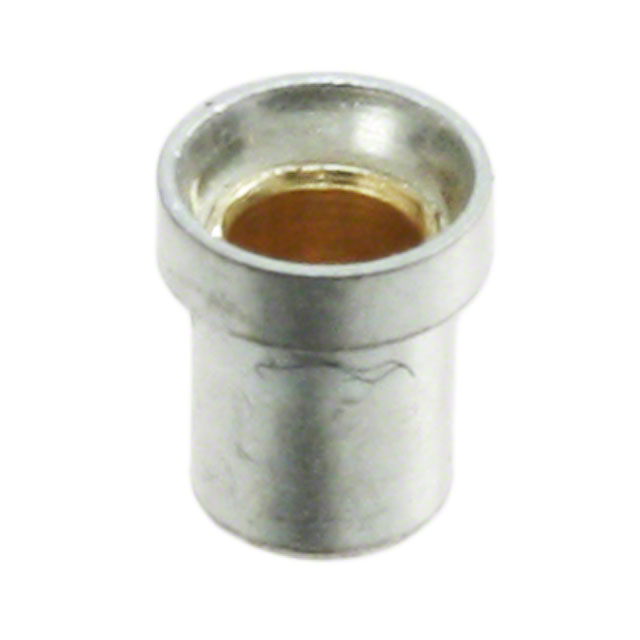

0375-0-67-80-02-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 375
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.120" (3.05mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

6005 in stock

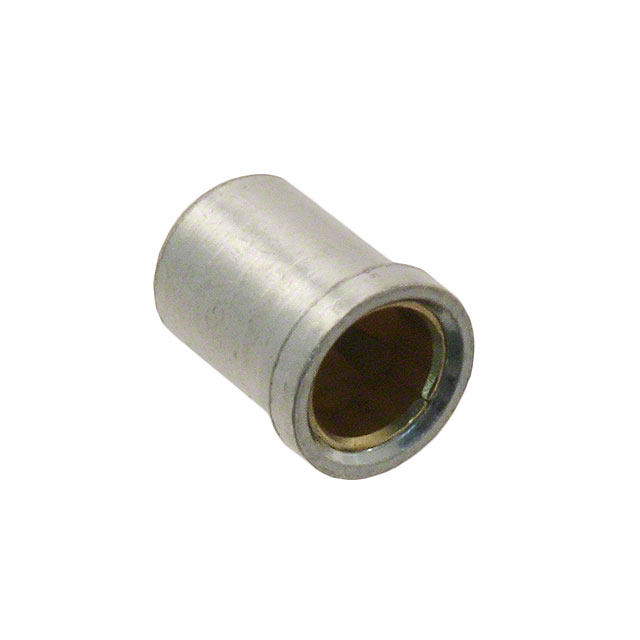

0376-0-67-80-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0376
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.181" (4.60mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.133" (3.38mm)
Flange Diameter : 0.140" (3.56mm)
Tail Diameter : -
Socket Depth : 0.181" (4.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

2909 in stock

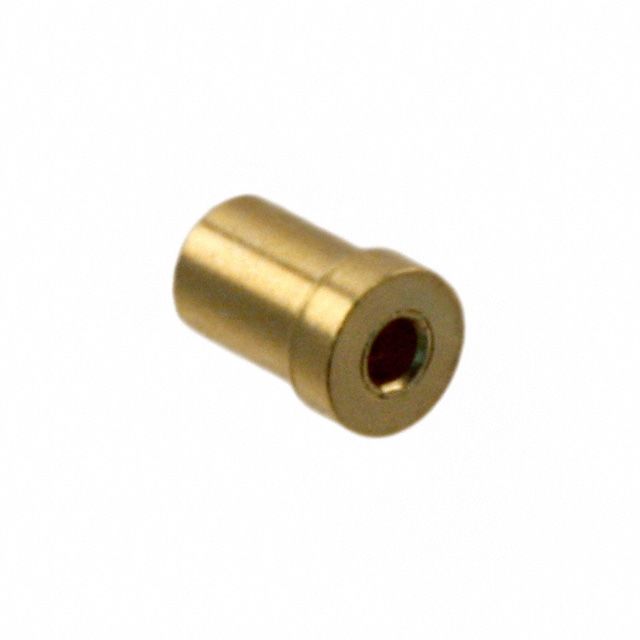

0378-0-15-15-15-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 378
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.132" (3.35mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.082" (2.08mm)
Flange Diameter : 0.092" (2.34mm)
Tail Diameter : -
Socket Depth : 0.132" (3.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

2290 in stock

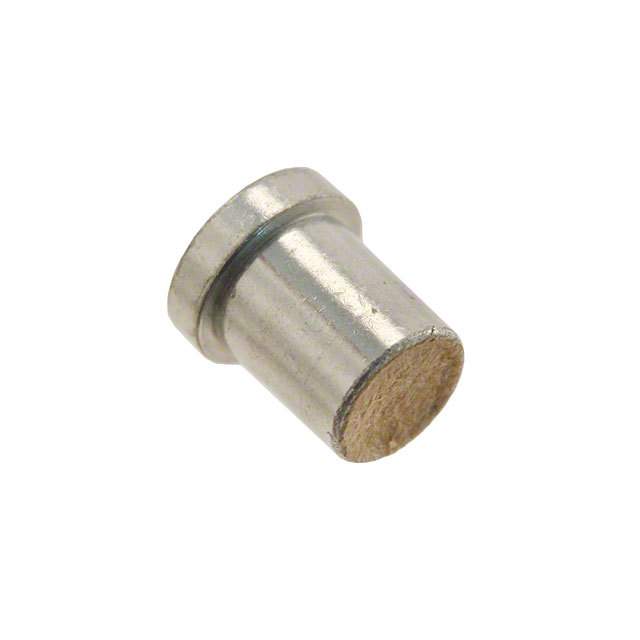

0384-0-67-80-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0384
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.105" (2.67mm)
Flange Diameter : 0.122" (3.10mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

16362 in stock

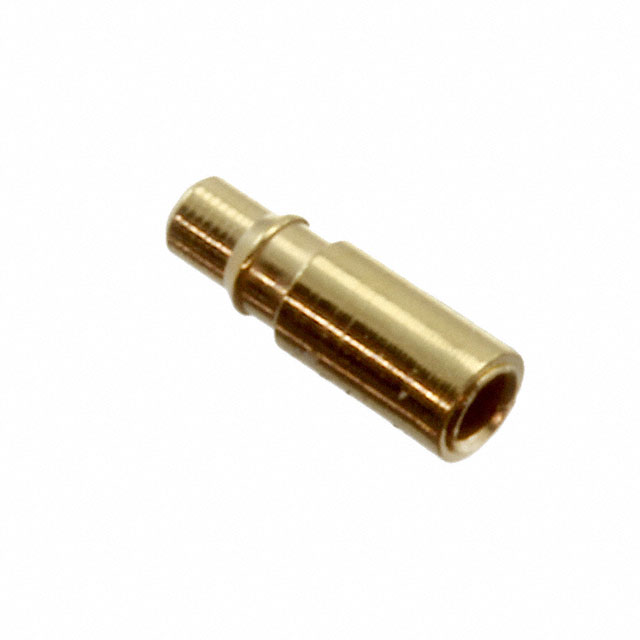

0385-0-15-15-43-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 385
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.046" (1.17mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.145" (3.68mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

6000 in stock

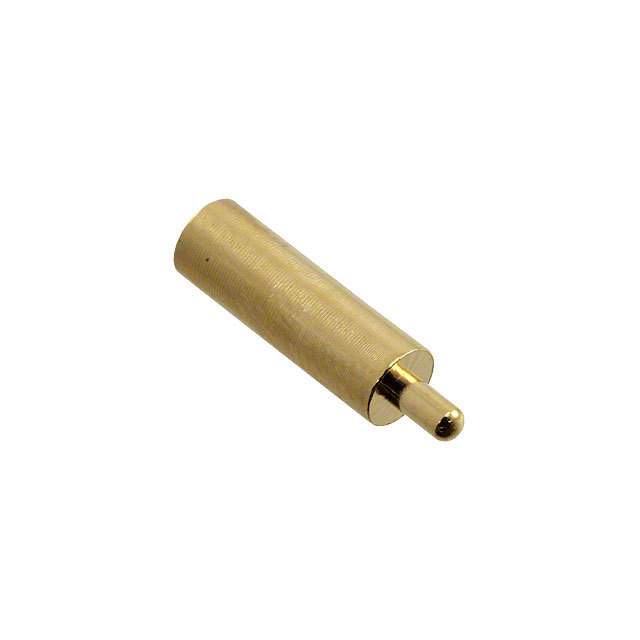

0387-0-15-15-07-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 387
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.565" (14.35mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.147" (3.73mm)
Tail Diameter : 0.060" (1.52mm)
Socket Depth : 0.375" (9.53mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

794 in stock

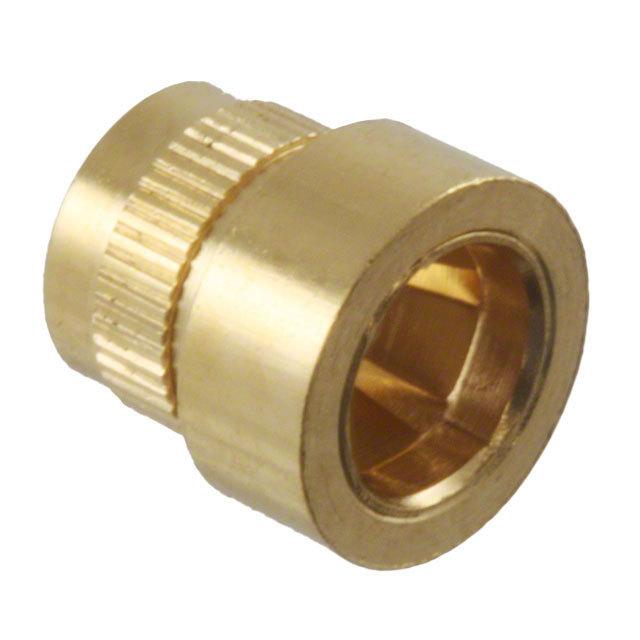

0388-0-15-15-08-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 388
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.138" (3.50mm)
Flange Diameter : 0.170" (4.32mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

27163 in stock

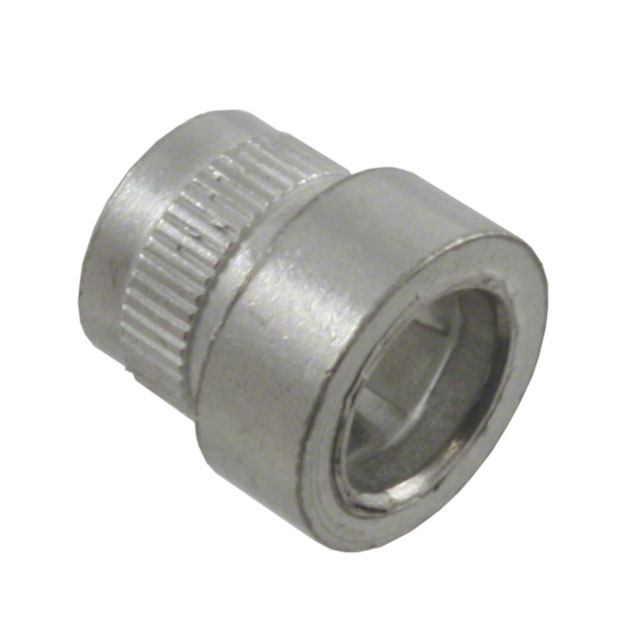

0388-0-15-80-08-80-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 388
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.138" (3.50mm)
Flange Diameter : 0.170" (4.32mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

6028 in stock

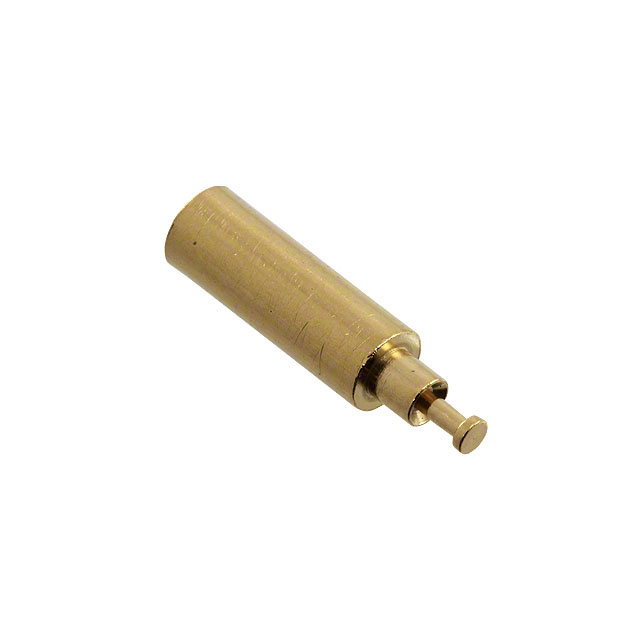

0389-2-15-15-08-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 389
Part Status : Active
Tail Type : Turret
Termination : Swage
Length - Overall : 0.642" (16.31mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Flange Diameter : 0.159" (4.04mm)
Tail Diameter : -
Socket Depth : 0.385" (9.78mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

6970 in stock

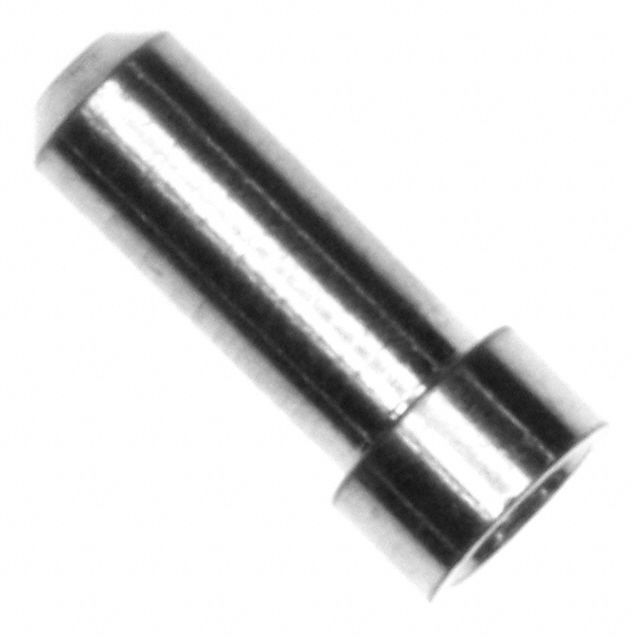

0390-0-15-01-08-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 390
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.465" (11.81mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.188" (4.78mm)
Tail Diameter : -
Socket Depth : 0.415" (10.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

4394 in stock

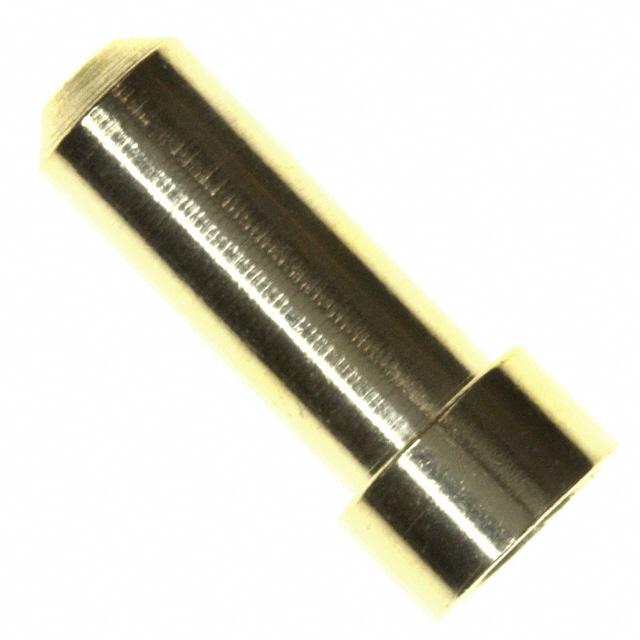

0390-0-15-15-08-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 390
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.465" (11.81mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.188" (4.78mm)
Tail Diameter : -
Socket Depth : 0.415" (10.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

17099 in stock

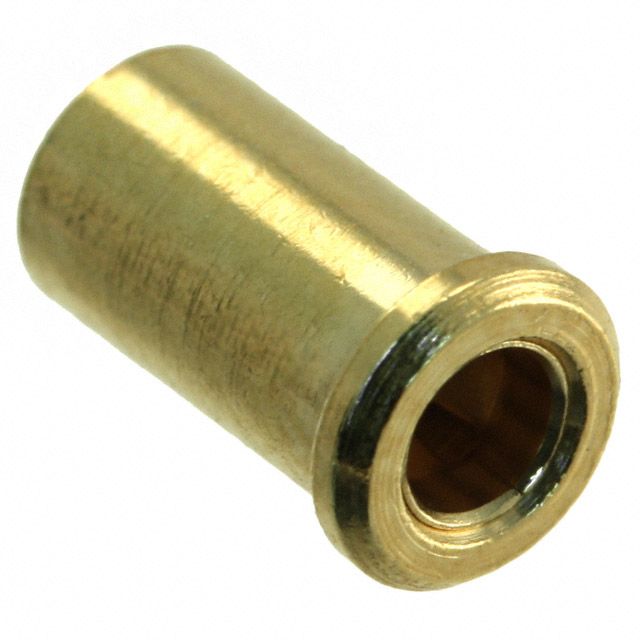

0391-0-15-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 391
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.309" (7.85mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.189" (4.80mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

14506 in stock
