Part Number

Manufacturer

Description

Unit Price

In Stock

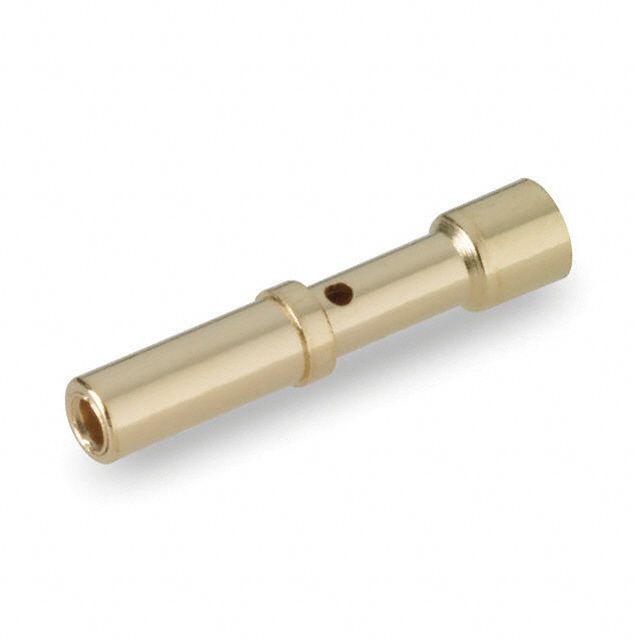

0348-0-33-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 348
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.530" (13.46mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : -
Flange Diameter : 0.122" (3.10mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

4667 in stock

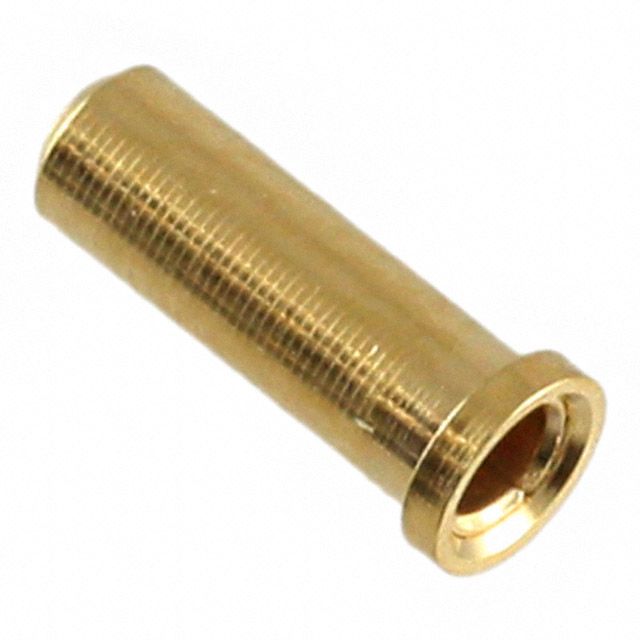

0351-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 351
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.226" (5.74mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

17660 in stock

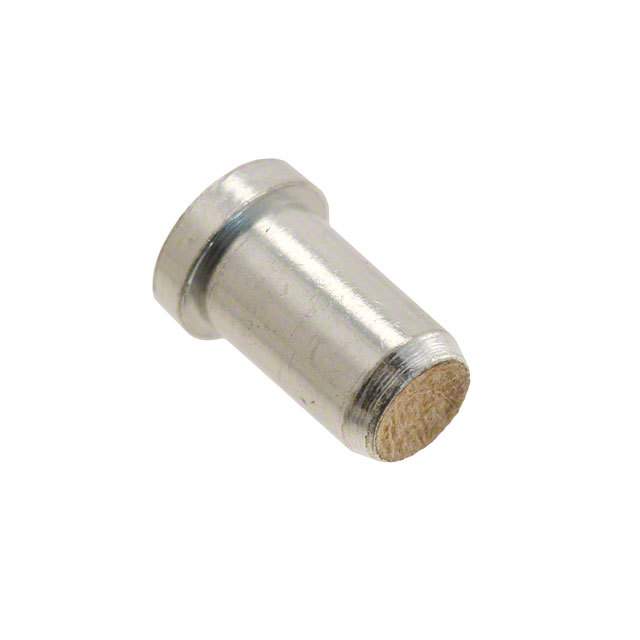

0353-0-67-80-03-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 353
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.192" (4.88mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.192" (4.88mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1324 in stock

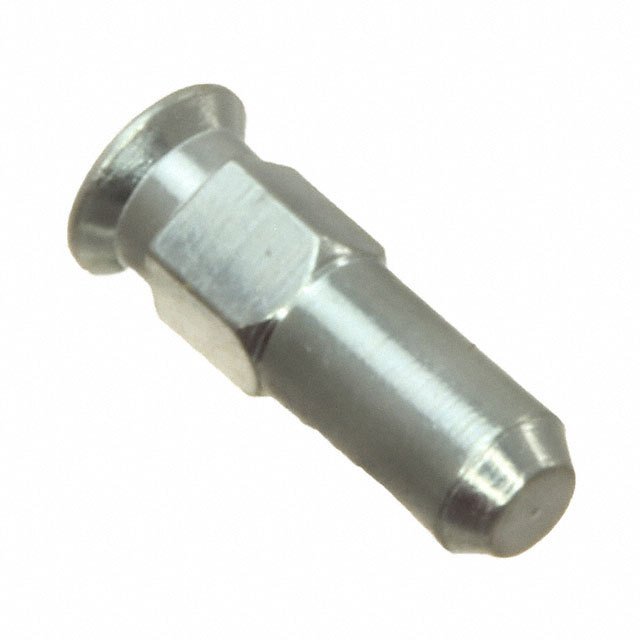

0354-0-15-80-02-80-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0354
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.104" (2.64mm)
Flange Diameter : 0.119" (3.02mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

875 in stock

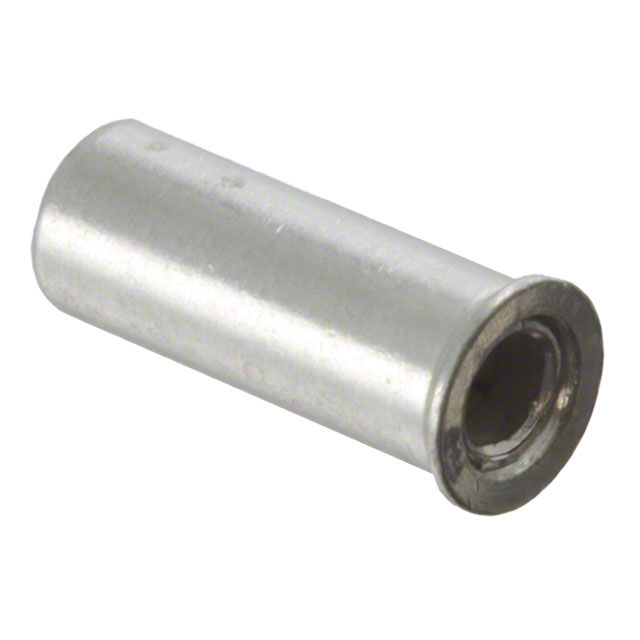

0355-0-15-01-02-01-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)

0

23129 in stock

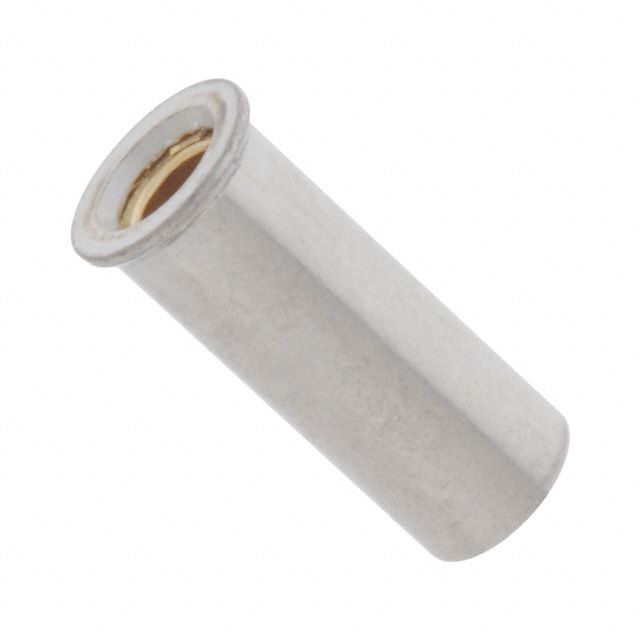

0355-0-15-01-02-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

38950 in stock

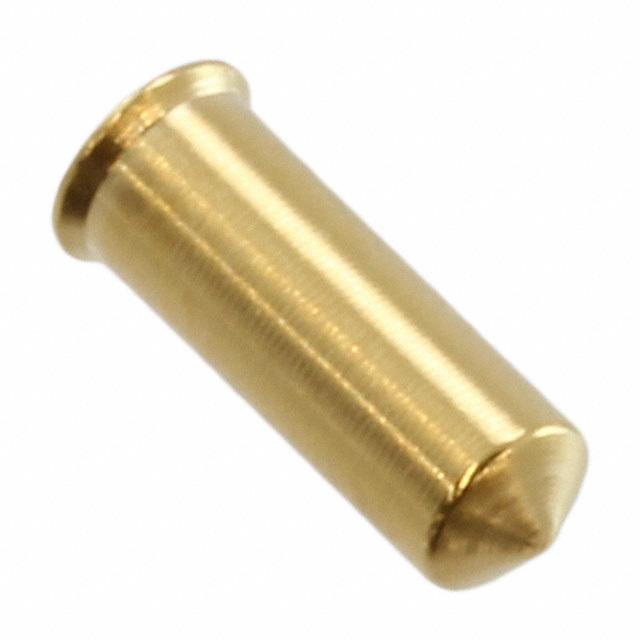

0355-0-15-15-02-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

19510 in stock

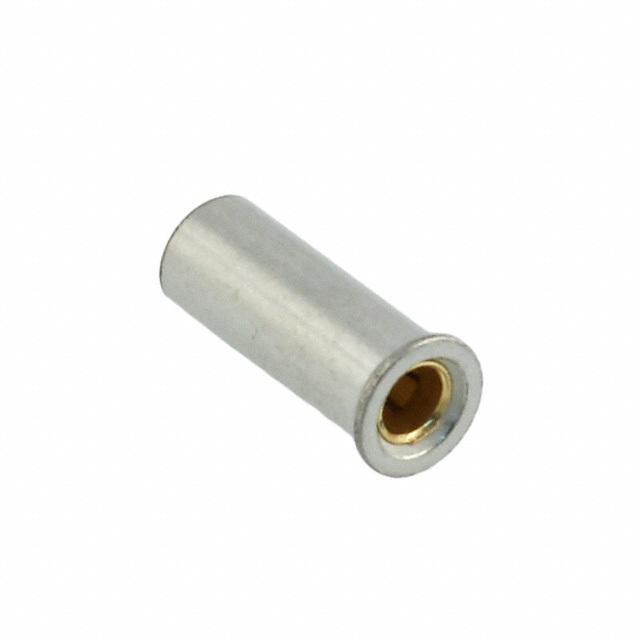

0355-0-15-80-02-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

7965 in stock

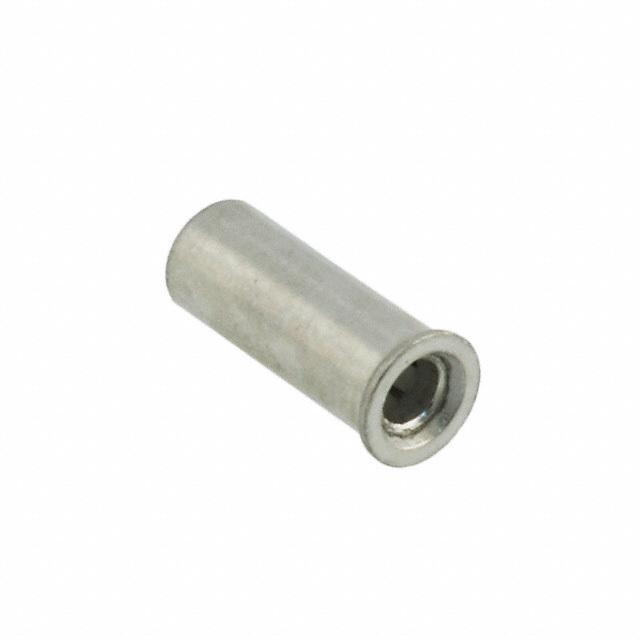

0355-0-15-80-02-80-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

7987 in stock

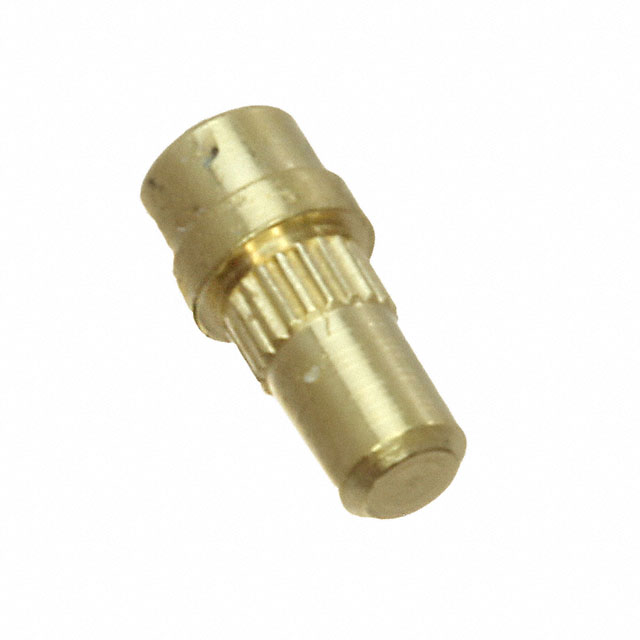

0357-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 357
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.220" (5.59mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.078" (1.98mm)
Flange Diameter : 0.103" (2.62mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

875 in stock

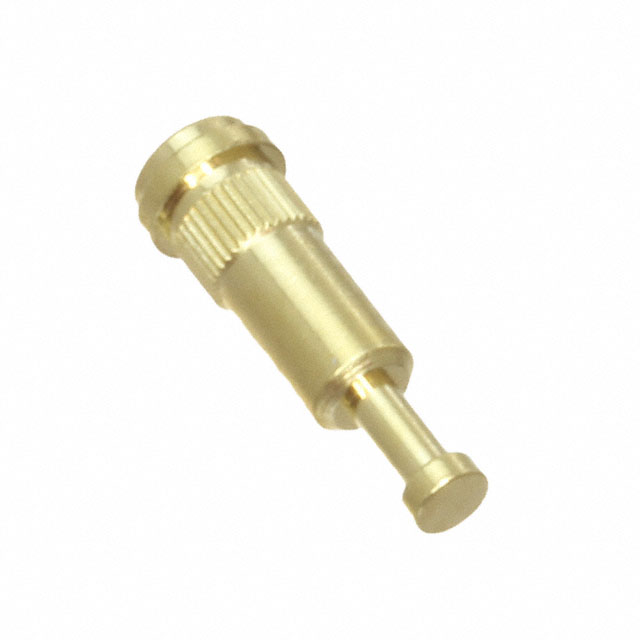

0358-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 358
Part Status : Active
Tail Type : Turret
Termination : Press-Fit, Knurled
Length - Overall : 0.343" (8.71mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.190" (4.83mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

897 in stock

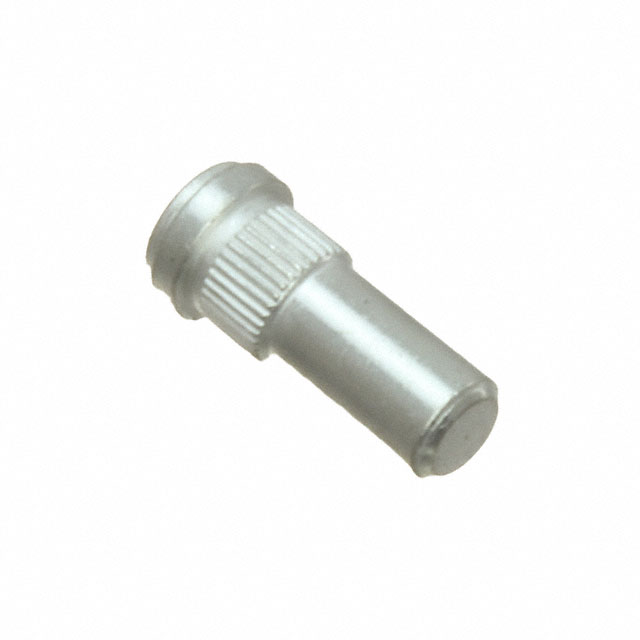

0359-0-15-80-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0359
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.190" (4.83mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

996 in stock
