Part Number

Manufacturer

Description

Unit Price

In Stock

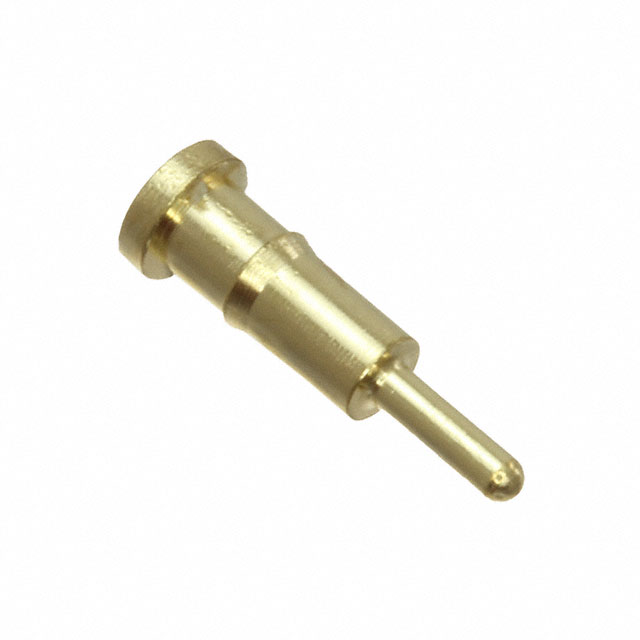

0336-0-15-15-34-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 336
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.385" (9.78mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.089" (2.26mm)
Flange Diameter : 0.119" (3.02mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.205" (5.21mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

815 in stock

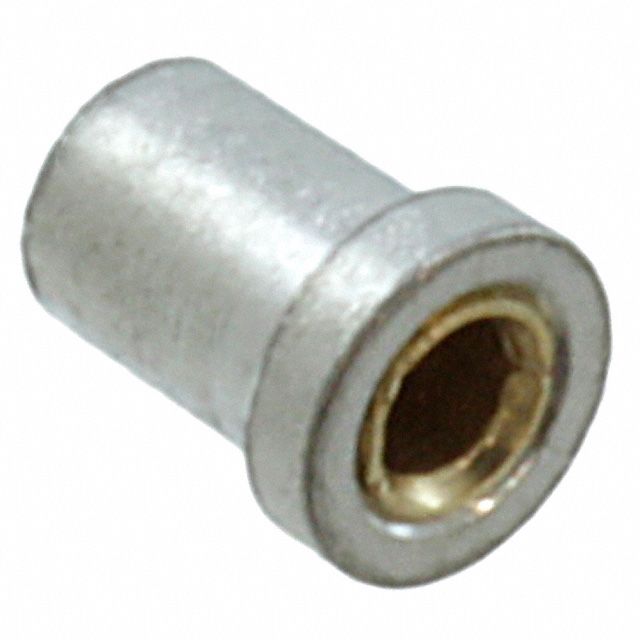

0337-0-67-80-15-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 337
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.100" (2.54mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.066" (1.68mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : -
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

28562 in stock

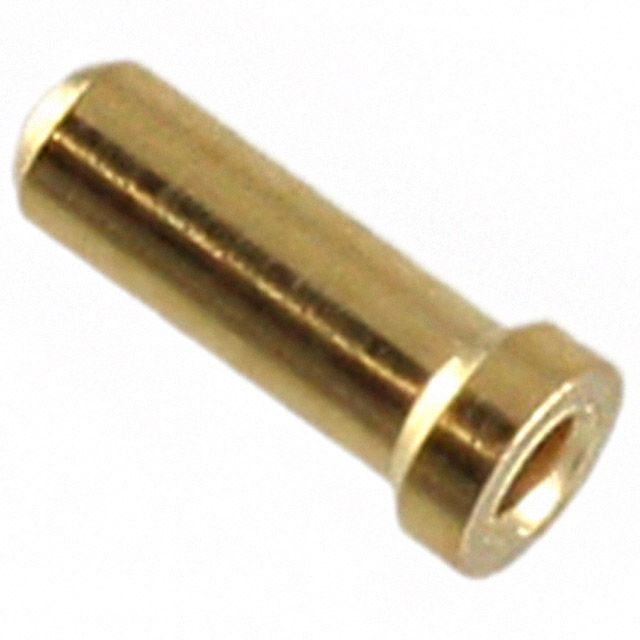

0338-0-15-15-15-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 338
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.147" (3.73mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

41488 in stock

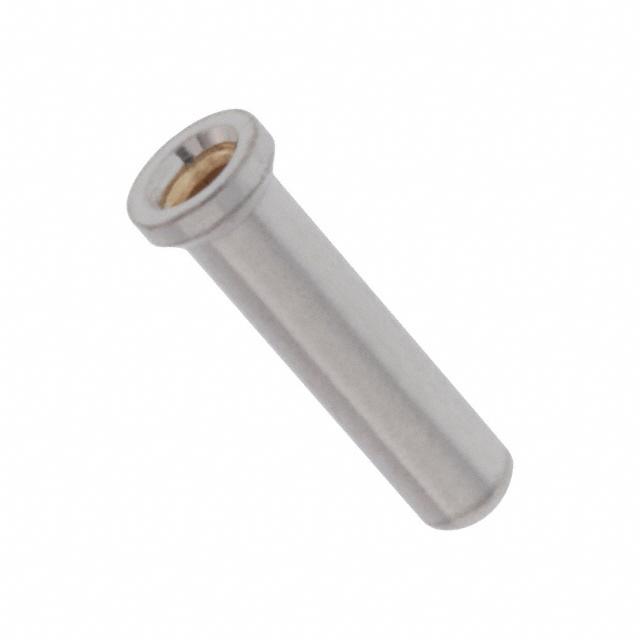

0338-0-15-80-15-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0338
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.147" (3.73mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

900 in stock

0339-0-15-15-15-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0339
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.057" (1.45mm)
Mounting Hole Diameter : 0.047" (1.19mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.167" (4.24mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1048 in stock

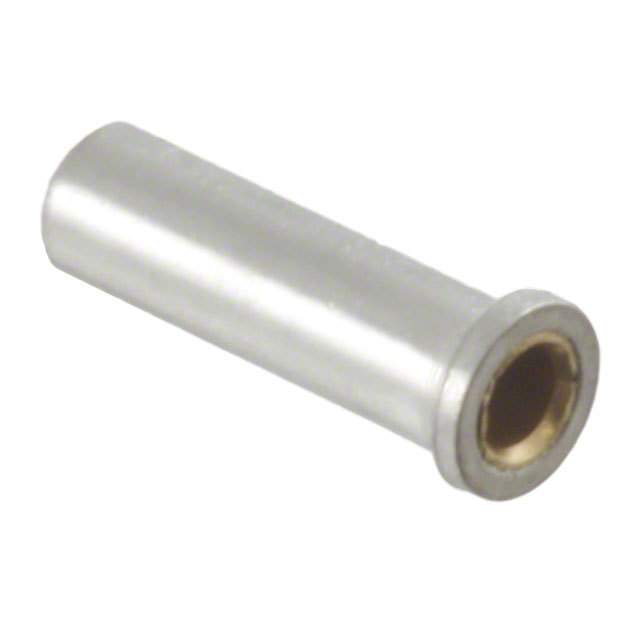

0339-0-15-80-15-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0339
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.167" (4.24mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

8911 in stock

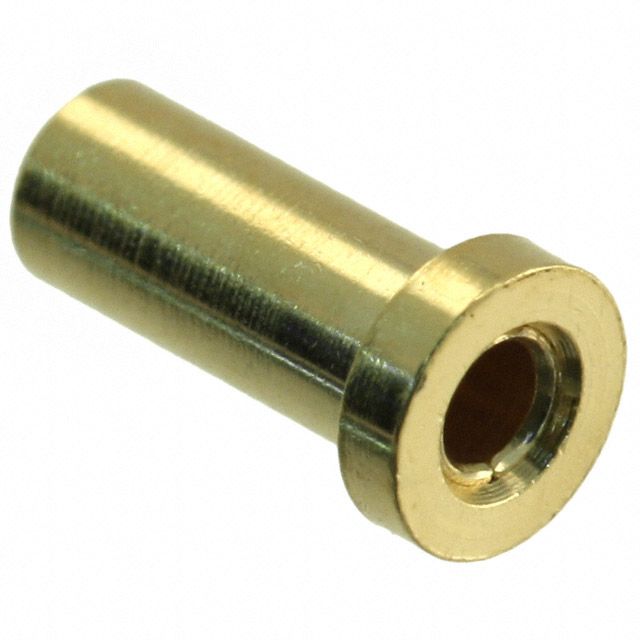

0340-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 340
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.240" (6.10mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

997 in stock

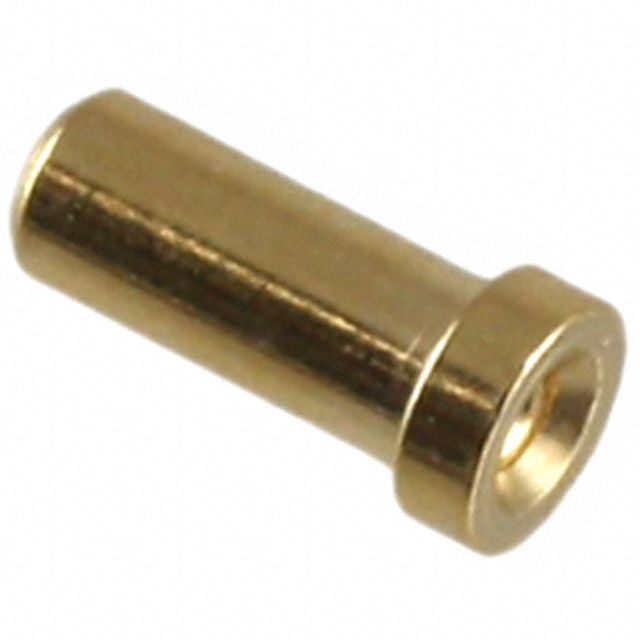

0341-0-15-15-30-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 341
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.200" (5.08mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.073" (1.85mm)
Flange Diameter : 0.093" (2.36mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

4285 in stock

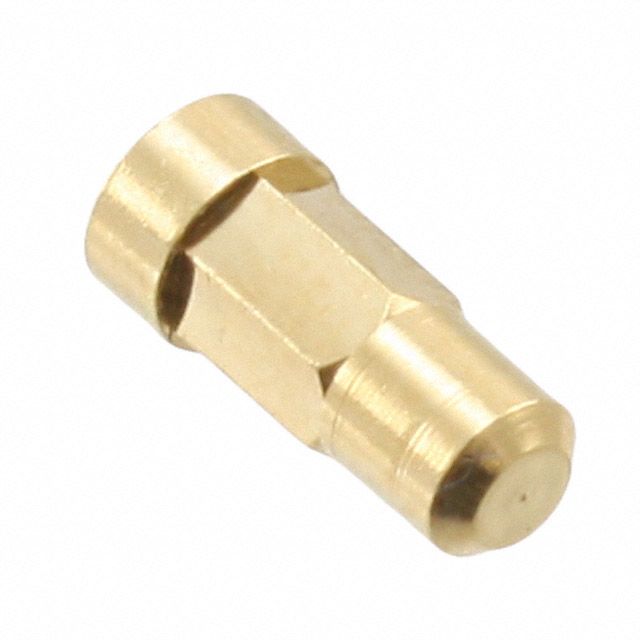

0342-0-15-15-42-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 342
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.240" (6.10mm)
Accepts Pin Diameter : 0.059" ~ 0.063" (1.50mm ~ 1.60mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.106" (2.69mm)
Tail Diameter : -
Socket Depth : 0.210" (5.33mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1843 in stock

0344-2-19-01-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 344
Part Status : Active
Tail Type : No Tail
Termination : Swage
Length - Overall : 0.324" (8.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

6449 in stock

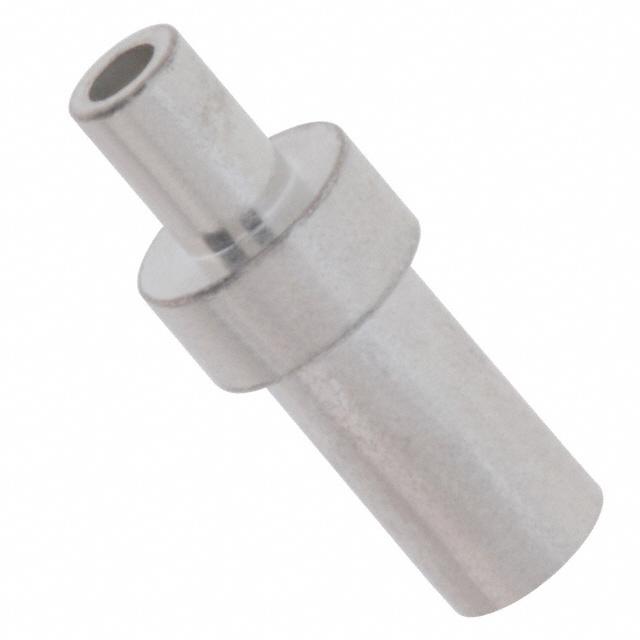

0344-2-19-15-34-27-10-0

Mill-Max

19664 in stock

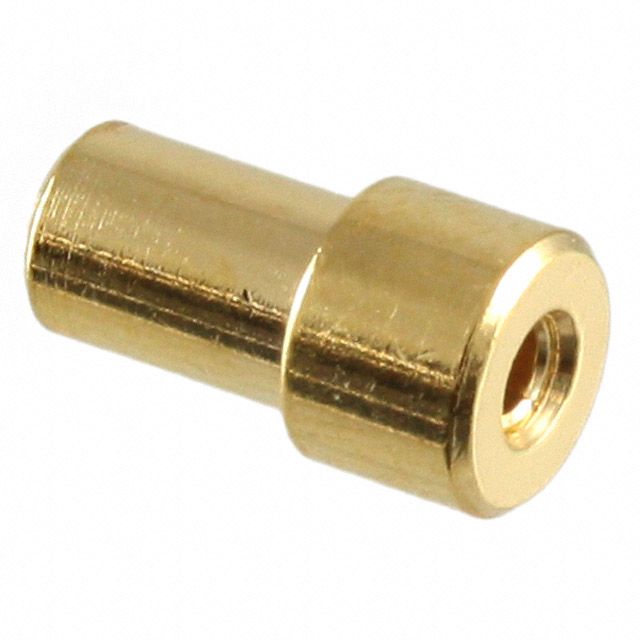

0347-0-15-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 347
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.288" (7.32mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.120" (3.05mm)
Flange Diameter : 0.157" (3.99mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3386 in stock
