Part Number

Manufacturer

Description

Unit Price

In Stock

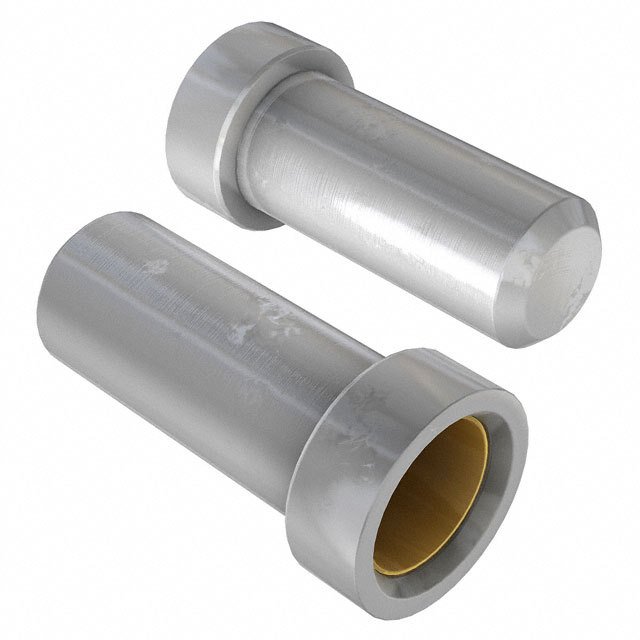

0507-0-15-15-31-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 507
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.090" (2.29mm)
Accepts Pin Diameter : 0.018" ~ 0.023" (0.46mm ~ 0.60mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.042" (1.07mm)
Flange Diameter : 0.052" (1.32mm)
Tail Diameter : -
Socket Depth : 0.073" (1.85mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

8942 in stock

0512-0-15-15-12-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 512
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.029" (0.74mm)
Socket Depth : 0.062" (1.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1000 in stock

0529-0-15-15-10-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0529
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.028" (0.71mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

2000 in stock

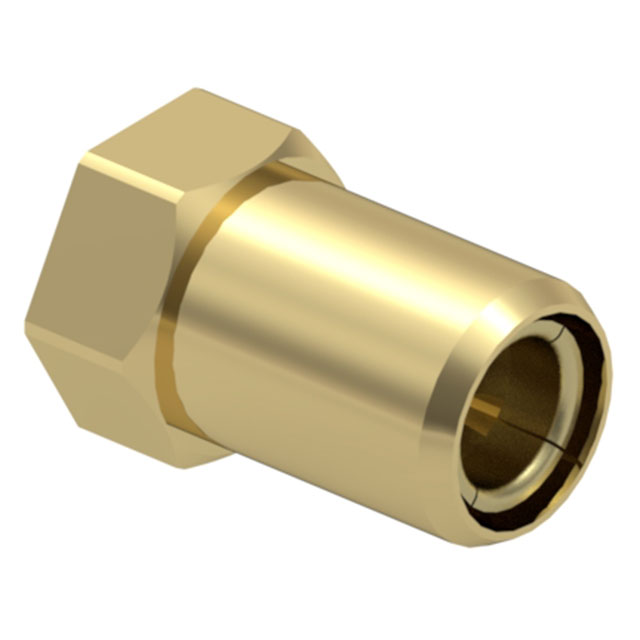

0531-0-15-15-31-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0531
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.068" (1.73mm)
Accepts Pin Diameter : 0.018" ~ 0.023" (0.46mm ~ 0.60mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.045" (1.14mm)
Flange Diameter : 0.048" (1.22mm)
Tail Diameter : -
Socket Depth : 0.066" (1.68mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

14426 in stock

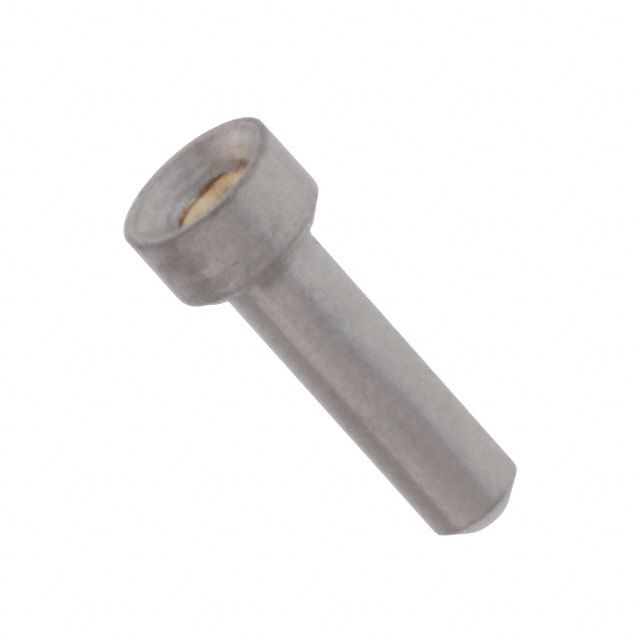

0548-0-15-01-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0548
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.058" (1.47mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

6926 in stock

0548-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0548
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.058" (1.47mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

16058 in stock

0548-0-15-15-21-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0548
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Flange Diameter : 0.058" (1.47mm)
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

1000 in stock

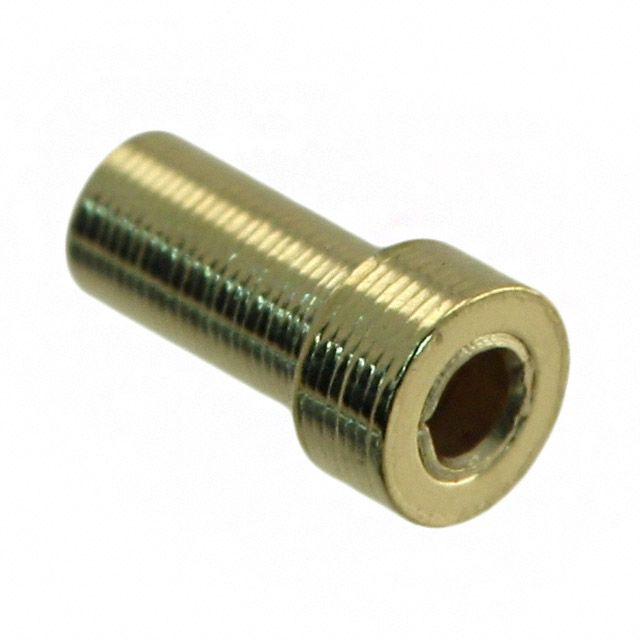

0550-0-15-15-22-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 550
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

2515 in stock

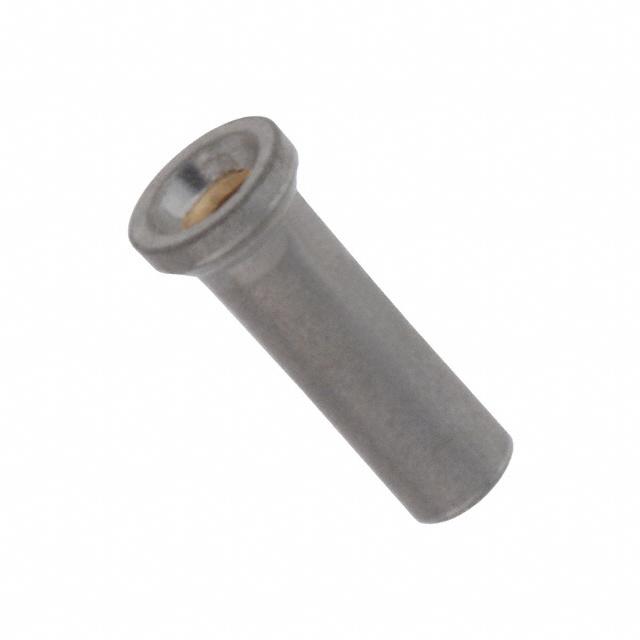

0552-1-15-01-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 552
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.136" (3.45mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.136" (3.45mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

10763 in stock

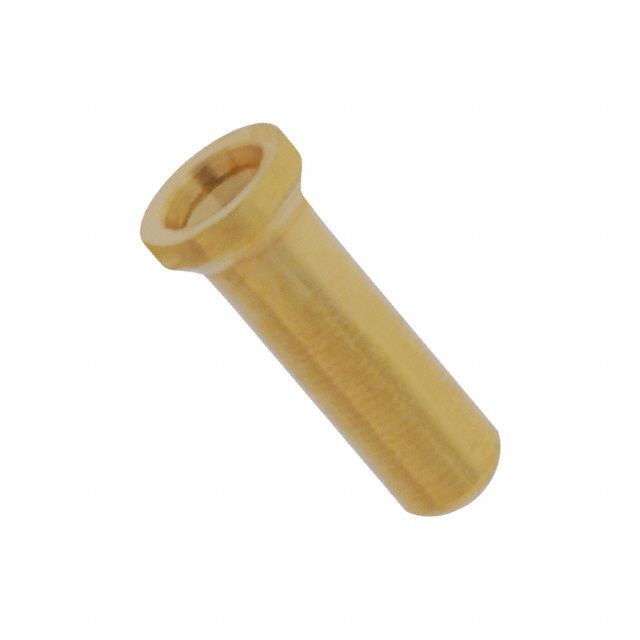

0552-1-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 552
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.136" (3.45mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.136" (3.45mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

45140 in stock

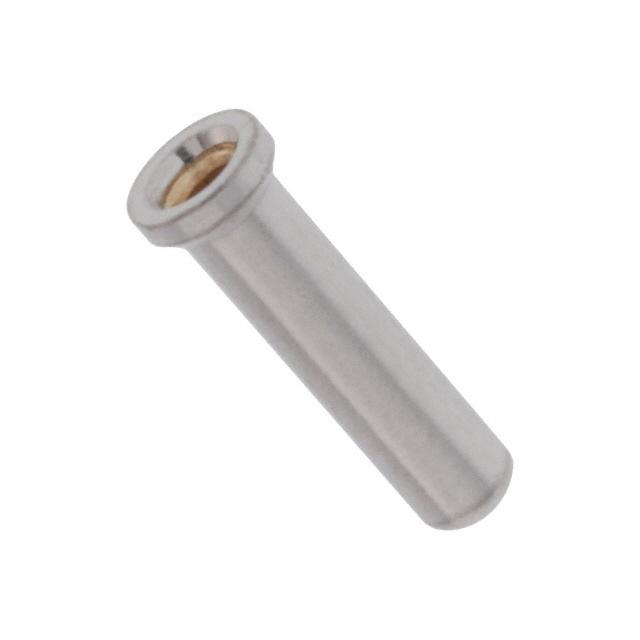

0552-2-15-01-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 552
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

38285 in stock

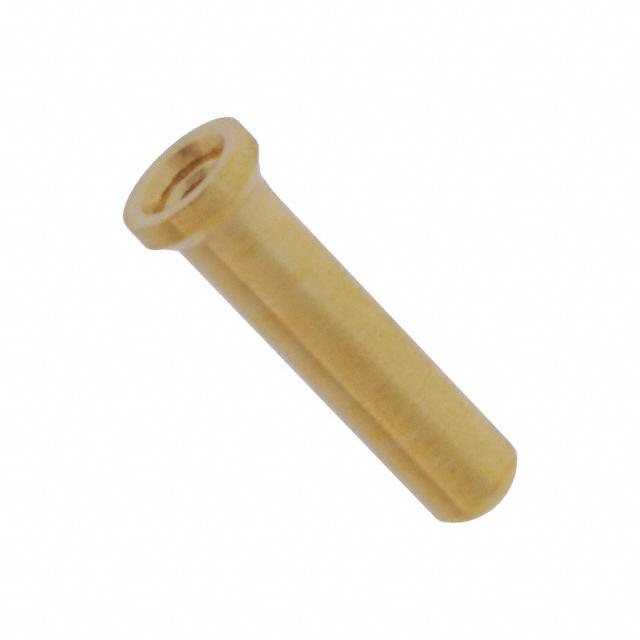

0552-2-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 552
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

0

142608 in stock
