Part Number
Manufacturer
Description
Unit Price
In Stock
0552-2-15-15-21-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 552
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 552
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
500 in stock

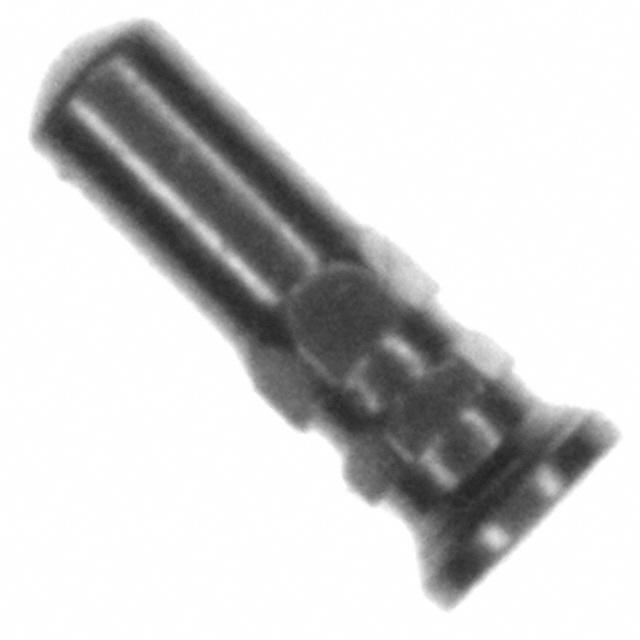

0553-1-15-01-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.124" (3.15mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.124" (3.15mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
15710 in stock
0553-1-15-15-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.124" (3.15mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.124" (3.15mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
10817 in stock

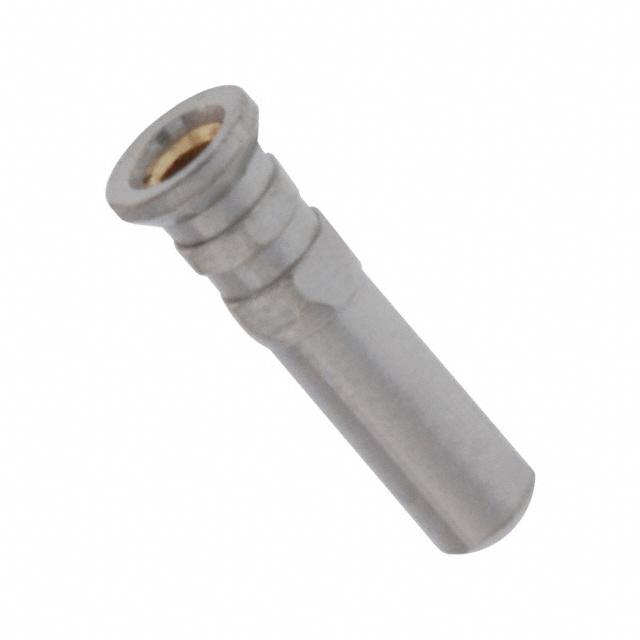

0553-2-15-01-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.154" (3.91mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.154" (3.91mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
60661 in stock
0553-2-15-15-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.154" (3.91mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.154" (3.91mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
8690 in stock

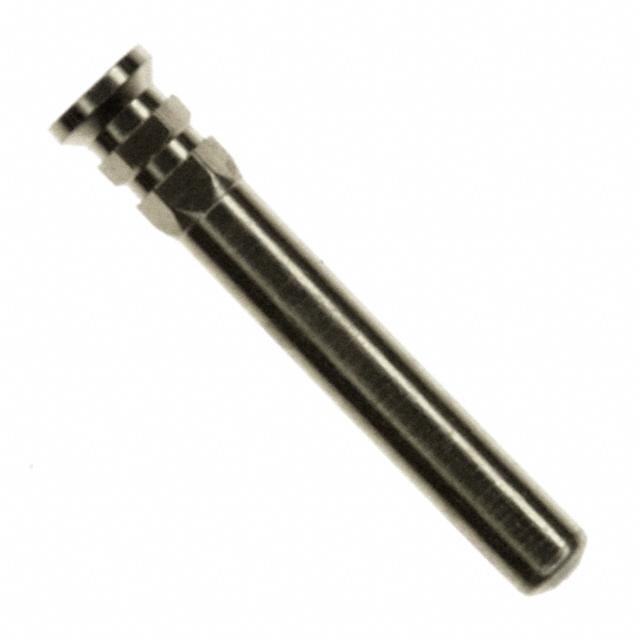

0553-3-15-15-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.282" (7.16mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.266" (6.76mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 553
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.282" (7.16mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.041" (1.04mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.266" (6.76mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

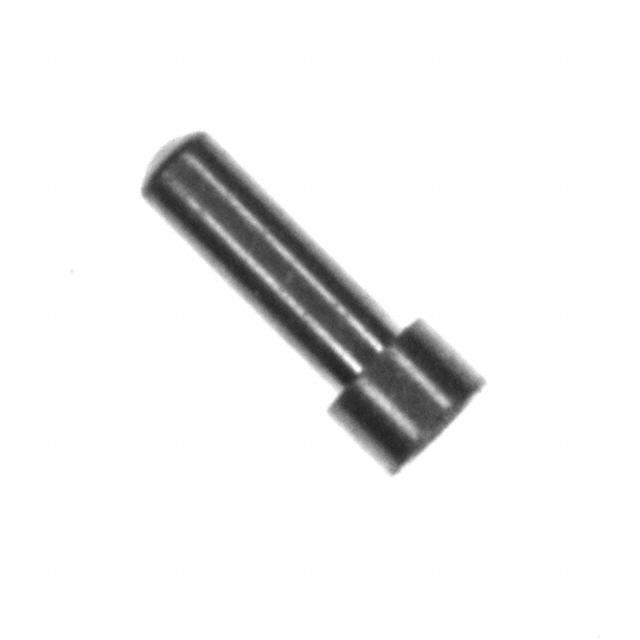

0554-0-15-01-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 554
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.056" (1.42mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 554
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.056" (1.42mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2262 in stock

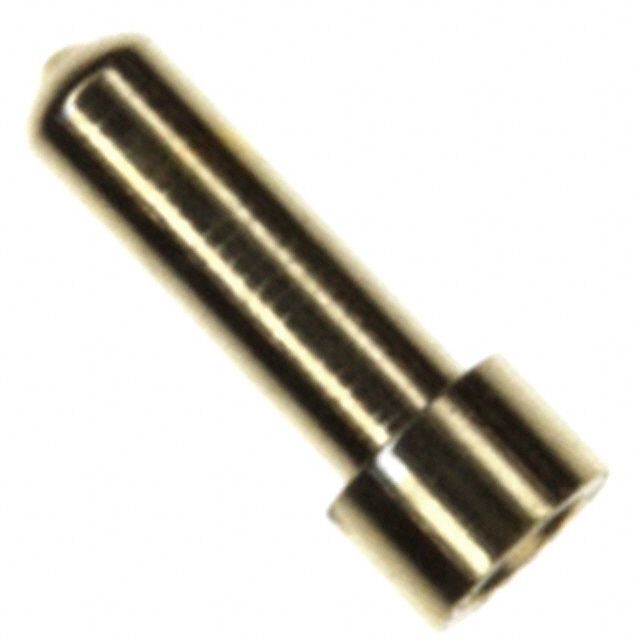

0554-0-15-15-11-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 554
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.056" (1.42mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 554
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.056" (1.42mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
16343 in stock
0554-0-15-15-21-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 554
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.056" (1.42mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 554
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.056" (1.42mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
875 in stock
0555-0-15-01-20-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0555
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.053" (1.35mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 0555
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.053" (1.35mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3655 in stock

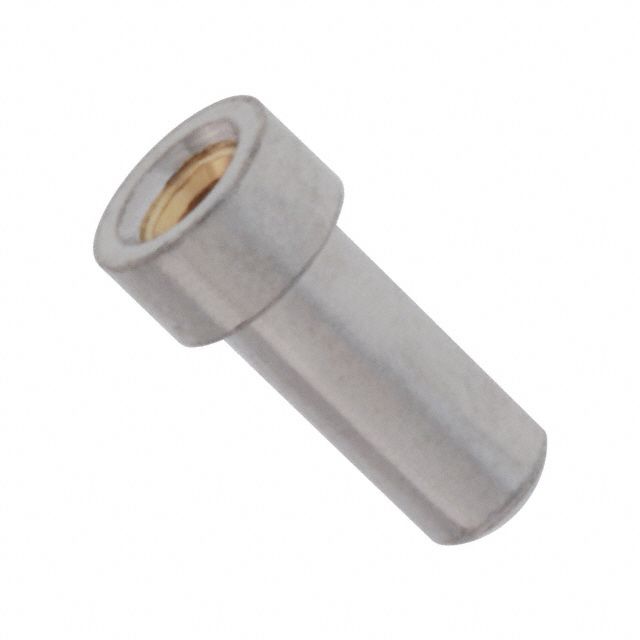

0555-0-15-01-30-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0555
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.053" (1.35mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 0555
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.053" (1.35mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
9431 in stock

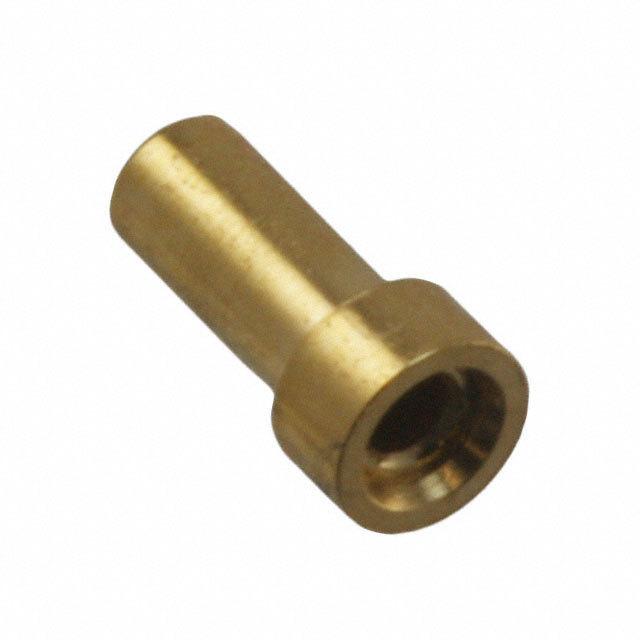

0555-0-15-15-20-27-10-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0555
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.053" (1.35mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : 0555
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.053" (1.35mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.135" (3.43mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
14171 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
