Part Number
Manufacturer
Description
Unit Price
In Stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 267.64 / 1890
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.13 Ohms
Features : Flatted Shaft
0
31 in stock

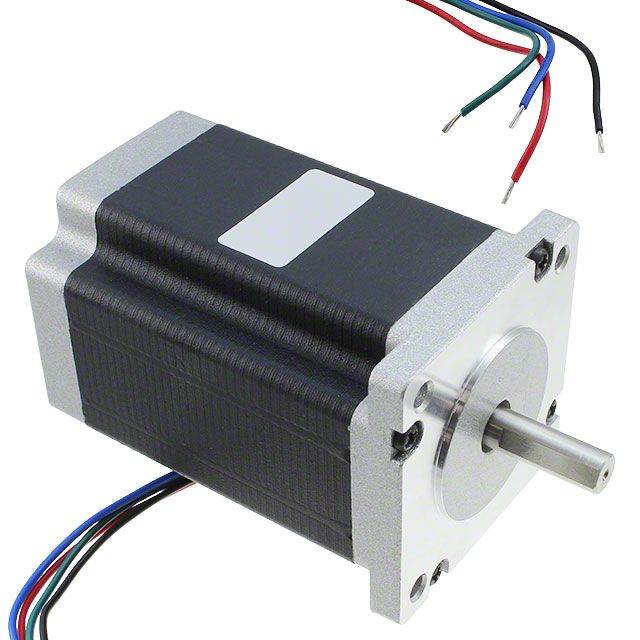

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.1VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 155.77 / 1100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
0
27 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.52VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 233.66 / 1650
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 900 mOhms
Features : Flatted Shaft
0
24 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.36VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 297.38 / 2100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Flatted Shaft
0
39 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
93 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH8618
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.56VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.380" x 3.380" (85.85mm x 85.85mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 450 mOhms
Features : Flatted Shaft
0
9 in stock

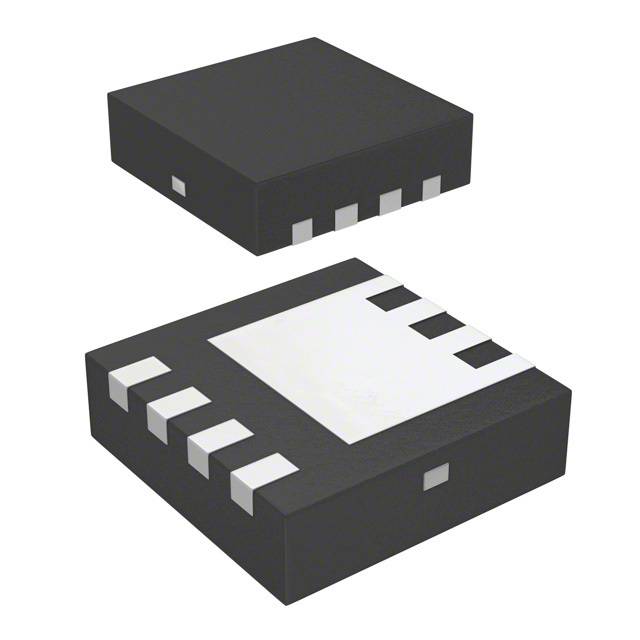

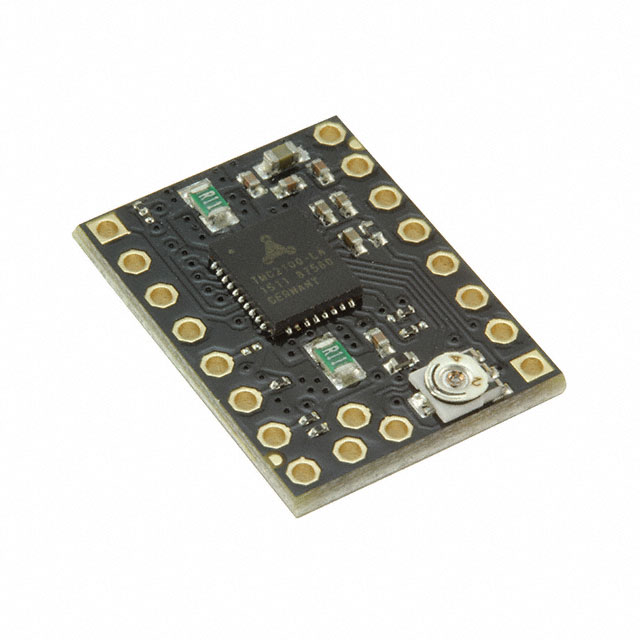

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC2100
Primary Attributes : -
Supplied Contents : Board(s)
0
1847 in stock

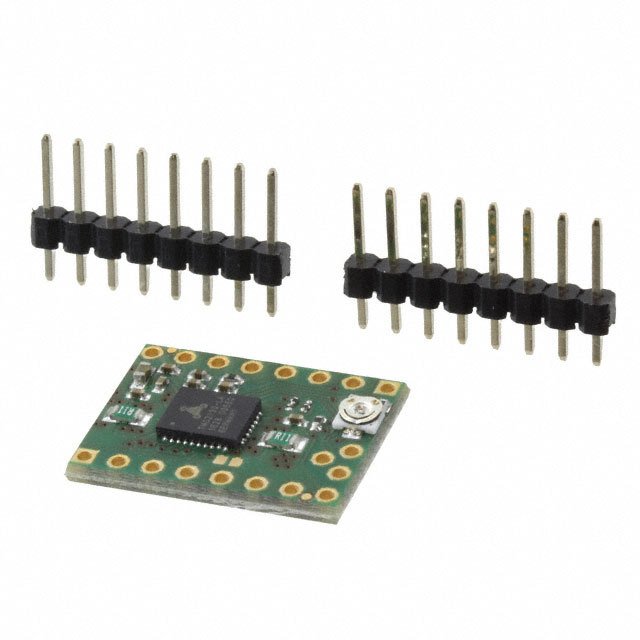

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC2130
Primary Attributes : -
Supplied Contents : Board(s)
0
3573 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : USB to Serial
Convert From (Adapter End) : USB - B 2.0 Female
Convert To (Adapter End) : D-Sub 09 Pos (DB9) Male
Interface : RS-485
Features : -
Utilized IC / Part : -
0
3 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Obsolete
Type : USB to Serial
Convert From (Adapter End) : USB - Mini B 2.0 Female
Convert To (Adapter End) : D-Sub 09 Pos (DB9) Female, D-Sub 09 Pos (DB9) Male, Terminal Block
Interface : RS-485
Features : -
Utilized IC / Part : 75176
0
100 in stock

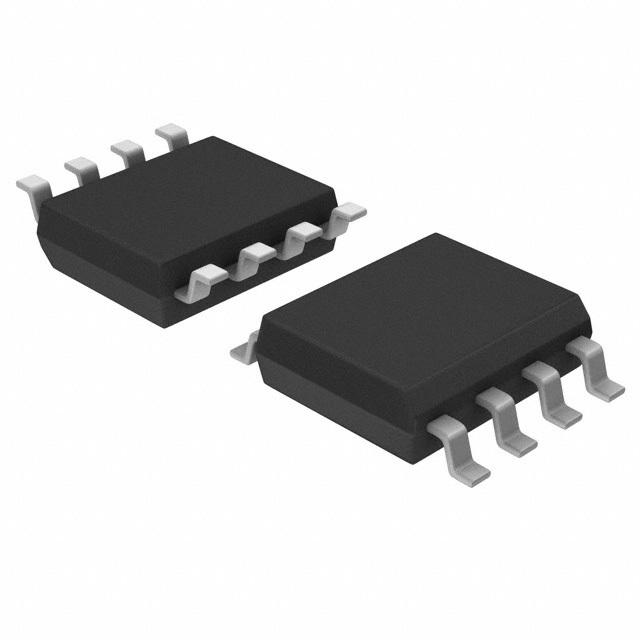

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel, Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.3A, 5.3A
Rds On (Max) @ Id, Vgs : 30 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 400pF @ 25V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-PQFN (3x3)
0
100 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.5A, 4.1A
Rds On (Max) @ Id, Vgs : 33 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 960pF @ 25V
Power - Max : 1.38W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
