TRINAMIC Motion Control GmbH
- TRINAMIC Motion Control GmbH provides integrated circuits and modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
Part Number
Manufacturer
Description
Unit Price
In Stock

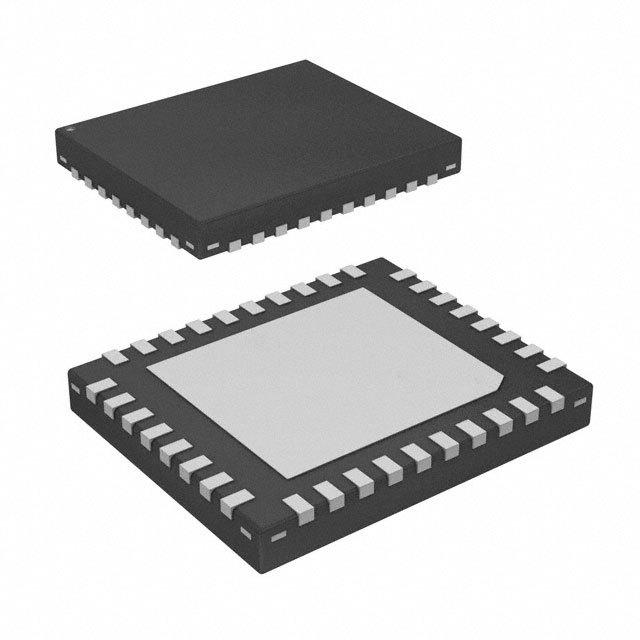

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.2A
Voltage - Supply : 5.5 V ~ 46 V
Voltage - Load : 5.5 V ~ 46 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN (5x6)
0
62560 in stock

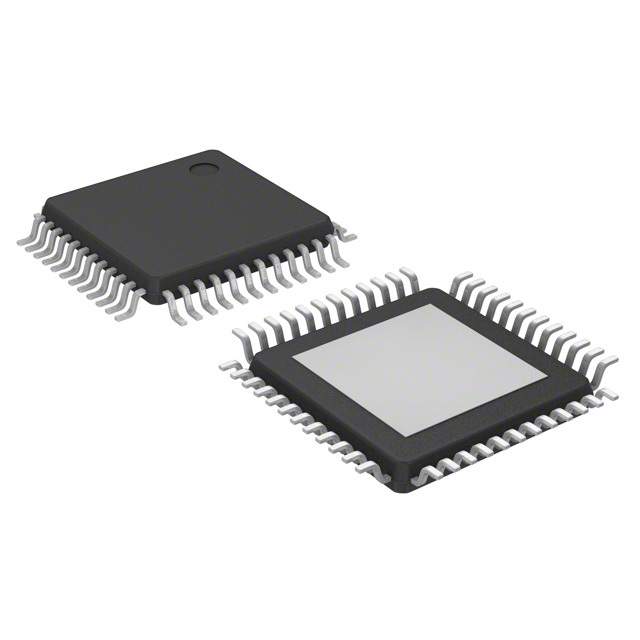

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.4A
Voltage - Supply : 5.5 V ~ 46 V
Voltage - Load : 5.5 V ~ 46 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TQFP Exposed Pad
Supplier Device Package : 48-TQFP
0
4760 in stock

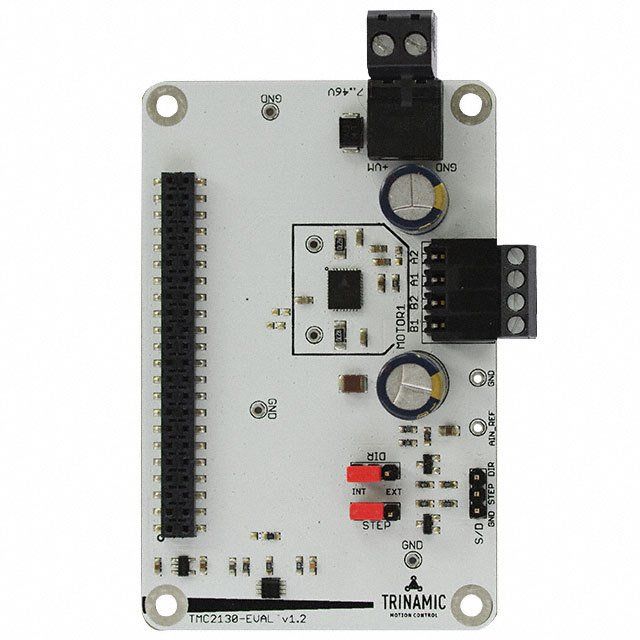

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : Landungsbr眉cke, Startrampe
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : No
Utilized IC / Part : TMC2130
Primary Attributes : -
Supplied Contents : Board(s)
0
18 in stock

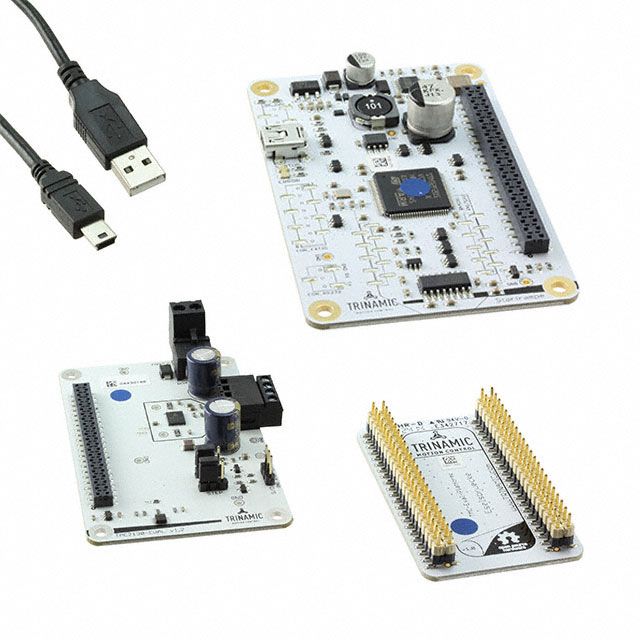

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : Landungsbr眉cke, Startrampe
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : Yes, MCU, 32-Bit
Utilized IC / Part : TMC2130
Primary Attributes : -
Supplied Contents : Board(s)
0
43 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.2A
Voltage - Supply : 5.5 V ~ 46 V
Voltage - Load : 5.5 V ~ 46 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN (5x6)
0
26698 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.4A
Voltage - Supply : 5.5 V ~ 46 V
Voltage - Load : 5.5 V ~ 46 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TQFP Exposed Pad
Supplier Device Package : 48-TQFP-EP (7x7)
0
100 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC2160
Primary Attributes : -
Supplied Contents : Board(s)
0
100 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tray
Series : stallGuard™
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : Automation, Industrial, Multipurpose
Current - Output : 20A
Voltage - Supply : 10 V ~ 50 V
Voltage - Load : 10 V ~ 55 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 48-TQFP Exposed Pad
Supplier Device Package : 48-TQFP-EP (7x7)
0
500 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic, UART
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.2A
Voltage - Supply : 5.5 V ~ 36 V
Voltage - Load : 5.5 V ~ 36 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 32-QFN Exposed Pad
Supplier Device Package : 32-QFN (5x5)
0
2995 in stock

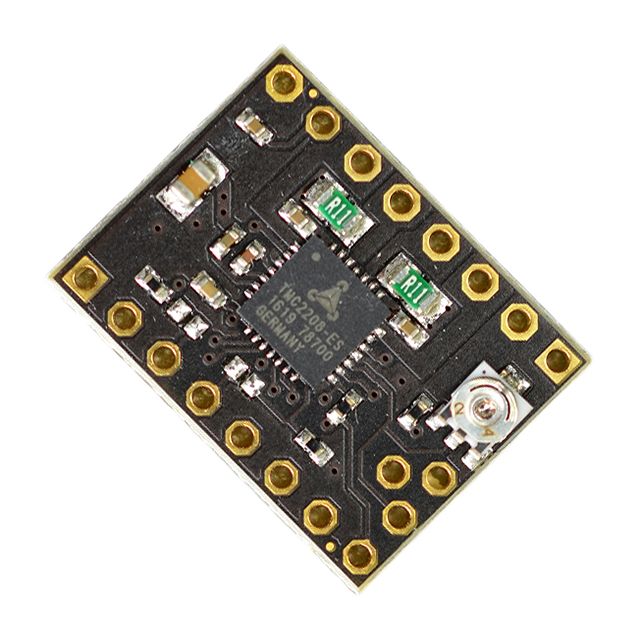

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC2208
Primary Attributes : -
Supplied Contents : Board(s)
0
1545 in stock

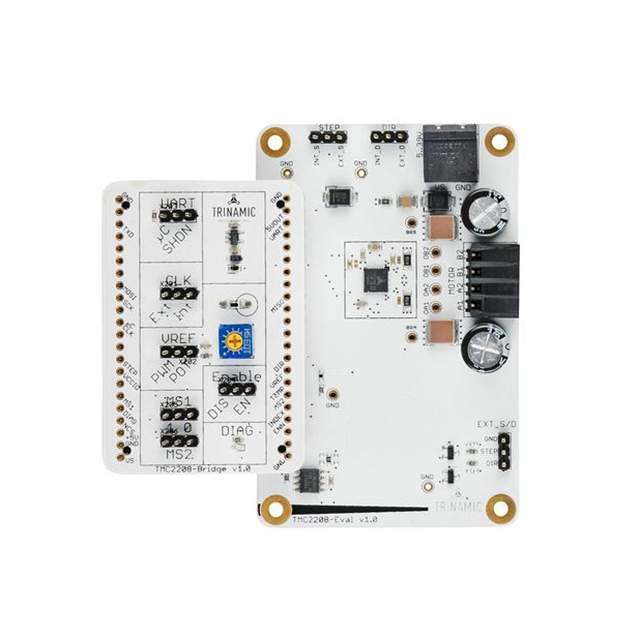

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC2208
Primary Attributes : -
Supplied Contents : Board(s)
0
9 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC2208
Primary Attributes : -
Supplied Contents : Board(s)
0
11 in stock
