TRINAMIC Motion Control GmbH
- TRINAMIC Motion Control GmbH provides integrated circuits and modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
Part Number
Manufacturer
Description
Unit Price
In Stock

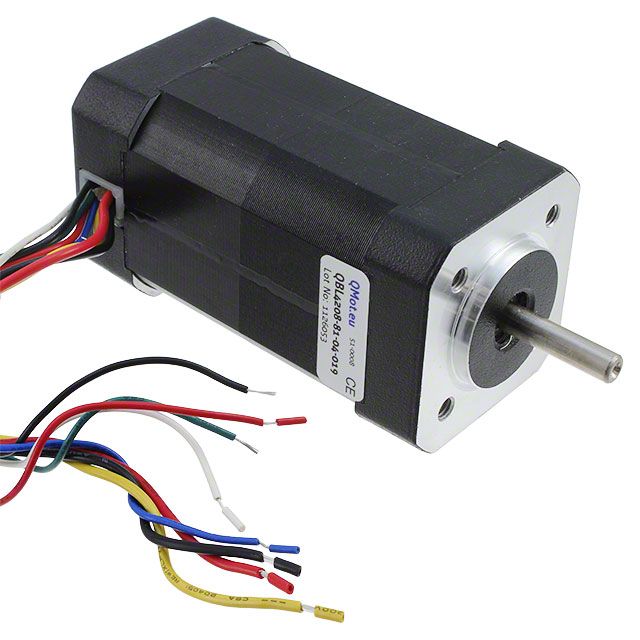

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QBL4208
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 24VDC
RPM : 4000 RPM
Torque - Rated (oz-in / mNm) : 26.2 / 185
Power - Rated : 77.5W
Encoder Type : -
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.866" (22.00mm)
Mounting Hole Spacing : 1.417" (36.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : 79.31 / 560
Operating Temperature : -20°C ~ 40°C
0
60 in stock

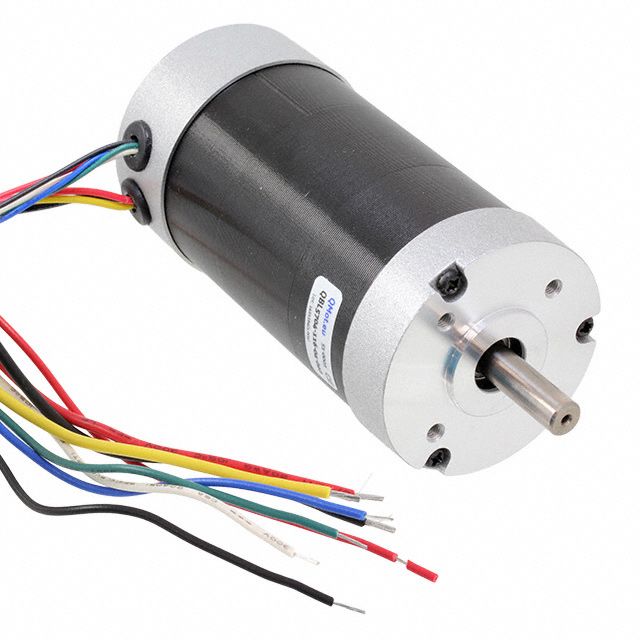

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QBL5704
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 36VDC
RPM : 4000 RPM
Torque - Rated (oz-in / mNm) : 59.48 / 420
Power - Rated : 175.9W
Encoder Type : -
Size / Dimension : Round - 2.244" Dia (57.00mm)
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.811" (46.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : 184.12 / 1300
Operating Temperature : -20°C ~ 40°C
0
81 in stock

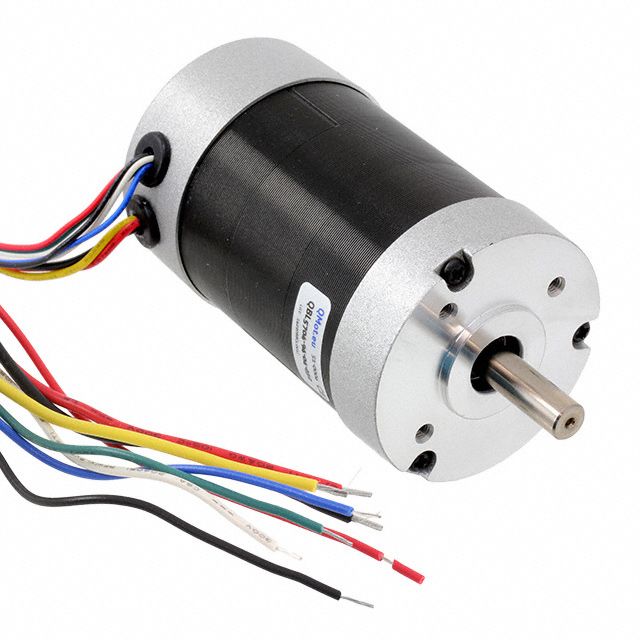

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QBL5704
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 36VDC
RPM : 4000 RPM
Torque - Rated (oz-in / mNm) : 45.32 / 320
Power - Rated : 134W
Encoder Type : -
Size / Dimension : Round - 2.244" Dia (57.00mm)
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.811" (46.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : 138.8 / 980
Operating Temperature : -20°C ~ 40°C
0
29 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.8VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 8.49 / 60
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.6 Ohms
Features : Flatted Shaft
0
147 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.2VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 16.99 / 120
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 9.2 Ohms
Features : Flatted Shaft
0
73 in stock

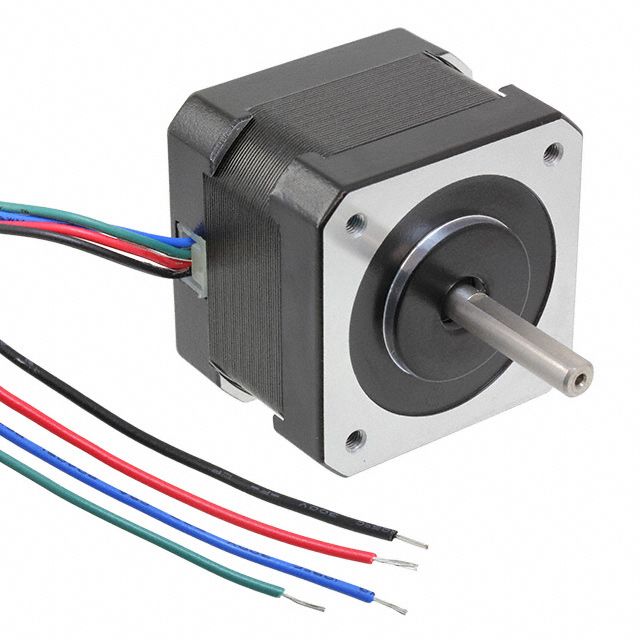

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5.3VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 38.2 / 270
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.3 Ohms
Features : Flatted Shaft
0
515 in stock

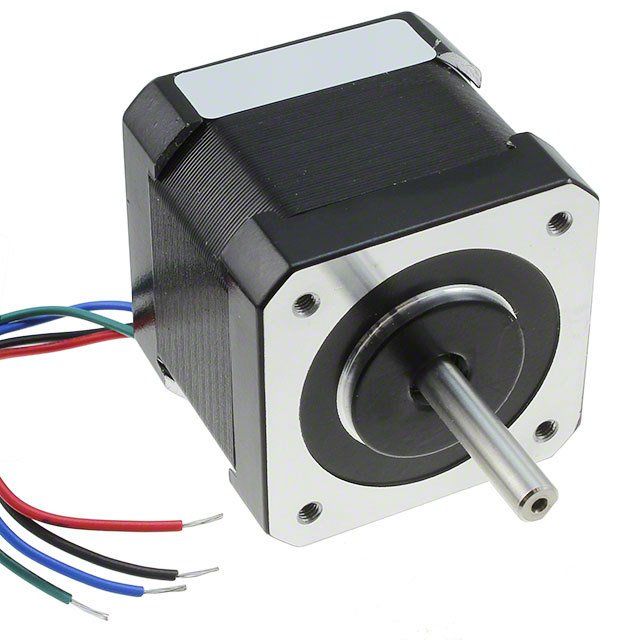

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 49.56 / 350
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 4.5 Ohms
Features : Flatted Shaft
0
78 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 1.4VDC
Current Rating : 2.81A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 56.3 / 400
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
100 in stock

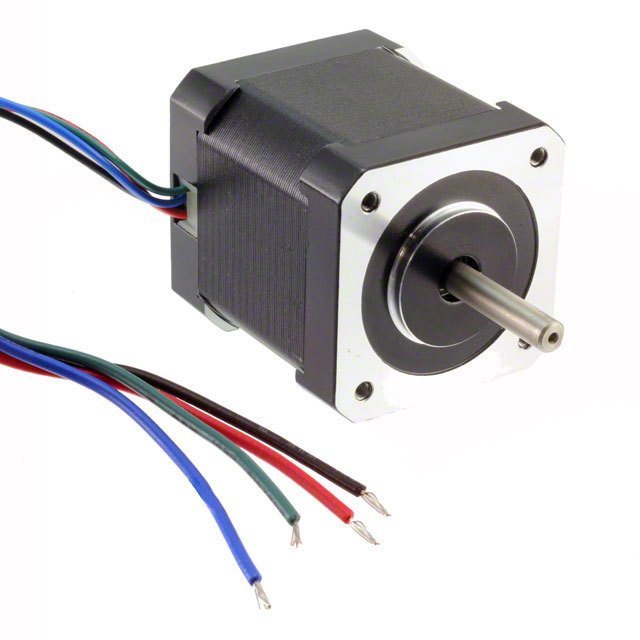

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 69.39 / 490
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5 Ohms
Features : Flatted Shaft
0
203 in stock

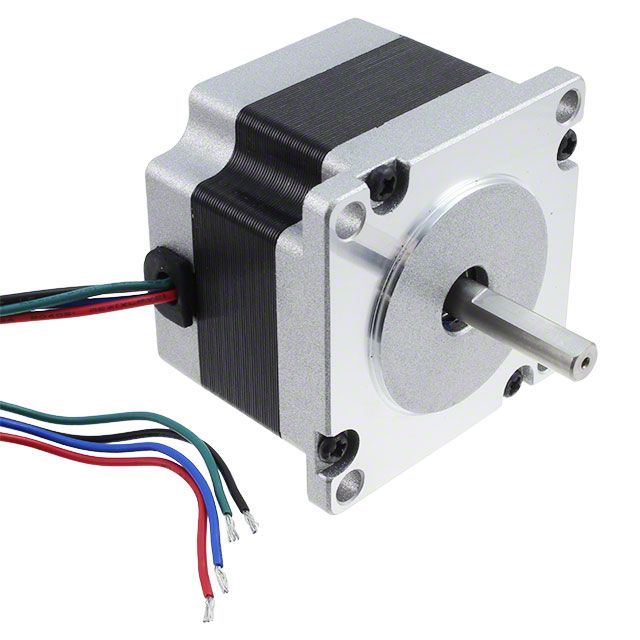

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 77.89 / 550
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
0
57 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.3VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 143.05 / 1010
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 830 mOhms
Features : Flatted Shaft
0
12 in stock

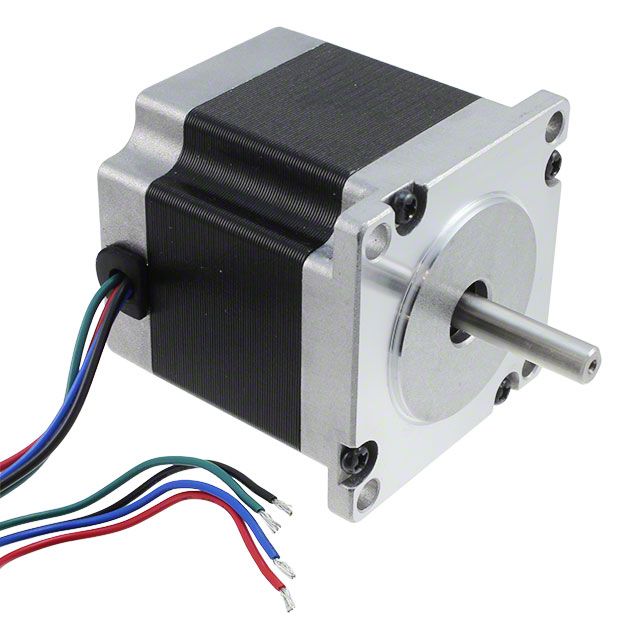

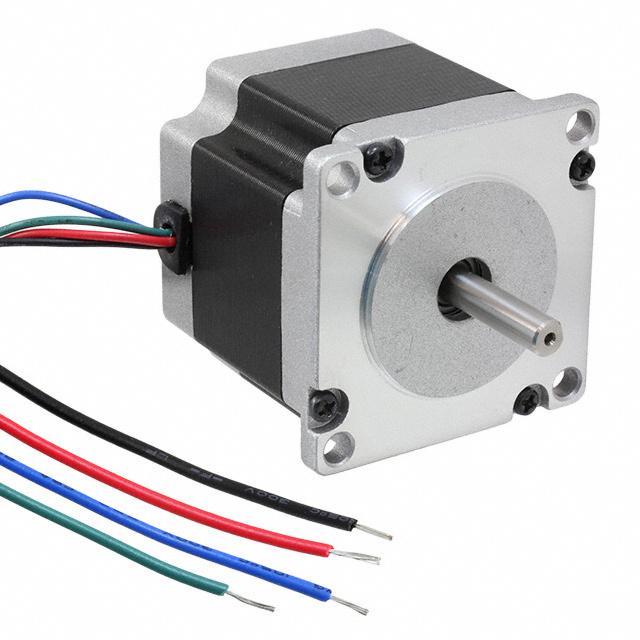

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.5VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 178.43 / 1260
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 900 mOhms
Features : Flatted Shaft
0
54 in stock
