TRINAMIC Motion Control GmbH
- TRINAMIC Motion Control GmbH provides integrated circuits and modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
Part Number
Manufacturer
Description
Unit Price
In Stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
1 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
28 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
48 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.8VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
4 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 6.8VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
5 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Integrated Controller, Flatted Shaft
0
5 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 4.17VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 438.99 / 3100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Integrated Controller, Flatted Shaft
0
5 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.382" x 3.382" (85.90mm x 85.90mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
5 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 48VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.382" x 3.382" (85.90mm x 85.90mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
46 in stock

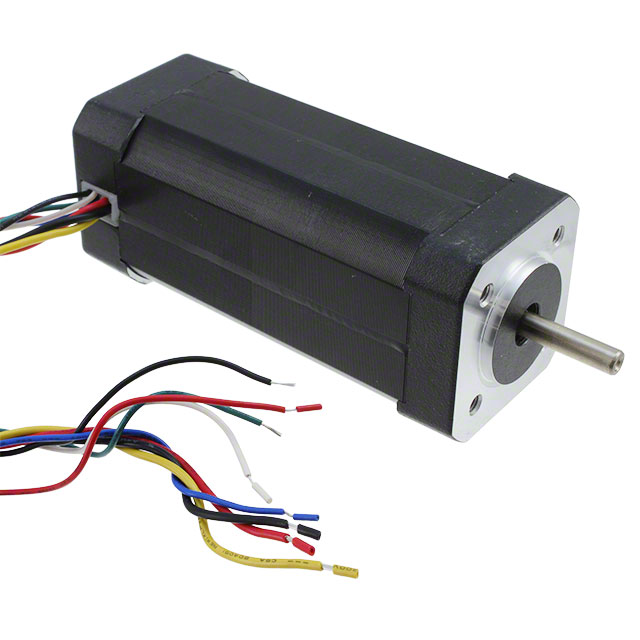

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QBL4208
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 24VDC
RPM : 4000 RPM
Torque - Rated (oz-in / mNm) : 35.4 / 250
Power - Rated : 104.7W
Encoder Type : -
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.866" (22.00mm)
Mounting Hole Spacing : 1.417" (36.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : 106.22 / 750
Operating Temperature : -20°C ~ 40°C
0
19 in stock

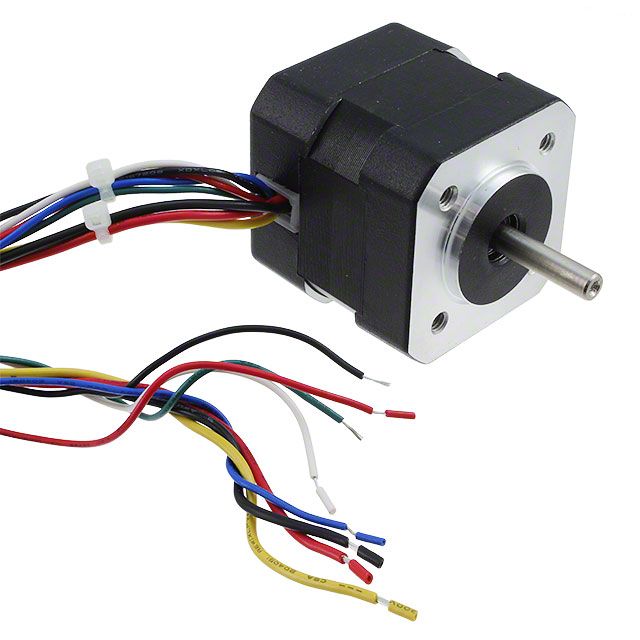

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QBL4208
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 24VDC
RPM : 4000 RPM
Torque - Rated (oz-in / mNm) : 8.85 / 62.5
Power - Rated : 26.2W
Encoder Type : -
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.866" (22.00mm)
Mounting Hole Spacing : 1.417" (36.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : 26.91 / 190
Operating Temperature : -20°C ~ 40°C
0
62 in stock

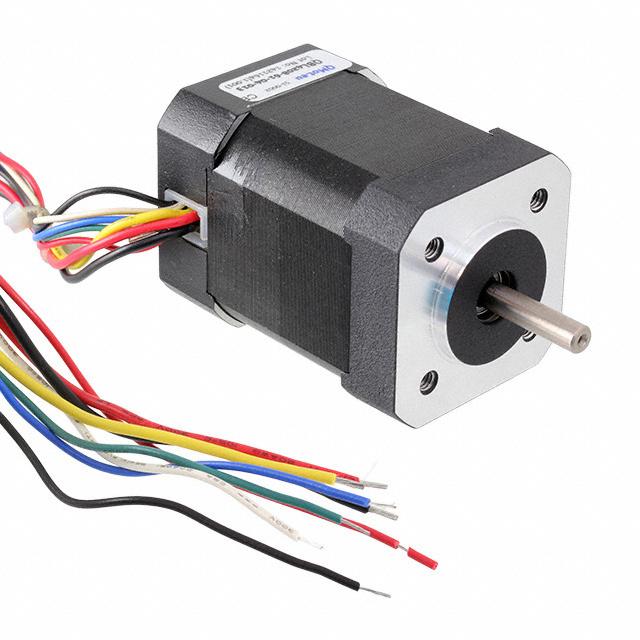

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QBL4208
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushless DC (BLDC)
Voltage - Rated : 24VDC
RPM : 4000 RPM
Torque - Rated (oz-in / mNm) : 17.7 / 125
Power - Rated : 52.4W
Encoder Type : -
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.866" (22.00mm)
Mounting Hole Spacing : 1.417" (36.00mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : 53.82 / 380
Operating Temperature : -20°C ~ 40°C
0
54 in stock
