Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

ME50151V1-000U-F99 ME50151V1-000U-F99

Sunon
Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : Auto Restart, Locked Rotor Sensor
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cURus, TUV
Weight : -
0
63 in stock

ME60151V1-000U-A99 ME60151V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 25.2 CFM (0.706m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 36.2 dB(A)
Power (Watts) : 1.92W
RPM : 5400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
5689 in stock

ME60151V1-000U-G99 ME60151V1-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 25.2 CFM (0.706m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 36.2 dB(A)
Power (Watts) : 1.92W
RPM : 5400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
342 in stock

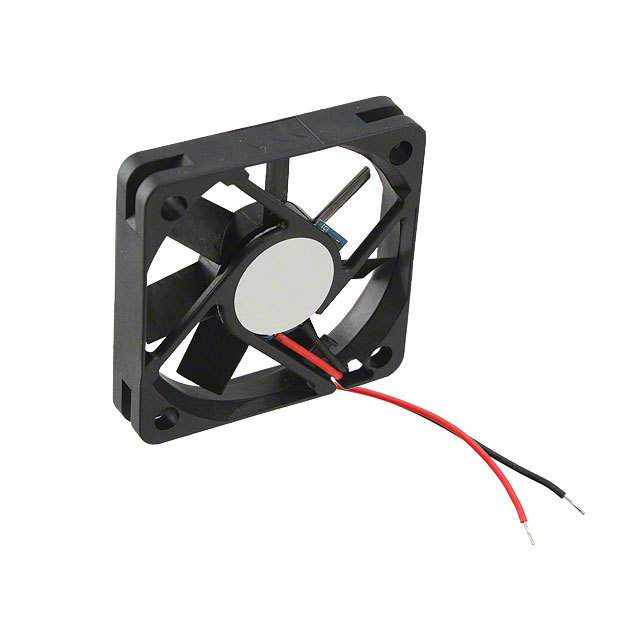

ME70151V2-000U-A99 ME70151V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 26.5 dB(A)
Power (Watts) : 890mW
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.09 lb (40.82g)
0
52 in stock

ME70151V3-000U-A99 ME70151V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.00mm
Air Flow : 19.0 CFM (0.532m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 21.5 dB(A)
Power (Watts) : 570mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.09 lb (40.82g)
0
28 in stock

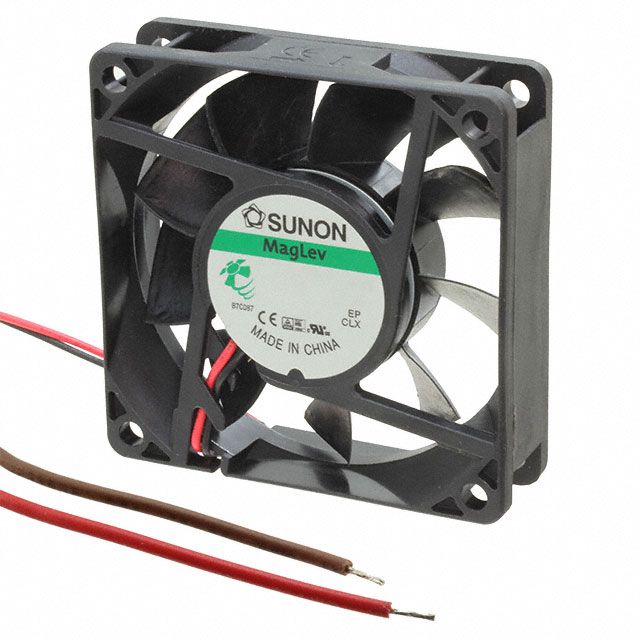

ME70202V1-000U-A99 ME70202V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 1.59W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.133 lb (60.33g)
0
29 in stock

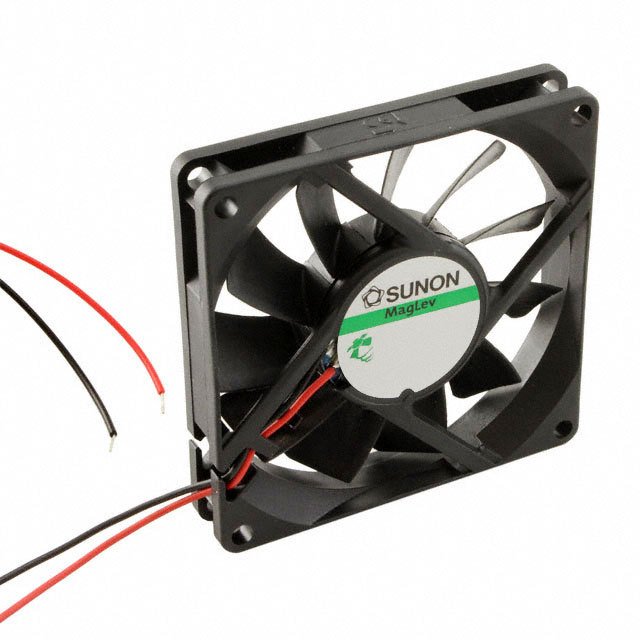

ME80151V1-000U-A99 ME80151V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.7 dB(A)
Power (Watts) : 1.96W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.15 lb (68.04g)
0
889 in stock

ME80151V3-000U-A99 ME80151V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.8 dB(A)
Power (Watts) : 1.08W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.15 lb (68.04g)
0
437 in stock

ME80152V1-000U-A99 ME80152V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.7 dB(A)
Power (Watts) : 2.21W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.15 lb (68.04g)
0
30 in stock

ME80201V1-000U-A99 ME80201V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 36.0 CFM (1.01m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 38.0 dB(A)
Power (Watts) : 1.56W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.146 lb (66.22g)
0
26 in stock

ME80201V2-000U-A99 ME80201V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB(A)
Power (Watts) : 1.14W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.146 lb (66.22g)
0
28 in stock

ME80201V3-000U-A99 ME80201V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.0 dB(A)
Power (Watts) : 890mW
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.146 lb (66.22g)
0
30 in stock
