- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

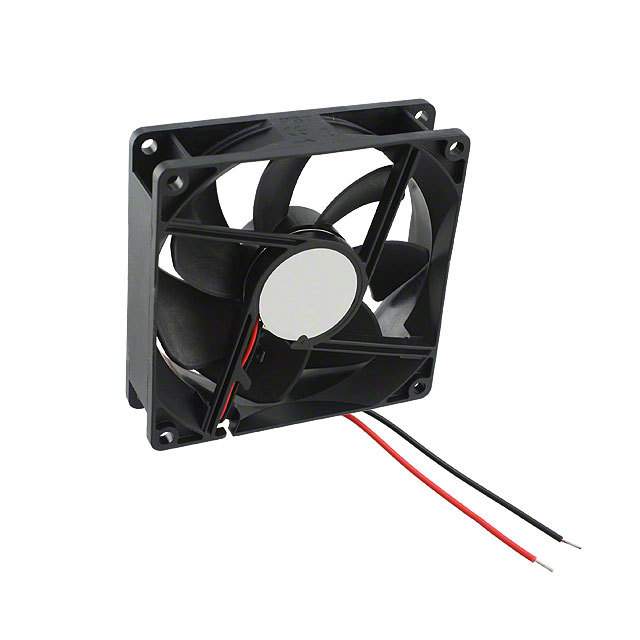

ME92251VX-000U-A99 ME92251VX-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 55.0 CFM (1.54m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 37.5 dB(A)
Power (Watts) : 2.28W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.227 lb (102.97g)
0
79 in stock

ME92252V1-000U-A99 ME92252V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB(A)
Power (Watts) : 2.10W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
3535 in stock

ME92252V3-000U-A99 ME92252V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 39.5 CFM (1.11m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB(A)
Power (Watts) : 1.30W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
503 in stock

MEC0251V1-000U-A99 MEC0251V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 108.2 CFM (3.03m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 44.5 dB(A)
Power (Watts) : 5.50W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
4417 in stock

MEC0251V2-000U-A99 MEC0251V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 93.0 CFM (2.60m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 40.5 dB(A)
Power (Watts) : 3.40W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
1304 in stock

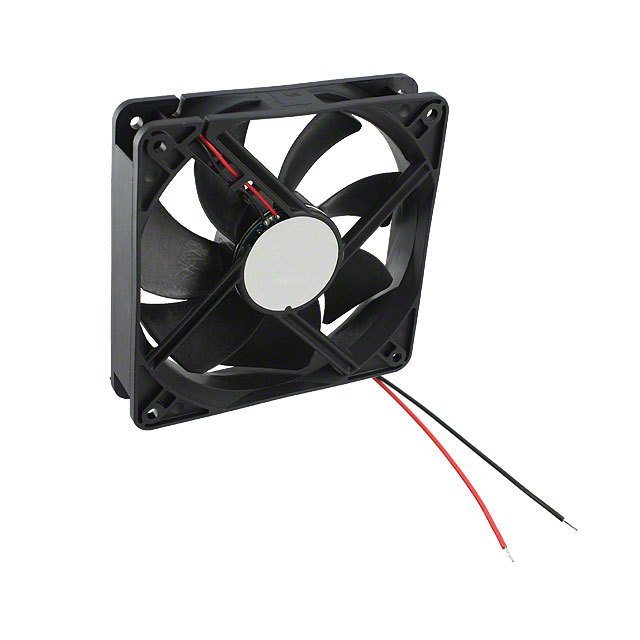

MEC0251V3-000U-A99 MEC0251V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB(A)
Power (Watts) : 1.90W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
5917 in stock

MEC0252V1-000U-A99 MEC0252V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 108.2 CFM (3.03m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 44.5 dB(A)
Power (Watts) : 5.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
1990 in stock

MEC0252V2-000U-A99 MEC0252V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 93.0 CFM (2.60m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 40.5 dB(A)
Power (Watts) : 3.50W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
422 in stock

MEC0252V3-000U-A99 MEC0252V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB(A)
Power (Watts) : 2.00W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
767 in stock

MEC0254V1-000U-A99 MEC0254V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 108.2 CFM (3.03m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 44.5 dB(A)
Power (Watts) : 5.70W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
1250 in stock

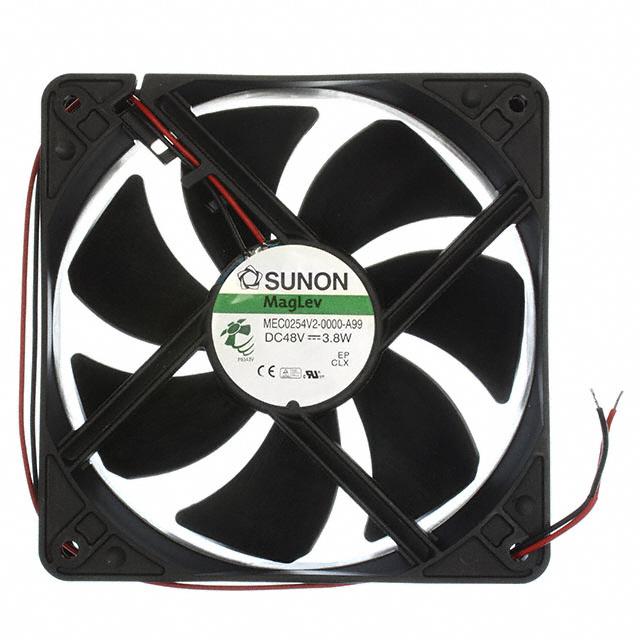

MEC0254V2-000U-A99 MEC0254V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 93.0 CFM (2.60m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 40.5 dB(A)
Power (Watts) : 3.80W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
538 in stock

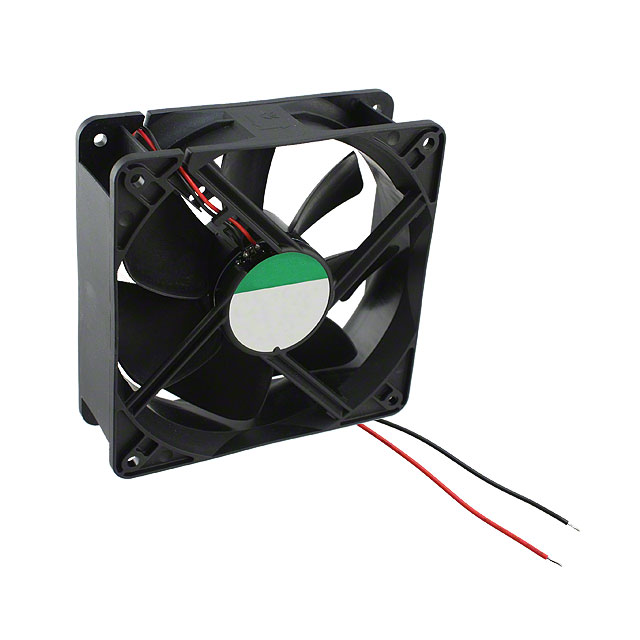

MEC0381V1-000U-A99 MEC0381V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 138.0 CFM (3.86m鲁/min)
Static Pressure : 0.360 in H2O (89.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 48.0 dB(A)
Power (Watts) : 10.10W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.481 lb (218.18g)
0
213 in stock
