Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

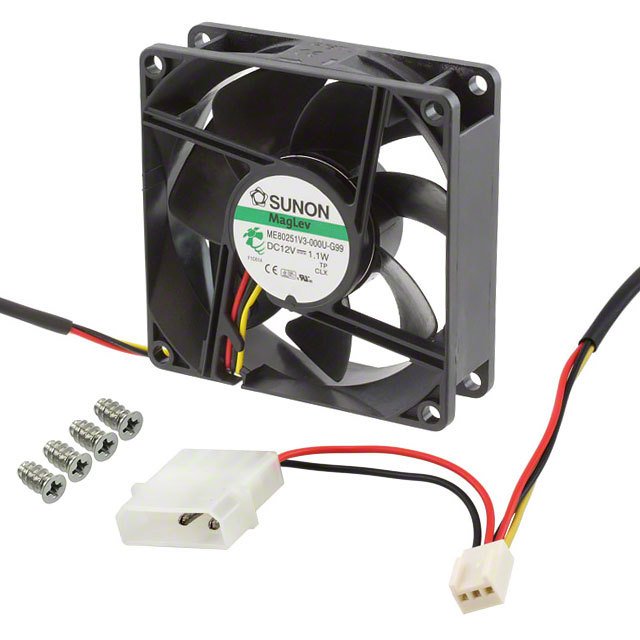

3159/ME80251V3-000U-G99 3159/ME80251V3-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial, Case Fan
Features : Auto Restart, Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.10W
RPM : 2600 RPM
Termination : LP4 Assembly
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
955 in stock

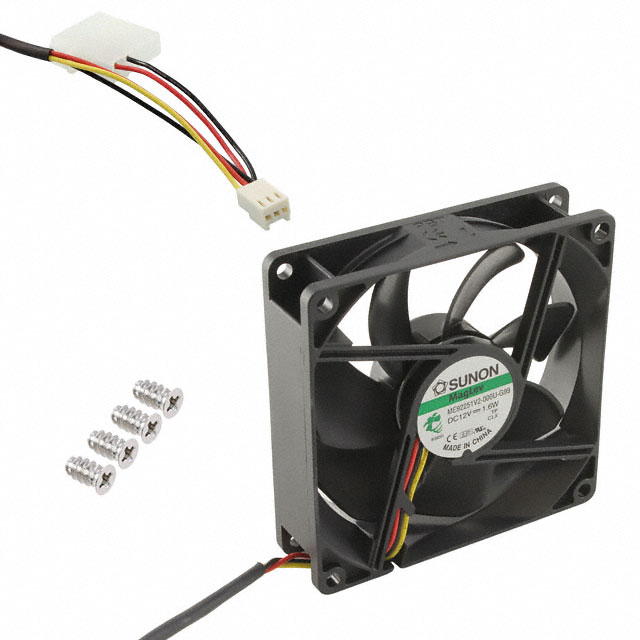

3160/ME92251V2-000U-G99 3160/ME92251V2-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® ME
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial, Case Fan
Features : Auto Restart, Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : 1.60W
RPM : 2700 RPM
Termination : LP4 Assembly
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
204 in stock

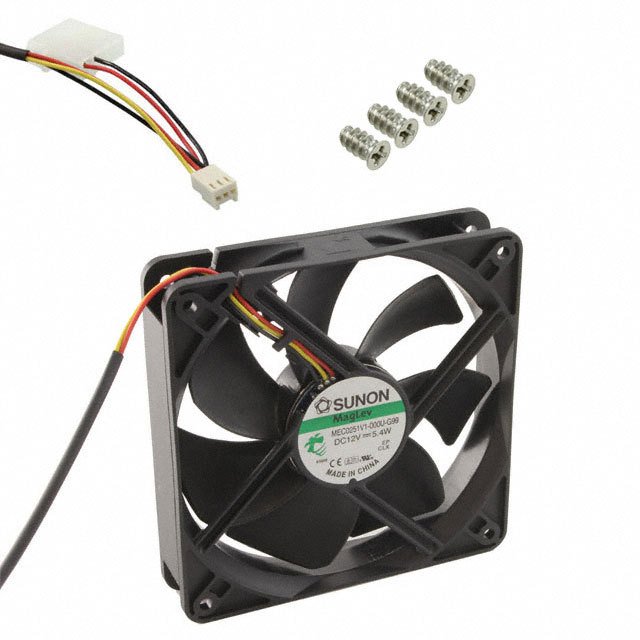

3161/MEC0251V1-000U-G99 3161/MEC0251V1-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MEC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 108.2 CFM (3.03m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial, Case Fan
Features : Auto Restart, Speed Sensor (Tach)
Noise : 44.5 dB(A)
Power (Watts) : 5.40W
RPM : 3100 RPM
Termination : LP4 Assembly
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.357 lb (161.93g)
0
727 in stock

3660HQ-HA50151V4-1Q01U-Q99 3660HQ-HA50151V4-1Q01U-Q99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 7.7 CFM (0.216m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Protection; PWM Control
Noise : 15.4 dB(A)
Power (Watts) : 240mW
RPM : 3200 RPM
Termination : 5 Position Rectangular Connector
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : -
0
189 in stock

A100-06 A100-06

Sunon
Manufacturer : Sunon Fans
Series : -
Part Status : Active
Style : -
1st Connector : -
2nd Connector : -
Length : 23.6" (600.0mm)
Fits Terminal Size : -
Number of Conductors : -
Cord Type : -
Wire Gauge : -
Approval Marks : -
Voltage Rating : -
Current Rating : -
Operating Temperature : -
Features : -
0
199 in stock

A100-10P A100-10P

Sunon
Manufacturer : Sunon Fans
Series : -
Part Status : Active
Style : -
1st Connector : -
2nd Connector : -
Length : 39.4" (1.00m)
Fits Terminal Size : -
Number of Conductors : -
Cord Type : -
Wire Gauge : -
Approval Marks : -
Voltage Rating : -
Current Rating : -
Operating Temperature : -
Features : -
0
30 in stock

A100-20 A100-20

Sunon
Manufacturer : Sunon Fans
Series : -
Part Status : Active
Style : -
1st Connector : -
2nd Connector : -
Length : 78.7" (2.00m)
Fits Terminal Size : -
Number of Conductors : -
Cord Type : -
Wire Gauge : -
Approval Marks : -
Voltage Rating : -
Current Rating : -
Operating Temperature : -
Features : -
0
200 in stock

A1123-HBT.GN A1123-HBT.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 22.0 CFM (0.616m鲁/min)
Static Pressure : 0.460 in H2O (114.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 18.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)
0
30 in stock

A1123-HST.GN A1123-HST.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 22.0 CFM (0.616m鲁/min)
Static Pressure : 0.460 in H2O (114.6 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 18.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)
0
30 in stock

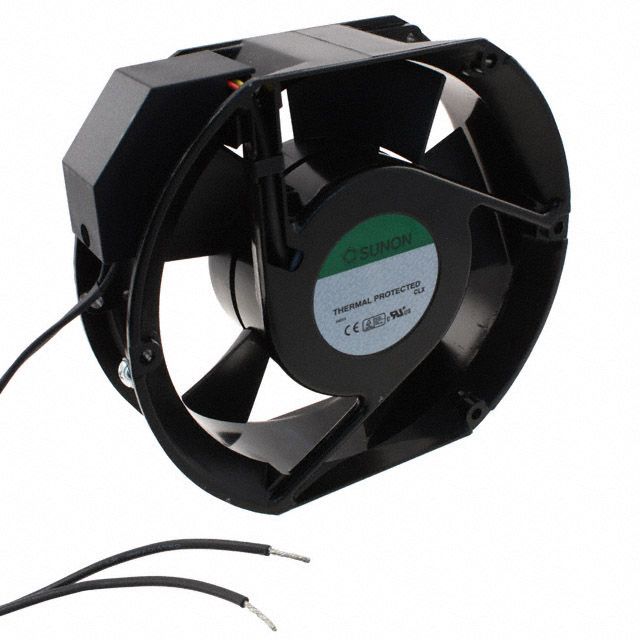

A1175-HBL.TC.GN A1175-HBL.TC.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular - 171mm L x 151mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 27.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
403 in stock

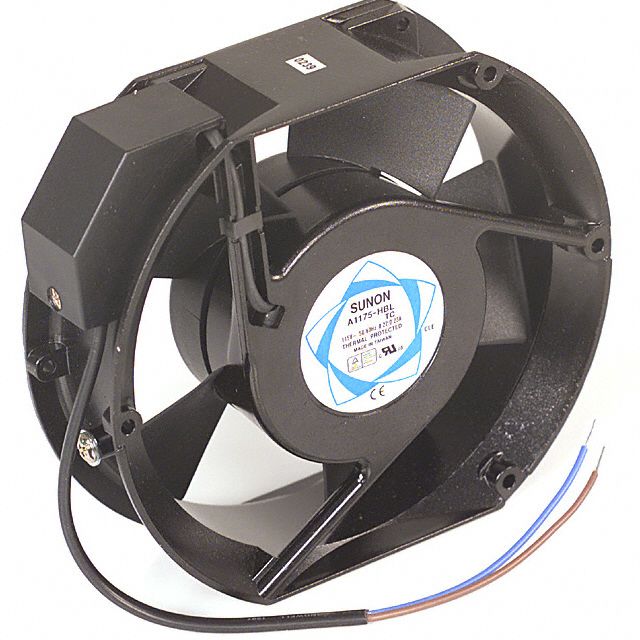

A1175HBL-TC A1175HBL-TC

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular - 171mm L x 151mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 27.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
100 in stock

A1175-HBT T.GN A1175-HBT T.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 151mm H
Width : 51.00mm
Air Flow : 200.0 CFM (5.60m鲁/min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB(A)
Power (Watts) : 36.00W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 2.1 lbs (952.5g)
0
30 in stock
