Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

A1175-HBT TC.R.GN A1175-HBT TC.R.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 171.5mm Dia
Width : 50.80mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 27.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
100 in stock

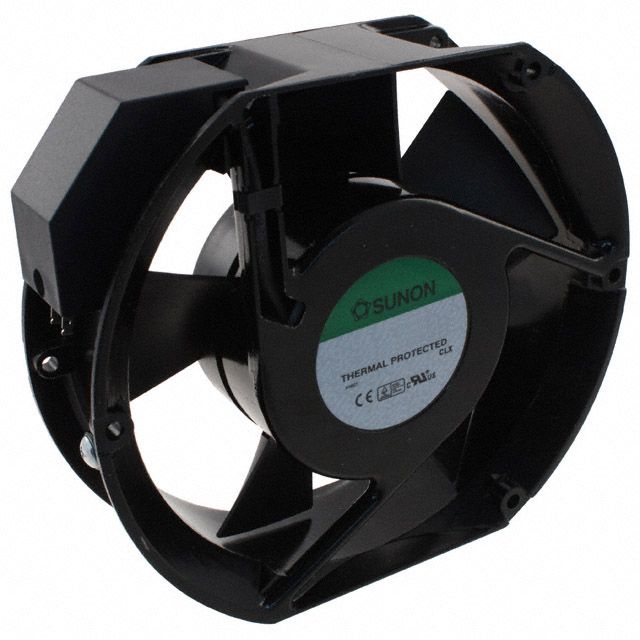

A1175-HBT.TC.GN A1175-HBT.TC.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular - 171mm L x 151mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 27.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
570 in stock

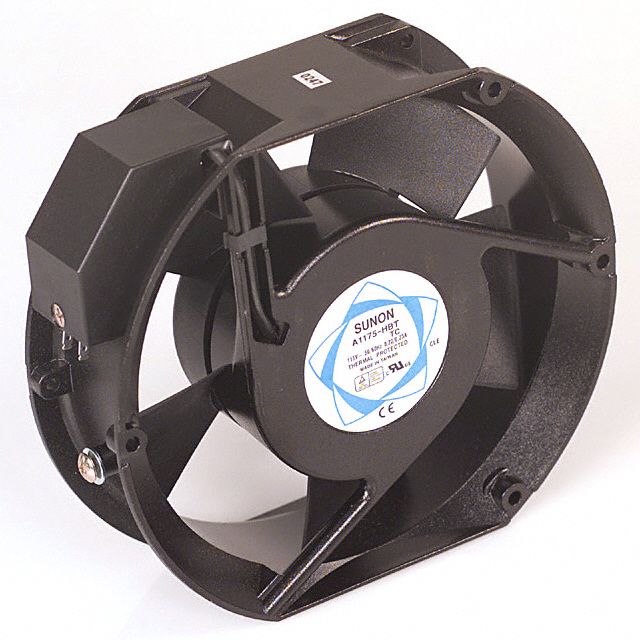

A1175HBT-TC A1175HBT-TC

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular - 171mm L x 151mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 27.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
100 in stock

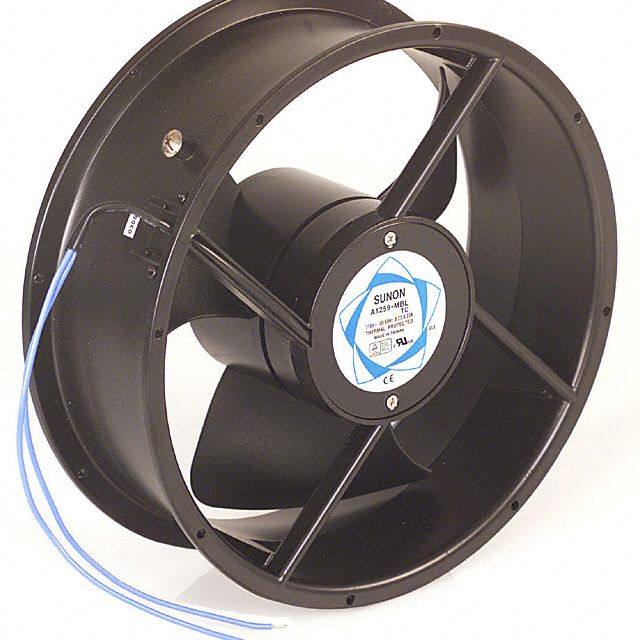

A1259HBL-TC A1259HBL-TC

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 806.0 CFM (22.57m鲁/min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 68.0W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 4.4 lbs (2kg)
0
100 in stock

A1259HBT-TC.GN A1259HBT-TC.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 585.0 CFM (16.38m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 72.0W
RPM : 1900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : -
Weight : 5.1 lbs (2.3kg)
0
100 in stock

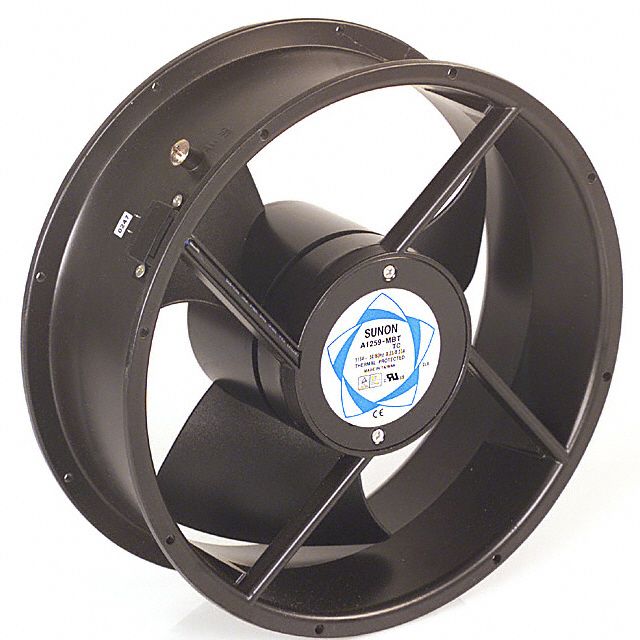

A1259MBT-TC A1259MBT-TC

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 665.0 CFM (18.62m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB(A)
Power (Watts) : 23.00W
RPM : 1600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 4.4 lbs (2kg)
0
100 in stock

A2123-HBL.GN A2123-HBL.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 117.0 CFM (3.28m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 20.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)
0
30 in stock

A2123-HSL.GN A2123-HSL.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 115.0 CFM (3.22m鲁/min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 49.0 dB(A)
Power (Watts) : 20.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)
0
30 in stock

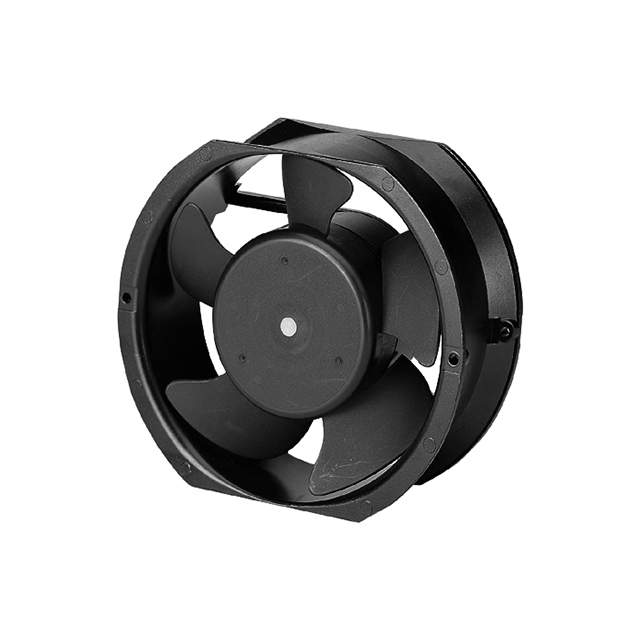

A2175HBL.T.GN A2175HBL.T.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 151.5mm H
Width : 51.00mm
Air Flow : 200.0 CFM (5.60m鲁/min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB(A)
Power (Watts) : 36.00W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 2.1 lbs (952.5g)
0
485 in stock

A2175-HBL.TC.GN A2175-HBL.TC.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 151.5mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 26.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
971 in stock

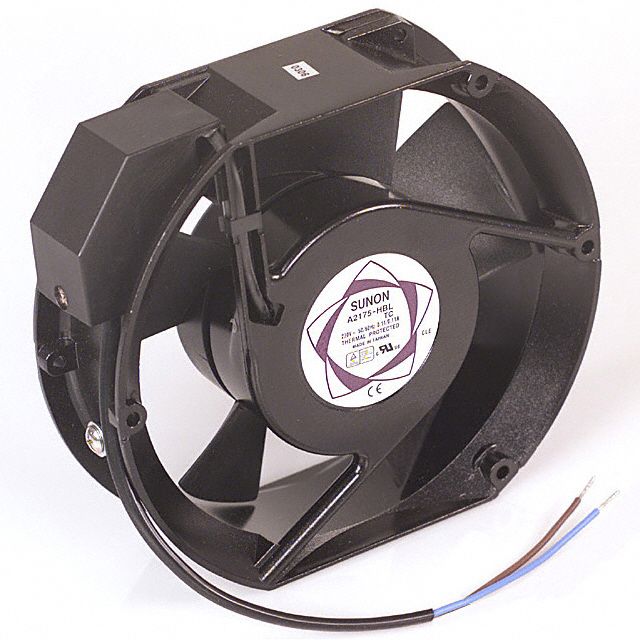

A2175HBL-TC A2175HBL-TC

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Obsolete
Voltage - Rated : 240VAC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 151.5mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 26.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
100 in stock

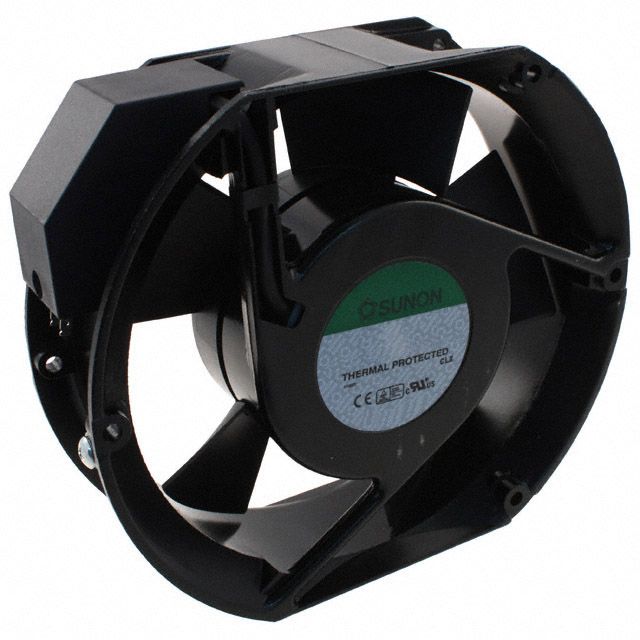

A2175-HBT.TC.GN A2175-HBT.TC.GN

Sunon
Manufacturer : Sunon Fans
Series : A
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Rectangular/Rounded - 171.5mm L x 151.5mm H
Width : 51.00mm
Air Flow : 239.0 CFM (6.69m鲁/min)
Static Pressure : 0.690 in H2O (171.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 26.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 176°F (-10 ~ 80°C)
Approvals : CE, CUR, TUV, UL
Weight : 2 lbs (907.2g)
0
143 in stock
