Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD75
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 1.8A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 90 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
924 in stock

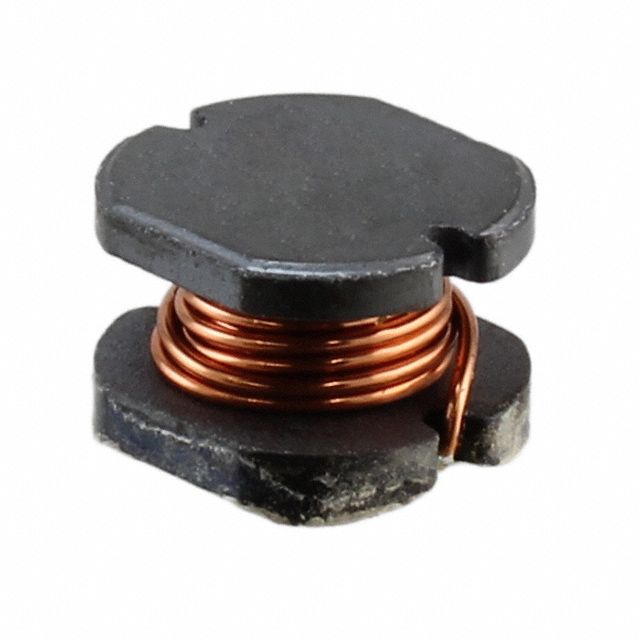

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD75
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 1.2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
886 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDC5D23B
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±15%
Current Rating : 1.04A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 133 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 2323 (5858 Metric)
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
2000 in stock

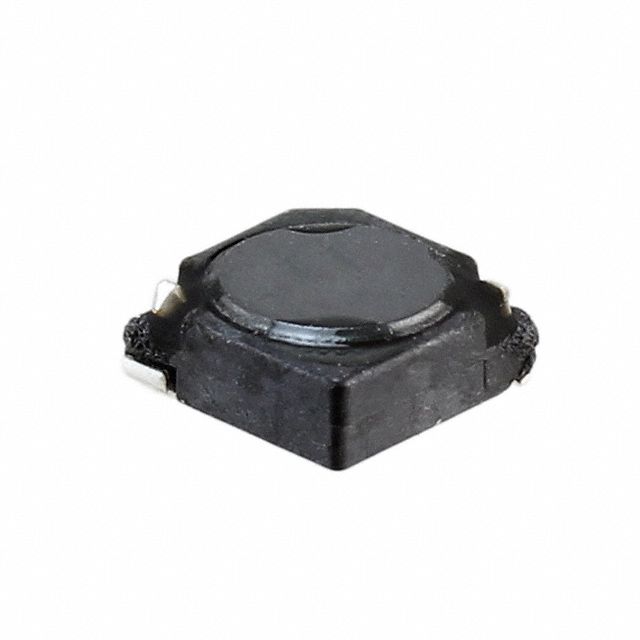

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDC5D23B
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 880mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 166 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 2323 (5858 Metric)
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
581 in stock

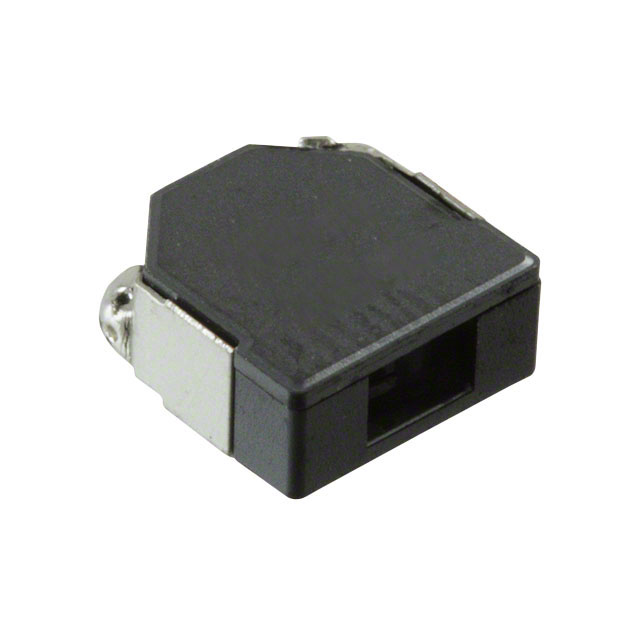

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEIR6D31F
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 4.7A
Current - Saturation : 4A
Shielding : Shielded
DC Resistance (DCR) : 26 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
1304 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP134
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 660nH
Tolerance : ±30%
Current Rating : 17A
Current - Saturation : 29A
Shielding : Shielded
DC Resistance (DCR) : 2.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
50 in stock

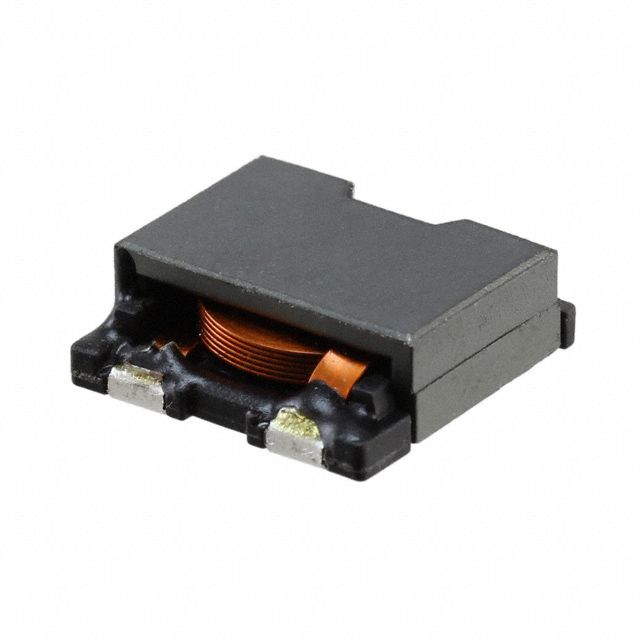

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP134
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.6µH
Tolerance : ±20%
Current Rating : 7.5A
Current - Saturation : 12.5A
Shielding : Shielded
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1337 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP134
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.8µH
Tolerance : ±20%
Current Rating : 7.5A
Current - Saturation : 9.3A
Shielding : Shielded
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
907 in stock

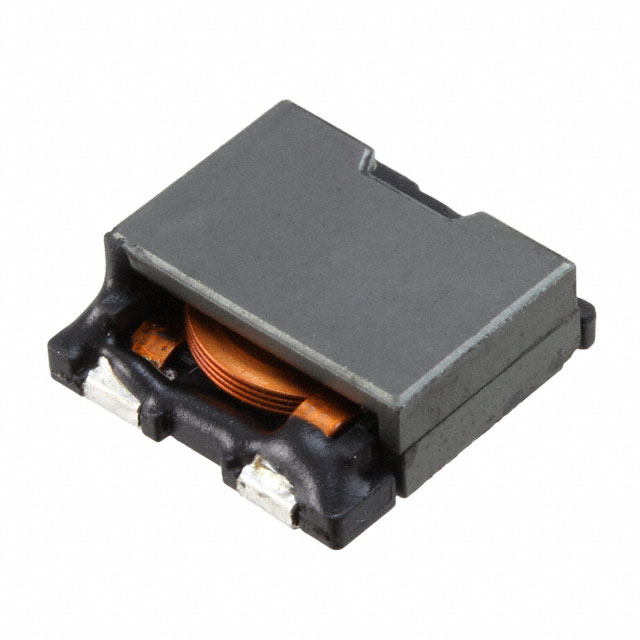

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP134
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 8µH
Tolerance : ±20%
Current Rating : 6.5A
Current - Saturation : 7.2A
Shielding : Shielded
DC Resistance (DCR) : 18.4 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max) : 0.193" (4.90mm)
0
1 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 10A
Current - Saturation : 9.2A
Shielding : Shielded
DC Resistance (DCR) : 9.85 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
353 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±20%
Current Rating : 8.5A
Current - Saturation : 8A
Shielding : Shielded
DC Resistance (DCR) : 13.31 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
2208 in stock

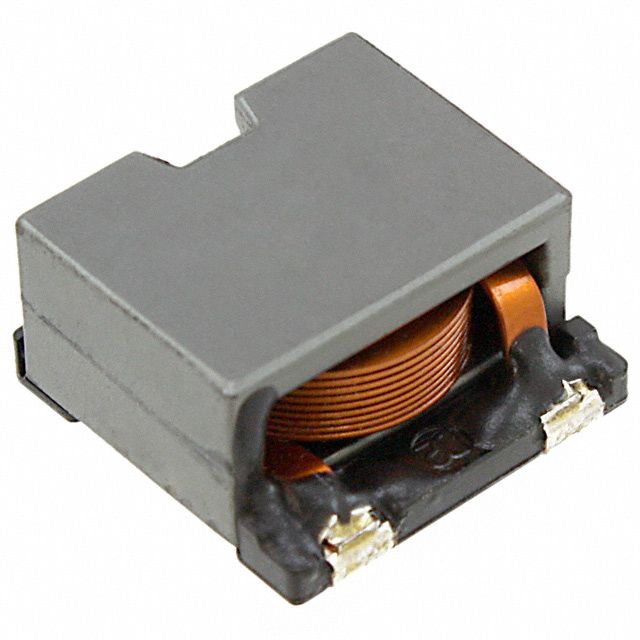

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.1µH
Tolerance : ±20%
Current Rating : 17.5A
Current - Saturation : 16A
Shielding : Shielded
DC Resistance (DCR) : 3.23 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
565 in stock
