Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±10%
Current Rating : 250mA
Current - Saturation : 260mA
Shielding : Unshielded
DC Resistance (DCR) : 4.69 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 650mA
Current - Saturation : 680mA
Shielding : Unshielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2mH
Tolerance : ±10%
Current Rating : 210mA
Current - Saturation : 220mA
Shielding : Unshielded
DC Resistance (DCR) : 6.54 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
500 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 570mA
Current - Saturation : 580mA
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
998 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3mH
Tolerance : ±10%
Current Rating : 160mA
Current - Saturation : 180mA
Shielding : Unshielded
DC Resistance (DCR) : 11.2 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
990 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±10%
Current Rating : 450mA
Current - Saturation : 470mA
Shielding : Unshielded
DC Resistance (DCR) : 1.42 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7mH
Tolerance : ±10%
Current Rating : 125mA
Current - Saturation : 155mA
Shielding : Unshielded
DC Resistance (DCR) : 17.2 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±10%
Current Rating : 370mA
Current - Saturation : 390mA
Shielding : Unshielded
DC Resistance (DCR) : 2.06 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
997 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDMC104
Part Status : Discontinued at
Type : -
Material - Core : Metal Composite
Inductance : 360nH
Tolerance : ±20%
Current Rating : 25A
Current - Saturation : 28A
Shielding : Shielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
254 in stock

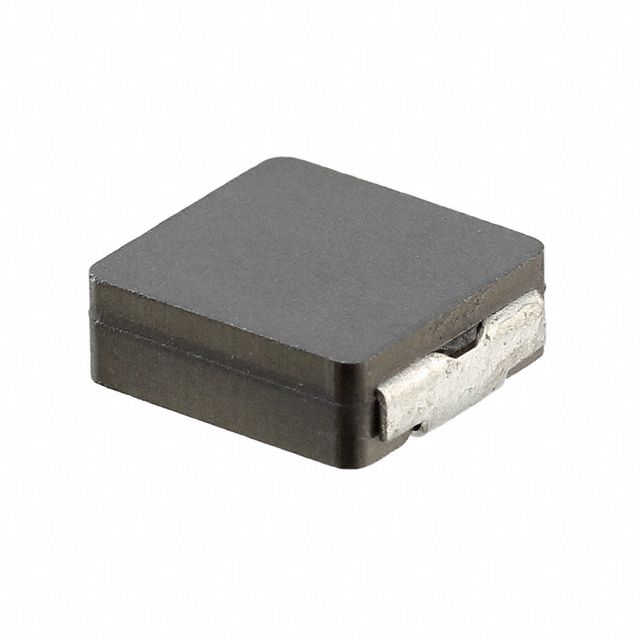

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDMC104
Part Status : Active
Type : -
Material - Core : Metal Composite
Inductance : 560nH
Tolerance : ±20%
Current Rating : 21A
Current - Saturation : 22A
Shielding : Shielded
DC Resistance (DCR) : 1.48 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
615 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDMC6D28
Part Status : Active
Type : -
Material - Core : Metal Composite
Inductance : 1µH
Tolerance : ±20%
Current Rating : 9.5A
Current - Saturation : 8.8A
Shielding : Shielded
DC Resistance (DCR) : 8.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.285" L x 0.256" W (7.25mm x 6.50mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
11992 in stock

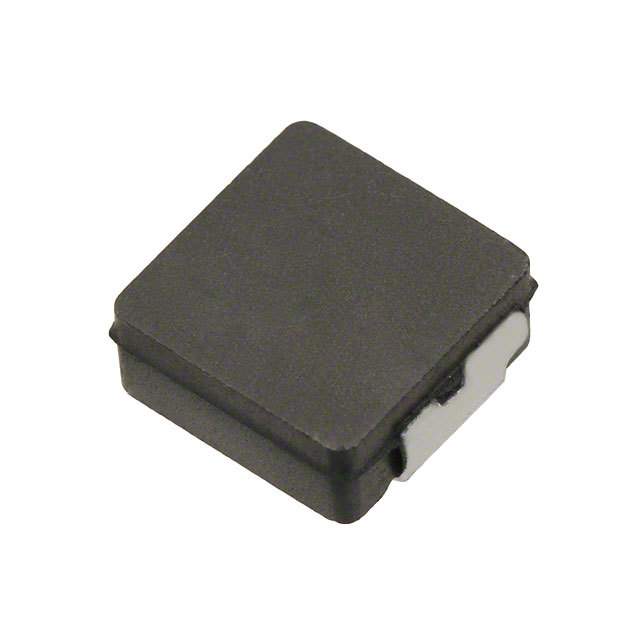

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDMC6D28
Part Status : Active
Type : -
Material - Core : Metal Composite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 6A
Current - Saturation : 6A
Shielding : Shielded
DC Resistance (DCR) : 19.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.285" L x 0.256" W (7.25mm x 6.50mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
1877 in stock
