Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 11A
Current - Saturation : 17.6A
Shielding : Shielded
DC Resistance (DCR) : 7.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
144 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 12.5A
Current - Saturation : 15.2A
Shielding : Shielded
DC Resistance (DCR) : 6.03 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
2353 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.1µH
Tolerance : ±20%
Current Rating : 11A
Current - Saturation : 14.8A
Shielding : Shielded
DC Resistance (DCR) : 7.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
4069 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

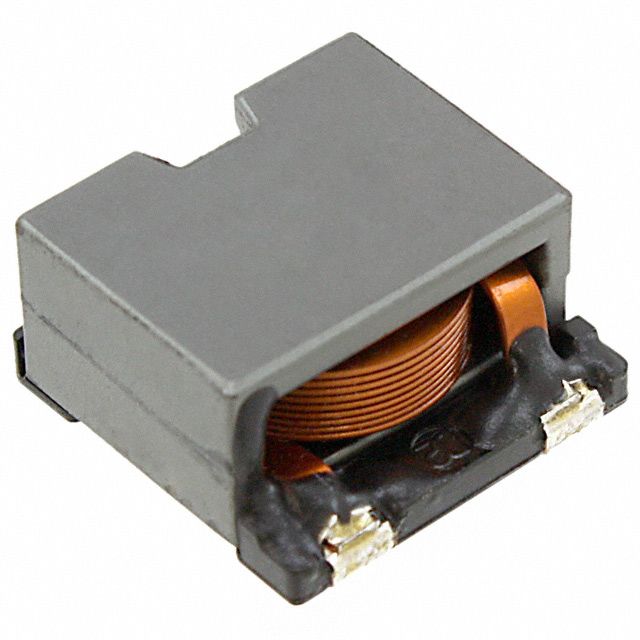

Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 7.7µH
Tolerance : ±20%
Current Rating : 10A
Current - Saturation : 12.4A
Shielding : Shielded
DC Resistance (DCR) : 9.85 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
7161 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEP147
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 8µH
Tolerance : ±20%
Current Rating : 11A
Current - Saturation : 10A
Shielding : Shielded
DC Resistance (DCR) : 7.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDEPI106
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 11µH
Inductance - Connected In Series : 44µH
Tolerance : -
Current Rating - Parallel : 16A
Current Rating - Series : 2A
Current Saturation - Parallel : 4.4A
Current Saturation - Series : 2.2A
DC Resistance (DCR) - Parallel : 11.5 mOhm
DC Resistance (DCR) - Series : 46 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.433" L x 0.433" W (11.00mm x 11.00mm)
Height : 0.413" (10.50mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

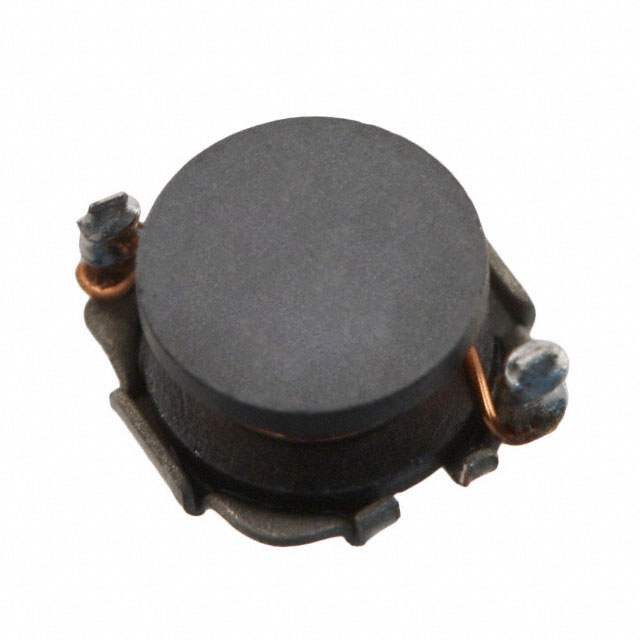

Series : CDH53
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±5%
Current Rating : 370mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.57 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.205" W (6.00mm x 5.20mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
9065 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH53
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 2.03A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.205" W (6.00mm x 5.20mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

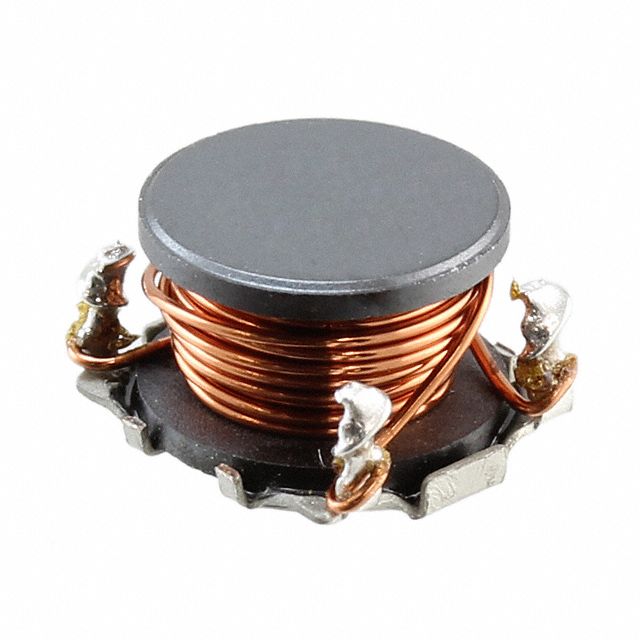

Series : CDH74
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 1.2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 230 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.287" W (8.00mm x 7.30mm)
Height - Seated (Max) : 0.205" (5.20mm)
0
1034 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 1.03A
Current - Saturation : 1.02A
Shielding : Unshielded
DC Resistance (DCR) : 330 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 310mA
Current - Saturation : 320mA
Shielding : Unshielded
DC Resistance (DCR) : 2.94 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDH80D48
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±10%
Current Rating : 830mA
Current - Saturation : 830mA
Shielding : Unshielded
DC Resistance (DCR) : 480 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.331" L x 0.315" W (8.40mm x 8.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
